Sayfa 1-50A - Isuzu EPC

1-50A — EXHAUST PIPE AND SILENCER (#481) — 208 parça

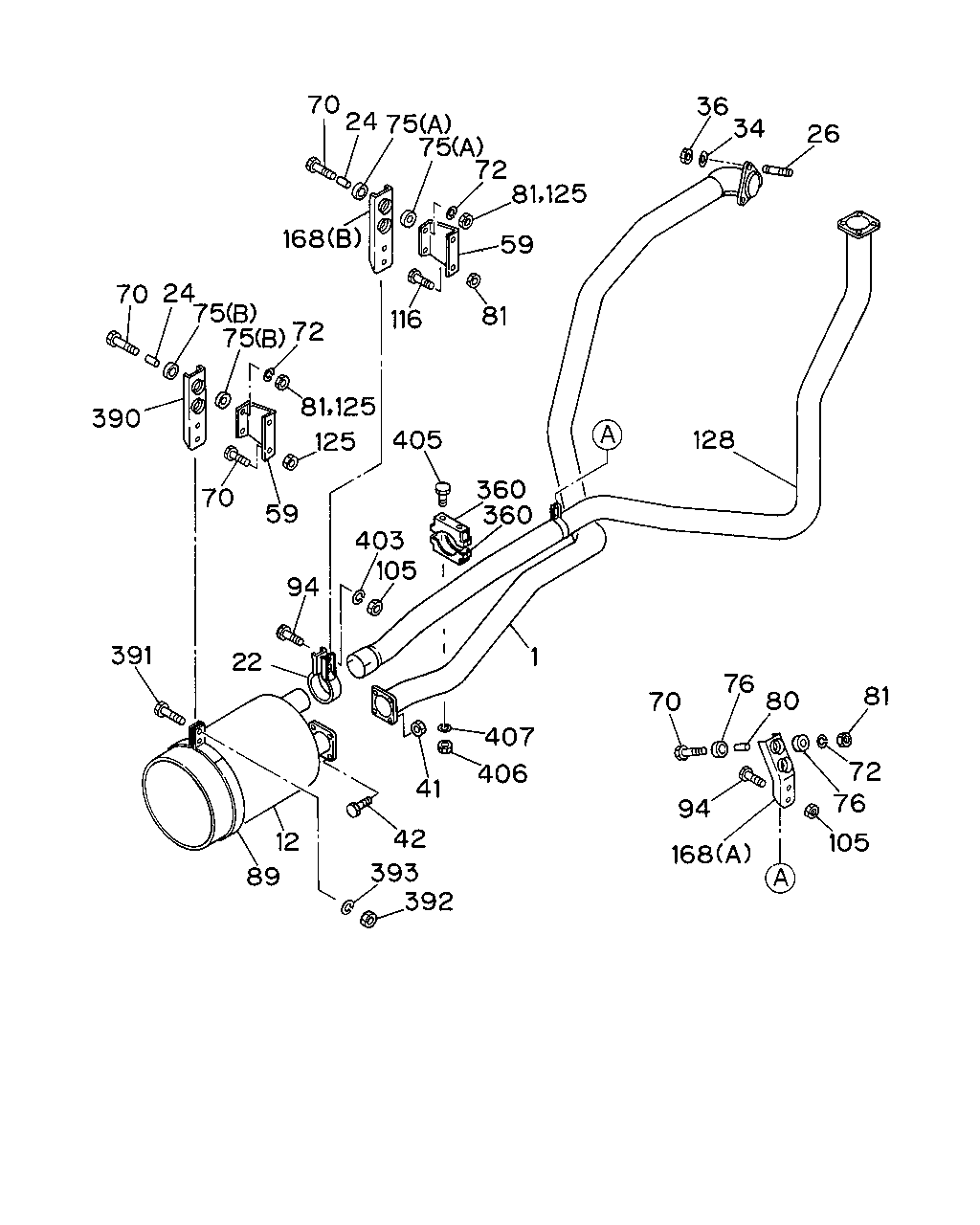

36 34 26 125 81 59 72 75 75 24 70 81 116 168 72 75 75 24 70 81 125 125 390 70 59 405 360 360 403 105 94 22 391 128 407 406 41 42 393 392 12 89 70 76 80 81 72 76 105 94 168 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22121-664-0	01	1	8712-9001	●	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-156-0	01	1	9002-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22121-609-0	01	1	8712-9306	●	●	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-608-1	01	1	8712-9001	●	●	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-595-1	01	1	8712-9306	●	●	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-712-2	01	1	9002-	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-162-0	01	1	8712-9001	●	●	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22133-161-0	01	1	8712-9001	●	●	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> D=79	1-22133-218-0	01	1	9002-9306	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-191-0	01	1	9002-9008	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	06	1	8712-9001	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9002-	●	●
26	STUD; EXH MANIF	1-09302-090-0	03	1	8712-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	8712-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	8712-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	8712-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	8712-9005	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
59	BRACKET; EXH SILENCER,FRT	1-22151-325-0	02	1	8712-	●	●	●
70	BOLT; BRKT M10X55	9-01056-055-0	04	1	8712-9004	●	●	●
70	BOLT; BRKT M10X55	0-10806-055-0	04	1	9005-	●	●
70	BOLT; BRKT M8X30 W/LK WASHER	9-01910-830-0	02	1	8712-9005	●	●	●
70	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9006-9302	●	●
70	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	8712-	●	●	●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A),(B) OD=40	1-22159-094-0	08	1	9307-	●	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	8712-9306	●	●
75	RUBBER; SUPPORT,BRKT (B)	1-22159-065-0	04	1	9002-9306	●	●
75	RUBBER; SUPPORT,BRKT (A),(B) OD=40	1-22159-094-0	08	1	9307-	●	●
76	SUPPORT; BRKT OD=40	1-22159-094-0	04	1	8712-9306	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	8712-	●	●	●
81	NUT; BRKT M8	9-09110-408-0	04	1	8712-	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-410-0	06	1	8712-9001	●	●	●
81	NUT; BRKT M10	9-09110-510-0	04	1	9002-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-	●	●
89	CLAMP; EXH SILENCER,RR	1-22133-164-1	01	1	8712-	●	●	●
94	BOLT; CLAMP M8X28 W/LK WASHER	9-01910-828-0	02	1	8712-9005	●	●	●
94	BOLT; CLAMP M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-9302	●	●
94	BOLT; CLAMP M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●
94	BOLT; CLAMP M8X28 FLANGE	0-28080-828-0	02	1	9307-	●	●
94	BOLT; CLAMP M8X35 W/LK WASHER	9-01910-835-0	04	1	8712-9005	●	●	●
94	BOLT; CLAMP M8X35 W/LK WASHER	0-50040-835-0	04	1	9006-9302	●	●
94	BOLT; CLAMP M8X35 FLANGE	0-28080-835-0	04	1	9303-	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	01	1	8712-9204	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	9-01911-230-0	04	1	8712-9005	●	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●	●
105	NUT; CLAMP M8	9-09110-408-0	03	1	8712-	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	8712-9306	●	●	●
105	NUT; CLAMP M10	9-09110-510-0	01	1	9307-		●
116	BOLT; BRKT M8X30 W/LK WASHER	9-01910-830-0	02	1	8712-9005	●	●
116	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9006-9302	●	●
116	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	01	1	8712-	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	8712-9306	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M12	9-99110-412-0	04	1	8712-9304	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	04	1	9305-9306	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22112-805-0	01	1	8712-9001	●	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22122-103-1	01	1	9002-9306	●	●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-416-0	01	1	8712-	●	●	●
168	BRACKET; EXH PIPE,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-379-0	01	1	8712-	●	●	●
168	BRACKET; EXH PIPE,FRT VERTICAL TAIL PIPE<NC4> (B)	1-22131-375-0	01	1	8712-9306	●	●	●
360	PIECE; DIST,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22139-020-0	02	1	8712-9306	●	●	●
390	BRACKET; PIPE CLAMP TO BRKT	1-22131-374-1	01	1	8712-	●	●	●
391	BOLT; CLAMP BRKT M10X55	9-01056-055-0	02	1	8712-9004	●	●	●
391	BOLT; CLAMP BRKT M10X55	0-10806-055-0	02	1	9005-	●	●
392	NUT; CLAMP BRKT M10	9-09110-510-0	02	1	8712-	●	●	●
393	WASHER; LK,CLAMP BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
403	WASHER; PL,BRKT FIX ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
405	BOLT; DIST PIECE VERTICAL TAIL PIPE<NC4>	9-09801-347-1	01	1	8712-9306	●	●	●
406	NUT; DIST PIECE VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	01	1	8712-9306	●	●	●
407	WASHER; LK DIST PIECE VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	01	1	8712-9306	●	●	●

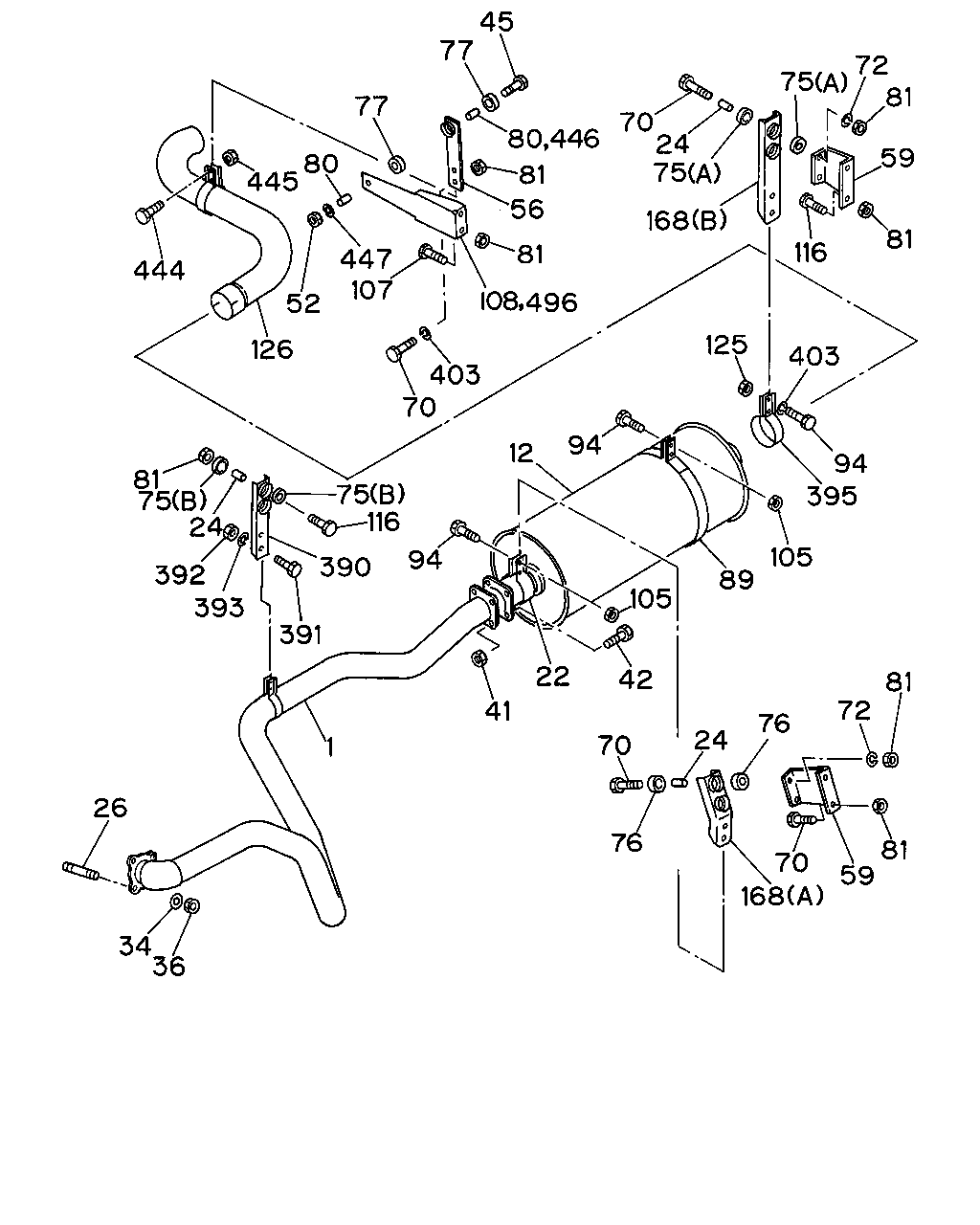

36 34 26 1 41 22 42 70 76 24 76 72 81 81 59 70 168 105 89 105 395 94 403 125 94 12 94 75 116 390 391 393 392 24 75 81 126 52 444 445 80 447 107 403 70 108 496 81 56 81 80 446 77 77 45 70 24 75 168 75 72 81 59 81 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22121-664-0	01	1	8712-9001	●	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-156-0	01	1	9002-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22121-609-0	01	1	8712-9306	●	●	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-608-1	01	1	8712-9001	●	●	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-595-1	01	1	8712-9306	●	●	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-712-2	01	1	9002-	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-162-0	01	1	8712-9001	●	●	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22133-161-0	01	1	8712-9001	●	●	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> D=79	1-22133-218-0	01	1	9002-9306	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-191-0	01	1	9002-9008	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	06	1	8712-9001	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9002-	●	●
26	STUD; EXH MANIF	1-09302-090-0	03	1	8712-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	8712-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	8712-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	8712-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	8712-9005	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
45	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X55	9-01056-055-0	01	1	8712-9004	●	●	●
45	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X55	0-10806-055-0	01	1	9005-	●	●
52	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	8712-	●	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-315-2	01	1	8712-9008	●	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-618-0	01	1	9009-	●	●
59	BRACKET; EXH SILENCER,FRT	1-22151-325-0	02	1	8712-	●	●	●
70	BOLT; BRKT M10X55	9-01056-055-0	04	1	8712-9004	●	●	●
70	BOLT; BRKT M10X55	0-10806-055-0	04	1	9005-	●	●
70	BOLT; BRKT M8X30 W/LK WASHER	9-01910-830-0	02	1	8712-9005	●	●	●
70	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9006-9302	●	●
70	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	8712-	●	●	●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A),(B) OD=40	1-22159-094-0	08	1	9307-	●	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	8712-9306	●	●
75	RUBBER; SUPPORT,BRKT (B)	1-22159-065-0	04	1	9002-9306	●	●
75	RUBBER; SUPPORT,BRKT (A),(B) OD=40	1-22159-094-0	08	1	9307-	●	●
76	SUPPORT; BRKT OD=40	1-22159-094-0	04	1	8712-9306	●	●	●
77	RUBBER; CUSHION,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	02	1	8712-9306	●	●	●
77	RUBBER; CUSHION,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	04	1	9307-		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	8712-	●	●	●
81	NUT; BRKT M8	9-09110-408-0	04	1	8712-	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-410-0	06	1	8712-9001	●	●	●
81	NUT; BRKT M10	9-09110-510-0	04	1	9002-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-	●	●
89	CLAMP; EXH SILENCER,RR	1-22133-164-1	01	1	8712-	●	●	●
94	BOLT; CLAMP M8X28 W/LK WASHER	9-01910-828-0	02	1	8712-9005	●	●	●
94	BOLT; CLAMP M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-9302	●	●
94	BOLT; CLAMP M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●
94	BOLT; CLAMP M8X28 FLANGE	0-28080-828-0	02	1	9307-	●	●
94	BOLT; CLAMP M8X35 W/LK WASHER	9-01910-835-0	04	1	8712-9005	●	●	●
94	BOLT; CLAMP M8X35 W/LK WASHER	0-50040-835-0	04	1	9006-9302	●	●
94	BOLT; CLAMP M8X35 FLANGE	0-28080-835-0	04	1	9303-	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	01	1	8712-9204	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	9-01911-230-0	04	1	8712-9005	●	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●	●
105	NUT; CLAMP M8	9-09110-408-0	03	1	8712-	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	8712-9306	●	●	●
105	NUT; CLAMP M10	9-09110-510-0	01	1	9307-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-502-0	01	1	9002-	●	●
116	BOLT; BRKT M8X30 W/LK WASHER	9-01910-830-0	02	1	8712-9005	●	●
116	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9006-9302	●	●
116	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	01	1	8712-	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	8712-9306	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M12	9-99110-412-0	04	1	8712-9304	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	04	1	9305-9306	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22112-812-0	01	1	8712-9008	●	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-102-0	01	1	9009-9412	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-102-0	01	1	9501-		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-416-0	01	1	8712-	●	●	●
168	BRACKET; EXH PIPE,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-379-0	01	1	8712-	●	●	●
168	BRACKET; EXH PIPE,FRT VERTICAL TAIL PIPE<NC4> (B)	1-22131-375-0	01	1	8712-9306	●	●	●
390	BRACKET; PIPE CLAMP TO BRKT	1-22131-374-1	01	1	8712-	●	●	●
391	BOLT; CLAMP BRKT M10X55	9-01056-055-0	02	1	8712-9004	●	●	●
391	BOLT; CLAMP BRKT M10X55	0-10806-055-0	02	1	9005-	●	●
392	NUT; CLAMP BRKT M10	9-09110-510-0	02	1	8712-	●	●	●
393	WASHER; LK,CLAMP BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
395	CLIP; EXH PIPE TO SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	8712-	●	●	●
403	WASHER; PL,BRKT FIX ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
444	BOLT; PIPE CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	9-01910-835-0	02	1	8712-9005	●	●	●
444	BOLT; PIPE CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●	●
444	BOLT; PIPE CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●
445	NUT; PIPE CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-	●	●
446	PIECE; DIST,EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	01	1	9002-	●	●
447	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	01	1	8712-	●	●	●
496	BRACKET; BRKT TO FRAME,EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-363-0	01	1	8712-9001	●	●	●

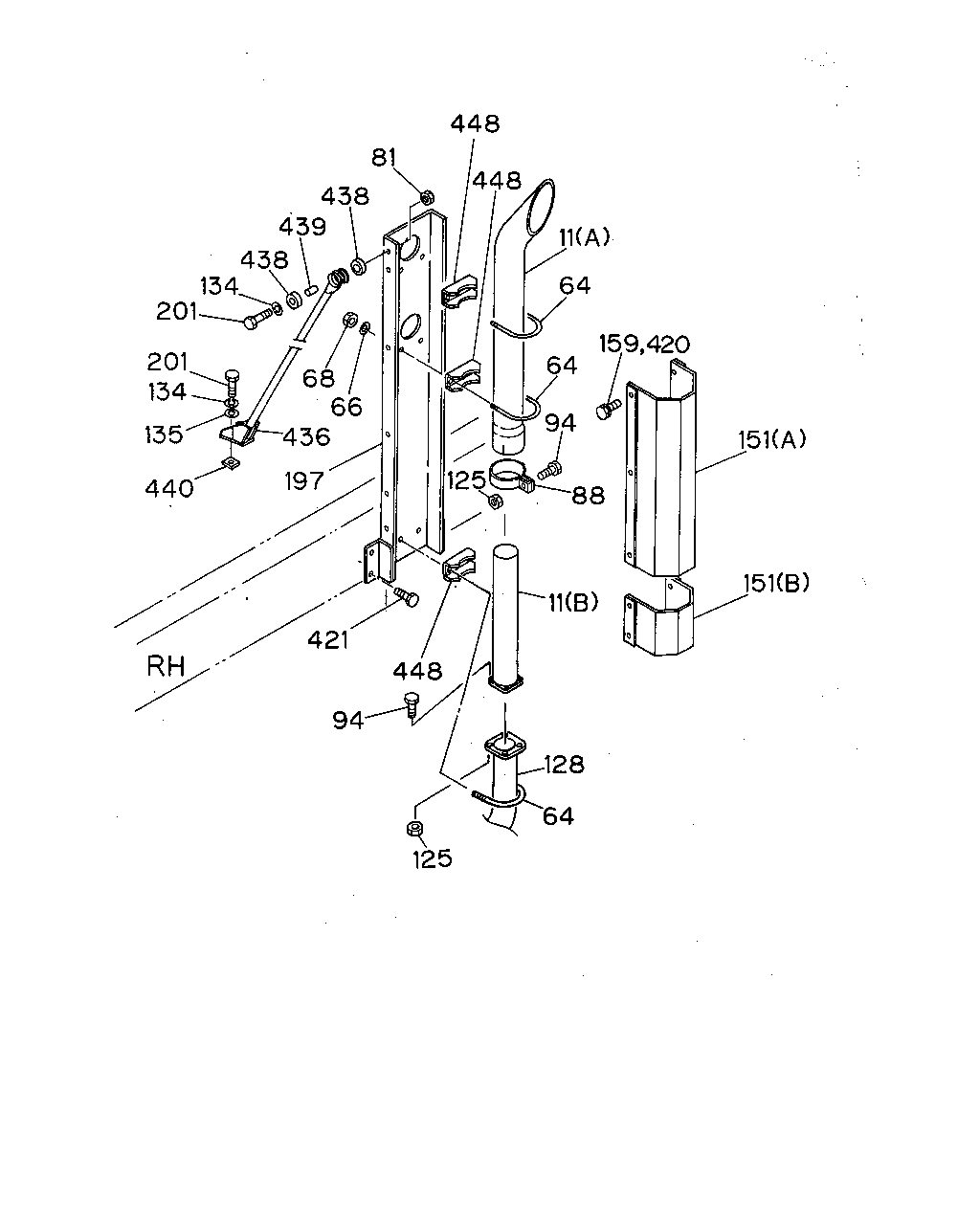

448 448 11 64 159 420 64 94 151 88 125 11 151 128 64 125 94 448 421 197 436 66 68 440 135 134 201 201 134 438 439 438 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4> (A)	1-22112-518-2	01	1	8712-9306	●	●	●
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4> (B)	1-22112-667-2	01	1	8712-9306	●	●	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> L=150	1-22113-008-0	03	1	8712-9306	●	●	●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	06	1	8712-9306	●	●	●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> M8	9-09111-408-0	06	1	8712-9306	●	●	●
81	NUT; BRKT M8	9-09110-408-0	04	1	8712-	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-410-0	06	1	8712-9001	●	●	●
81	NUT; BRKT M10	9-09110-510-0	04	1	9002-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-	●	●
88	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> ID=97	1-22133-043-1	01	1	8712-9306	●	●	●
94	BOLT; CLAMP M8X28 W/LK WASHER	9-01910-828-0	02	1	8712-9005	●	●	●
94	BOLT; CLAMP M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-9302	●	●
94	BOLT; CLAMP M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●
94	BOLT; CLAMP M8X28 FLANGE	0-28080-828-0	02	1	9307-	●	●
94	BOLT; CLAMP M8X35 W/LK WASHER	9-01910-835-0	04	1	8712-9005	●	●	●
94	BOLT; CLAMP M8X35 W/LK WASHER	0-50040-835-0	04	1	9006-9302	●	●
94	BOLT; CLAMP M8X35 FLANGE	0-28080-835-0	04	1	9303-	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	01	1	8712-9204	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	9-01911-230-0	04	1	8712-9005	●	●	●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	01	1	8712-	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	8712-9306	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M12	9-99110-412-0	04	1	8712-9304	●	●	●
125	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	04	1	9305-9306	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22112-805-0	01	1	8712-9001	●	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22122-103-1	01	1	9002-9306	●	●
134	WASHER; LK,STAY VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	01	1	8712-9306	●	●	●
134	WASHER; LK,STAY VERTICAL TAIL PIPE<NC4> ID=14.2	9-09150-614-0	01	1	8712-9306	●	●
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ID=15	9-09160-514-0	02	1	8712-9306	●	●	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (A)	1-22159-096-1	01	1	8712-9306	●	●	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22159-100-0	01	1	8712-9306	●	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X18 W/LK&PL WASHER	9-01960-818-0	10	1	8712-9204	●	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X18 W/LK&PL WASHER	0-50140-818-0	10	1	9205-9306	●	●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4>	1-22131-411-3	01	1	8712-9306	●	●	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> M10X50	9-01056-050-0	01	1	8712-9004	●	●	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> M10X50	0-10806-050-0	01	1	9005-9306	●	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> M14X55	9-91066-455-0	01	1	8712-9306	●	●	●
420	BOLT; BRKT,VERTICAL PIPE VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	9-01911-030-0	06	1	8712-9002	●	●	●
420	BOLT; BRKT,VERTICAL PIPE VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	06	1	9003-9306	●	●	●
421	BOLT; PIPE BRKT VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	9-01911-030-0	04	1	8712-9002	●	●	●
421	BOLT; PIPE BRKT VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9003-9306	●	●	●
436	STAY; SUPPORT,EXH VERTICAL TAIL PIPE<NC4>	1-22151-404-2	01	1	8712-9306	●	●	●
438	RUBBER; SUPPORT,STAY VERTICAL TAIL PIPE<NC4>	1-22159-065-0	02	1	8712-9306	●	●	●
439	TUBE; DIST,SUPPORT RUBBER VERTICAL TAIL PIPE<NC4> L=23.2	9-22159-009-1	01	1	8712-9109	●	●	●
439	TUBE; DIST,SUPPORT RUBBER VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	9110-9306	●	●	●
440	SPACER; PIPE STAY VERTICAL TAIL PIPE<NC4>	1-57518-011-0	01	1	8712-9306	●	●	●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4>	1-22119-162-0	03	1	8712-9306	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
