6-32 — FRONT DOOR LOCK AND HANDLE (#48097) — 51 parça
çizim 16679
92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
92 16.263 BOX; POWER WINDOW SW,DOOR SIDE
POWER WINDOW<A30> GRAY 		8-97001-016-5 01 1 9409- ● ●

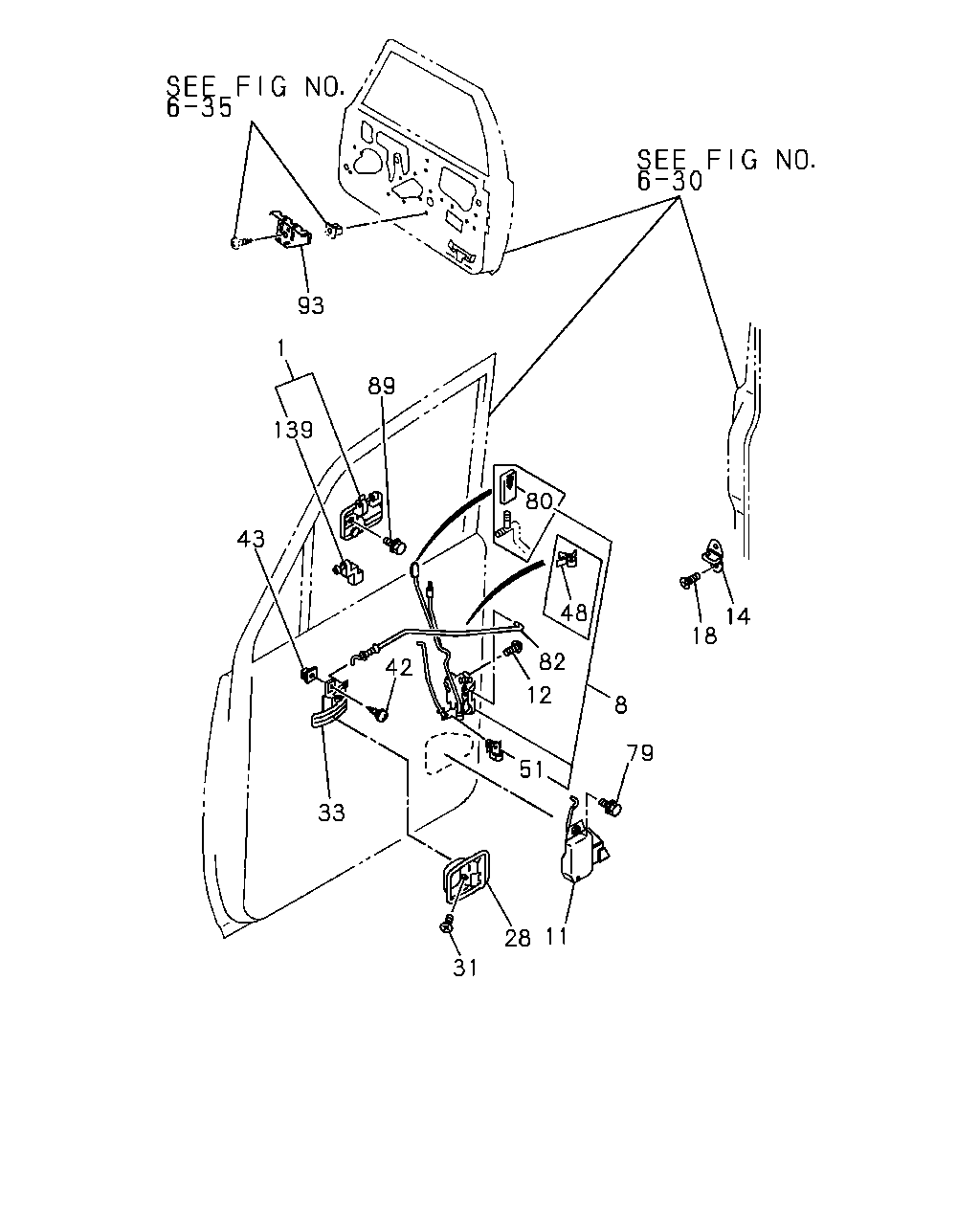

çizim 66385
93 89 139 1 43 42 33 51 28 11 31 79 18 14 12 8 48 80 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94474-031-3 01 1 9210- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94474-030-3 01 1 9210- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-974-1 01 1 9210- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94434-973-1 01 1 9210- ● ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(120) BROWN 		8-94373-457-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94373-458-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-94373-458-3 01 1 9309- ● ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(120) BROWN 		8-94373-454-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94373-455-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-94373-455-3 01 1 9309- ● ● ● ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-94450-010-3 01 1 9409- ● ●
12 16.330 SCREW; DOOR LK
10.470 M6X16 OVAL-HD 		8-94172-523-0 06 1 9210-9405 ● ● ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
M6X16 CK-HD 		8-97113-761-0 06 1 9406-9512 ● ● ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
10.470 M6X16 OVAL-HD 		8-94172-523-0 06 1 9601- ● ● ● ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR
10.569 		8-94115-959-0 02 1 9210- ● ● ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
10.570 M8X20 		9-03097-820-0 04 1 9210- ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR COLOR BEIGE(120) BROWN 		8-94476-853-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94430-430-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-94430-430-2 01 1 9309- ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR COLOR BEIGE(120) BROWN 		8-94476-852-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94430-427-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-94430-427-2 01 1 9309- ● ● ● ● ● ● ● ●
31 16.345 SCREW; BEZEL,INSIDE LEVER
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 9210- ● ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(120) BROWN 		8-94476-851-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94430-424-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-94430-424-3 01 1 9309- ● ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(120) BROWN 		8-94476-850-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94430-421-3 01 1 9210-9308 ● ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-94430-421-3 01 1 9309- ● ● ● ● ● ● ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
10.512 M6X16 		9-09829-197-0 04 1 9210- ● ● ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
16.450 		5-09470-001-0 04 1 9210- ● ● ● ● ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK
10.506 ID=3.5 		8-94167-353-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK
16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 9407- ● ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
PINK 		8-97041-585-0 03 1 9210- ● ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
10.470 VIOLET 		8-97041-586-0 03 1 9210- ● ● ● ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.701 M6X8 		8-94155-893-0 02 1 9409- ● ●
80 16.157 KNOB; DOOR LOCK
INTERIOR COLOR BEIGE(120) BROWN 		8-97002-905-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97002-903-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
GRAY 		8-97002-903-0 02 1 9309- ● ● ● ● ● ● ● ●
82 16.341 LINK; DOOR INSIDE 8-97081-276-1 01 1 9210- ● ● ● ● ● ● ● ●
82 16.341 LINK; DOOR INSIDE 8-97081-275-1 01 1 9210- ● ● ● ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 		8-94155-893-0 04 1 9210- ● ● ● ● ● ● ● ●
93 16.165 BRACKET; BOX,DOOR 8-97018-622-1 01 1 9210-9603 ● ● ● ● ● ● ● ●
93 16.165 BRACKET; BOX,DOOR 8-97146-542-0 01 1 9604- ● ● ● ● ● ● ● ●
93 16.165 BRACKET; BOX,DOOR 8-97018-621-1 01 1 9210-9603 ● ● ● ● ● ● ● ●
93 16.165 BRACKET; BOX,DOOR 8-97146-541-0 01 1 9604- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
EXTERIOR CHROME PACKAGE<6CX> 		8-97102-756-0 01 1 9210- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
EXTERIOR CHROME PACKAGE<6CX> 		8-97102-755-0 01 1 9210- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
EXC. EXTERIOR CHROME PACKAGE<6CX> 16.330 		8-97134-591-0 01 1 9210- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
EXC. EXTERIOR CHROME PACKAGE<6CX> 16.330 		8-97134-588-0 01 1 9210- ● ● ● ● ● ● ● ●
