6-31 — FRONT DOOR GLASS AND REGULATOR (#48096) — 86 parça

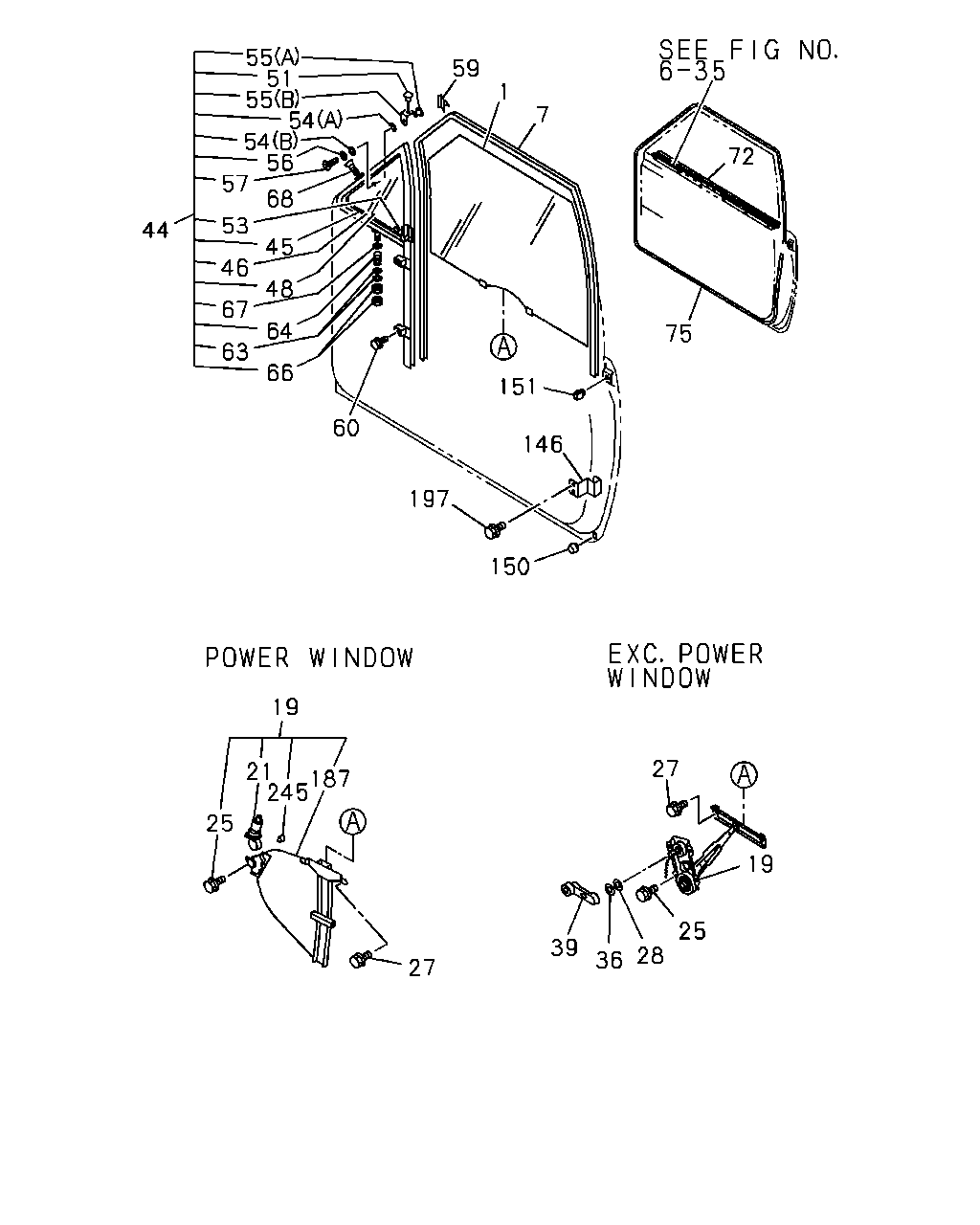

çizim 16837
55 59 51 55 54 54 56 57 68 53 44 45 46 67 48 63 64 1 66 151 7 72 75 146 150 197 60 19 21 245 187 25 27 39 36 28 25 19 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.180 GLASS; FRT DOOR 8-94434-986-0 01 1 9210-9309 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97150-096-0 01 1 9310-9509 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97123-200-1 01 1 9510- ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-94434-985-0 01 1 9210-9309 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97150-095-0 01 1 9310-9509 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97123-199-1 01 1 9510- ● ● ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97081-534-0 01 1 9210- ● ● ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97081-533-0 01 1 9210- ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97165-885-0 01 1 9609- ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97165-884-0 01 1 9609- ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94434-978-3 01 1 9210- ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94434-977-3 01 1 9210- ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-183-2 01 1 9210-9408 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-183-2 01 1 9409-9501 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-183-2 01 1 9502-9509 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-183-2 01 1 9510-9608 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-889-0 01 1 9609- ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-184-2 01 1 9210-9408 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-184-2 01 1 9409-9501 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-184-2 01 1 9502-9509 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-94388-184-2 01 1 9510-9608 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-888-0 01 1 9609- ● ● ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> 10.701 M6X8 		8-94155-893-0 08 1 9210- ● ● ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
POWER WINDOW<A30> 10.701 M6X8 		8-94155-893-0 12 1 9210-9408 ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
POWER WINDOW<A30> 10.701 M6X8 		8-94155-893-0 12 1 9409- ● ● ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 		8-94155-893-0 04 1 9210- ● ● ● ● ● ● ● ●
28 16.155 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 10.783 		8-94106-830-1 02 1 9210- ● ● ● ● ● ● ● ●
36 16.270 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 10.805 		8-94220-668-1 02 1 9210- ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BEIGE(120) EXC. POWER WINDOW<A30> BROWN 		8-94476-854-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MUSHROOM(150) EXC. POWER WINDOW<A30> GRAY 		8-94436-757-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> GRAY 		8-94436-757-0 02 1 9309- ● ● ● ● ● ● ● ●
44 16.173 VENTILATOR ASM; CROSS,FRT DOOR 8-97080-761-0 01 1 9210-9309 ● ● ● ● ● ● ● ●
44 16.173 VENTILATOR ASM; CROSS,FRT DOOR 8-97102-502-0 01 1 9310-9509 ● ● ● ● ● ● ● ●
44 16.173 VENTILATOR ASM; CROSS,FRT DOOR 8-97124-611-1 01 1 9510- ● ● ● ● ● ● ● ●
44 16.173 VENTILATOR ASM; CROSS,FRT DOOR 8-97080-760-0 01 1 9210-9309 ● ● ● ● ● ● ● ●
44 16.173 VENTILATOR ASM; CROSS,FRT DOOR 8-97102-501-0 01 1 9310-9509 ● ● ● ● ● ● ● ●
44 16.173 VENTILATOR ASM; CROSS,FRT DOOR 8-97124-610-1 01 1 9510- ● ● ● ● ● ● ● ●
45 16.175 WEATHERSTRIP; CROSS,VENTILATOR 8-94311-341-4 01 1 9210- ● ● ● ● ● ● ● ●
45 16.175 WEATHERSTRIP; CROSS,VENTILATOR 8-94311-340-4 01 1 9210- ● ● ● ● ● ● ● ●
46 16.175 RUBBER; GLAZING,CROSS VENT 8-94316-825-1 02 1 9210- ● ● ● ● ● ● ● ●
48 16.174 GLASS; CROSS VENTILATOR 8-94450-719-0 01 1 9210-9309 ● ● ● ● ● ● ● ●
48 16.174 GLASS; CROSS VENTILATOR 8-97150-144-0 01 1 9310-9509 ● ● ● ● ● ● ● ●
48 16.174 GLASS; CROSS VENTILATOR 8-97123-505-1 01 1 9510- ● ● ● ● ● ● ● ●
48 16.174 GLASS; CROSS VENTILATOR 8-94450-718-0 01 1 9210-9309 ● ● ● ● ● ● ● ●
48 16.174 GLASS; CROSS VENTILATOR 8-97150-143-0 01 1 9310-9509 ● ● ● ● ● ● ● ●
48 16.174 GLASS; CROSS VENTILATOR 8-97123-504-1 01 1 9510- ● ● ● ● ● ● ● ●
51 16.176 RIVET; PIVOT,UPR 8-94183-523-0 02 1 9210- ● ● ● ● ● ● ● ●
53 16.176 HANDLE; CATCH,CROSS VENTILATOR 8-94379-525-0 01 1 9210- ● ● ● ● ● ● ● ●
53 16.176 HANDLE; CATCH,CROSS VENTILATOR 8-94379-524-0 01 1 9210- ● ● ● ● ● ● ● ●
54 16.175 RUBBER; WASHER,PIVOT BRKT
(A) T=1.5 		8-94311-327-0 02 1 9210- ● ● ● ● ● ● ● ●
54 16.175 RUBBER; WASHER,PIVOT BRKT
(B) T=2.5 		8-94334-180-0 02 1 9210- ● ● ● ● ● ● ● ●
55 16.175 BRACKET; GLASS STOPPER
(A)NUT;PIVOT TOP LOWER 		8-94311-328-0 02 1 9210- ● ● ● ● ● ● ● ●
55 16.175 BRACKET; GLASS STOPPER
(B)HINGE;PIVOT TOP LOWER 		8-94311-344-0 02 1 9210- ● ● ● ● ● ● ● ●
56 16.173 WASHER; PL,BRKT 8-94184-511-0 02 1 9210- ● ● ● ● ● ● ● ●
57 16.173 SCREW; BRKT
M5X8 		8-97061-782-0 02 1 9210- ● ● ● ● ● ● ● ●
59 16.176 CAP; END,CROSS VENT 8-94478-142-1 01 1 9210- ● ● ● ● ● ● ● ●
59 16.176 CAP; END,CROSS VENT 8-94478-141-1 01 1 9210- ● ● ● ● ● ● ● ●
60 16.176 BOLT; CROSS VENT
10.701 M6X8 		8-94155-893-0 04 1 9210- ● ● ● ● ● ● ● ●
63 16.173 WASHER; PL,VENTILATOR
02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 9210- ● ● ● ● ● ● ● ●
64 16.176 SPRING; CROSS VENT 9-09840-123-0 02 1 9210- ● ● ● ● ● ● ● ●
66 16.176 NUT; PIVOT,LWR
M6 		9-09110-406-0 04 1 9210- ● ● ● ● ● ● ● ●
67 16.176 WASHER; STOPPER
T=2.3 		8-94334-179-0 02 1 9210- ● ● ● ● ● ● ● ●
67 16.176 WASHER; STOPPER
T=0.5 		8-94334-181-0 04 1 9210- ● ● ● ● ● ● ● ●
68 16.173 SCREW; VENTILATOR
M4X12 OVAL-HEAD 		9-93297-412-0 04 1 9210- ● ● ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR 8-94434-990-4 01 1 9210- ● ● ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR 8-94434-989-4 01 1 9210- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-94434-996-3 01 1 9210-9307 ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97104-070-0 01 1 9308- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-94434-995-3 01 1 9210-9307 ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97104-069-0 01 1 9308- ● ● ● ● ● ● ● ●
146 16.175 STABILIZER; FRT DOOR
EXC. POWER WINDOW<A30> 		8-97033-817-1 01 1 9210- ● ● ● ● ● ● ● ●
146 16.175 STABILIZER; FRT DOOR
EXC. POWER WINDOW<A30> 		8-97033-816-1 01 1 9210- ● ● ● ● ● ● ● ●
150 16.400 BUFFER; FRT DOOR 8-97014-688-0 02 1 9210- ● ● ● ● ● ● ● ●
151 16.400 BUFFER; DOOR UPR
10.587 		8-03468-771-1 02 1 9210- ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-94386-455-0 01 1 9210-9301 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97093-532-0 01 1 9302-9408 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97093-532-0 01 1 9409-9501 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97105-552-1 01 1 9502-9608 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-887-0 01 1 9609- ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-94386-454-0 01 1 9210-9301 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97093-531-0 01 1 9302-9408 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97093-531-0 01 1 9409-9501 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97105-551-1 01 1 9502-9608 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-886-0 01 1 9609- ● ● ● ● ● ● ● ●
197 16.175 SCREW; STABILIZER
EXC. POWER WINDOW<A30> M6X14 		8-94113-240-1 04 1 9210- ● ● ● ● ● ● ● ●
245 16.260 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74417-074-0 02 1 9503- ● ● ● ● ● ● ● ●
