◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#48095) — 31 parça

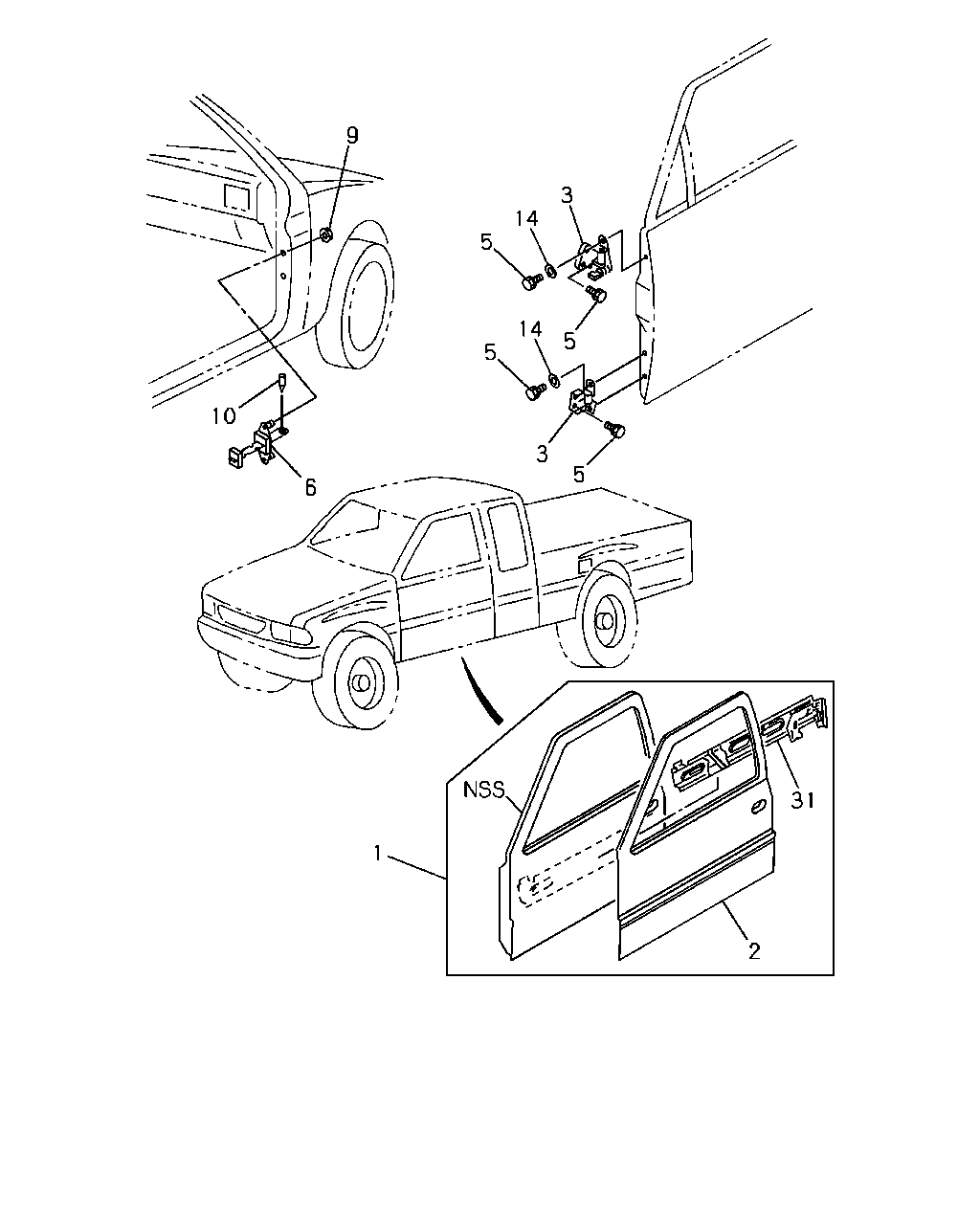

çizim 68528
5 14 3 5 14 5 9 6 10 3 5 31 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97076-558-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97088-623-1 01 1 9309- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97076-557-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97088-622-1 01 1 9309- ● ● ● ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94449-356-5 01 1 9210- ● ● ● ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94449-355-5 01 1 9210- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
10.454 LOWER 		8-94155-314-2 01 1 9210- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
UPPER 		8-94230-392-4 01 1 9210- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
10.454 LOWER 		8-94155-315-2 01 1 9210- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
UPPER 		8-94230-393-4 01 1 9210- ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 16 1 9210-9411 ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK<6HF> 10.463 M8X23 FLANGE 		8-94174-559-2 08 1 9412-9510 ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 9412-9510 ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 9412-9510 ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 9511- ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 9511- ● ● ● ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-94370-880-1 02 1 9210- ● ● ● ● ● ● ● ●
9 16.320 NUT; CHECK ARM
07.829 M6 FLANGE 		5-09440-004-0 04 1 9210- ● ● ● ● ● ● ● ●
10 16.320 PIN; CHECK ARM
10.455 		8-94111-468-0 02 1 9210- ● ● ● ● ● ● ● ●
14 16.320 WASHER; PL,HINGE
ID=8 OD=21 W/ADHESIVE TAPE 		8-97113-760-0 04 1 9404-9411 ● ● ● ● ● ● ● ●
14 16.320 WASHER; PL,HINGE
EXC. KD PREPARATORY PACK<6HF> ID=8 OD=21 W/ADHESIVE TAPE 		8-97113-760-0 04 1 9412-9510 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-94440-191-3 01 1 9210-9210 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97088-617-0 01 1 9211-9404 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97088-617-1 01 1 9405-9411 ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97112-918-0 01 1 9405-9411 ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97112-918-0 01 1 9412- ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-94440-190-3 01 1 9210-9210 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97088-616-0 01 1 9211-9404 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97088-616-1 01 1 9405-9411 ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97112-917-0 01 1 9405-9411 ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97112-917-0 01 1 9412- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
