◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#48093) — 19 parça

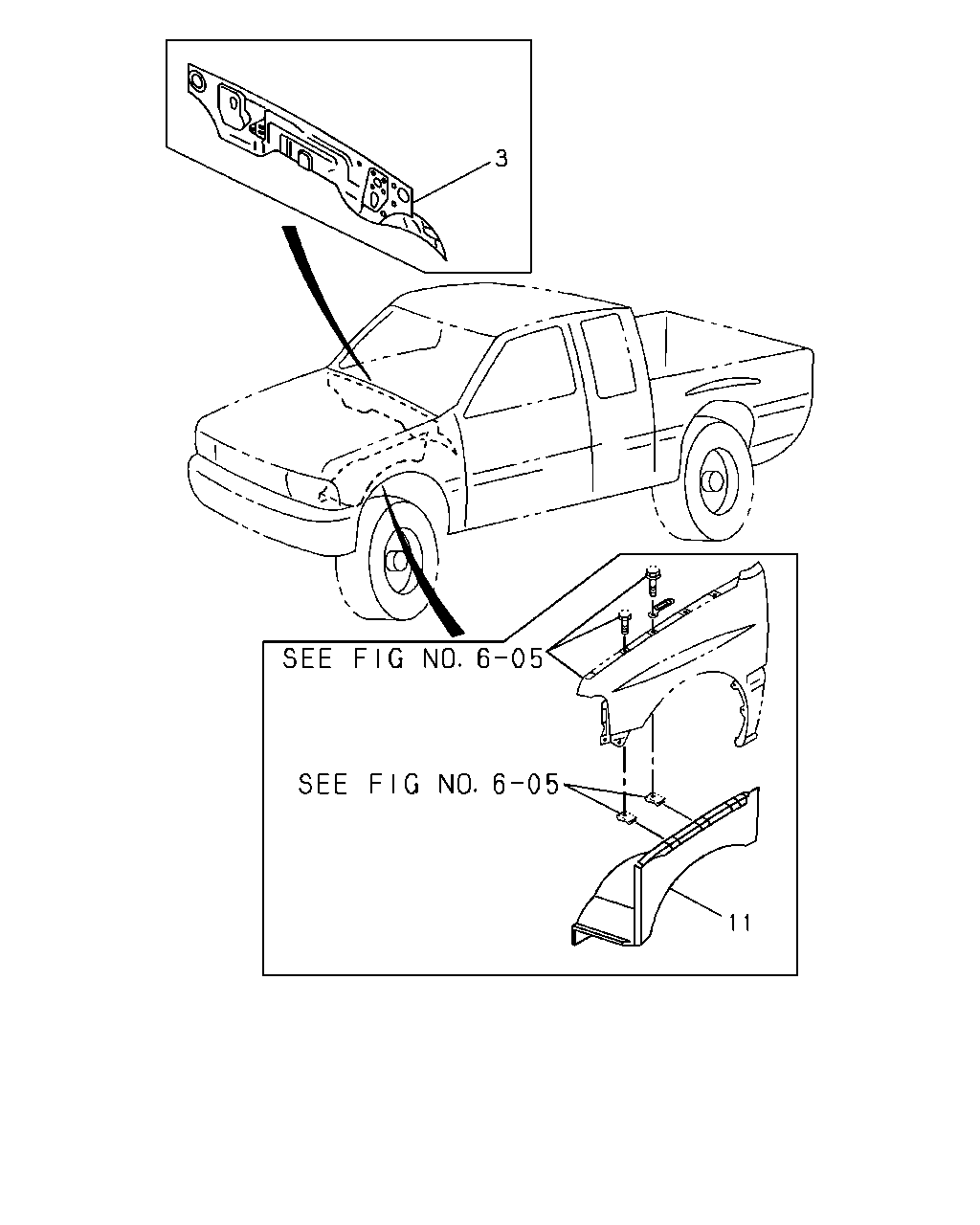

çizim 16692
3 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.550 PANEL; SUB,DASH LWR
4ZA1 ENG(L17) 		8-97065-584-0 01 1 9210-9308 ●
3 16.550 PANEL; SUB,DASH LWR
C223 ENG(LQ7),4ZA1 ENG(L17) 		8-97065-584-0 01 1 9210-9308 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
C223 ENG(LQ7) 		8-97065-584-0 01 1 9210-9308 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZA1 ENG(L17) 		8-97065-584-1 01 1 9309- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-97065-580-5 01 1 9210-9509 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-97065-580-5 01 1 9510-9601 ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97065-580-5 01 1 9510-9601 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-97065-580-5 01 1 9602- ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT<R5B> CHINA EQUIPMENT(YT2) 		8-97065-580-5 01 1 9602- ●
3 16.550 PANEL; SUB,DASH LWR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97065-580-5 01 1 9602- ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) 		8-97065-582-7 01 1 9510-9601 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) 		8-97065-582-7 01 1 9602-9606 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
CHINA CHONGQING EQUIPMENT<R5B> CHINA EQUIPMENT(YT2) 		8-97065-582-7 01 1 9607-9607 ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> CHINA EQUIPMENT(YT2) 		8-97065-582-8 01 1 9608- ●
11 08.153 SKIRT; FRT FENDER PNL 8-97038-160-0 01 1 9210- ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97039-960-3 01 1 9210-9306 ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97079-420-0 01 1 9307-9501 ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97100-052-0 01 1 9502-9502 ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97130-526-0 01 1 9503- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
