6-01 — FRONT BUMPER (#48088) — 65 parça

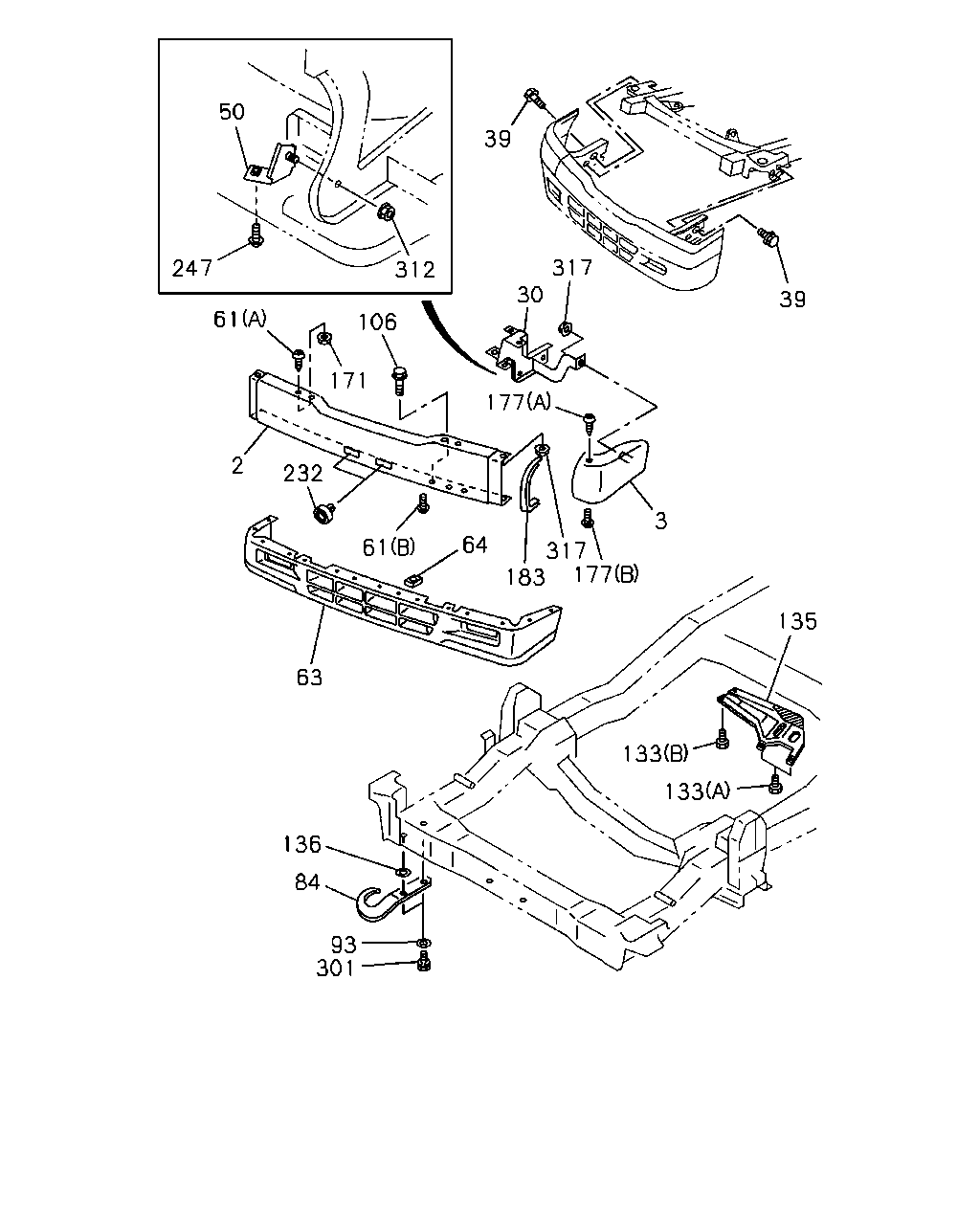

çizim 68525
50 247 312 39 317 30 39 177 106 171 61 2 232 61 64 317 3 135 177 133 133 136 63 84 93 301 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 07.831 BUMPER; FRT,CENTER
PLATED 		8-97043-305-0 01 1 9210- ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER CHROME<V46> PLATED 		8-97043-305-0 01 1 9210- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FRONT BUMPER CHROME<V46> BLACK 		8-97043-303-1 01 1 9210-9504 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FRONT BUMPER CHROME<V46> BLACK 		8-97128-368-0 01 1 9505- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
PLATED 		8-94434-591-4 01 1 9210- ● ●
3 07.831 BUMPER; FRT,SIDE
FRONT BUMPER CHROME<V46> PLATED 		8-94434-591-4 01 1 9210- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
PLATED 		8-94434-590-4 01 1 9210- ● ●
3 07.831 BUMPER; FRT,SIDE
FRONT BUMPER CHROME<V46> PLATED 		8-94434-590-4 01 1 9210- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRONT BUMPER CHROME<V46> BLACK 		8-94434-589-4 01 1 9210-9504 ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRONT BUMPER CHROME<V46> BLACK 		8-97128-373-0 01 1 9505- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRONT BUMPER CHROME<V46> BLACK 		8-94434-588-4 01 1 9210-9504 ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRONT BUMPER CHROME<V46> BLACK 		8-97128-371-0 01 1 9505- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-94434-594-5 01 1 9210-9211 ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97087-603-0 01 1 9212- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-94434-593-5 01 1 9210-9211 ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97087-602-0 01 1 9212- ● ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
07.070 M12X30 FLANGE 		8-94475-424-0 04 1 9210-9509 ● ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ● ● ● ● ● ● ●
50 07.869 BRACKET; SUPPORT,BUMPER 8-94452-738-2 01 1 9210-9307 ● ● ● ● ● ● ● ●
50 07.869 BRACKET; SUPPORT,BUMPER 8-97101-845-0 01 1 9308- ● ● ● ● ● ● ● ●
50 07.869 BRACKET; SUPPORT,BUMPER 8-94452-737-2 01 1 9210-9307 ● ● ● ● ● ● ● ●
50 07.869 BRACKET; SUPPORT,BUMPER 8-97101-843-0 01 1 9308- ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
07.874 (B) M8X20 DACRO-COATING 		8-94241-821-0 04 1 9210- ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
07.874 (A) M8X20 CR-PLATING 		8-94241-804-0 04 1 9210- ● ●
61 07.832 BOLT; BACK BAR
FRONT BUMPER CHROME<V46> 07.874 (A) M8X20 CR-PLATING 		8-94241-804-0 04 1 9210- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. FRONT BUMPER CHROME<V46> 07.874 (A) M8X20 BLACK-HEAD 		8-94241-820-0 04 1 9210- ● ● ● ● ● ●
63 07.831 AIR DAM; FRT BUMPER 8-97043-880-2 01 1 9210- ● ● ● ● ● ● ● ●
64 07.829 NUT; CLIP 8-94471-330-2 15 1 9210- ● ● ● ● ● ● ● ●
84 07.068 HOOK
TOW HOOK FRT & RR<V70> 07.330 		8-94183-262-0 01 1 9210- ● ● ● ●
93 07.068 WASHER; LK,HOOK
TOW HOOK FRT & RR<V70> 08.929 ID=10.2 		9-09150-810-0 02 1 9210-9503 ● ● ● ●
106 07.829 BOLT; AIR DAM
12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 9210- ● ● ● ● ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE) 03.706 M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9210-9406 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.706 M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9210-9406 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.706 (A) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9407-9509 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE) 03.706 (A) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9407-9509 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.706 (A) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9510- ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.706 (A) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9510- ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE) 01.267 M10X25 		8-94492-949-0 02 1 9210-9310 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 01.267 M10X25 		8-94492-949-0 02 1 9210-9310 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9311-9406 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9311-9406 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.690 (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9407-9509 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE) 03.690 (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9407-9509 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.690 (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9510- ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.690 (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9510- ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
4JA1 ENG(RLE) 		8-97019-355-1 01 1 9210-9308 ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 		8-97019-355-1 01 1 9210-9308 ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 		8-97019-355-1 01 1 9309-9509 ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
4JA1 ENG(RLE) 		8-97019-355-1 01 1 9309-9509 ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 		8-97019-355-1 01 1 9510- ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97019-355-1 01 1 9510- ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT & RR<V70> ID=12.5 		1-09503-021-0 01 1 9210- ● ● ● ●
171 07.869 NUT; BACK BAR
07.833 M8 W/LK WASHER 		8-94327-073-0 10 1 9210- ● ● ● ● ● ● ● ●
177 07.869 BOLT
07.874 (B) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9210- ● ● ● ● ● ● ● ●
177 07.869 BOLT
07.874 (A) M8X20 CR-PLATING 		8-94241-804-0 02 1 9210- ● ●
177 07.869 BOLT
FRONT BUMPER CHROME<V46> 07.874 (A) M8X20 CR-PLATING 		8-94241-804-0 02 1 9210- ● ● ● ● ● ●
177 07.869 BOLT
EXC. FRONT BUMPER CHROME<V46> 07.874 (A) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 9210- ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER 8-97088-631-0 02 1 9210-9210 ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER 8-94435-560-1 02 1 9211- ● ● ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 9210- ● ● ● ● ● ● ● ●
247 07.874 SCREW; BUMPER TO AIR DAM
M6X16 TRUSS-HEAD 		8-94318-980-0 02 1 9210- ● ● ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT & RR<V70> 		9-02061-045-0 02 1 9210-9503 ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT & RR<V70> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9504- ● ● ● ●
312 07.068 NUT; BRKT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 02 1 9210- ● ● ● ● ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
M8 W/LK WASHER 		8-94327-073-0 04 1 9210- ● ● ● ● ● ● ● ●
