5-20 — BATTERY CARRIER (#48084) — 25 parça

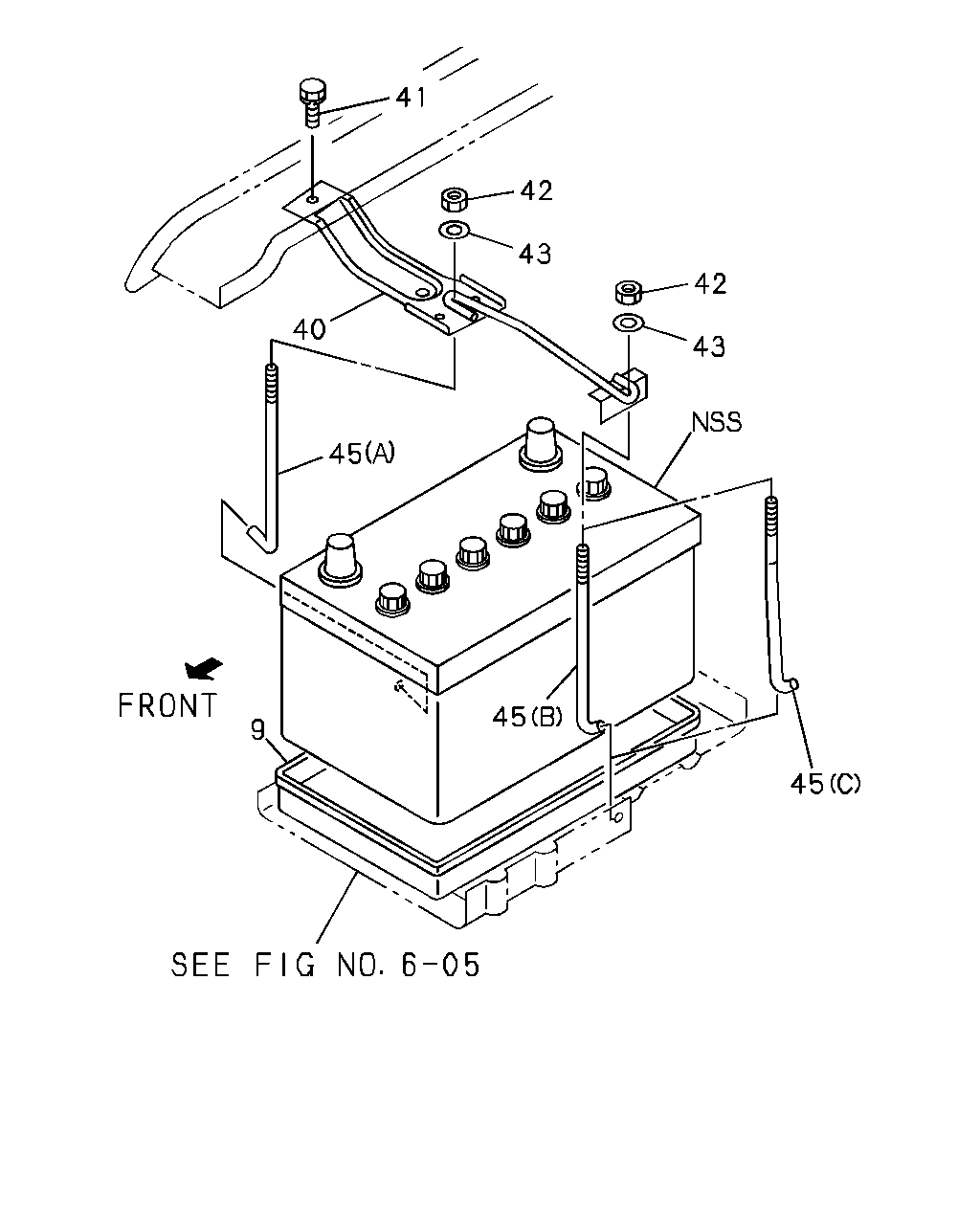

çizim 65100
41 42 43 42 43 45 45 45 40 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 02.333 SEAT; BATTERY
4ZD1 ENG(LW3),4ZA1 ENG(L17) 		8-94407-453-0 01 1 9210- ● ● ● ●
9 02.333 SEAT; BATTERY
4ZD1 ENG(LW3) 		8-94407-453-0 01 1 9210- ● ● ● ●
9 02.333 SEAT; BATTERY
4JA1 ENG(RLE) BATTERY NX120-7 FRIGID ZONE(ES5) 		8-94405-030-0 01 1 9210-9305 ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
C223 ENG(LQ7) BATTERY N70Z 70AH DRY(S1H),BATTERY N70Z HEAVY DUTY(T67) 		8-94405-030-0 01 1 9210-9305 ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31R DRY(6TZ) 		8-94405-030-0 01 1 9306-9308 ● ●
9 02.333 SEAT; BATTERY
BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY N70Z 70AH DRY(S1H),BATTERY N70Z HEAVY DUTY(T67),BATTERY 95D31R D RY(6TZ) 		8-94405-030-0 01 1 9306-9308 ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31R DRY(6TZ) 		8-94405-030-0 01 1 9309-9509 ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 75D26R(6DM),BATTERY 95D31R DRY(6TZ) 		8-94405-030-0 01 1 9510- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
4ZE1 ENG(RLJ) 		8-94405-031-0 01 1 9210- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
C223 ENG(LQ7) EXC. BATTERY NX120-7 FRIGID ZONE(ES5),BATTERY N70Z 70AH DRY(S1H),BATTE RY N70Z HEAVY DUTY(T67) 		8-94405-031-0 01 1 9210- ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
4ZD1 ENG(LW3),4ZA1 ENG(L17) 		8-94434-873-1 01 1 9210- ● ● ● ●
40 02.335 CLAMP; BATTERY
4ZD1 ENG(LW3) 		8-94434-873-1 01 1 9210- ● ● ● ●
40 02.335 CLAMP; BATTERY
C223 ENG(LQ7),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-94434-874-1 01 1 9210-9509 ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94434-874-1 01 1 9510- ● ● ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
M8X18 		8-94478-122-0 01 1 9210- ● ● ● ● ● ● ● ●
42 02.334 NUT; CLAMP 8-94238-948-0 02 1 9210-9405 ● ● ● ● ● ● ● ●
42 02.334 NUT; CLAMP
00.413 		9-09110-506-0 02 1 9406-9406 ● ● ● ● ● ● ● ●
42 02.334 NUT; CLAMP
16.176 M6 		9-09110-406-0 02 1 9407- ● ● ● ● ● ● ● ●
43 02.334 WASHER; PL,CLAMP 8-94411-099-0 02 1 9210- ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4ZD1 ENG(LW3),4ZA1 ENG(L17) (C) L=80+132 		8-94407-452-1 01 1 9210- ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4ZD1 ENG(LW3) (C) L=80+132 		8-94407-452-1 01 1 9210- ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
(A) L=180 		8-94407-451-2 01 1 9210- ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
C223 ENG(LQ7),4JA1 ENG(RLE),4ZE1 ENG(RLJ) (B) L=204 		8-94259-857-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4JA1 ENG(RLE),4ZE1 ENG(RLJ) (B) L=204 		8-94259-857-0 01 1 9309-9406 ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) L=204 		8-94259-857-0 01 1 9510- ● ● ● ● ● ● ● ●
