5-10 — CAB MOUNTING; FRAME SIDE (#48083) — 95 parça

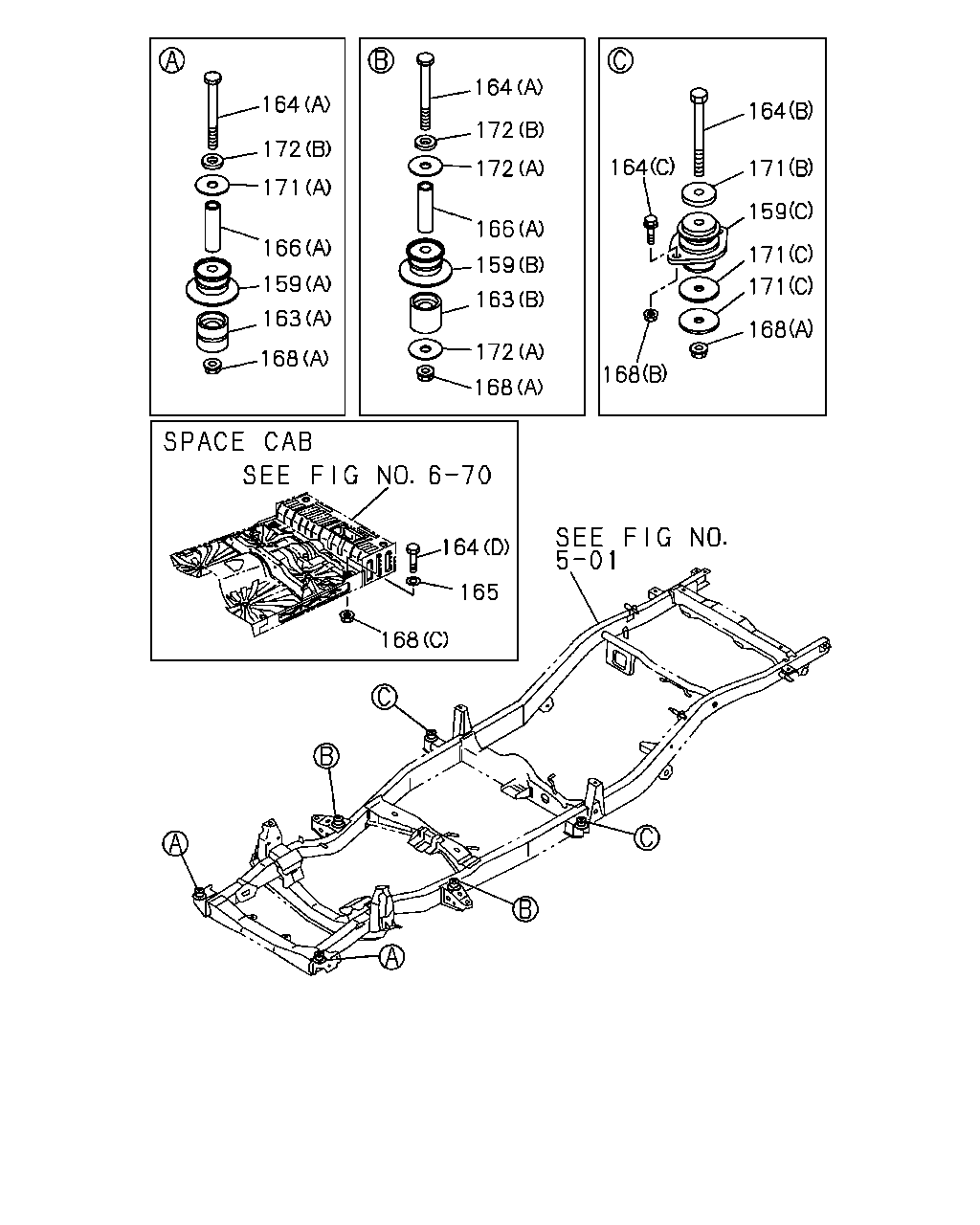

çizim 66002
164 171 172 166 163 159 168 168 172 163 159 166 172 172 164 164 164 171 159 171 171 168 168 164 168 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-94325-158-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-247-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-248-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-159-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-160-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-94325-155-2 02 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94474-029-1 02 1 9210-9504 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94325-158-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) 		8-94325-156-0 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) 		8-94325-157-1 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-94227-780-1 02 1 9210-9504 ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-97035-572-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-94325-157-1 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X125 		8-97042-439-1 04 1 9210-9501 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97122-607-1 04 1 9502-9505 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97134-968-0 04 1 9506- ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X125 		8-97042-439-1 02 1 9210-9501 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97122-607-1 02 1 9502-9507 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97134-968-0 02 1 9508- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(C) M10X20 FLANGE 		0-28081-020-0 04 1 9210-9412 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
03.611 (C) M10X20 FLANGE 		0-28681-020-0 04 1 9501- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
06.056 (D) M12X25 		0-20801-225-0 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X90 		0-10806-090-0 02 1 9210-9501 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97122-607-0 04 1 9502-9507 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97134-968-0 04 1 9508- ● ●
165 09.011 WASHER; PL,CAB MTG
00.793 ID=12.5 OD=26 		9-09160-612-0 02 1 9210- ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97042-440-0 04 1 9210-9605 ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97148-478-0 04 1 9606- ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) L=54.9 		8-94109-646-1 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) L=70 		8-97042-440-0 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B)(C) L=70 		8-97042-440-0 04 1 9505- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) M10 FLANGE 		0-91150-210-0 06 1 9210- ● ● ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9210- ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
05.586 (C) M12 FLANGE 		0-91150-112-0 02 1 9210- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 9210- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9210- ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-94223-176-0 04 1 9210-9308 ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 9309- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D)(E) ID=11 OD=48 T=2.9 		8-94223-170-0 08 1 9505- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-94223-176-0 02 1 9210-9308 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 9309-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(F) OD=32 T=6.0 		8-94416-693-0 02 1 9210- ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(B) OD=32 T=6.0 		8-94416-693-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ●

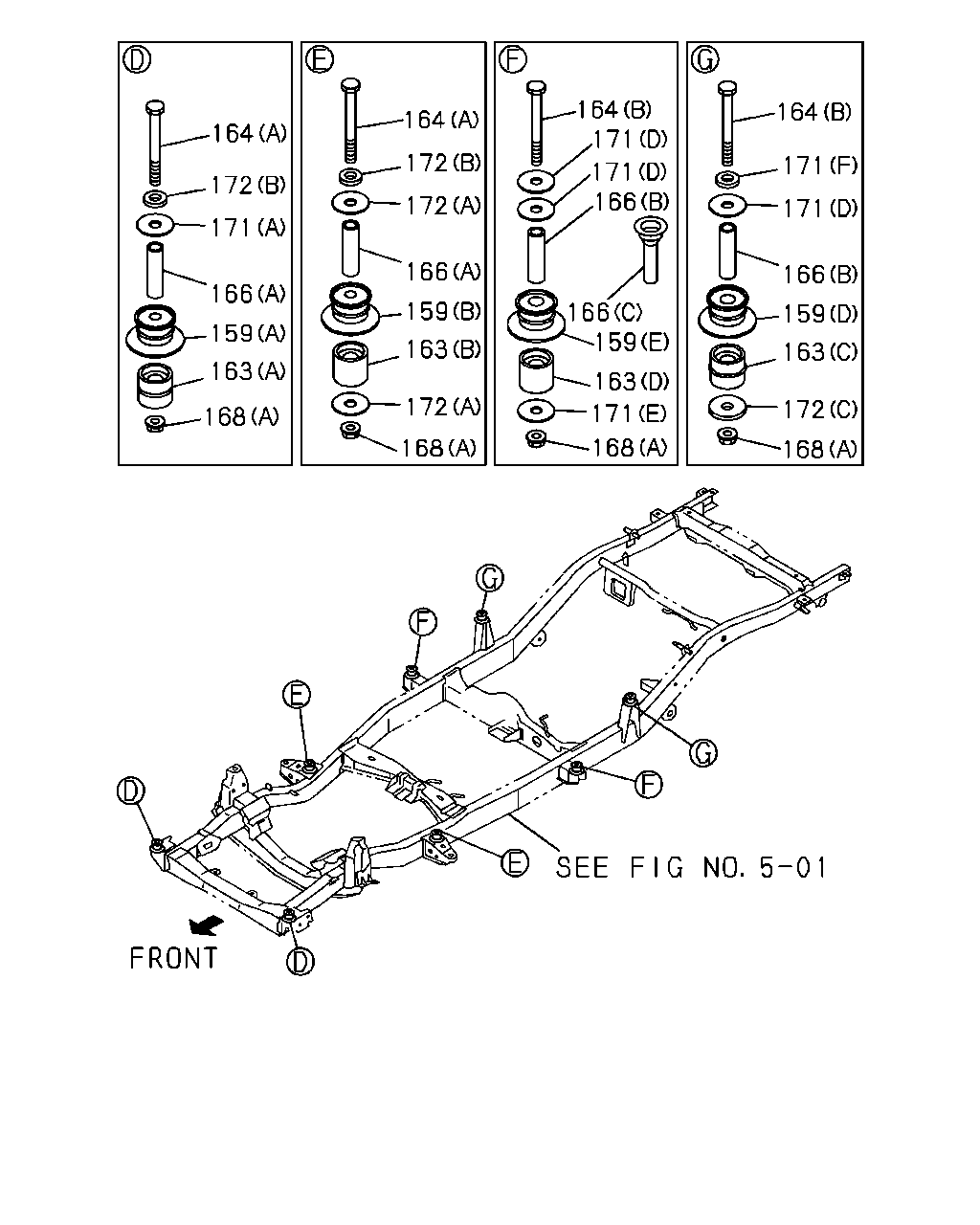

çizim 66122
164 171 172 166 163 159 168 168 172 163 159 166 172 172 164 164 171 171 166 166 159 171 163 168 168 172 163 159 166 171 171 164
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-94325-158-2 02 1 9210- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-247-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94328-248-2 01 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-159-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) 		8-94325-160-1 01 1 9210- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(D) 		8-94325-155-2 02 1 9210- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94474-029-1 02 1 9210-9504 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(E) 		8-94325-158-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) 		8-94325-156-0 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) 		8-94325-157-1 02 1 9210- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-94227-780-1 02 1 9210-9504 ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) 		8-97035-572-1 02 1 9505- ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-94325-157-1 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X125 		8-97042-439-1 04 1 9210-9501 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97122-607-1 04 1 9502-9505 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97134-968-0 04 1 9506- ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X125 		8-97042-439-1 02 1 9210-9501 ● ● ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97122-607-1 02 1 9502-9507 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97134-968-0 02 1 9508- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(C) M10X20 FLANGE 		0-28081-020-0 04 1 9210-9412 ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
03.611 (C) M10X20 FLANGE 		0-28681-020-0 04 1 9501- ● ● ● ● ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
06.056 (D) M12X25 		0-20801-225-0 02 1 9210- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X90 		0-10806-090-0 02 1 9210-9501 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97122-607-0 04 1 9502-9507 ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
(B) M10X120 		8-97134-968-0 04 1 9508- ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97042-440-0 04 1 9210-9605 ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(A) L=70 		8-97148-478-0 04 1 9606- ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(C) L=54.9 		8-94109-646-1 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B) L=70 		8-97042-440-0 02 1 9210-9504 ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
(B)(C) L=70 		8-97042-440-0 04 1 9505- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) M10 FLANGE 		0-91150-210-0 06 1 9210- ● ● ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9210- ● ● ● ● ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
05.586 (C) M12 FLANGE 		0-91150-112-0 02 1 9210- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 9210- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9210- ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-94223-176-0 04 1 9210-9308 ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) ID=11 OD=62 T=2.9 		8-97037-993-0 04 1 9309- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(D)(E) ID=11 OD=48 T=2.9 		8-94223-170-0 08 1 9505- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-94223-176-0 02 1 9210-9308 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(E) ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 9309-9504 ● ●
171 09.011 WASHER; BODY MTG RUBBER
(F) OD=32 T=6.0 		8-94416-693-0 02 1 9210- ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(B) OD=32 T=6.0 		8-94416-693-0 04 1 9210- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9210- ● ●
