5-01 — FRAME AND OTHER PARTS (#48082) — 107 parça

422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	33	1	9510-	●	●	●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	31	1	9510-				●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	27	1	9510-					●	●	●	●

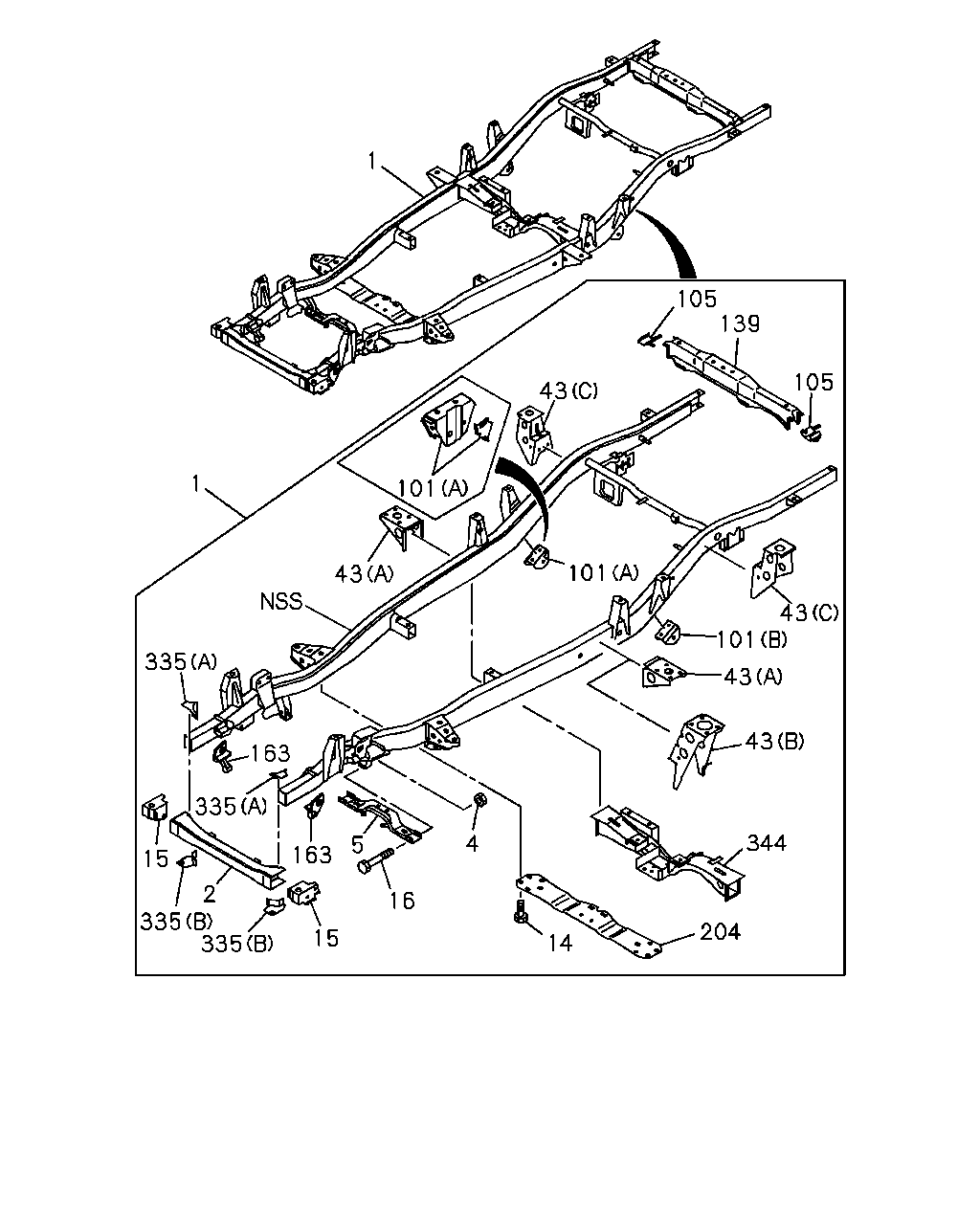

1 1 43 105 139 105 43 101 101 43 101 43 43 344 204 14 4 16 5 163 15 335 335 15 2 335 335 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.003 FRAME ASM	8-97046-544-2	01	1	9210-	●
1	07.003 FRAME ASM	8-94434-955-5	01	1	9210-				●
1	07.003 FRAME ASM REAR AXLE W/LSPV<7KA> RR BODY FLAT BED<RS6>	8-97116-030-0	01	1	9407-		●
1	07.003 FRAME ASM REAR AXLE W/LSPV<7KA> EXC. RR BODY FLAT BED<RS6>	8-97116-031-0	01	1	9407-9504		●
1	07.003 FRAME ASM REAR AXLE W/LSPV<7KA> EXC. RR BODY FLAT BED<RS6>	8-97046-536-2	01	1	9505-		●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94461-012-6	01	1	9210-9406		●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> EXC. REAR AXLE W/LSPV<7KA>	8-94461-012-6	01	1	9407-		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6>	8-97046-542-2	01	1	9210-9406		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6>,REAR AXLE W/LSPV<7KA>	8-97046-542-2	01	1	9407-		●
1	07.003 FRAME ASM	8-97046-546-2	01	1	9210-9509			●
1	07.003 FRAME ASM	8-97046-546-2	01	1	9510-9602			●
1	07.003 FRAME ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) CHINA EQUIPMENT(YT2)	8-97046-546-3	01	1	9603-			●
1	07.003 FRAME ASM EXC. CHINA EQUIPMENT(YT2)	8-97046-546-3	01	1	9603-			●
1	07.003 FRAME ASM 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2)	8-97147-427-1	01	1	9603-			●
1	07.003 FRAME ASM	8-97046-553-3	01	1	9210-					●
1	07.003 FRAME ASM	8-97021-796-5	01	1	9210-						●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94473-354-8	01	1	9210-9509							●
1	07.003 FRAME ASM	8-97046-552-3	01	1	9510-							●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6>	8-97046-552-3	01	1	9210-9509							●
1	07.003 FRAME ASM	8-97046-554-4	01	1	9210-								●
2	07.010 MEMBER; CROSS,1ST	8-94436-856-4	01	1	9210-	●	●	●	●
2	07.010 MEMBER; CROSS,1ST	8-94436-857-4	01	1	9210-					●	●	●	●
4	07.039 NUT; 1ST C/MBR TO S/MBR M10 FLANGE	8-94383-595-0	04	1	9210-					●	●	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-94485-919-0	01	1	9210-9512					●	●	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-97134-403-0	01	1	9601-					●	●	●	●
14	07.039 BOLT; TRANS MTG MBR,FRAME M12X25	8-94498-772-0	08	1	9210-					●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-367-4	01	1	9210-	●	●	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-366-4	01	1	9210-	●	●	●	●	●	●	●	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR M10X83 FLANGE	8-97805-841-0	04	1	9210-9509					●	●	●	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR M10X83 FLANGE	8-97805-841-0	02	1	9510-					●	●	●	●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94476-272-2	01	1	9510-	●				●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-275-0	02	1	9510-		●		●		●	●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94158-629-0	02	1	9510-			●					●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-799-0	01	1	9510-			●					●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-800-0	01	1	9510-			●					●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	01	1	9210-	●	●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-94362-621-0	01	1	9210-	●	●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94363-179-0	01	1	9210-					●	●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97020-318-0	01	1	9210-					●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-573-1	01	1	9210-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-572-0	01	1	9210-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-575-1	01	1	9210-					●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-574-0	01	1	9210-					●	●	●	●
139	07.012 MEMBER; CROSS,6TH	8-94477-762-0	01	1	9210-9510	●	●	●	●	●	●	●	●
139	07.012 MEMBER; CROSS,6TH	8-97126-554-0	01	1	9511-	●	●	●	●	●	●	●	●
163	07.105 BRACKET; LINK ARM	8-94498-721-2	01	1	9210-9512					●	●	●	●
163	07.105 BRACKET; LINK ARM	8-97142-704-0	01	1	9601-					●	●	●	●
163	07.105 BRACKET; LINK ARM	8-94498-720-2	01	1	9210-9512					●	●	●	●
163	07.105 BRACKET; LINK ARM	8-97142-703-0	01	1	9601-					●	●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG	8-97802-396-4	01	1	9210-					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-94493-830-0	01	1	9210-9411					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-97122-707-0	01	1	9412-					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-94493-832-1	01	1	9210-9411					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-97122-709-0	01	1	9412-					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-94493-829-0	01	1	9210-9411					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-97122-706-0	01	1	9412-					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-94493-831-1	01	1	9210-9411					●	●	●	●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-97122-708-0	01	1	9412-					●	●	●	●
344	07.012 MEMBER; CROSS,4TH	8-94375-449-3	01	1	9510-					●		●
344	07.012 MEMBER; CROSS,4TH	8-94493-573-5	01	1	9510-								●

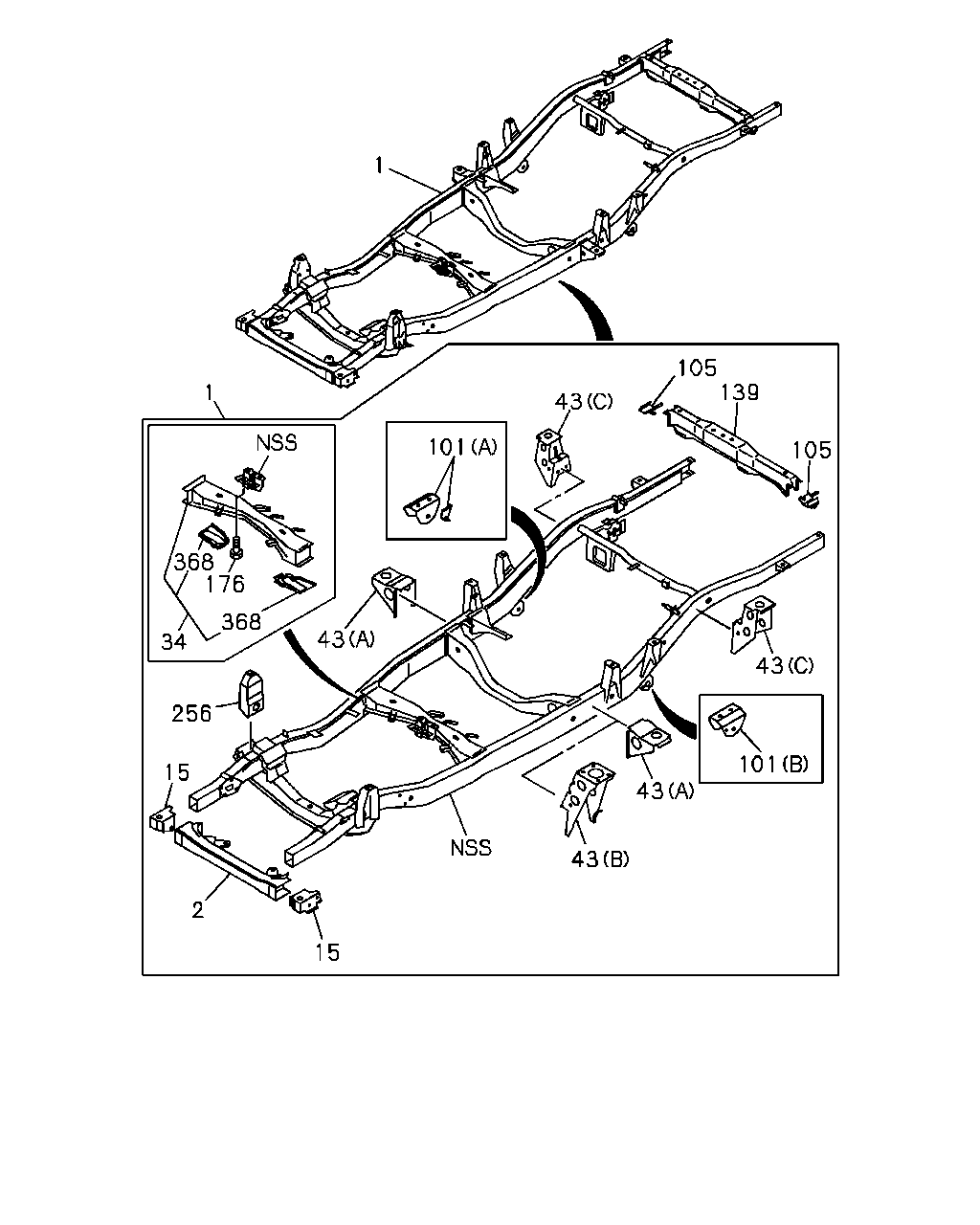

1 1 368 34 176 101 43 105 139 105 43 101 43 43 43 368 256 15 2 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.003 FRAME ASM	8-97046-544-2	01	1	9210-	●
1	07.003 FRAME ASM	8-94434-955-5	01	1	9210-				●
1	07.003 FRAME ASM REAR AXLE W/LSPV<7KA> RR BODY FLAT BED<RS6>	8-97116-030-0	01	1	9407-		●
1	07.003 FRAME ASM REAR AXLE W/LSPV<7KA> EXC. RR BODY FLAT BED<RS6>	8-97116-031-0	01	1	9407-9504		●
1	07.003 FRAME ASM REAR AXLE W/LSPV<7KA> EXC. RR BODY FLAT BED<RS6>	8-97046-536-2	01	1	9505-		●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94461-012-6	01	1	9210-9406		●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> EXC. REAR AXLE W/LSPV<7KA>	8-94461-012-6	01	1	9407-		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6>	8-97046-542-2	01	1	9210-9406		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6>,REAR AXLE W/LSPV<7KA>	8-97046-542-2	01	1	9407-		●
1	07.003 FRAME ASM	8-97046-546-2	01	1	9210-9509			●
1	07.003 FRAME ASM	8-97046-546-2	01	1	9510-9602			●
1	07.003 FRAME ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) CHINA EQUIPMENT(YT2)	8-97046-546-3	01	1	9603-			●
1	07.003 FRAME ASM EXC. CHINA EQUIPMENT(YT2)	8-97046-546-3	01	1	9603-			●
1	07.003 FRAME ASM 4JB1 ENG(RLF) CHINA EQUIPMENT(YT2)	8-97147-427-1	01	1	9603-			●
1	07.003 FRAME ASM	8-97046-553-3	01	1	9210-					●
1	07.003 FRAME ASM	8-97021-796-5	01	1	9210-						●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6>	8-94473-354-8	01	1	9210-9509							●
1	07.003 FRAME ASM	8-97046-552-3	01	1	9510-							●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6>	8-97046-552-3	01	1	9210-9509							●
1	07.003 FRAME ASM	8-97046-554-4	01	1	9210-								●
2	07.010 MEMBER; CROSS,1ST	8-94436-856-4	01	1	9210-	●	●	●	●
2	07.010 MEMBER; CROSS,1ST	8-94436-857-4	01	1	9210-					●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-367-4	01	1	9210-	●	●	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-366-4	01	1	9210-	●	●	●	●	●	●	●	●
34	07.012 MEMBER; CROSS,3RD	8-94436-860-3	01	1	9510-	●	●	●	●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94476-272-2	01	1	9510-	●				●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-275-0	02	1	9510-		●		●		●	●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94158-629-0	02	1	9510-			●					●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-799-0	01	1	9510-			●					●
43	09.003 BRACKET; CAB MTG,RR (C)	8-94332-800-0	01	1	9510-			●					●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	01	1	9210-	●	●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-94362-621-0	01	1	9210-	●	●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94363-179-0	01	1	9210-					●	●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97020-318-0	01	1	9210-					●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-573-1	01	1	9210-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-572-0	01	1	9210-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-575-1	01	1	9210-					●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-574-0	01	1	9210-					●	●	●	●
139	07.012 MEMBER; CROSS,6TH	8-94477-762-0	01	1	9210-9510	●	●	●	●	●	●	●	●
139	07.012 MEMBER; CROSS,6TH	8-97126-554-0	01	1	9511-	●	●	●	●	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 14.785 M10X25 FLANGE	0-28281-025-0	04	1	9210-	●	●	●	●
256	07.395 BRACKET; S/ABS	8-94438-193-0	01	1	9510-				●
368	07.039 SEAT; TORSION BAR	8-94476-267-1	01	1	9510-	●	●	●	●
368	07.039 SEAT; TORSION BAR	8-94476-268-1	01	1	9510-	●	●	●	●
