◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#48081) — 32 parça

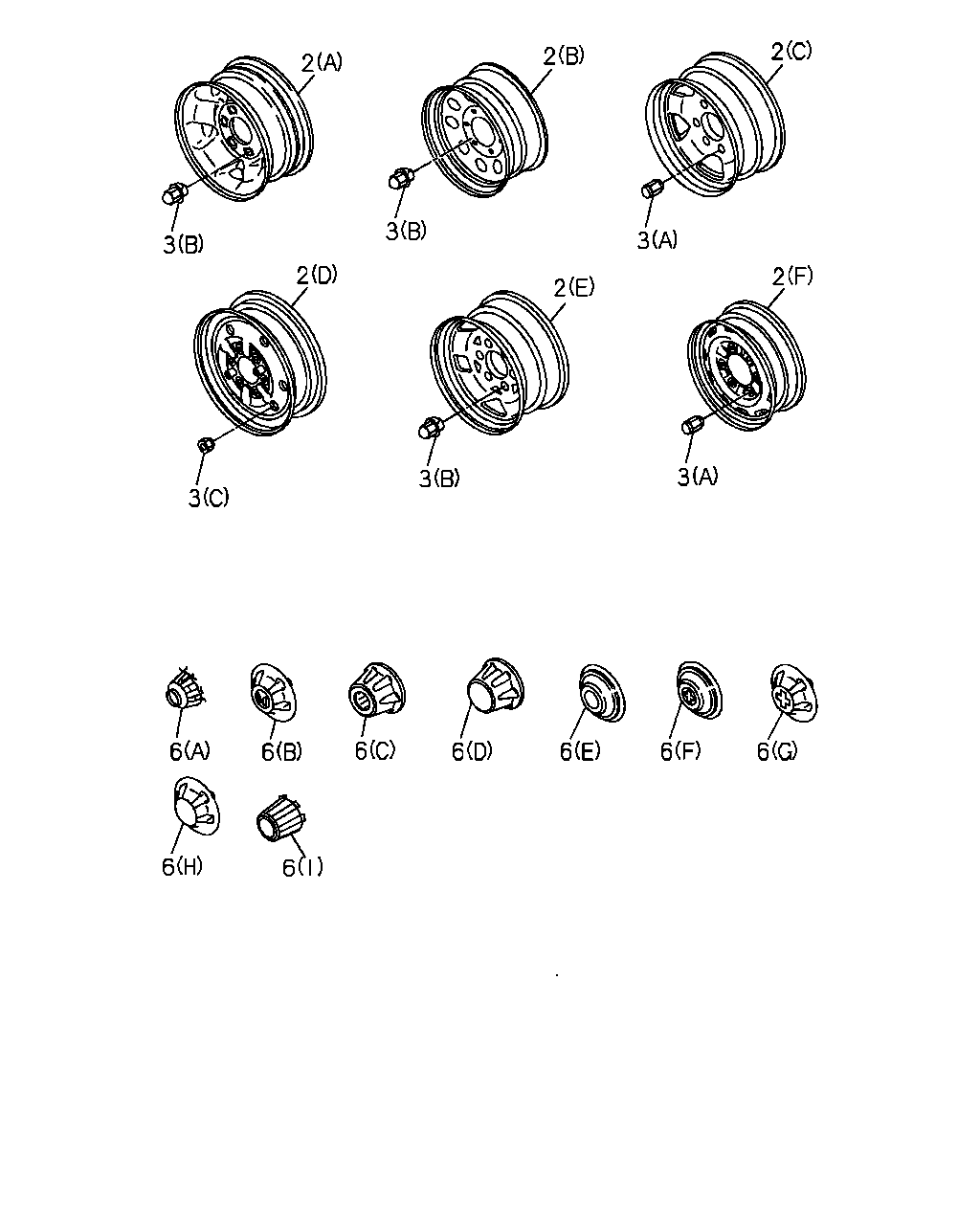

çizim 66023
2 3 3 2 2 3 2 2 2 3 3 3 6 6 6 6 6 6 6 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 05.803 WHEEL; DISC
FRT&RR P205/75R14 5.5JJX14(9PS) (C) OFFSET=20 		8-97030-474-1 05 1 9210- ● ● ●
2 05.803 WHEEL; DISC
FRT 185R14-6 RR 185R14-8 5JX14(9PB) ,FRT&RR 185R14-8 5JX14(9PC) (F) 14X5J OFFSET=30 PLATINUM SILVER 		8-97030-472-1 04 1 9210-9603 ● ● ● ●
2 05.803 WHEEL; DISC
FRT 185R14-6 RR 185R14-8 5JX14(9PB) ,FRT&RR 185R14-8 5JX14(9PC) (F) 14X5J OFFSET=30 PLATINUM SILVER 		8-97146-797-0 04 1 9604- ● ● ● ●
2 05.803 WHEEL; DISC
FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW) ,FRT&RR 6.5-14-8 5JX14(9NY) (F) 14X5J OFFSET=30 PLATINUM SILVER 		8-97030-472-1 05 1 9210-9603 ● ● ● ●
2 05.803 WHEEL; DISC
FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW) ,FRT&RR 6.5-14-8 5JX14(9NY) (F) 14X5J OFFSET=30 PLATINUM SILVER 		8-97146-797-0 05 1 9604- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR P225/75R15 6JJX15(9PY) (B) OFFSET=25 		8-97030-476-1 05 1 9210- ● ● ●
2 05.803 WHEEL; DISC
FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA) (D) 14X5J OFFSET=30 PLATINUM SILVER 		8-97032-083-1 05 1 9210- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/80R16 104Q P/SILVER(9PR) ,FRT&RR 205SR16 6JJX16 STYLED(9UR) (E) 14X5J OFFSET=30 PLATINUM SILVER 		8-97030-481-1 05 1 9210- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 6.50-15-8 5.5KX15 STYLED WHL (9RE),FRT&RR 215R15-6 5.5KX15 STYLED WHL(9RF) (A) 15X5J OFFSET=30 PLATINUM SILVER 		8-97061-823-1 05 1 9210- ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
(A) M12 H=30.5 		8-97073-118-0 24 1 9210-9509 ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) (A) M12 H=30.5 		8-97073-118-0 24 1 9210-9509 ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) (A) M12 H=30.5 		8-97073-118-0 24 1 9510-9606 ● ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) (A) M12 H=30.5 		8-97176-091-0 24 1 9607- ● ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA) WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW) (C) M12 H=16 		8-94200-216-0 24 1 9210- ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205/80R16 104Q P/SILVER(9PR) ,FRT&RR P225/75R15 6JJX15(9PY), FRT&RR 205SR16 6JJX16 STYLED(9UR) HUB CAP STYLED WHEEL MARK LESS(6UX) (B) M12 H=40 		8-97061-708-0 24 1 9210-9210 ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205/80R16 104Q P/SILVER(9PR) ,FRT&RR P225/75R15 6JJX15(9PY), FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE),FRT&RR 215R15-6 5.5KX15 STYLED WH L(9RF),FRT&RR 205SR16 6JJX16 STYLED(9UR) HUB CAP STYLED WHEEL MARK LESS(6UX) (B) M12 H=40 		8-97061-708-0 24 1 9211-9505 ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 205/80R16 104Q P/SILVER(9PR) ,FRT&RR P225/75R15 6JJX15(9PY), FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE),FRT&RR 215R15-6 5.5KX15 STYLED WH L(9RF),FRT&RR 205SR16 6JJX16 STYLED(9UR) HUB CAP STYLED WHEEL MARK LESS(6UX) (B) M12 H=40 		8-97129-440-1 24 1 9506- ● ● ● ●
6 05.858 CAP; WHEEL
HUB CAP WHEEL BLACK(PA5) (A) WO/HOLE 		8-94435-612-1 04 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
WHEEL CAP HALF COVER CHROME CHEVROL ET MARK(ES2) (G) WO/HOLE 		8-94420-214-1 04 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
WHEEL CAP HALF COVER CHROME MARK LE SS(P05) (H) WO/HOLE 		8-94420-212-1 04 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
WHEEL CAP HALF COVER ISUZU MARK(6FP) (B) W/HOLE 		8-97023-249-1 04 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
HUB CAP STYLED WHEEL MARK LESS(6UX) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (D) WO/HOLE 		8-97038-978-0 04 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
HUB CAP STYLED WHEEL(6XY) (I) RR WO/HOLE 		8-97071-984-0 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
HUB CAP STYLED WHEEL(6XY) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (I) FRT WO/HOLE 		8-97071-983-0 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL MARK LESS(6UX) (C) W/HOLE 		8-97038-977-0 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL MARK LESS(6UX) (D) WO/HOLE 		8-97038-978-0 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL(6XY) (I) FRT W/HOLE 		8-97071-982-0 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV) (F) RR WO/HOLE 		8-94238-435-2 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW) (E) FRT W/HOLE 		8-94238-326-2 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE MARKLESS(6UW) (E) RR WO/HOLE 		8-94238-436-2 02 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (F) WO/HOLE 		8-94238-435-2 04 1 9210- ● ● ● ●
6 05.858 CAP; WHEEL
WHEEL CAP BOWL TYPE MARKLESS(6UW) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (E) WO/HOLE 		8-94238-436-2 04 1 9210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
