Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#4808) — 229 parça

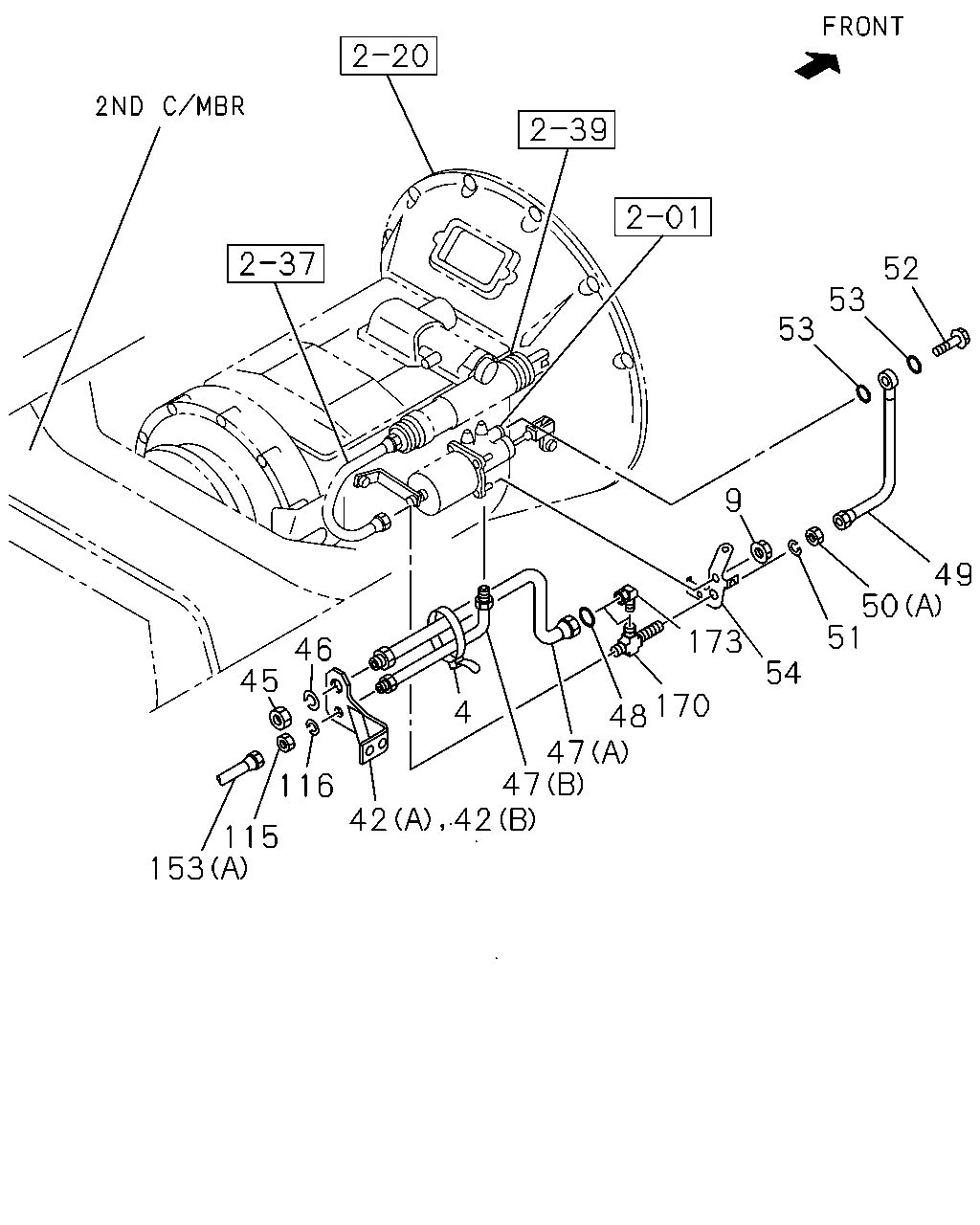

52 53 53 9 49 50 51 173 46 54 45 170 48 47 47 42 4 116 42 115 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9601-9605	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9601-0004	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0005-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 10PE1S(60L) (A)	1-47477-546-0	01	1	9601-9904	●	●
42	BRACKET; FLEX HOSE,CLU CONT V TYPE ENG<91L> (A)	1-47477-546-1	01	1	9905-	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6WA1 TC-S(56L) (B)	1-47477-414-0	01	1	9601-9904	●	●
42	BRACKET; FLEX HOSE,CLU CONT L TYPE ENG<90L> (B)	1-47477-414-0	01	1	9905-	●	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9601-9904	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9905-	●	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	9601-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9601-9904	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9905-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	9601-	●	●
47	HOSE; FLEX,CLU CONT (A) L=550	1-09364-434-0	01	1	9601-	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-07806-500-1	01	1	9601-9904	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-07806-500-1	01	1	9905-	●	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=600	0-07706-600-0	01	1	9601-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-9904	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49114-730-1	01	1	9601-9608	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9609-0006	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	0007-	●	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9904	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9601-9904	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9601-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9601-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9601-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9601-0004	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0005-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9904	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-9906	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9907-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9904	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-9906	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9907-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9601-	●	●	●
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8>	1-09656-640-0	01	1	9601-0004	●	●
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8>	1-09656-640-0	01	1	0005-	●	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9601-0004	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0005-	●	●	●

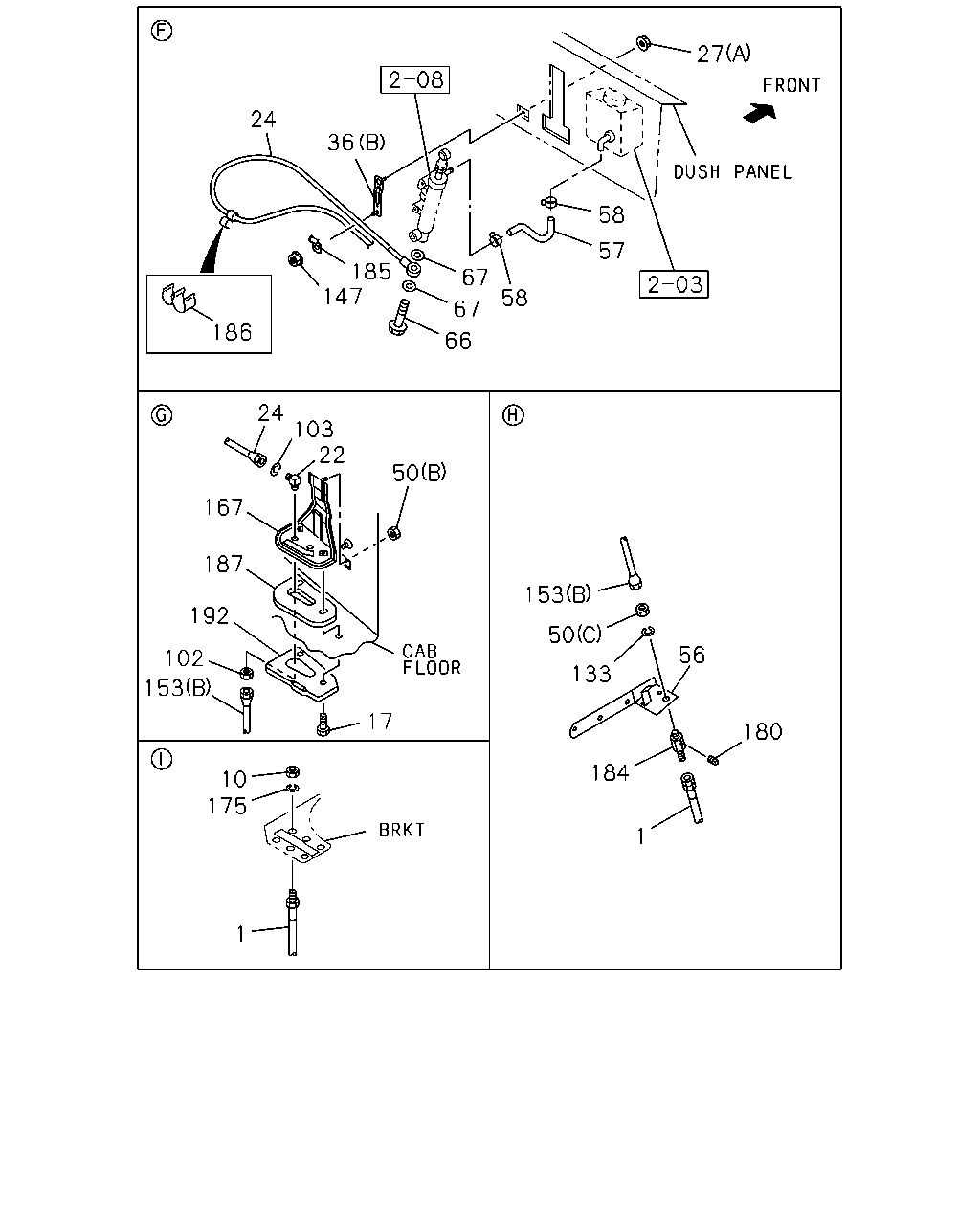

27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9601-9904	●	●
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	9905-	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9904	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9601-9904	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9905-	●	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9710-9904	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=642.7	1-47424-529-2	01	1	9601-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9905-	●	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9601-9606	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
27	NUT; BRKT L TYPE ENG<90L> (C) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
36	BRACKET; CLIP (B)	1-71117-191-1	01	1	9601-9904	●	●
36	BRACKET; CLIP (B)	1-71117-191-1	01	1	9905-	●	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9904	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9601-9904	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9905-	●	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9601-	●	●
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	9601-9904	●	●
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	9905-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9904	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9905-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9904	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9904	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9904	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-9904	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9601-9611	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9611-9904	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9601-	●	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	9601-9904	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	9905-	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9904	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-9904	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9601-9904	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9601-9904	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9905-	●	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9601-9904	●	●
186	HOLDER; CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9905-	●	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	9601-9904	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	9905-	●	●	●
192	PLATE	1-71117-221-0	01	1	9601-9904	●	●
192	PLATE	1-71117-221-0	01	1	9905-	●	●	●

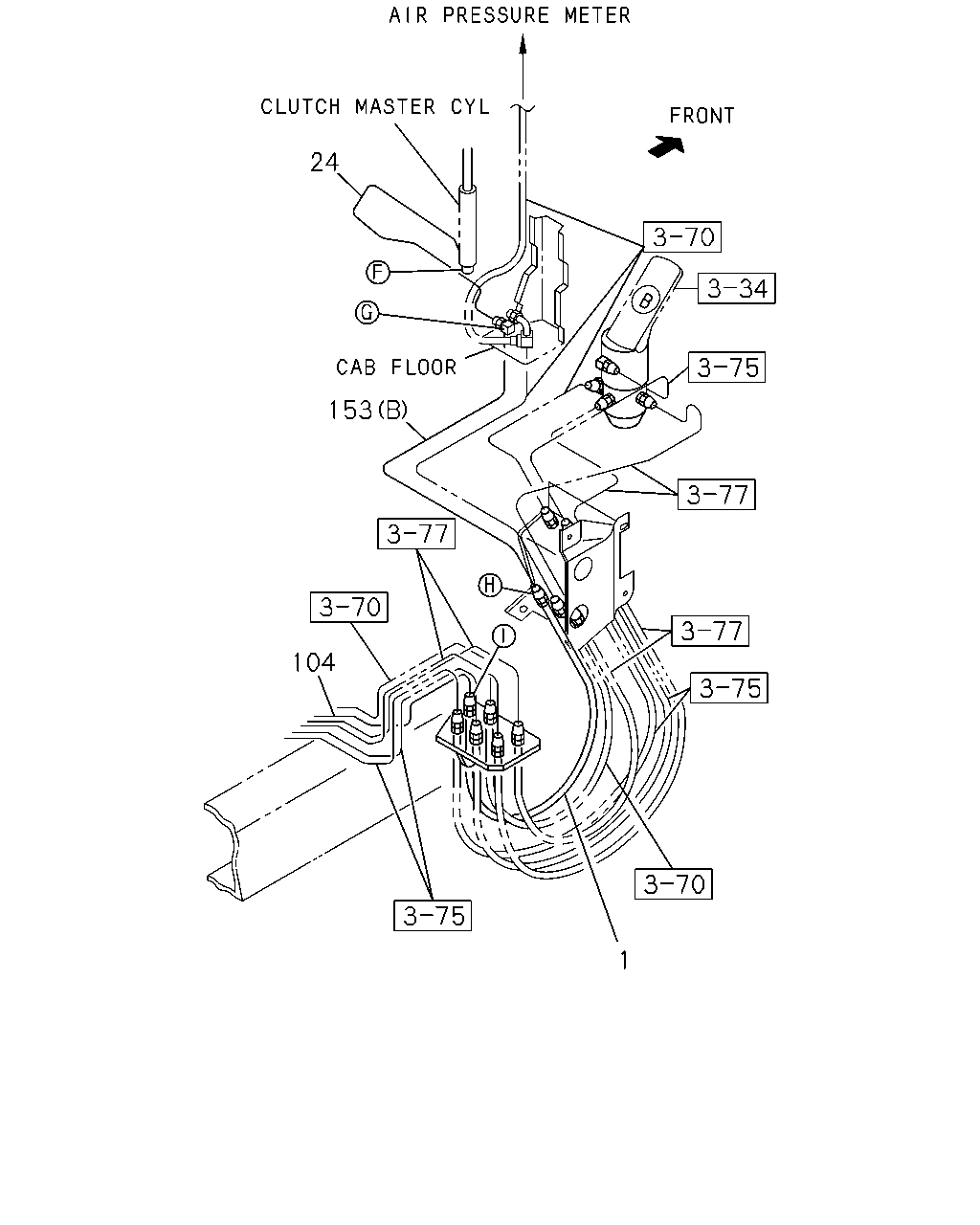

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9601-9904	●	●
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	9905-	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=642.7	1-47424-529-2	01	1	9601-9904	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9905-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9905-0002	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1595	1-49165-436-0	01	1	0003-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9906-0003	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0004-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9601-	●	●	●

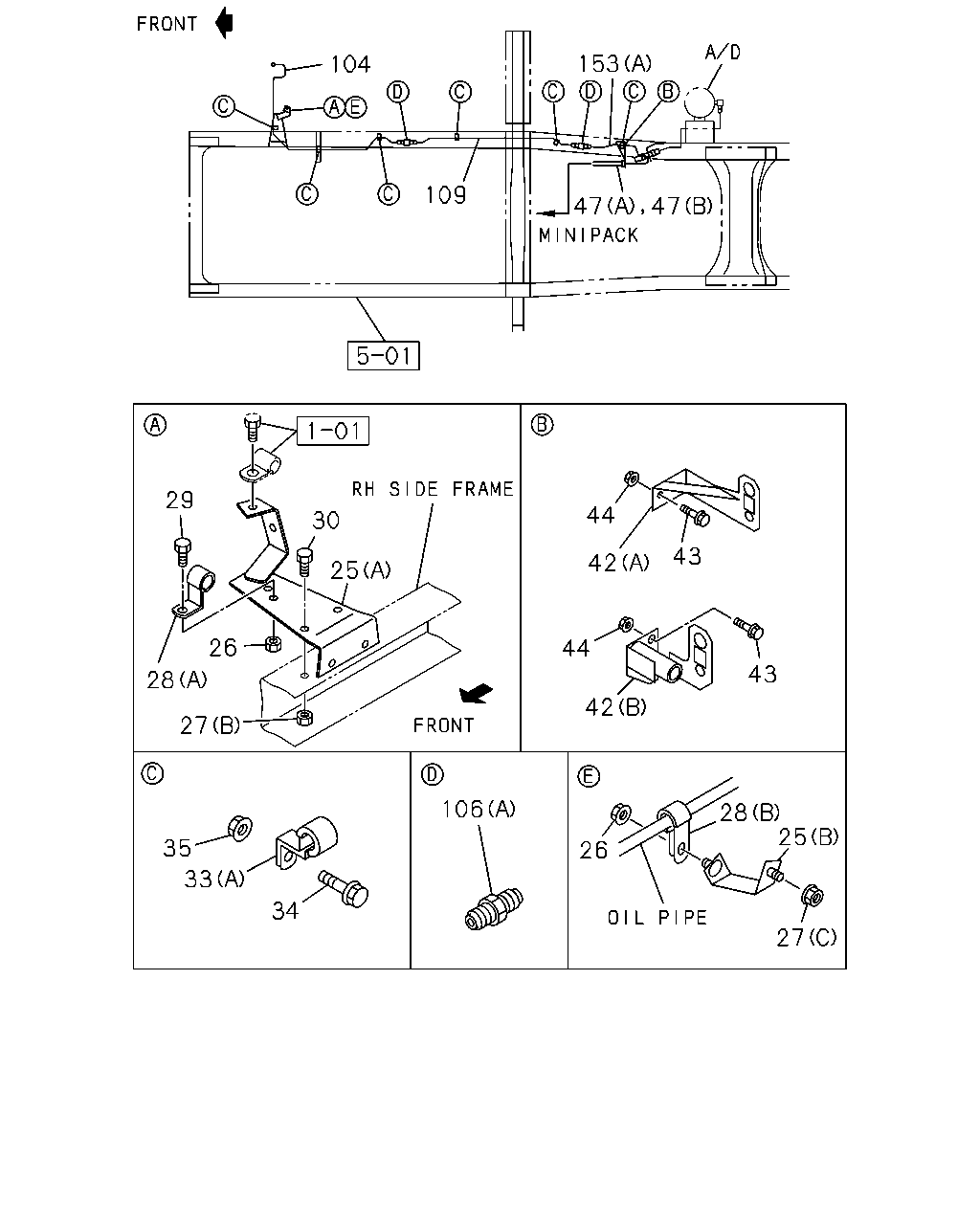

153 104 109 47 47 29 44 30 43 42 25 26 44 43 28 42 27 106 28 25 35 26 33 34 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (A)	1-47477-604-1	01	1	9601-9904	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9905-	●	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-47477-597-2	01	1	9601-9904	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (B)	1-47477-597-2	01	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9601-9601	●	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8	9-09110-508-0	01	1	9602-9605	●	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	0003-	●	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9601-9606	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
27	NUT; BRKT L TYPE ENG<90L> (C) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9904	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-0002	●	●	●
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9601-9904	●	●
28	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0003-	●	●	●
28	CLIP; OIL PIPE 6WA1 TC-S(56L) (B) ID=9	9-09524-845-0	01	1	9601-9904	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=9	9-09524-845-0	01	1	9905-9905	●	●
28	CLIP; OIL PIPE (B) ID=9	9-09524-845-0	01	1	9906-0002	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	01	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	02	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9601-9904	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9610	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-9907	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9908-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
34	BOLT; PIPE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904		●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	02	1	9905-9907	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9908-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
35	NUT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 10PE1S(60L) (A)	1-47477-546-0	01	1	9601-9904	●	●
42	BRACKET; FLEX HOSE,CLU CONT V TYPE ENG<91L> (A)	1-47477-546-1	01	1	9905-	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6WA1 TC-S(56L) (B)	1-47477-414-0	01	1	9601-9904	●	●
42	BRACKET; FLEX HOSE,CLU CONT L TYPE ENG<90L> (B)	1-47477-414-0	01	1	9905-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L) M10X25 FLANGE	0-28081-025-0	02	1	9601-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L),10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9610	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L),10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9611-9904	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	0103-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9610	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9611-9904	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9905-0102	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	0103-	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L) M10	9-09110-510-0	02	1	9601-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L) M10 FLANGE	0-91150-210-0	02	1	9607-9904	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
47	HOSE; FLEX,CLU CONT (A) L=550	1-09364-434-0	01	1	9601-	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-07806-500-1	01	1	9601-9904	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-07806-500-1	01	1	9905-	●	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=600	0-07706-600-0	01	1	9601-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9905-0002	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1595	1-49165-436-0	01	1	0003-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9906-0003	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0004-	●	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9601-9904	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9601-9904	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-0002	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-0002	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0003-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0003-	●	●
109	PIPE; AIR,UNION TO UNION 10PE1S(60L) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9601-9904	●	●
109	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9601-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9601-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
