Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#48077) — 174 parça

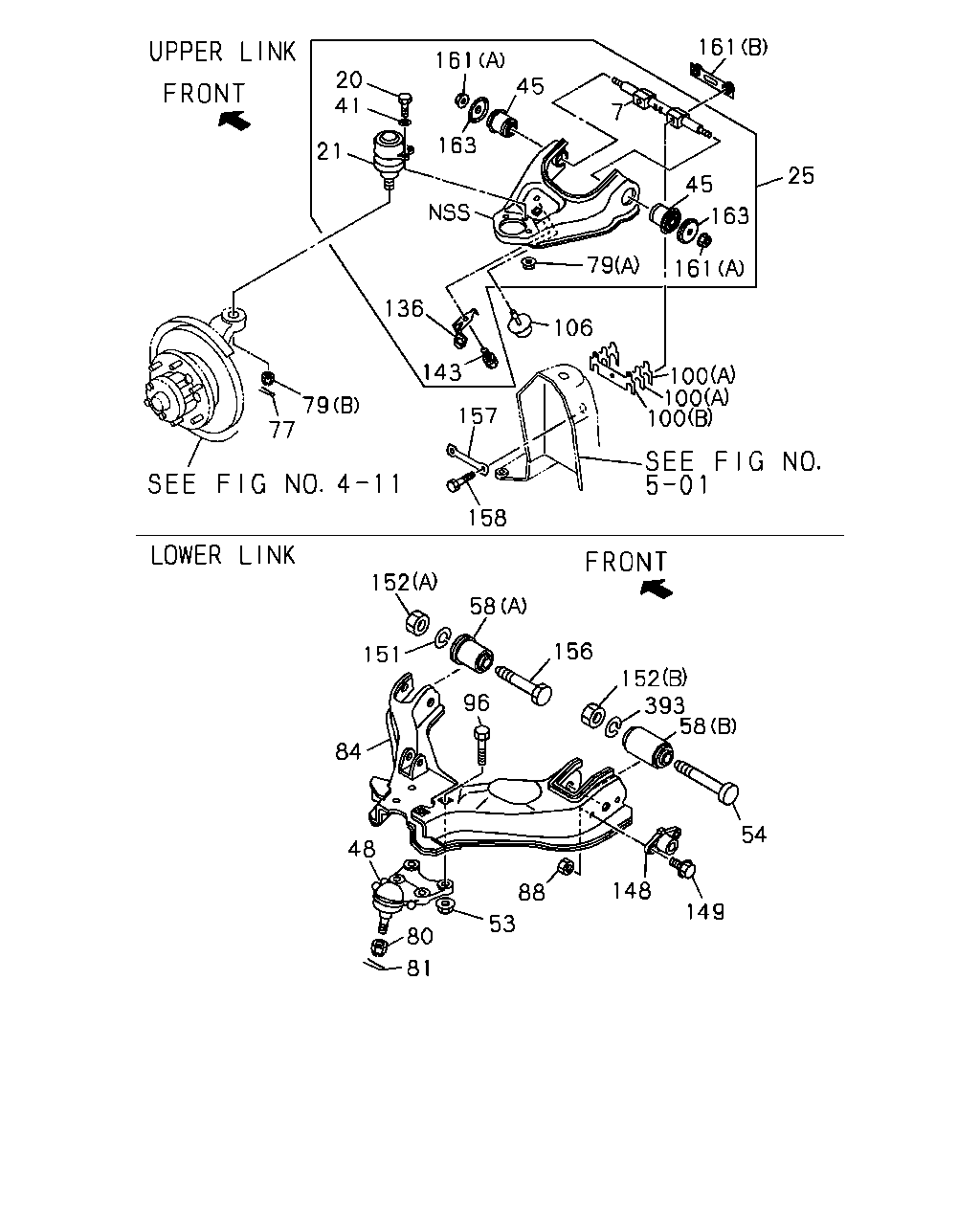

20 161 41 21 45 163 7 161 25 45 163 79 161 106 136 143 79 77 157 158 100 100 100 58 152 151 156 152 393 58 54 149 148 88 53 80 81 48 84 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	06.174 PIN; FULCRUM,UPR LINK	8-94173-352-2	02	1	9210-	●	●	●	●	●	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-94478-727-0	08	1	9210-	●	●	●	●	●	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-94459-453-4	02	1	9210-	●	●	●	●	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-752-3	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-751-3	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-551-2	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-550-2	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9210-					●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9210-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-563-2	01	1	9210-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-562-2	01	1	9210-					●	●	●	●
41	06.174 WASHER; LK,UPR LINK END TO UPR L 04.046 ID=8.2	9-09150-808-0	08	1	9210-	●	●	●	●	●	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-94408-840-3	04	1	9210-	●	●	●	●	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-464-3	02	1	9210-	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9210-					●	●	●	●
53	06.174 NUT; LWR LINK 06.168 M10 FLANGE	8-94242-425-0	02	1	9210-	●	●	●	●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	9210-					●	●	●	●
54	06.174 PIN; FULCRUM,LWR LINK	8-94437-212-1	02	1	9210-					●	●	●	●
58	06.170 BUSHING; LWR LINK ID=16	8-94316-903-0	02	1	9210-	●	●	●	●
58	06.170 BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	9303-					●	●	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-94408-842-0	02	1	9303-9607					●	●	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9608-					●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	9210-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (A) M8 FLANGE	5-09440-010-0	08	1	9210-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (B) M14 SLOTTED	8-94124-556-0	02	1	9210-	●	●	●	●	●	●	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	9210-	●	●	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9210-	●	●	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-461-2	01	1	9210-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-460-2	01	1	9210-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-913-0	01	1	9210-					●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-912-0	01	1	9210-					●	●	●	●
88	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	04	1	9210-					●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 (A) M10X50	9-01066-050-0	02	1	9210-	●	●	●	●
96	06.174 BOLT; LWR LINK 00.002 (B) M10X20	9-02061-020-0	02	1	9210-	●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9210-9407					●	●	●	●
96	06.174 BOLT; LWR LINK 00.002 940718- M12X50	9-92061-250-0	08	1	9407-9606					●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9607-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-94227-053-1	AR	1	9210-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-94227-054-2	AR	1	9210-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-94241-885-3	AR	1	9210-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-94408-859-2	AR	1	9210-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-94408-860-2	AR	1	9210-					●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94259-086-0	02	1	9210-	●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94173-376-0	02	1	9210-					●	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-94455-514-1	01	1	9210-					●	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-94455-513-1	01	1	9210-					●	●	●	●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE EXC. KD PREPARATORY PACK<6HF> 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9210-					●	●	●	●
148	06.170 ARM; LWR LINK	8-94435-413-0	02	1	9210-					●	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM M12X38 FLANGE	8-94429-997-0	04	1	9210-9410					●	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM M12X37 FLANGE	8-94382-104-1	04	1	9411-					●	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM KD PREPARATORY PACK<6HF> 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9210-					●	●	●	●
151	06.172 WASHER; LK,LWR LINK TO FRT C/MBR 05.002 ID=16.2	9-09150-616-0	02	1	9210-					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 07.529 M14	9-99110-514-0	02	1	9210-	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	9210-					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	9210-					●	●	●	●
156	06.172 PIN; FULCRUM,FRT SUSPENSION M16X91	8-94173-359-0	02	1	9210-					●	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-94407-719-1	02	1	9210-	●	●	●	●	●	●	●	●
158	06.178 BOLT; UPR LINK TO FRAME M14X65	8-94478-730-0	04	1	9210-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME 07.417 (A) M14 FLANGE	8-94137-483-0	04	1	9210-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME (B) W/PLATE=115 M14	8-94478-731-0	02	1	9210-	●	●	●	●	●	●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	9210-	●	●	●	●	●	●	●	●
393	07.347 WASHER; PL 06.172 ID=18.2	9-09150-818-0	02	1	9210-9410					●	●	●	●
393	07.347 WASHER; PL ID=19 OD=36	9-09164-618-0	02	1	9411-					●	●	●	●

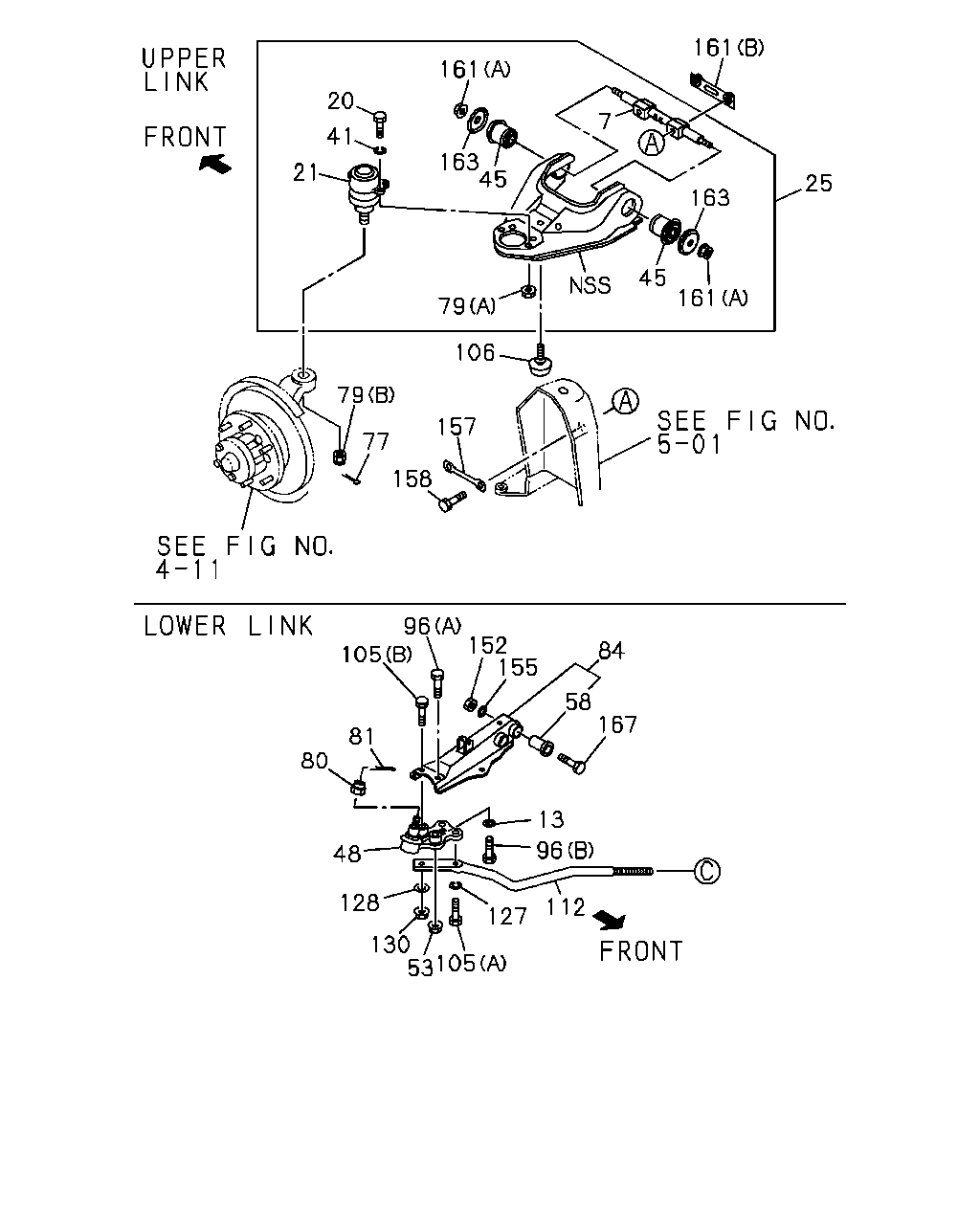

20 161 163 41 21 45 7 161 25 45 163 161 79 157 106 79 158 77 96 152 155 84 58 167 13 96 112 127 130 53 105 128 48 80 105 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	06.174 PIN; FULCRUM,UPR LINK	8-94173-352-2	02	1	9210-	●	●	●	●	●	●	●	●
13	06.174 WASHER; LK,LWR LINK 00.002 ID=10.2	9-09150-610-0	04	1	9210-	●	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-94478-727-0	08	1	9210-	●	●	●	●	●	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-94459-453-4	02	1	9210-	●	●	●	●	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-752-3	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-751-3	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-551-2	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-550-2	01	1	9210-	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9210-					●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9210-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-563-2	01	1	9210-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-562-2	01	1	9210-					●	●	●	●
41	06.174 WASHER; LK,UPR LINK END TO UPR L 04.046 ID=8.2	9-09150-808-0	08	1	9210-	●	●	●	●	●	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-94408-840-3	04	1	9210-	●	●	●	●	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-464-3	02	1	9210-	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9210-					●	●	●	●
53	06.174 NUT; LWR LINK 06.168 M10 FLANGE	8-94242-425-0	02	1	9210-	●	●	●	●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	9210-					●	●	●	●
58	06.170 BUSHING; LWR LINK ID=16	8-94316-903-0	02	1	9210-	●	●	●	●
58	06.170 BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	9303-					●	●	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-94408-842-0	02	1	9303-9607					●	●	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9608-					●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	9210-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (A) M8 FLANGE	5-09440-010-0	08	1	9210-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (B) M14 SLOTTED	8-94124-556-0	02	1	9210-	●	●	●	●	●	●	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	9210-	●	●	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9210-	●	●	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-461-2	01	1	9210-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-460-2	01	1	9210-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-913-0	01	1	9210-					●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-912-0	01	1	9210-					●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 (A) M10X50	9-01066-050-0	02	1	9210-	●	●	●	●
96	06.174 BOLT; LWR LINK 00.002 (B) M10X20	9-02061-020-0	02	1	9210-	●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9210-9407					●	●	●	●
96	06.174 BOLT; LWR LINK 00.002 940718- M12X50	9-92061-250-0	08	1	9407-9606					●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9607-					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 06.168 (A) M10X35	8-94237-412-0	02	1	9210-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 08.900 (B) M10X65	9-01066-065-0	02	1	9210-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9210-					●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94259-086-0	02	1	9210-	●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94173-376-0	02	1	9210-					●	●	●	●
112	06.168 BAR; STRUT	8-94473-192-4	01	1	9210-	●	●	●	●
112	06.168 BAR; STRUT	8-94473-191-4	01	1	9210-	●	●	●	●
127	06.515 WASHER; LK,STRUT BAR TO LWR LINK 00.002 ID=10.2	9-09150-610-0	02	1	9210-	●	●	●	●
128	06.164 WASHER; PL,STRUT 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9210-	●	●	●	●
130	07.172 NUT; STRUT BAR TO LWR LINK 06.168 M10 FLANGE	8-94242-425-0	02	1	9210-	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 07.529 M14	9-99110-514-0	02	1	9210-	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	9210-					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	9210-					●	●	●	●
155	06.897 WASHER; LK,UPR LINK TO FRT C/MBR 00.796 ID=14.2	9-09150-514-0	02	1	9210-	●	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-94407-719-1	02	1	9210-	●	●	●	●	●	●	●	●
158	06.178 BOLT; UPR LINK TO FRAME M14X65	8-94478-730-0	04	1	9210-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME 07.417 (A) M14 FLANGE	8-94137-483-0	04	1	9210-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME (B) W/PLATE=115 M14	8-94478-731-0	02	1	9210-	●	●	●	●	●	●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	9210-	●	●	●	●	●	●	●	●
167	06.178 BOLT; LWR LINK TO FRT C/MBR M14X90	0-10806-490-0	02	1	9210-	●	●	●	●

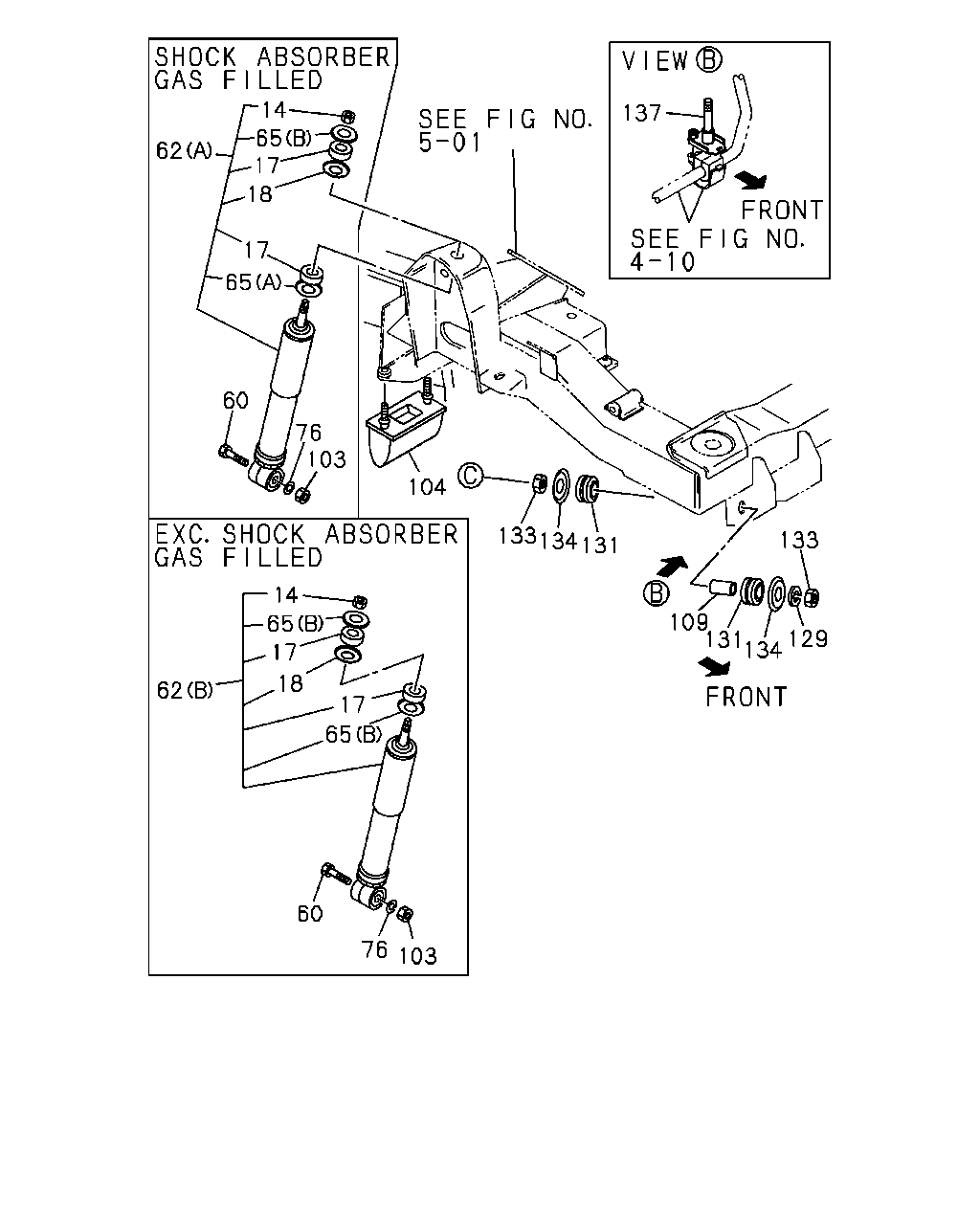

14 62 65 17 18 17 65 60 103 76 104 137 133 134 131 109 131 133 129 134 103 76 60 65 18 62 17 17 65 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	9210-	●	●	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. SHOCK ABSORBER GAS FILLED(FG3) 09.011 KAYABA M10	9-09110-410-0	02	1	9210-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9210-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	9-51631-055-0	04	1	9210-9509	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	9-51631-065-0	04	1	9510-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9210-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	8-94467-498-0	02	1	9210-	●	●	●	●	●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	9210-9212	●	●	●	●	●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	0-10811-250-0	02	1	9301-	●	●	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-918-2	02	1	9210-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94446-373-1	02	1	9210-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94446-374-1	02	1	9210-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-919-2	02	1	9210-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9210-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9210-					●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) (A) ID=10.5 OD=48	8-94317-639-0	02	1	9210-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	02	1	9210-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	9210-	●	●	●	●	●	●	●	●
76	07.347 WASHER; LK,S/ABS TO LWR LINK 04.634 ID=12.2	9-09150-512-0	02	1	9210-	●	●	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	9210-	●	●	●	●	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94433-673-0	02	1	9210-	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-375-0	01	1	9210-					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-374-0	01	1	9210-					●	●	●	●
109	06.168 TUBE; DIST,STRUT BAR	8-94439-157-0	02	1	9210-	●	●	●	●
129	06.168 WASHER; LK,STRUT BAR 05.002 ID=16.2	9-09150-616-0	02	1	9210-	●	●	●	●
131	07.170 RUBBER; CUSHION,STRUT BAR	8-94433-672-0	04	1	9210-	●	●	●	●
133	07.172 NUT; STRUT BAR 08.915 M16	9-99110-516-0	04	1	9210-	●	●	●	●
134	07.172 WASHER; STRUT BAR	8-94439-158-1	04	1	9210-	●	●	●	●
137	07.242 BRACKET; STAB BAR TO FRAME	8-94143-209-0	02	1	9210-	●	●	●	●

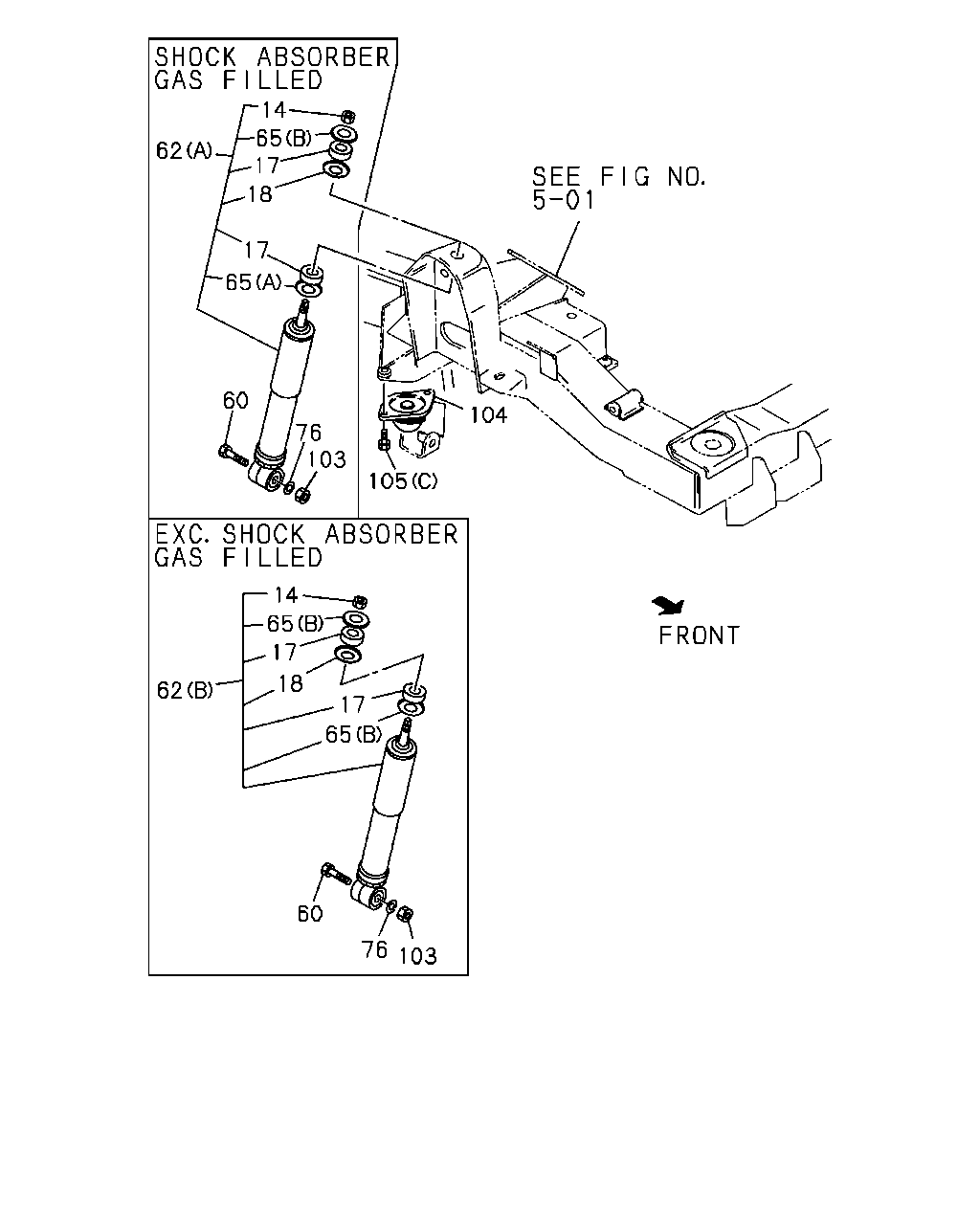

14 62 65 17 18 17 65 60 105 104 76 103 14 62 65 17 18 17 65 60 76 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	9210-	●	●	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. SHOCK ABSORBER GAS FILLED(FG3) 09.011 KAYABA M10	9-09110-410-0	02	1	9210-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9210-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	9-51631-055-0	04	1	9210-9509	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	9-51631-065-0	04	1	9510-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9210-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	8-94467-498-0	02	1	9210-	●	●	●	●	●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	9210-9212	●	●	●	●	●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	0-10811-250-0	02	1	9301-	●	●	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-918-2	02	1	9210-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94446-373-1	02	1	9210-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94446-374-1	02	1	9210-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-919-2	02	1	9210-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9210-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9210-					●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) (A) ID=10.5 OD=48	8-94317-639-0	02	1	9210-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	02	1	9210-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	9210-	●	●	●	●	●	●	●	●
76	07.347 WASHER; LK,S/ABS TO LWR LINK 04.634 ID=12.2	9-09150-512-0	02	1	9210-	●	●	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	9210-	●	●	●	●	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94433-673-0	02	1	9210-	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-375-0	01	1	9210-					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-374-0	01	1	9210-					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 06.168 (A) M10X35	8-94237-412-0	02	1	9210-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 08.900 (B) M10X65	9-01066-065-0	02	1	9210-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9210-					●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
