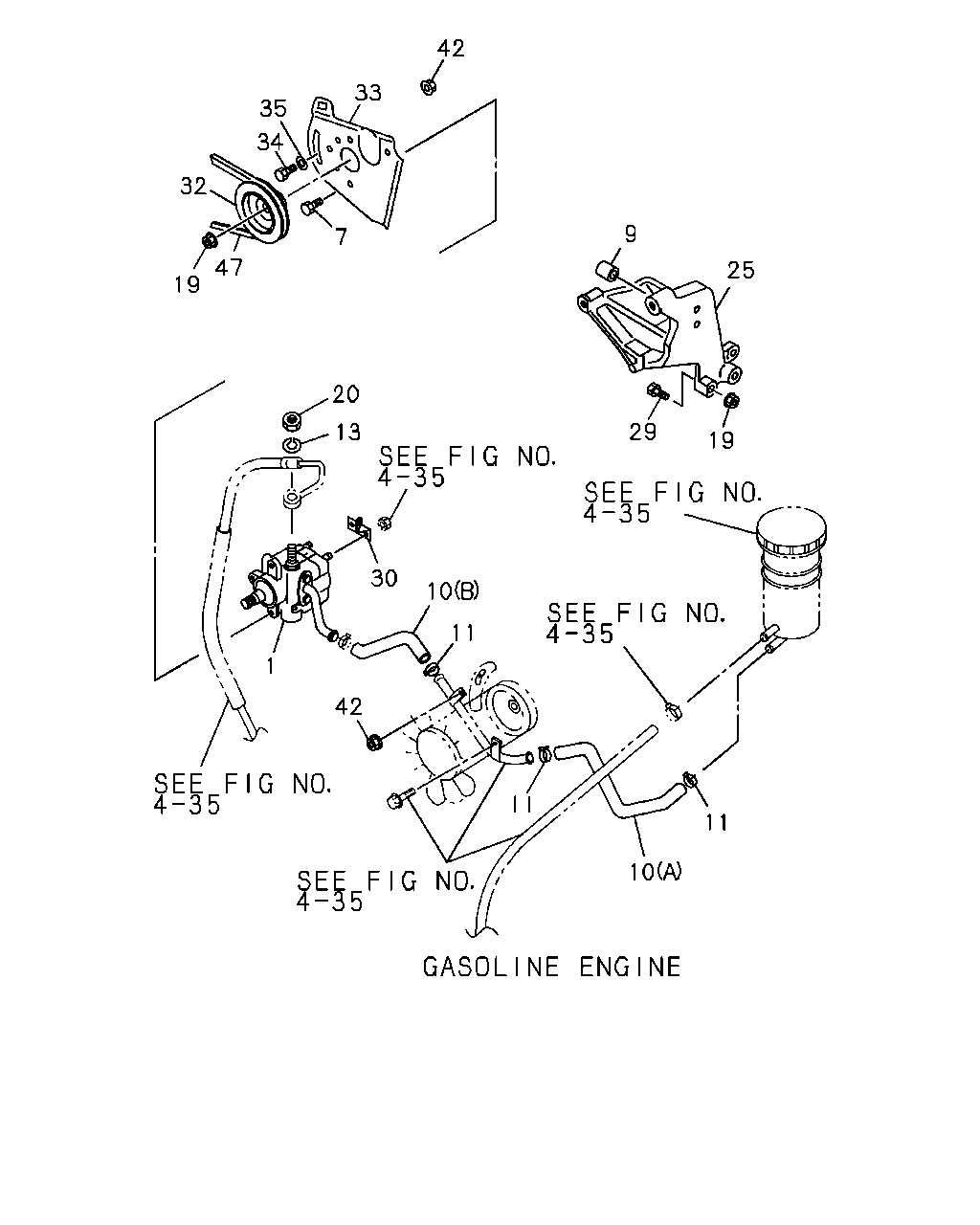

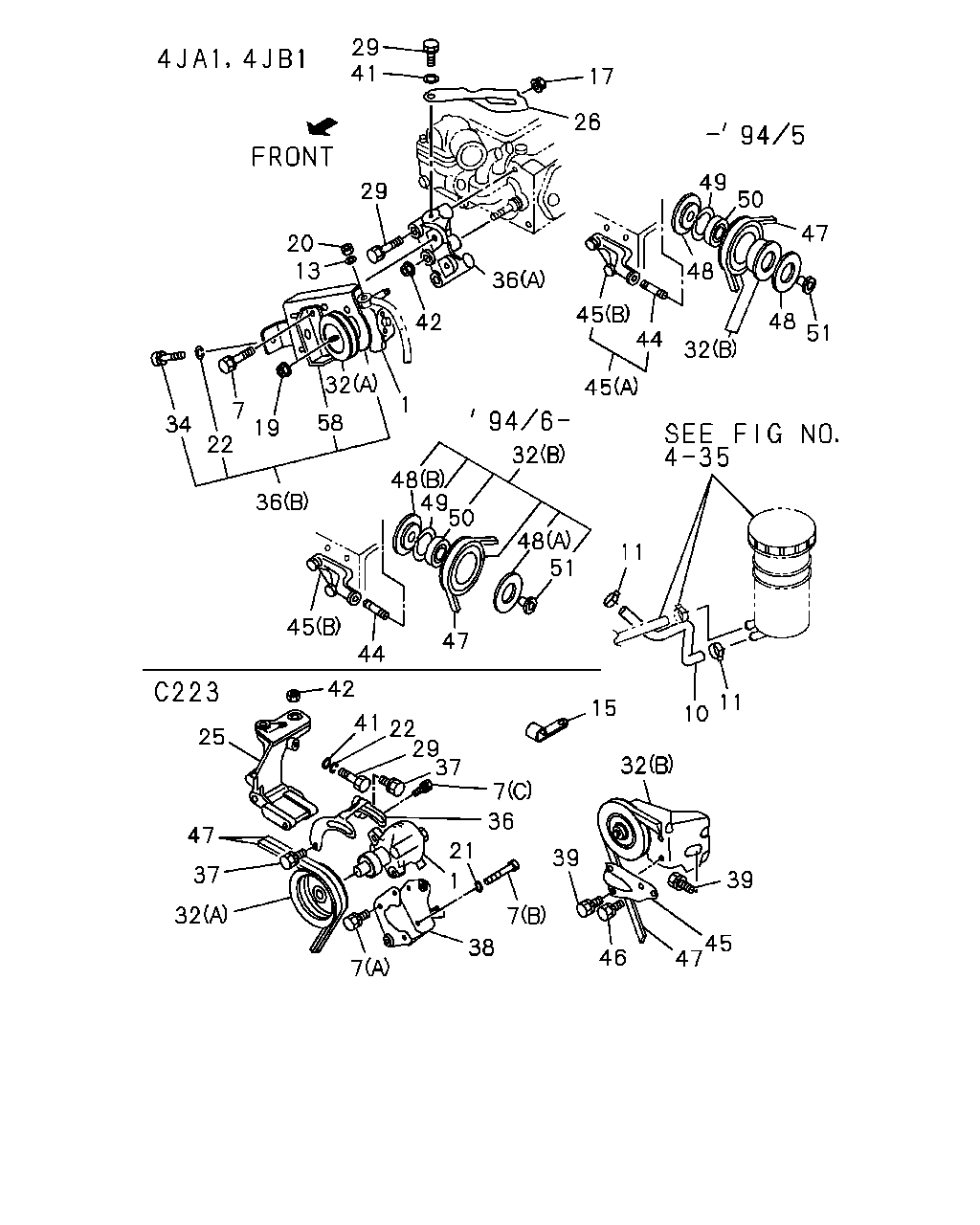

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#48074) — 210 parça

29 17 41 29 26 49 50 47 48 48 51 44 45 32 36 20 42 45 13 1 32 58 19 7 22 34 48 36 32 11 48 50 49 51 11 10 15 47 44 45 42 41 22 29 37 7 32 36 39 39 45 47 46 21 1 7 38 7 32 47 25 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C223 ENG(LQ7) POWER STEERING<N40>	8-94160-669-0	01	1	9210-9308	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE) POWER STEERING<N40>	8-97041-469-0	01	1	9210-9211	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE) POWER STEERING<N40>	8-97084-950-1	01	1	9212-9307	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE) POWER STEERING<N40>	8-97084-953-1	01	1	9308-9308	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97084-953-1	01	1	9309-9405	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97110-269-0	01	1	9406-9505	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97129-593-1	01	1	9506-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94450-411-5	01	1	9210-9403	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. ELECTRIC FUEL INJECTION<6GG>	8-94450-411-5	01	1	9404-9405	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3) POWER STEERING<N40> ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB)	8-97104-020-0	01	1	9404-9405	●		●	●				●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97104-020-0	01	1	9406-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C223 ENG(LQ7) POWER STEERING<N40> 01.652 (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C223 ENG(LQ7) POWER STEERING<N40> 01.516 (C) M10X20 W/LK WASHER	0-50051-020-0	03	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C223 ENG(LQ7) POWER STEERING<N40> 06.606 (B) M10X95	8-94165-519-1	01	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JA1 ENG(RLE) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER	8-97033-053-1	03	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER	8-97033-053-1	03	1	9309-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 11.377 M10X20 W/LK WASHER	0-50041-020-0	03	1	9210-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4JA1 ENG(RLE) POWER STEERING<N40> 06.673	8-94473-739-0	01	1	9210-9509	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.673	8-94473-739-0	01	1	9510-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673 (A)	8-94434-125-1	01	1	9210-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673 (B)	8-94471-683-1	01	1	9210-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL C223 ENG(LQ7) POWER STEERING<N40> 06.673	8-94329-828-0	01	1	9210-9308		●	●	●		●	●	●
11	06.672 CLIP; FLEX HOSE POWER STEERING<N40> ID=21	8-94242-034-0	02	1	9210-9509	●	●	●	●	●	●	●	●
11	06.672 CLIP; FLEX HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=21	8-94242-034-0	02	1	9510-	●	●	●	●	●	●	●	●
11	06.672 CLIP; FLEX HOSE POWER STEERING<N40> ID=21	8-94242-034-0	01	1	9510-	●	●	●	●	●	●	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.634 ID=12.2	9-09150-512-0	01	1	9210-9509	●	●	●	●	●	●	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S POWER STEERING<N40> 04.634 ID=12.2	9-09150-512-0	01	1	9510-	●	●	●	●	●	●	●	●
15	06.672 CLIP; OIL PIPE SUCTION C223 ENG(LQ7) POWER STEERING<N40> ID=22	8-94120-262-0	01	1	9210-9308		●	●	●		●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1 ENG(RLE) POWER STEERING<N40> 08.917 M10 FLANGE	0-91150-210-0	01	1	9210-9308	●	●	●	●	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.917 M10 FLANGE	0-91150-210-0	01	1	9309-	●	●	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4ZD1 ENG(LW3) POWER STEERING<N40> 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-	●	●	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9210-9603	●	●	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9604-	●	●	●	●	●	●	●	●
20	06.673 NUT; HOSE TO PUMP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) POWER STEERING<N40> 07.347 M12	9-99111-412-0	01	1	9210-9509	●	●	●	●	●	●	●	●
20	06.673 NUT; HOSE TO PUMP POWER STEERING<N40> 07.347 M12	9-99111-412-0	01	1	9510-	●	●	●	●	●	●	●	●
21	06.606 WASHER; PL,P/S OIL PUMP C223 ENG(LQ7) POWER STEERING<N40> 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9210-9308	●	●	●	●	●	●	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S C223 ENG(LQ7) POWER STEERING<N40> 00.002 ID=10.2	9-09150-510-0	02	1	9210-9308	●	●	●	●	●	●	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JA1 ENG(RLE) POWER STEERING<N40> 00.002 ID=10.2	9-09150-510-0	01	1	9210-9509	●	●	●	●	●	●	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.002 ID=10.2	9-09150-510-0	01	1	9510-	●	●	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP C223 ENG(LQ7) POWER STEERING<N40>	8-97065-216-0	01	1	9210-9308	●	●	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94420-004-0	01	1	9210-	●	●	●	●	●	●	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JA1 ENG(RLE) POWER STEERING<N40>	8-94474-864-0	01	1	9210-9507	●	●	●	●	●	●	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JA1 ENG(RLE) POWER STEERING<N40>	8-97134-259-0	01	1	9508-9509	●	●	●	●	●	●	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97134-259-0	01	1	9510-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG C223 ENG(LQ7) POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 04.785 M8X18 W/LK WASHER	0-50040-818-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M8X18 W/LK WASHER	0-50040-818-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 04.104 M10X60 W/LK WASHER	0-50041-060-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.104 M10X60 W/LK WASHER	0-50041-060-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-				●	●		●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-				●	●		●	●
29	09.171 BOLT; BRKT,POWER STRG 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S C223 ENG(LQ7) POWER STEERING<N40> 06.655 (A)	8-94470-718-0	01	1	9210-9308	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> 06.655 (A)	8-97042-266-1	01	1	9210-9308	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A)	8-97042-266-1	01	1	9309-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94476-309-0	01	1	9210-9308	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) 06.655 (B)	8-94434-864-0	01	1	9309-9405				●	●		●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) (B)	8-97112-740-0	01	1	9406-				●	●		●	●
32	06.665 PULLEY; IDLER,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.655	8-94450-564-2	01	1	9210-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.655 (B)	8-94104-758-1	01	1	9210-9308		●	●	●		●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1 ENG(RLE) POWER STEERING<N40> 06.655 M10X70	9-02051-070-0	01	1	9210-9304	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1 ENG(RLE) POWER STEERING<N40> M10X70	0-20801-070-0	01	1	9305-9509	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> M10X70	0-20801-070-0	01	1	9510-	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9210-9403	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9404-	●	●	●	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP C223 ENG(LQ7) POWER STEERING<N40>	8-94254-647-2	01	1	9210-9308	●	●	●	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JA1 ENG(RLE) POWER STEERING<N40> (B)	8-97066-758-1	01	1	9210-9509	●	●	●	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97066-758-1	01	1	9510-	●	●	●	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-94478-880-1	01	1	9210-	●	●	●	●	●	●	●	●
37	06.606 BOLT; P/S PUMP C223 ENG(LQ7) POWER STEERING<N40> 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9210-9308	●	●	●	●	●	●	●	●
37	06.606 BOLT; P/S PUMP C223 ENG(LQ7) POWER STEERING<N40> 02.559 M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	9210-9308	●	●	●	●	●	●	●	●
38	06.606 BRACKET; POWER STRG,ENG FOOT C223 ENG(LQ7) POWER STEERING<N40>	8-94104-660-2	01	1	9210-9308	●	●	●	●	●	●	●	●
39	06.606 BOLT; P/S BRKT TO HD C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9210-9308		●	●	●		●	●	●
39	06.606 BOLT; P/S BRKT TO HD C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 02.559 M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9210-9308		●	●	●		●	●	●
41	06.168 WASHER; PL,BRKT C223 ENG(LQ7) POWER STEERING<N40> 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9210-9308	●	●	●	●	●	●	●	●
41	06.168 WASHER; PL,BRKT 4JA1 ENG(RLE) POWER STEERING<N40> 05.510 ID=10 OD=18 T=2	9-09651-116-0	01	1	9210-9308	●	●	●	●	●	●	●	●
41	06.168 WASHER; PL,BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 05.510 ID=10 OD=18 T=2	9-09651-116-0	01	1	9309-9507	●	●	●	●	●	●	●	●
41	06.168 WASHER; PL,BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.029 ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9508-	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE C223 ENG(LQ7) POWER STEERING<N40> 00.002 M10	9-09110-510-0	02	1	9210-9308	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1 ENG(RLE) POWER STEERING<N40> 01.540 M8 FLANGE	0-91150-208-0	01	1	9210-9308	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.540 M8 FLANGE	0-91150-208-0	01	1	9309-	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9311-9312	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 08.917 M10 FLANGE	0-91150-210-0	02	1	9401-	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) POWER STEERING<N40> 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-	●	●	●	●	●	●	●	●
44	06.665 STUD; IDLER PULLEY 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.613 M10X36 L=48	8-94126-210-0	01	1	9210-9308	●	●	●	●	●	●	●	●
44	06.665 STUD; IDLER PULLEY 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.275 M10X25 L=40	9-04411-025-0	01	1	9309-	●	●	●	●	●	●	●	●
44	06.665 STUD; IDLER PULLEY 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) 03.275 M10X25 L=40	9-04411-025-0	01	1	9309-				●	●		●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.665 (A)	8-94372-492-0	01	1	9210-9308	●	●	●	●	●	●	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94449-652-0	01	1	9210-9308	●	●	●	●	●	●	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94449-652-0	01	1	9309-	●	●	●	●	●	●	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) (B)	8-94449-652-0	01	1	9309-				●	●		●	●
45	06.655 BRACKET; IDLE PULLEY,P/S C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	5-19587-028-0	01	1	9210-9308		●	●	●		●	●	●
46	04.686 BOLT; IDLER TO ADJ SCREW C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9308		●	●	●		●	●	●
47	01.066 BELT; P/S PUMP 4ZD1 ENG(LW3) 4ZE1 ENG(RLJ) POWER STEERING<N40> L=1019	8-94452-904-0	01	1	9210-	●	●	●	●	●	●	●	●
47	01.066 BELT; P/S PUMP C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94434-926-0	01	1	9210-9308		●	●	●		●	●	●
47	01.066 BELT; P/S PUMP C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) L=1499	8-94111-624-0	01	1	9210-9308		●	●	●		●	●	●
47	01.066 BELT; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9510-					●		●	●
47	01.066 BELT; P/S PUMP 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) L=1399	5-13671-111-0	01	1	9210-	●	●	●	●	●	●	●	●
48	06.665 COVER; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94476-310-0	02	1	9210-9308	●	●	●	●	●	●	●	●
48	06.665 COVER; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94476-310-0	02	1	9309-9405	●	●	●	●	●	●	●	●
48	06.665 COVER; IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60)	8-94476-310-0	02	1	9309-9405				●	●		●	●
48	06.665 COVER; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97092-819-0	01	1	9406-	●	●	●	●	●	●	●	●
48	06.665 COVER; IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) (B)	8-97092-819-0	01	1	9406-				●	●		●	●
48	06.665 COVER; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.181 (A)	9-13669-603-0	01	1	9406-	●	●	●	●	●	●	●	●
48	06.665 COVER; IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) 09.181 (A)	9-13669-603-0	01	1	9406-				●	●		●	●
49	06.665 RING; SNAP,IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 04.412 OD=50.5	9-09180-147-0	01	1	9210-9308	●	●	●	●	●	●	●	●
49	06.665 RING; SNAP,IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 04.412 OD=50.5	9-09180-147-0	01	1	9309-9405	●	●	●	●	●	●	●	●
49	06.665 RING; SNAP,IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) 04.412 OD=50.5	9-09180-147-0	01	1	9309-9405				●	●		●	●
49	06.665 RING; SNAP,IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94175-036-0	01	1	9406-	●	●	●	●	●	●	●	●
49	06.665 RING; SNAP,IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60)	8-94175-036-0	01	1	9406-				●	●		●	●
50	06.665 BEARING; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94251-052-0	01	1	9210-9308	●	●	●	●	●	●	●	●
50	06.665 BEARING; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94251-052-0	01	1	9309-	●	●	●	●	●	●	●	●
50	06.665 BEARING; IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60)	8-94251-052-0	01	1	9309-				●	●		●	●
51	06.665 NUT; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94372-495-0	01	1	9210-9308	●	●	●	●	●	●	●	●
51	06.665 NUT; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94372-495-0	01	1	9309-9405	●	●	●	●	●	●	●	●
51	06.665 NUT; IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60)	8-94372-495-0	01	1	9309-9405				●	●		●	●
51	06.665 NUT; IDLER 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97092-813-0	01	1	9406-	●	●	●	●	●	●	●	●
51	06.665 NUT; IDLER 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60)	8-97092-813-0	01	1	9406-				●	●		●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP 4JA1 ENG(RLE) POWER STEERING<N40>	8-94479-122-0	01	1	9210-9509	●	●	●	●	●	●	●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94479-122-0	01	1	9510-	●	●	●	●	●	●	●	●

42 33 35 34 32 47 19 7 9 25 29 19 13 20 30 1 42 10 11 11 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C223 ENG(LQ7) POWER STEERING<N40>	8-94160-669-0	01	1	9210-9308	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE) POWER STEERING<N40>	8-97041-469-0	01	1	9210-9211	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE) POWER STEERING<N40>	8-97084-950-1	01	1	9212-9307	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE) POWER STEERING<N40>	8-97084-953-1	01	1	9308-9308	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97084-953-1	01	1	9309-9405	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97110-269-0	01	1	9406-9505	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97129-593-1	01	1	9506-	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94450-411-5	01	1	9210-9403	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. ELECTRIC FUEL INJECTION<6GG>	8-94450-411-5	01	1	9404-9405	●	●	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3) POWER STEERING<N40> ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB)	8-97104-020-0	01	1	9404-9405	●		●	●				●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97104-020-0	01	1	9406-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C223 ENG(LQ7) POWER STEERING<N40> 01.652 (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C223 ENG(LQ7) POWER STEERING<N40> 01.516 (C) M10X20 W/LK WASHER	0-50051-020-0	03	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C223 ENG(LQ7) POWER STEERING<N40> 06.606 (B) M10X95	8-94165-519-1	01	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JA1 ENG(RLE) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER	8-97033-053-1	03	1	9210-9308	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER	8-97033-053-1	03	1	9309-	●	●	●	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 11.377 M10X20 W/LK WASHER	0-50041-020-0	03	1	9210-	●	●	●	●	●	●	●	●
9	06.606 COLLAR; IDLER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94146-294-0	01	1	9210-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4JA1 ENG(RLE) POWER STEERING<N40> 06.673	8-94473-739-0	01	1	9210-9509	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.673	8-94473-739-0	01	1	9510-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673 (A)	8-94434-125-1	01	1	9210-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673 (B)	8-94471-683-1	01	1	9210-	●	●	●	●	●	●	●	●
10	06.670 HOSE; FLEX,P/S OIL PUMP,INL C223 ENG(LQ7) POWER STEERING<N40> 06.673	8-94329-828-0	01	1	9210-9308		●	●	●		●	●	●
11	06.672 CLIP; FLEX HOSE POWER STEERING<N40> ID=21	8-94242-034-0	02	1	9210-9509	●	●	●	●	●	●	●	●
11	06.672 CLIP; FLEX HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=21	8-94242-034-0	02	1	9510-	●	●	●	●	●	●	●	●
11	06.672 CLIP; FLEX HOSE POWER STEERING<N40> ID=21	8-94242-034-0	01	1	9510-	●	●	●	●	●	●	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.634 ID=12.2	9-09150-512-0	01	1	9210-9509	●	●	●	●	●	●	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S POWER STEERING<N40> 04.634 ID=12.2	9-09150-512-0	01	1	9510-	●	●	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4ZD1 ENG(LW3) POWER STEERING<N40> 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-	●	●	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9210-9603	●	●	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9604-	●	●	●	●	●	●	●	●
20	06.673 NUT; HOSE TO PUMP 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) POWER STEERING<N40> 07.347 M12	9-99111-412-0	01	1	9210-9509	●	●	●	●	●	●	●	●
20	06.673 NUT; HOSE TO PUMP POWER STEERING<N40> 07.347 M12	9-99111-412-0	01	1	9510-	●	●	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP C223 ENG(LQ7) POWER STEERING<N40>	8-97065-216-0	01	1	9210-9308	●	●	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94420-004-0	01	1	9210-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG C223 ENG(LQ7) POWER STEERING<N40> 00.724 M10X55	5-09030-038-1	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 04.785 M8X18 W/LK WASHER	0-50040-818-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M8X18 W/LK WASHER	0-50040-818-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> 04.104 M10X60 W/LK WASHER	0-50041-060-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.104 M10X60 W/LK WASHER	0-50041-060-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9309-				●	●		●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	01	1	9210-9308	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-	●	●	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-				●	●		●	●
29	09.171 BOLT; BRKT,POWER STRG 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-	●	●	●	●	●	●	●	●
30	06.672 BRACKET; FLEX HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94463-474-0	01	1	9210-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S C223 ENG(LQ7) POWER STEERING<N40> 06.655 (A)	8-94470-718-0	01	1	9210-9308	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> 06.655 (A)	8-97042-266-1	01	1	9210-9308	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A)	8-97042-266-1	01	1	9309-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94476-309-0	01	1	9210-9308	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.655 (B)	8-94434-864-0	01	1	9309-9405	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) 06.655 (B)	8-94434-864-0	01	1	9309-9405				●	●		●	●
32	06.665 PULLEY; IDLER,P/S 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) (B)	8-97112-740-0	01	1	9406-				●	●		●	●
32	06.665 PULLEY; IDLER,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.655	8-94450-564-2	01	1	9210-	●	●	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.655 (B)	8-94104-758-1	01	1	9210-9308		●	●	●		●	●	●
33	06.655 PLATE; ADJ,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94472-342-0	01	1	9210-	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1 ENG(RLE) POWER STEERING<N40> 06.655 M10X70	9-02051-070-0	01	1	9210-9304	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1 ENG(RLE) POWER STEERING<N40> M10X70	0-20801-070-0	01	1	9305-9509	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> M10X70	0-20801-070-0	01	1	9510-	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9210-9403	●	●	●	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9404-	●	●	●	●	●	●	●	●
35	04.085 WASHER; PL,ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=10.5 OD=26	9-09164-710-0	02	1	9210-	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE C223 ENG(LQ7) POWER STEERING<N40> 00.002 M10	9-09110-510-0	02	1	9210-9308	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1 ENG(RLE) POWER STEERING<N40> 01.540 M8 FLANGE	0-91150-208-0	01	1	9210-9308	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.540 M8 FLANGE	0-91150-208-0	01	1	9309-	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9311-9312	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 08.917 M10 FLANGE	0-91150-210-0	02	1	9401-	●	●	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) POWER STEERING<N40> 00.854 M8 FLANGE	5-09440-005-0	01	1	9210-	●	●	●	●	●	●	●	●
47	01.066 BELT; P/S PUMP 4ZD1 ENG(LW3) 4ZE1 ENG(RLJ) POWER STEERING<N40> L=1019	8-94452-904-0	01	1	9210-	●	●	●	●	●	●	●	●
47	01.066 BELT; P/S PUMP C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94434-926-0	01	1	9210-9308		●	●	●		●	●	●
47	01.066 BELT; P/S PUMP C223 ENG(LQ7) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) L=1499	8-94111-624-0	01	1	9210-9308		●	●	●		●	●	●
47	01.066 BELT; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER(C60) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9510-					●		●	●
47	01.066 BELT; P/S PUMP 4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) L=1399	5-13671-111-0	01	1	9210-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
