Sayfa 4-35 - Isuzu EPC

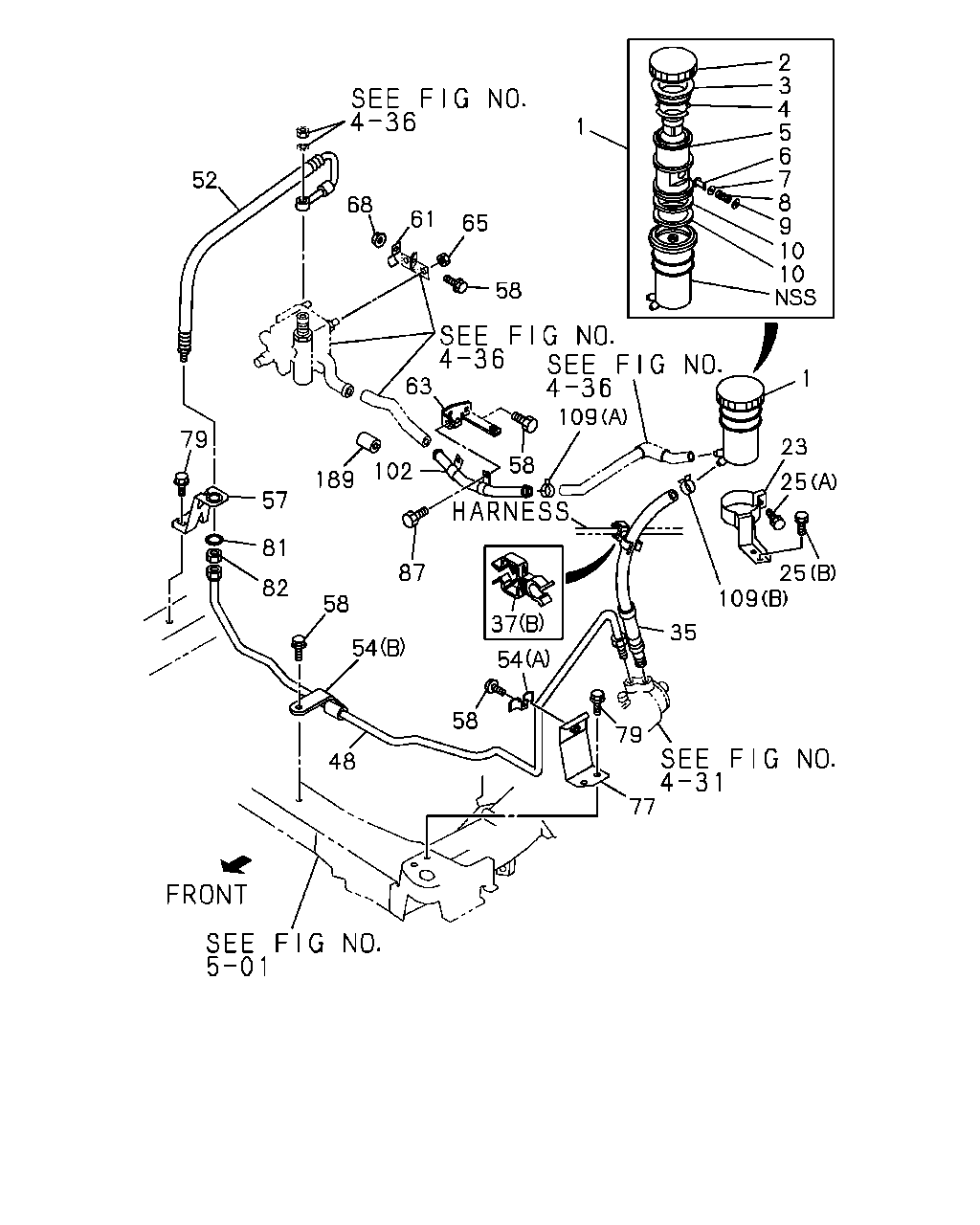

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#48073) — 132 parça

52 68 65 61 1 2 3 5 4 6 10 10 9 8 7 1 23 25 25 35 109 54 37 87 79 77 58 54 58 189 102 63 109 58 58 57 79 81 82 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-94105-282-6	01	1	9210-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9210-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S POWER STEERING<N40>	8-94204-441-1	01	1	9210-	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-94405-458-1	01	1	9210-	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9210-	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9210-	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9210-	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9210-	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9210-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-94440-403-1	01	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9210-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40>	8-94329-645-2	01	1	9210-9509	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-645-2	01	1	9510-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94147-058-3	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9210-9509	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9510-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.672 (B) D=14.5 /22	8-94317-707-0	01	1	9210-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97014-363-0	01	1	9210-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-94423-011-2	01	1	9210-9508	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-97089-158-0	01	1	9509-9509	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97089-158-0	01	1	9510-9511	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97133-566-1	01	1	9512-9608	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97165-976-0	01	1	9609-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.670	8-94473-738-3	01	1	9210-9608	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97165-977-0	01	1	9609-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C223 ENG(LQ7) POWER STEERING<N40> 06.672	8-94120-498-2	01	1	9210-9308		●	●	●		●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> (C)	8-94451-983-0	01	1	9210-9509	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-94451-983-0	01	1	9510-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (B)	8-94178-110-0	01	1	9210-	●	●	●	●	●	●	●	●
57	06.672 BRACKET; POWER STRG PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94310-048-0	01	1	9210-9411	●	●	●	●	●	●	●	●
57	06.672 BRACKET; POWER STRG PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97124-388-0	01	1	9412-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9502-9503	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9502-9503	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9210-9411	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9412-9509	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9510-9601	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9602-9603	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMA LA/COSTA RICA EQUIPMENT(7LD) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9604-	●	●	●	●	●	●	●	●
61	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.930	9-09716-061-0	01	1	9210-	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB)	8-94329-683-0	01	1	9210-9411	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94329-683-0	01	1	9412-9509	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94329-683-0	01	1	9510-9603	●	●	●	●	●	●	●	●
63	06.672 BRACKET; CLIP,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMA LA/COSTA RICA EQUIPMENT(7LD)	8-94329-683-0	01	1	9604-	●	●	●	●	●	●	●	●
65	06.672 NUT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9210-9310	●	●	●	●	●	●	●	●
68	06.672 NUT; CLIP,OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.594 M6 FLANGE	0-91150-106-0	01	1	9210-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-94442-105-1	01	1	9210-9501	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-97120-708-0	01	1	9502-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9210-9503	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-9509	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9510-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9210-9503	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9504-	●	●	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9210-	●	●	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.681 M16	9-99111-416-0	01	1	9210-	●	●	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> M8X16 FLANGE	0-28280-816-0	01	1	9210-	●	●	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> M8X16 FLANGE	0-28280-816-0	02	1	9405-	●		●	●				●
102	06.671 PIPE; SUCTION,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94146-056-1	01	1	9210-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9210-9509	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9510-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9510-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	01	1	9210-	●	●	●	●	●	●	●	●
189	06.672 SPACER; PIPE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB)	9-46133-003-0	01	1	9210-9411	●	●	●	●	●	●	●	●
189	06.672 SPACER; PIPE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	9-46133-003-0	01	1	9412-9509	●	●	●	●	●	●	●	●
189	06.672 SPACER; PIPE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	9-46133-003-0	01	1	9510-9603	●	●	●	●	●	●	●	●
189	06.672 SPACER; PIPE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMA LA/COSTA RICA EQUIPMENT(7LD)	9-46133-003-0	01	1	9604-	●	●	●	●	●	●	●	●

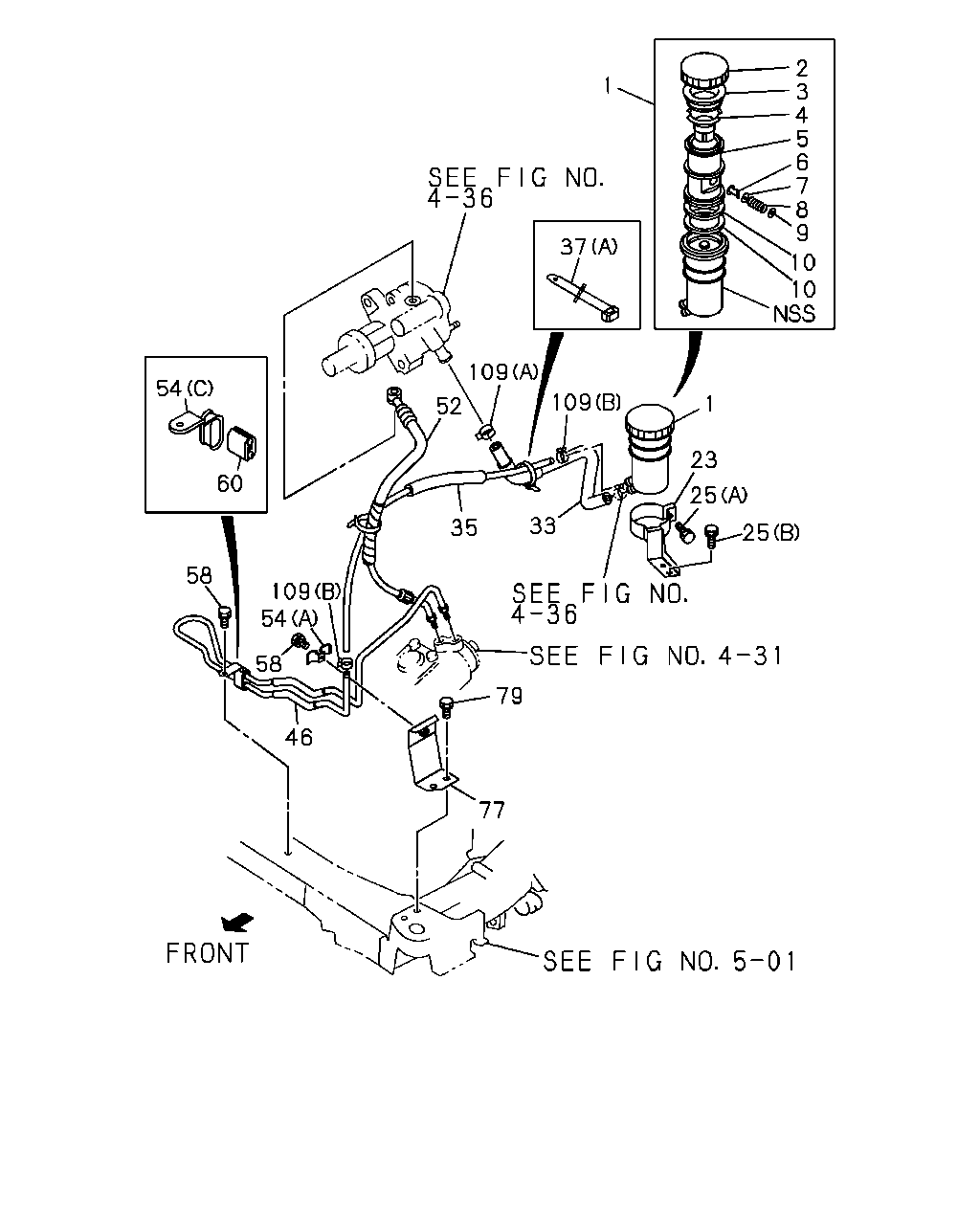

1 10 10 9 8 7 6 5 4 3 2 37 1 23 25 25 109 109 52 35 33 79 77 46 58 109 54 58 60 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-94105-282-6	01	1	9210-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9210-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9210-	●	●	●	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S POWER STEERING<N40>	8-94204-441-1	01	1	9210-	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-94405-458-1	01	1	9210-	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9210-	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9210-	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9210-	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9210-	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9210-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-94440-403-1	01	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9210-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9210-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.673	8-94473-739-1	01	1	9602-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40>	8-94329-645-2	01	1	9210-9509	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-645-2	01	1	9510-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94147-058-3	01	1	9210-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9210-9509	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9510-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.672 (B) D=14.5 /22	8-94317-707-0	01	1	9210-	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40>	8-94326-034-1	01	1	9210-9509	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94326-034-1	01	1	9510-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-94423-011-2	01	1	9210-9508	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-97089-158-0	01	1	9509-9509	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97089-158-0	01	1	9510-9511	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97133-566-1	01	1	9512-9608	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97165-976-0	01	1	9609-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.670	8-94473-738-3	01	1	9210-9608	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97165-977-0	01	1	9609-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C223 ENG(LQ7) POWER STEERING<N40> 06.672	8-94120-498-2	01	1	9210-9308		●	●	●		●	●	●
54	06.672 CLIP; OIL PIPE C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> (C)	8-94451-983-0	01	1	9210-9509	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-94451-983-0	01	1	9510-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9210-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (B)	8-94178-110-0	01	1	9210-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9502-9503	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9502-9503	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9210-9501	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9210-9411	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9412-9509	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9510-9601	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9602-9603	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMA LA/COSTA RICA EQUIPMENT(7LD) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9604-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9210-9509	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9510-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-94442-105-1	01	1	9210-9501	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-97120-708-0	01	1	9502-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9210-9503	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9504-9509	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9510-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9210-9503	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9504-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE C223 ENG(LQ7),4JA1 ENG(RLE) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9210-9509	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9510-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9510-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	01	1	9210-	●	●	●	●	●	●	●	●
