◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#48071) — 60 parça

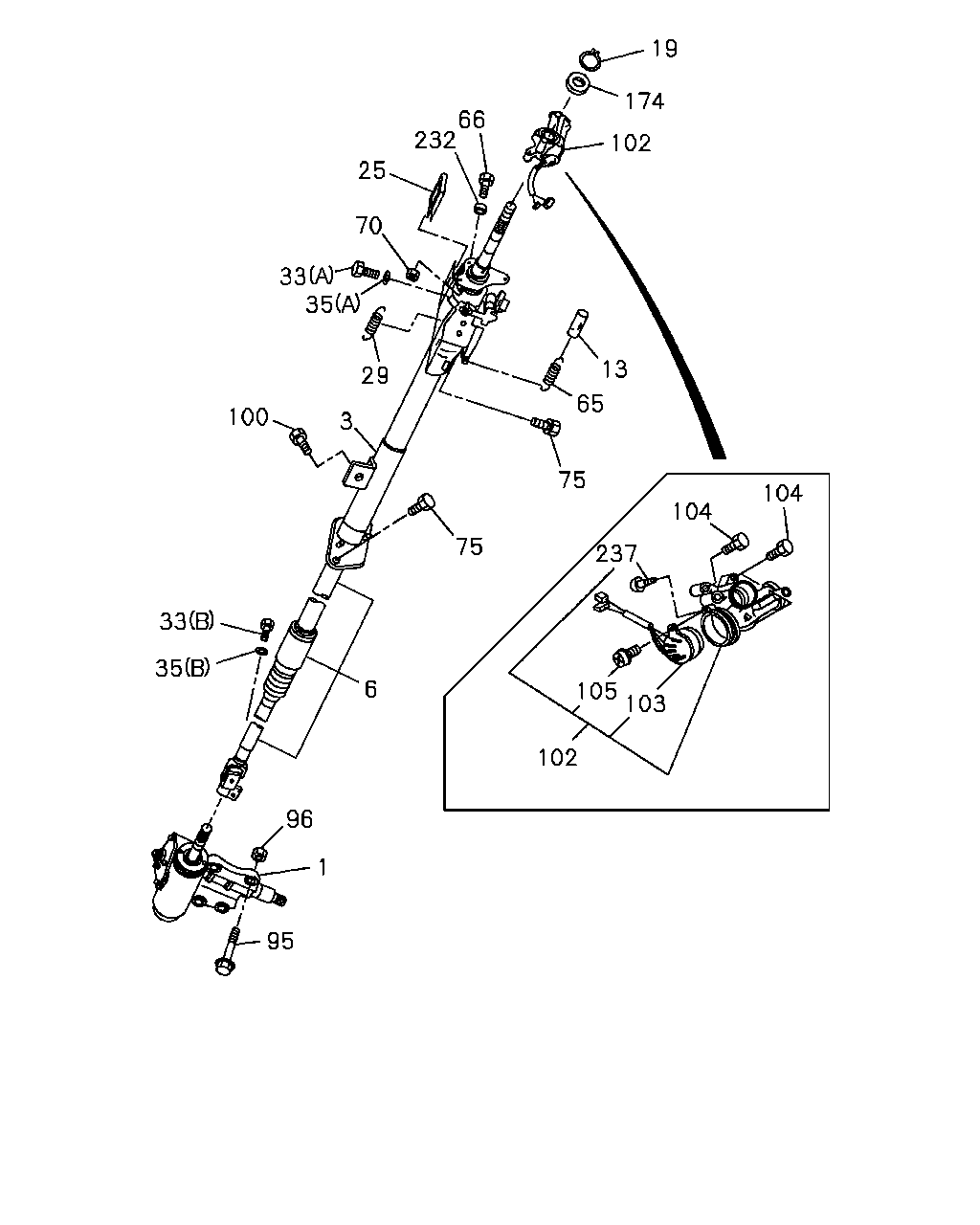

çizim 65976
19 102 174 66 232 25 70 33 13 35 29 65 75 75 3 100 33 35 6 237 104 104 105 103 102 96 1 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-94173-299-5 01 1 9210-9403 ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97101-354-1 01 1 9404- ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97045-345-0 01 1 9210- ● ● ● ● ● ● ● ●
3 06.524 SHAFT & COLUMN ASM; STRG
TILT STEERING<N33> 		8-97078-240-0 01 1 9210- ● ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97084-692-0 01 1 9210- ● ● ● ● ● ● ● ●
13 06.521 COVER; SPR
TILT STEERING<N33> 		8-97078-243-0 02 1 9210-9310 ● ● ● ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 01 1 9210- ● ● ● ● ● ● ● ●
25 06.518 PLATE; COATING,STRG COLUMN 8-94477-971-0 02 1 9210- ● ● ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97078-242-0 02 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) 		8-94247-692-0 01 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
00.002 (B) 		9-09150-508-0 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 9210- ● ● ● ● ● ● ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 02 1 9210- ● ● ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> 		8-94477-977-0 01 1 9210- ● ● ● ● ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> 		8-94477-978-0 01 1 9210-9310 ● ● ● ● ● ● ● ●
75 03.417 BOLT; STRG COLUMN
06.760 M8X25 W/LK&PL WASHER 		8-94331-747-1 02 1 9210- ● ● ● ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9210- ● ● ● ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9210- ● ● ● ● ● ● ● ●
100 03.670 BOLT; COLUMN TO FLOOR
M8X16 W/PL WASHER 		8-94389-962-2 01 1 9210- ● ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-797-2 01 1 9210- ● ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-799-2 01 1 9210- ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97020-998-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97020-998-0 01 1 9403- ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97020-997-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9210-9411 ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9412- ● ● ● ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 02 1 9403- ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-94372-808-0 01 1 9210-9605 ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97176-324-0 01 1 9606- ● ● ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> 		8-94477-982-0 01 1 9210-9310 ● ● ● ● ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 03 1 9403- ● ● ● ● ● ● ● ●

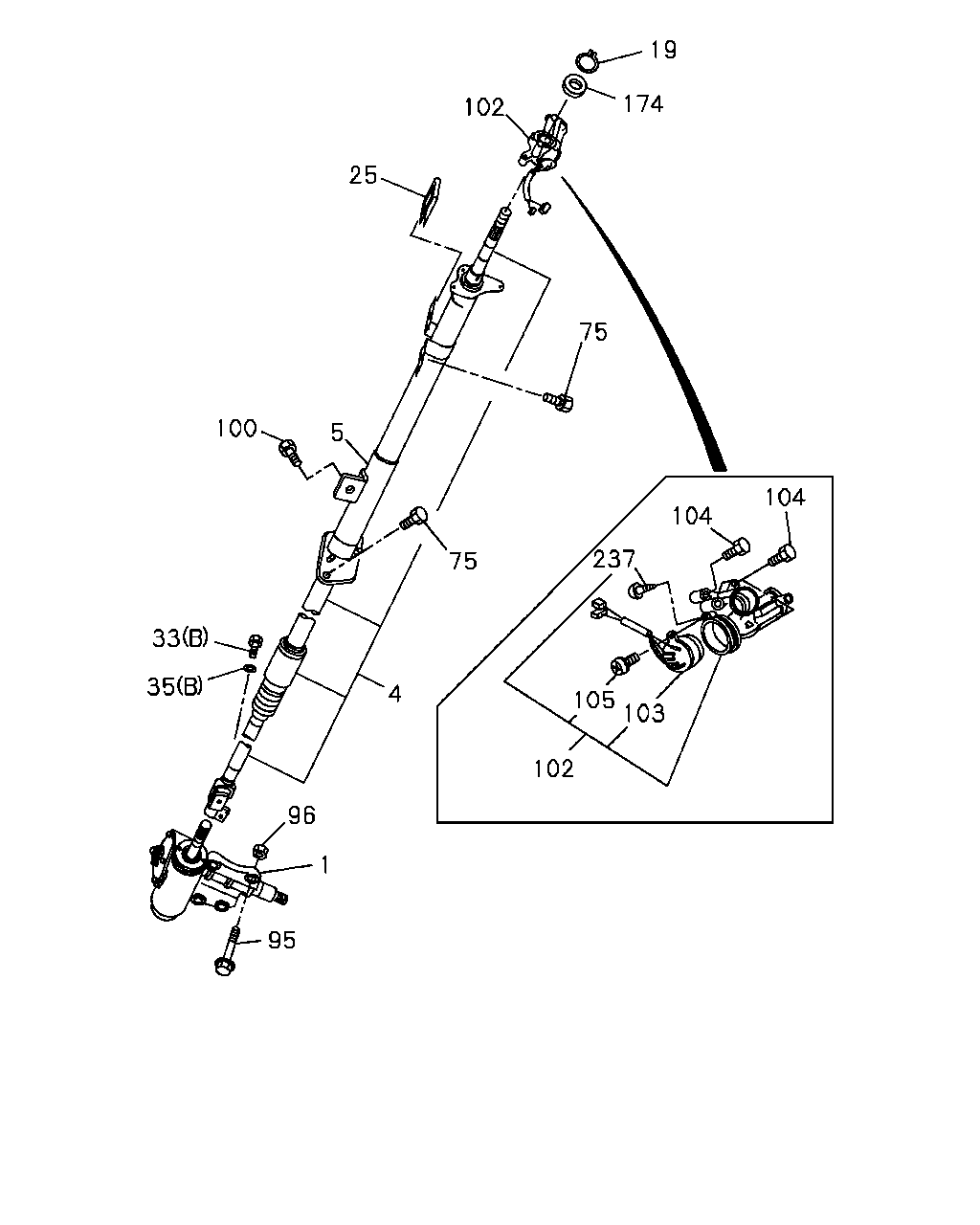

çizim 66347
19 102 25 174 75 5 100 75 4 33 35 96 1 95 102 105 103 237 104 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-94173-299-5 01 1 9210-9403 ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97101-354-1 01 1 9404- ● ● ● ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97045-345-0 01 1 9210- ● ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97084-690-0 01 1 9210- ● ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97078-232-0 01 1 9210- ● ● ● ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 01 1 9210- ● ● ● ● ● ● ● ●
25 06.518 PLATE; COATING,STRG COLUMN 8-94477-971-0 02 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) 		8-94247-692-0 01 1 9210- ● ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
00.002 (B) 		9-09150-508-0 01 1 9210- ● ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 9210- ● ● ● ● ● ● ● ●
75 03.417 BOLT; STRG COLUMN
06.760 M8X25 W/LK&PL WASHER 		8-94331-747-1 02 1 9210- ● ● ● ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9210- ● ● ● ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9210- ● ● ● ● ● ● ● ●
100 03.670 BOLT; COLUMN TO FLOOR
M8X16 W/PL WASHER 		8-94389-962-2 01 1 9210- ● ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-797-2 01 1 9210- ● ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97047-799-2 01 1 9210- ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION
SAUDI ARABIA EQUIPMENT(EU2) 		8-97020-998-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97020-998-0 01 1 9403- ● ● ● ● ● ● ● ●
103 02.188 SWITCH; IGNITION
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97020-997-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
04.054 M6X25 W/LK WASHER 		0-50040-625-0 03 1 9210-9411 ● ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9412- ● ● ● ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9210-9402 ● ● ● ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 02 1 9403- ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-94372-808-0 01 1 9210-9605 ● ● ● ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97176-324-0 01 1 9606- ● ● ● ● ● ● ● ●
237 02.195 SCREW; DOOR WARNING SW
11.950 M3X8 W/LK WASHER 		9-03910-308-0 03 1 9403- ● ● ● ● ● ● ● ●
