Sayfa 4-12 - Isuzu EPC

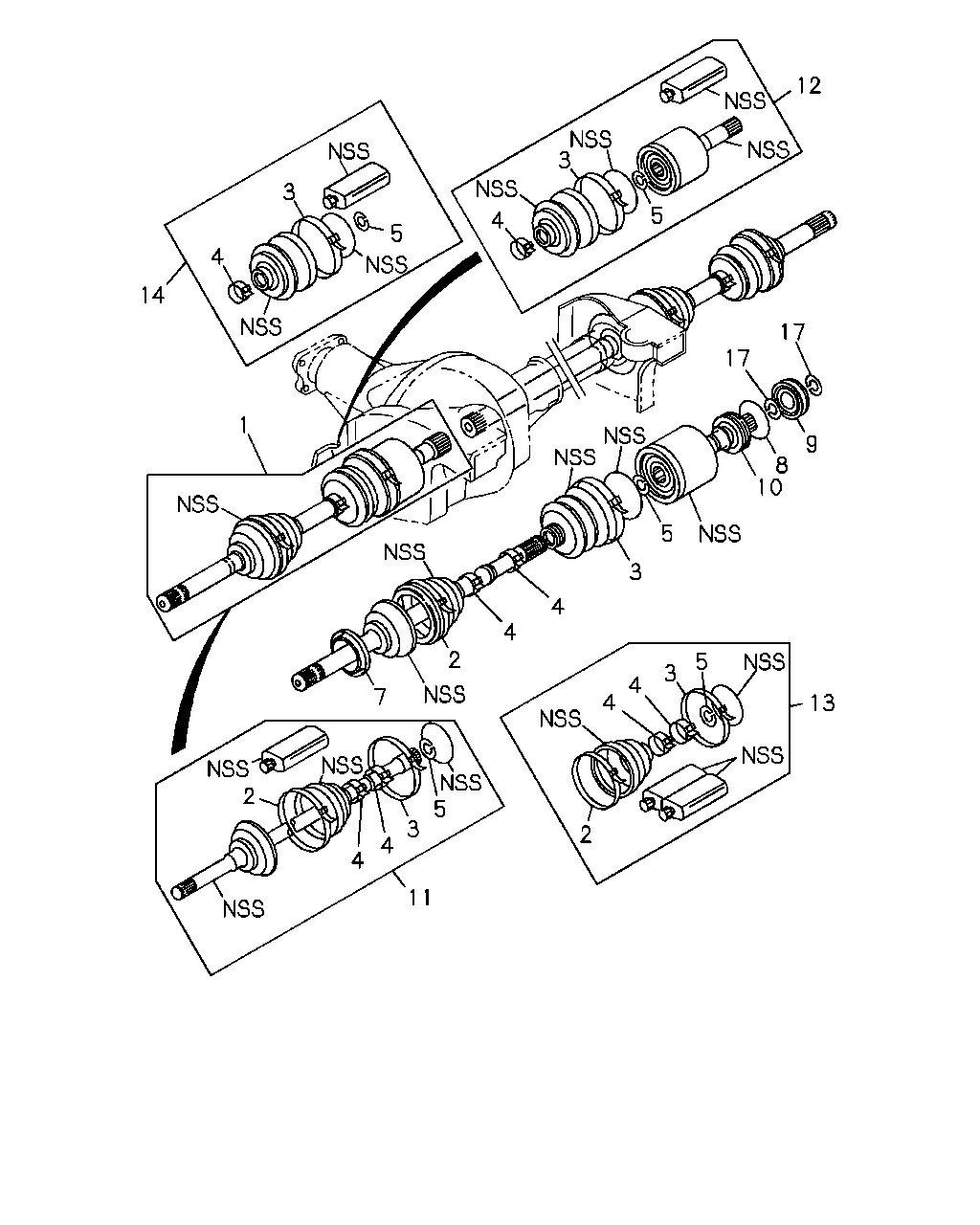

4-12 — FRONT DRIVE SHAFT (#48065) — 272 parça

3 4 14 1 5 4 3 12 5 17 9 17 8 5 10 3 4 2 7 4 4 4 3 5 13 2 5 3 4 4 11 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.055 SHAFT ASM; FRT DRIVE C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94453-696-1	01	1	9210-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94453-695-1	01	1	9210-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94423-038-1	01	1	9210-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94423-037-1	01	1	9210-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-694-3	01	1	9210-9406	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-694-3	01	1	9407-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94453-694-3	01	1	9407-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-694-3	01	1	9510-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94453-694-3	01	1	9510-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-693-3	01	1	9210-9406	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-693-3	01	1	9407-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94453-693-3	01	1	9407-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-693-3	01	1	9510-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94453-693-3	01	1	9510-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94173-305-3	01	1	9210-9406	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94173-305-3	01	1	9407-9505	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94173-305-3	01	1	9407-9505	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-779-0	01	1	9506-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-779-0	01	1	9506-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-779-0	01	1	9510-9510	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-779-0	01	1	9510-9510	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-096-0	01	1	9511-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-096-0	01	1	9511-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94173-304-3	01	1	9210-9406	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94173-304-3	01	1	9407-9505	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94173-304-3	01	1	9407-9505	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-778-0	01	1	9506-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-778-0	01	1	9506-9509	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-778-0	01	1	9510-9510	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-778-0	01	1	9510-9510	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-095-0	01	1	9511-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-095-0	01	1	9511-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94312-683-0	02	1	9210-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-682-0	02	1	9210-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-085-0	02	1	9210-9406	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-085-0	02	1	9407-9509	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-085-0	02	1	9407-9509	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-085-0	02	1	9510-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-085-0	02	1	9510-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-084-0	02	1	9210-9406	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-084-0	02	1	9407-9505	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-084-0	02	1	9407-9505	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9506-9509	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9506-9509	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9510-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9510-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94462-594-0	02	1	9210-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94462-593-0	02	1	9210-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-083-0	02	1	9210-9406	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-083-0	02	1	9407-9509	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-083-0	02	1	9407-9509	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-083-0	02	1	9510-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-083-0	02	1	9510-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-082-0	02	1	9210-9406	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-082-0	02	1	9407-9505	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-082-0	02	1	9407-9505	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9506-9509	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9506-9509	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9510-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9510-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94462-598-0	04	1	9210-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94462-597-0	04	1	9210-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94310-658-0	04	1	9210-9509	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94310-658-0	04	1	9510-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94310-658-0	04	1	9510-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-094-0	04	1	9210-9505	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE	8-94313-094-0	02	1	9506-9509	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE	8-94313-094-0	02	1	9510-9510	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE	8-94313-094-0	02	1	9510-9510	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-938-0	02	1	9510-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-938-0	02	1	9510-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE	8-94312-931-0	02	1	9506-9509	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE	8-94312-931-0	02	1	9510-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE	8-94312-931-0	02	1	9510-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) ID=26.9	9-09180-029-0	02	1	9210-9505	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZE1 ENG(RLJ) ID=26.9	9-09180-029-0	02	1	9210-9505	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) ID=26.9	9-09180-029-0	02	1	9506-9509	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> ID=26.9	9-09180-029-0	02	1	9506-9509	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) ID=26.9	9-09180-029-0	02	1	9510-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> ID=26.9	9-09180-029-0	02	1	9510-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9506-9509	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9506-9509	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9510-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9510-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) ID=24.2	9-09180-026-0	02	1	9210-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT C223 ENG(LQ7) ID=24.2	9-09180-026-0	02	1	9210-		●	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-94407-726-2	02	1	9210-9501	●	●	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	9502-	●	●	●	●
8	06.061 GASKET; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) ID=52.6	9-09561-353-0	02	1	9210-9304	●	●	●	●
8	06.061 GASKET; FRT AXLE C223 ENG(LQ7) ID=52.6	9-09561-353-0	02	1	9210-9304		●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94407-724-0	02	1	9210-9509	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4ZE1 ENG(RLJ)	8-94407-724-0	02	1	9210-9509	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94407-724-0	02	1	9510-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94407-724-0	02	1	9510-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 06.061 NSK	5-09800-045-1	02	1	9210-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER C223 ENG(LQ7) 06.061 NSK	5-09800-045-1	02	1	9210-		●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94366-610-0	02	1	9210-9509	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4ZE1 ENG(RLJ)	8-94366-610-0	02	1	9210-9509	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94366-610-0	02	1	9510-	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94366-610-0	02	1	9510-	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	5-09625-049-2	02	1	9210-9304	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER C223 ENG(LQ7)	5-09625-049-2	02	1	9210-9304		●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94366-611-0	02	1	9305-	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER C223 ENG(LQ7)	8-94366-611-0	02	1	9305-		●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94312-675-0	01	1	9210-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94312-674-0	01	1	9210-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-673-0	01	1	9210-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-672-0	01	1	9210-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-098-1	01	1	9210-9406	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-098-1	01	1	9407-9509	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-098-1	01	1	9407-9509	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-098-1	01	1	9510-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-098-1	01	1	9510-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-097-1	01	1	9210-9406	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-097-1	01	1	9407-9509	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-097-1	01	1	9407-9509	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-097-1	01	1	9510-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-097-1	01	1	9510-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-096-1	01	1	9210-9406	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-096-1	01	1	9407-9505	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-096-1	01	1	9407-9505	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-095-1	01	1	9210-9406	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-095-1	01	1	9407-9505	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-095-1	01	1	9407-9505	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-396-0	02	1	9506-9509	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-396-0	02	1	9506-9509	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-396-0	02	1	9510-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-396-0	02	1	9510-	●	●	●	●
12	06.060 JOINT ASM C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94313-104-0	01	1	9210-	●	●	●	●
12	06.060 JOINT ASM C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94312-677-0	01	1	9210-	●	●	●	●
12	06.060 JOINT ASM C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94313-103-0	01	1	9210-	●	●	●	●
12	06.060 JOINT ASM C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-676-0	01	1	9210-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-102-1	01	1	9210-9406	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-102-1	01	1	9407-9509	●	●	●	●
12	06.060 JOINT ASM 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-102-1	01	1	9407-9509	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-102-1	01	1	9510-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-102-1	01	1	9510-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-101-1	01	1	9210-9406	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-101-1	01	1	9407-9509	●	●	●	●
12	06.060 JOINT ASM 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-101-1	01	1	9407-9509	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-101-1	01	1	9510-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-101-1	01	1	9510-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-100-1	01	1	9210-9406	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-100-1	01	1	9407-9505	●	●	●	●
12	06.060 JOINT ASM 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-100-1	01	1	9407-9505	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-398-0	01	1	9506-9509	●	●	●	●
12	06.060 JOINT ASM 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-398-0	01	1	9506-9509	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-398-0	01	1	9510-9510	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-398-0	01	1	9510-9510	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-979-0	01	1	9510-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-979-0	01	1	9510-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-099-1	01	1	9210-9406	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-099-1	01	1	9407-9505	●	●	●	●
12	06.060 JOINT ASM 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-099-1	01	1	9407-9505	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-397-0	01	1	9506-9509	●	●	●	●
12	06.060 JOINT ASM 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-397-0	01	1	9506-9509	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-397-0	01	1	9510-9510	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-397-0	01	1	9510-9510	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-978-0	01	1	9510-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-978-0	01	1	9510-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94312-679-0	02	1	9210-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-678-0	02	1	9210-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-106-0	02	1	9210-9406	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-106-0	02	1	9407-9509	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-106-0	02	1	9407-9509	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-106-0	02	1	9510-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-106-0	02	1	9510-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-105-0	02	1	9210-9406	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-105-0	02	1	9210-9406	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-105-0	02	1	9407-9505	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-105-0	02	1	9407-9505	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-399-0	02	1	9506-9509	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-399-0	02	1	9506-9509	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-399-0	02	1	9510-9510	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-399-0	02	1	9510-9510	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-981-0	02	1	9510-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-981-0	02	1	9510-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF)	8-94312-681-0	02	1	9210-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-680-0	02	1	9210-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-081-0	02	1	9210-9406	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-081-0	02	1	9407-9509	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-081-0	02	1	9407-9509	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-081-0	02	1	9510-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-081-0	02	1	9510-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-080-0	02	1	9210-9406	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-080-0	02	1	9210-9406	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-080-0	02	1	9407-9505	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-080-0	02	1	9407-9505	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-400-0	02	1	9506-9509	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-400-0	02	1	9506-9509	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-400-0	02	1	9510-9510	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-400-0	02	1	9510-9510	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-980-0	02	1	9510-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-980-0	02	1	9510-	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.416 ID=27.9	9-09180-030-0	04	1	9210-9509	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4ZE1 ENG(RLJ) 04.416 ID=27.9	9-09180-030-0	04	1	9210-9509	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.416 ID=27.9	9-09180-030-0	04	1	9510-	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.416 ID=27.9	9-09180-030-0	04	1	9510-	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 08.934 ID=25.9	9-09180-028-0	04	1	9210-	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS C223 ENG(LQ7) 08.934 ID=25.9	9-09180-028-0	04	1	9210-		●	●	●

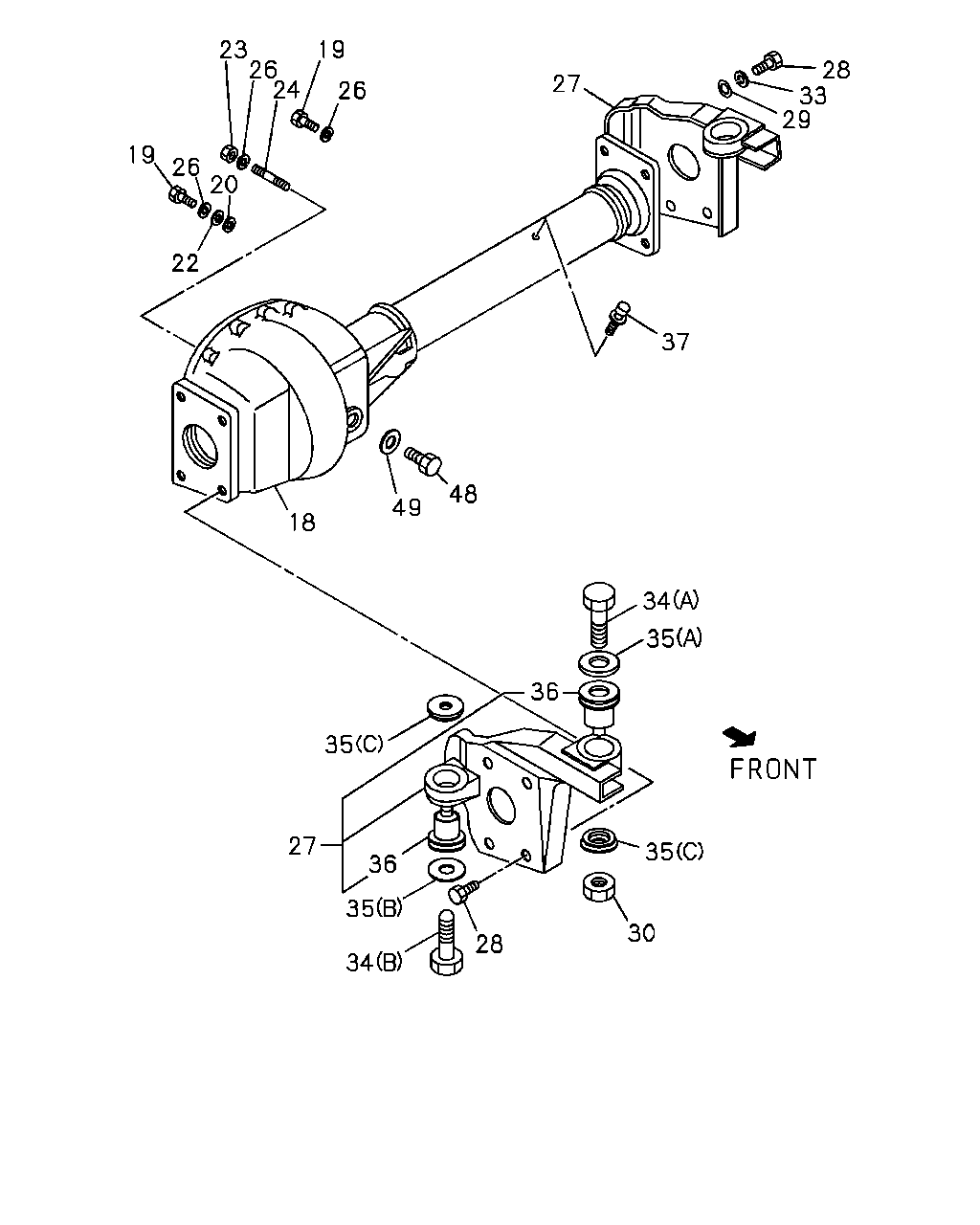

23 19 24 26 26 26 20 19 22 27 29 33 28 37 48 49 18 34 35 36 35 27 36 35 34 28 30 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	06.008 CASE; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94173-363-0	01	1	9210-9301	●	●	●	●
18	06.008 CASE; FRT AXLE 4ZE1 ENG(RLJ)	8-94173-363-0	01	1	9210-9301	●	●	●	●
18	06.008 CASE; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-97018-230-0	01	1	9302-9509	●	●	●	●
18	06.008 CASE; FRT AXLE 4ZE1 ENG(RLJ)	8-97018-230-0	01	1	9302-9509	●	●	●	●
18	06.008 CASE; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-97018-230-0	01	1	9510-	●	●	●	●
18	06.008 CASE; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97018-230-0	01	1	9510-	●	●	●	●
18	06.008 CASE; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	5-43212-001-1	01	1	9210-	●	●	●	●
18	06.008 CASE; FRT AXLE C223 ENG(LQ7)	5-43212-001-1	01	1	9210-		●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 05.387 M8X90	9-01065-890-0	02	1	9210-9306	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZE1 ENG(RLJ) 05.387 M8X90	9-01065-890-0	02	1	9210-9306	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-9509	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZE1 ENG(RLJ) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-9509	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X90 W/LK WASHER	8-97093-666-0	02	1	9510-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M8X90 W/LK WASHER	8-97093-666-0	02	1	9510-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 06.525 M8X25	9-02060-825-0	06	1	9210-9306	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZE1 ENG(RLJ) 06.525 M8X25	9-02060-825-0	06	1	9210-9306	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-9509	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZE1 ENG(RLJ) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-9509	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X25 W/LK WASHER	8-97093-664-0	06	1	9510-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M8X25 W/LK WASHER	8-97093-664-0	06	1	9510-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X30	9-02060-830-0	02	1	9210-9306	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZE1 ENG(RLJ) M8X30	9-02060-830-0	02	1	9210-9306	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-9509	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZE1 ENG(RLJ) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-9509	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X30 W/LK WASHER	8-97093-665-0	02	1	9510-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M8X30 W/LK WASHER	8-97093-665-0	02	1	9510-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.387 M8X22	9-02060-822-0	06	1	9210-9306	●	●	●	●
19	06.156 BOLT; FRT AXLE C223 ENG(LQ7) 05.387 M8X22	9-02060-822-0	06	1	9210-9306		●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.428 M8X18 W/LK&PL WASHER	1-09030-004-0	06	1	9307-	●	●	●	●
19	06.156 BOLT; FRT AXLE C223 ENG(LQ7) 01.428 M8X18 W/LK&PL WASHER	1-09030-004-0	06	1	9307-		●	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9210-	●	●	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	9210-	●	●	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	9210-	●	●	●	●
24	06.056 STUD; CASE,FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 03.901 M8X25 L=37	9-04110-825-0	02	1	9210-9312	●	●	●	●
24	06.056 STUD; CASE,FRT AXLE 4ZE1 ENG(RLJ) 03.901 M8X25 L=37	9-04110-825-0	02	1	9210-9312	●	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	9401-	●	●	●	●
24	06.056 STUD; CASE,FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9312	●	●	●	●
24	06.056 STUD; CASE,FRT AXLE C223 ENG(LQ7) 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9312		●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 00.002 ID=8.2	9-09150-608-0	12	1	9210-9306	●	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 4ZE1 ENG(RLJ) 00.002 ID=8.2	9-09150-608-0	12	1	9210-9306	●	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	9307-	●	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 00.002 ID=8.2	9-09150-608-0	08	1	9210-9306	●	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE C223 ENG(LQ7) 00.002 ID=8.2	9-09150-608-0	08	1	9210-9306		●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING	8-94462-170-2	01	1	9210-9509	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZE1 ENG(RLJ) W/BUSHING	8-94462-170-2	01	1	9210-9509	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING	8-94462-170-2	01	1	9510-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) W/BUSHING	8-94462-170-2	01	1	9510-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING	8-94462-169-2	01	1	9210-9509	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZE1 ENG(RLJ) W/BUSHING	8-94462-169-2	01	1	9210-9509	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING	8-94462-169-2	01	1	9510-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) W/BUSHING	8-94462-169-2	01	1	9510-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94462-172-1	01	1	9210-	●	●	●	●
27	06.056 BRACKET; AXLE CASE C223 ENG(LQ7)	8-94462-172-1	01	1	9210-		●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94462-171-1	01	1	9210-	●	●	●	●
27	06.056 BRACKET; AXLE CASE C223 ENG(LQ7)	8-94462-171-1	01	1	9210-		●	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X25	0-20801-225-0	08	1	9210-9501	●	●	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9502-	●	●	●	●
29	06.056 WASHER; PL,BRKT TO AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 09.011 ID=12.5 OD=26	9-09164-612-0	04	1	9210-9501	●	●	●	●
29	06.056 WASHER; PL,BRKT TO AXLE CASE C223 ENG(LQ7) 09.011 ID=12.5 OD=26	9-09164-612-0	04	1	9210-9501		●	●	●
30	06.008 NUT; FRT AXLE MTG 07.529 M14	9-99110-514-0	02	1	9210-	●	●	●	●
33	06.056 WASHER; LK,BRKT TO AXLE CASE 04.634 ID=12.2	9-09150-512-0	08	1	9210-9408	●	●	●	●
33	06.056 WASHER; LK,BRKT TO AXLE CASE 06.515 ID=12.2	9-09150-612-0	08	1	9409-9501	●	●	●	●
34	06.008 BOLT; FRT AXLE MTG (B) M14X84	8-94452-339-2	02	1	9210-	●	●	●	●
34	06.008 BOLT; FRT AXLE MTG (A) M14X75	9-91066-475-0	02	1	9210-	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9210-	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG 08.929 (B) ID=15 OD=36	9-09164-714-0	02	1	9210-	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG (C) ID=14.2 OD=50	8-94419-772-0	04	1	9210-9303	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9304-	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG ID=15 L=49.3	8-94481-466-0	04	1	9210-	●	●	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94311-349-0	01	1	9210-	●	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	01	1	9210-	●	●	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9210-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
