◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01C - CLUTCH ▶
2-01C — CLUTCH (#4806) — 58 parça

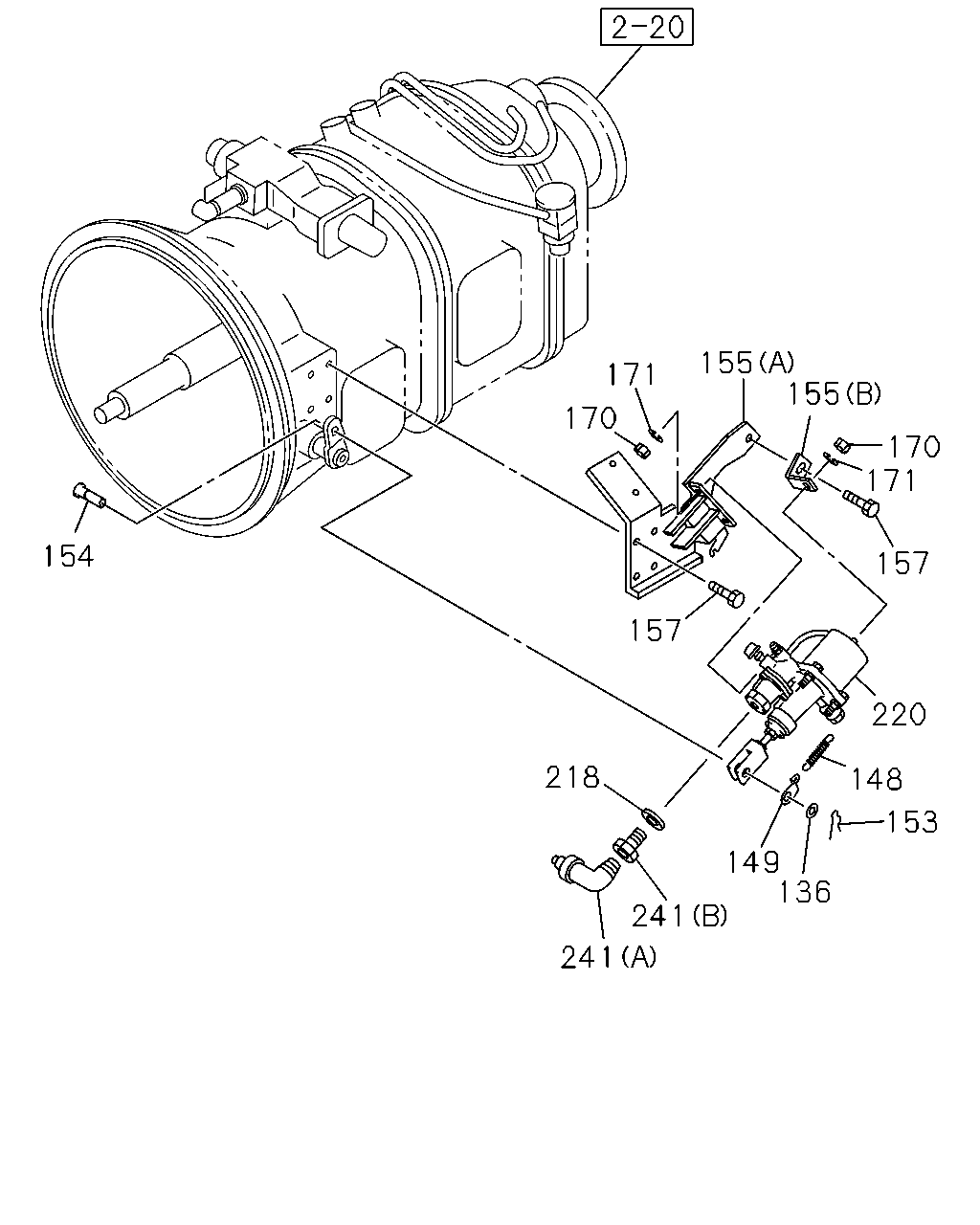

çizim 41473
155 155 171 170 170 171 154 157 157 220 218 148 153 149 136 241 241
BalonParca AdiParca NoAdetTipApplied Date A B
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 9611-9904 ●
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 9905- ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9611-9904 ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9905- ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 9611-9904 ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 9905- ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 9611-9904 ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 9905- ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 9611-9904 ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 9905- ●
155 BRACKET; MINIPACK
(A) 		1-31429-366-0 01 1 9611-9904 ●
155 BRACKET; MINIPACK
(A) 		1-31429-366-0 01 1 9905-0103 ●
155 BRACKET; MINIPACK
(A) 		1-31429-458-0 01 1 0104- ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 9611-9904 ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 9905- ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9611-9904 ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9905-0103 ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 0104- ●
157 BOLT; BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 0104- ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9611-9904 ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9905- ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9611-9904 ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9905- ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9611-9904 ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9905- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-0 01 1 9611-9904 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-1 01 1 9905- ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9611-9904 ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9905- ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 9611-9904 ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 9905- ●

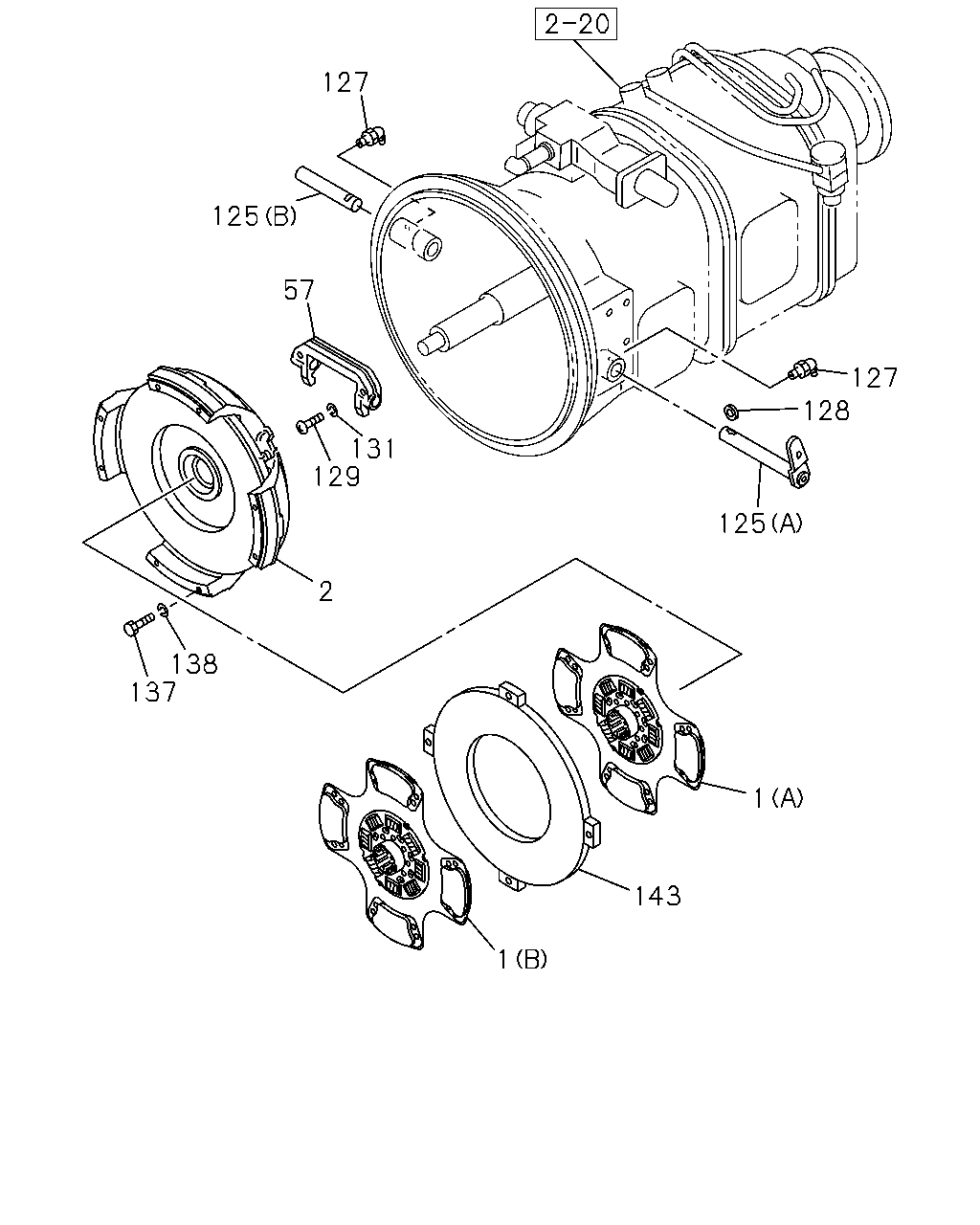

çizim 42465
127 57 127 128 131 129 125 2 138 137 1 143 1 125
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
(A) FRONT 15.5" 		1-31240-726-0 01 1 9611-9904 ●
1 DISC; CLUTCH
(A) FRONT 15.5" 		1-31240-726-0 01 1 9905- ●
1 DISC; CLUTCH
(B) REAR 15.5" 		1-31240-727-0 01 1 9611-9904 ●
1 DISC; CLUTCH
(B) REAR 15.5" 		1-31240-727-0 01 1 9905- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-301-0 01 1 9611-9904 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-301-0 01 1 9905- ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9611-9904 ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9905- ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 9611-9904 ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 9905- ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9611-9904 ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9905- ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9811-9904 ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9905-0004 ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005- ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9611-9904 ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9905- ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9611-9904 ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9905- ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9611-9904 ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9905- ●
137 BOLT; CLU COVER 1-09087-022-0 08 1 9611-9904 ●
137 BOLT; CLU COVER 1-09087-022-0 08 1 9905- ●
138 WASHER; LK,CLU COVER
ID=11.4 		9-09850-072-0 08 1 9611-9904 ●
138 WASHER; LK,CLU COVER
ID=11.4 		9-09850-072-0 08 1 9905- ●
143 PLATE; INTERMEDIATE 1-31221-098-0 01 1 9611-9904 ●
143 PLATE; INTERMEDIATE 1-31221-098-0 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
