3-55 — BRAKE PIPING; OIL,REAR (#48059) — 34 parça

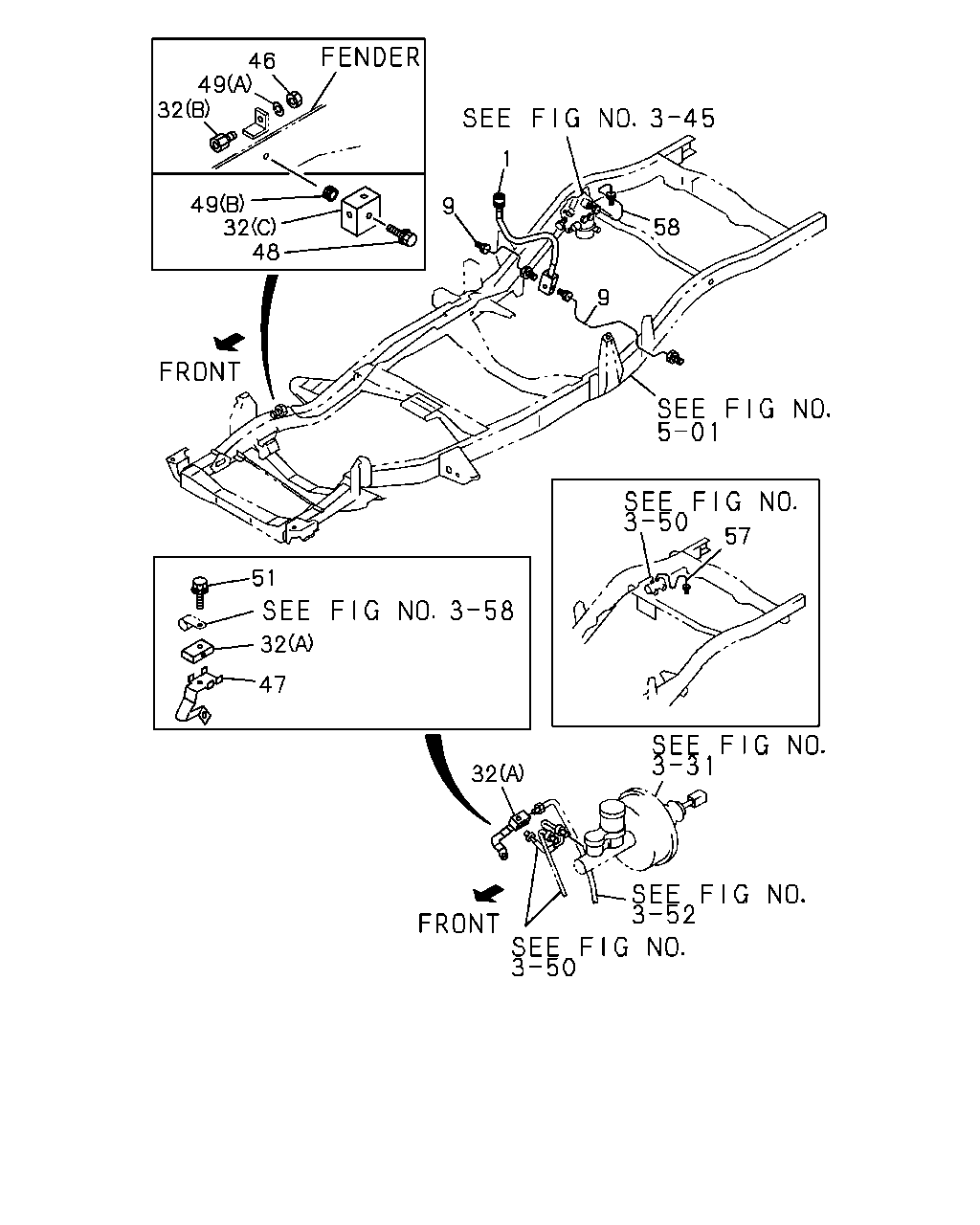

çizim 65558
46 49 32 49 1 9 32 58 9 48 51 32 47 32 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,RR BRK
L=439.5 		8-94464-646-0 01 1 9210-9509 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-97134-832-0 01 1 9510-9512 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-97134-832-0 01 1 9601- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. REAR AXLE W/LSPV<7KA> 		8-97134-832-0 01 1 9601- ●
1 04.680 HOSE; FLEX,RR BRK
L=479.5 		8-94222-685-1 01 1 9210-9509 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
L=479.5 		8-97134-831-0 01 1 9510-9512 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
REAR AXLE W/LSPV<7KA> L=479.5 		8-97134-831-0 01 1 9601- ●
1 04.680 HOSE; FLEX,RR BRK
L=479.5 		8-97134-831-0 01 1 9601- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-94375-046-1 01 1 9210- ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZE1 ENG(RLJ) 		8-94375-047-1 01 1 9210-9509 ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) 		8-94375-047-1 01 1 9210-9509 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		8-94375-047-1 01 1 9210-9509 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94375-047-3 01 1 9510- ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		8-94375-047-3 01 1 9510- ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		8-94375-048-0 01 1 9210-9308 ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94375-048-0 01 1 9210-9308 ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 		8-94375-048-0 01 1 9309-9509 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZA1 ENG(L17),4JA1 ENG(RLE) 		8-94375-048-0 01 1 9309-9509 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94375-048-0 01 1 9309-9509 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94375-048-1 01 1 9510- ● ● ● ● ● ● ● ●
32 04.686 UNION; OIL PIPE
(A) 		8-94406-895-0 01 1 9210- ● ● ● ● ● ● ● ●
32 04.686 UNION; OIL PIPE
(B) M10 STRAIGHT OUTER M16X21 		9-09227-055-0 01 1 9210- ● ● ● ● ● ● ● ●
32 04.686 UNION; OIL PIPE
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-94328-125-0 01 1 9407- ●
46 04.686 NUT; UNION,OIL PIPE
04.681 M16 		9-99111-416-0 01 1 9210- ● ● ● ● ● ● ● ●
47 04.686 BRACKET 8-94331-701-1 01 1 9210- ● ● ● ● ● ● ● ●
48 04.686 BOLT; PIPE CONNECTOR
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9407- ●
49 04.686 WASHER; LK,UNION,OIL PIPE
06.897 (A) ID=16.2 		9-09150-516-0 01 1 9210- ● ● ● ● ● ● ● ●
49 04.686 WASHER; LK,UNION,OIL PIPE
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) (B) ID=8.2 		8-94312-733-0 01 1 9407- ●
51 04.686 BOLT; UNION,OIL PIPE
08.900 M6X40 W/LK&PL WASHER 		0-50140-640-0 01 1 9210-9511 ● ● ● ● ● ● ● ●
51 04.686 BOLT; UNION,OIL PIPE
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 9512- ● ● ● ● ● ● ● ●
57 04.685 PIPE; BRK,BYPASS VALVE TO RR AXL 8-94435-256-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
57 04.685 PIPE; BRK,BYPASS VALVE TO RR AXL 8-94435-256-0 01 1 9407- ● ● ● ● ● ● ●
57 04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. REAR AXLE W/LSPV<7KA> 		8-94435-256-0 01 1 9407- ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) 		8-94318-699-1 01 1 9407- ●
