◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#48058) — 17 parça

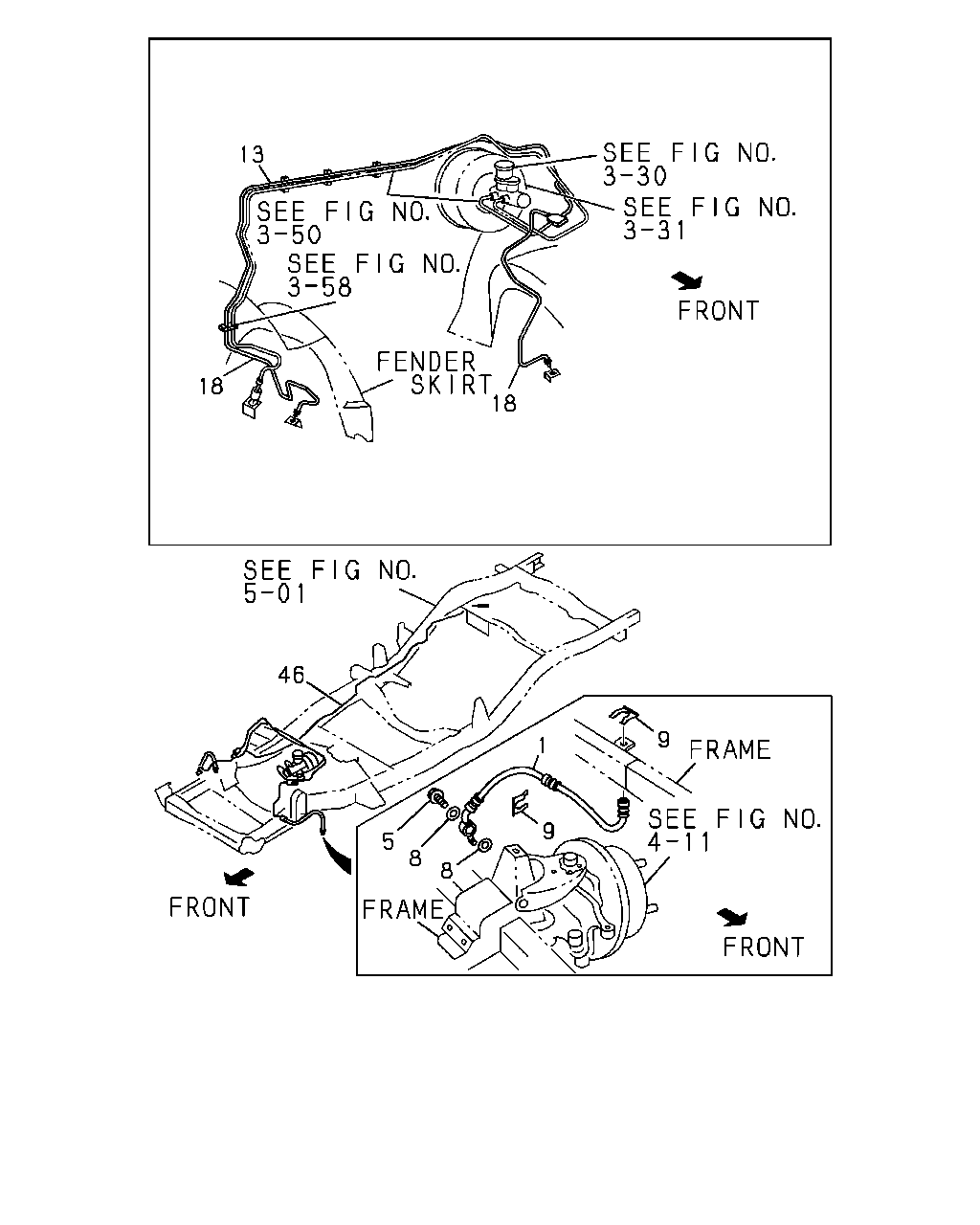

çizim 66431
13 18 18 46 5 8 8 1 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK 8-94316-795-1 02 1 9210-9509 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 9510- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-94403-322-3 02 1 9210-9509 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-830-0 02 1 9510- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9210- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9210- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9210- ● ● ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) 3WAY-3WAY 		8-97115-646-0 01 1 9407- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-94435-241-4 01 1 9210-9406 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97109-877-0 01 1 9407- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-94435-230-4 01 1 9210-9406 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. REAR AXLE W/LSPV<7KA> 		8-94435-230-4 01 1 9407- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) 		8-94435-238-2 01 1 9407- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-94435-240-4 01 1 9210-9406 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97110-223-0 01 1 9407- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-94435-231-4 01 1 9210- ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) 3WAY-LSV 		8-94435-260-3 01 1 9407- ●
