◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#48057) — 18 parça

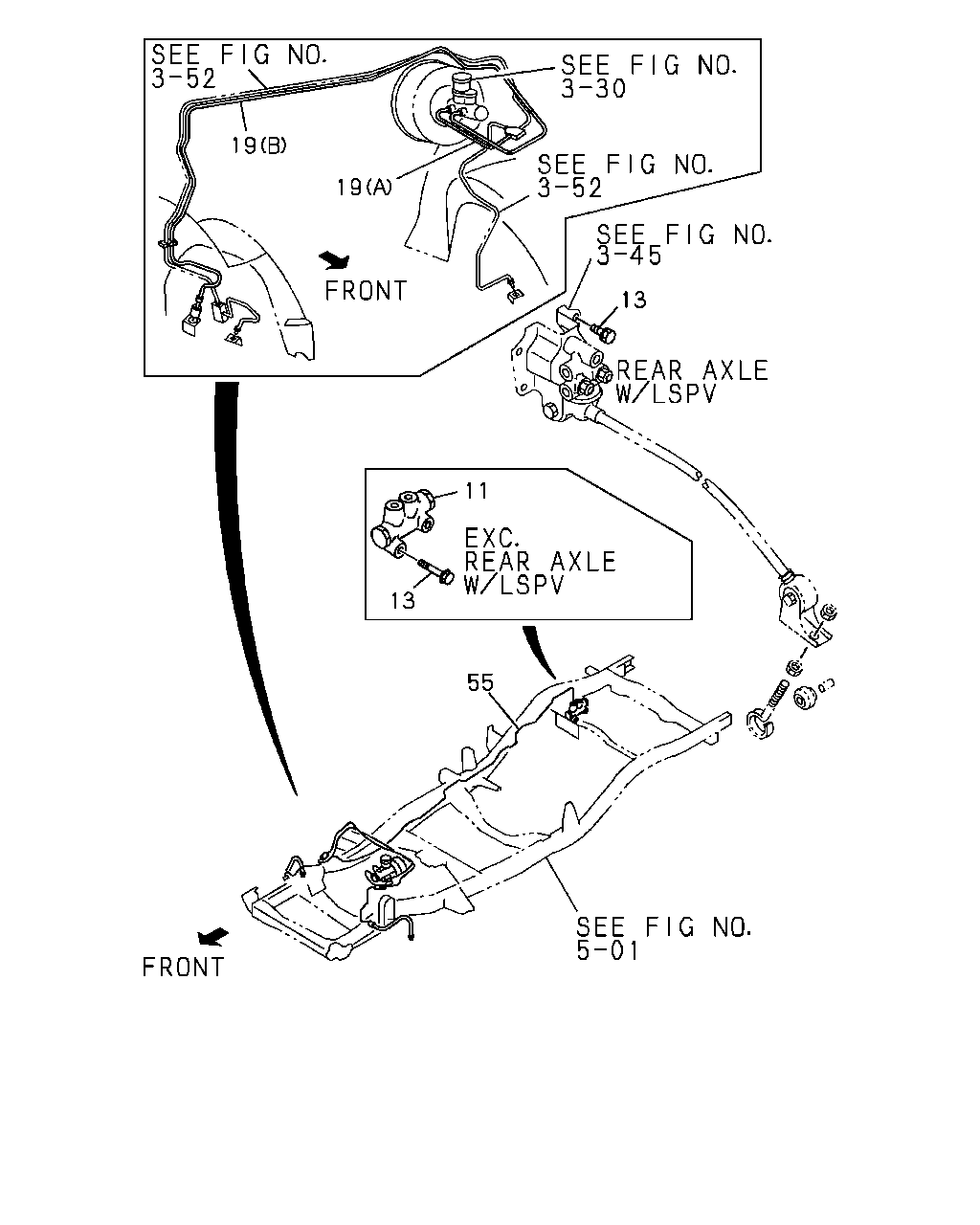

çizim 16920
19 19 13 11 13 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 9210-9406 ● ● ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 9407- ● ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
EXC. REAR AXLE W/LSPV<7KA> 		8-94126-764-3 01 1 9407- ●
13 04.686 BOLT; VLV TO BRKT
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9407-9412 ● ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. REAR AXLE W/LSPV<7KA> 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9407-9412 ●
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9501- ● ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. REAR AXLE W/LSPV<7KA> 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9501- ●
13 04.686 BOLT; VLV TO BRKT
REAR AXLE W/LSPV<7KA> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9407- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-94435-233-2 01 1 9210- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-94435-234-6 01 1 9210- ● ● ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-250-5 01 1 9210-9406 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-250-5 01 1 9407- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. REAR AXLE W/LSPV<7KA> 		8-94435-250-5 01 1 9407- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-249-3 01 1 9210- ●
55 04.686 PIPE; BRK,VLV TO UNION
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) 		8-94435-258-3 01 1 9407- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-252-5 01 1 9210- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-251-3 01 1 9210- ●
