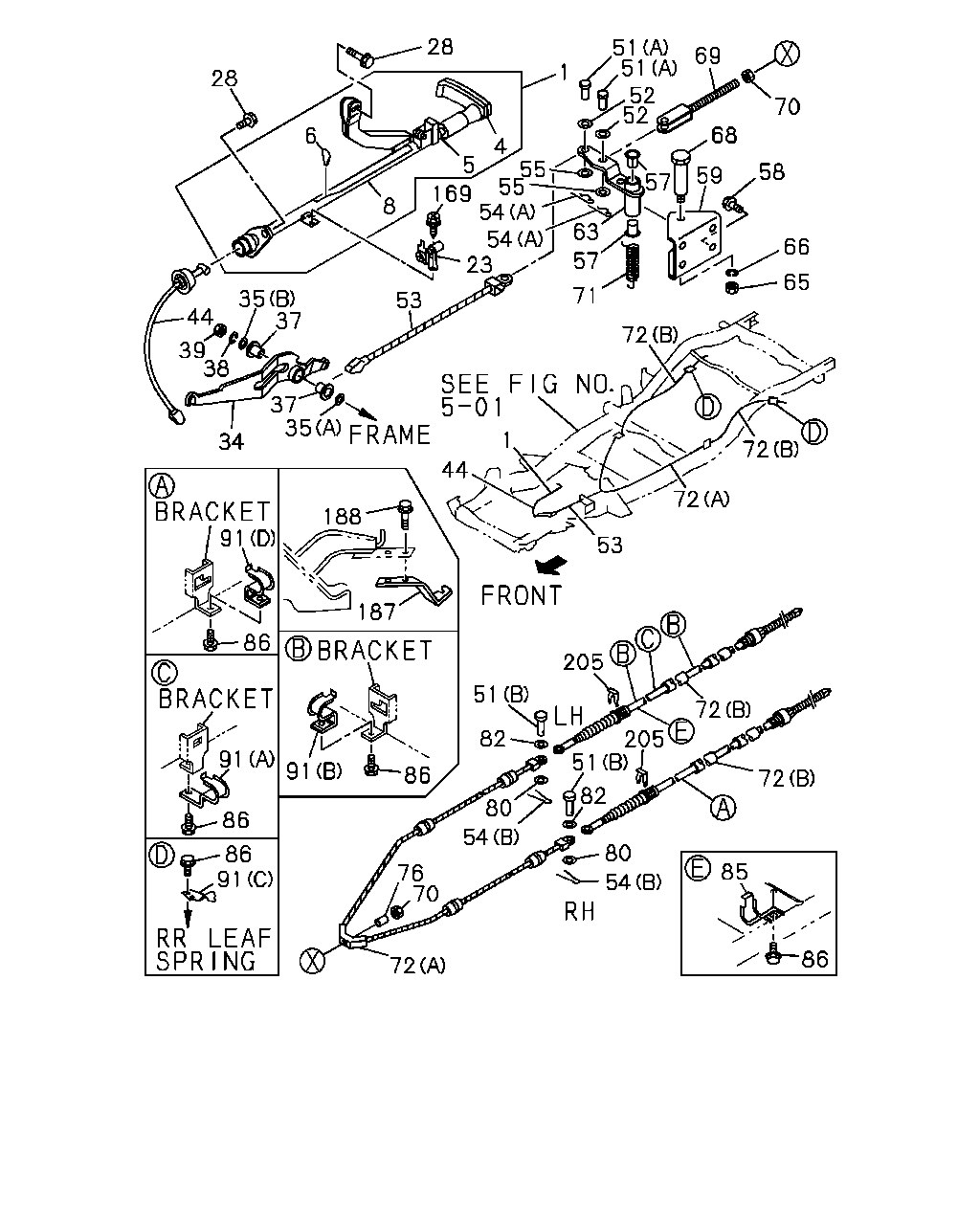

3-11 — PARKING BRAKE CONTROL (#48053) — 74 parça

28 28 5 4 169 8 6 1 51 51 69 70 52 68 58 52 59 57 66 65 71 57 63 55 55 54 23 54 53 35 44 37 39 38 34 35 37 72 72 72 44 1 53 187 188 91 86 91 86 86 51 91 82 205 51 72 72 205 82 80 54 85 86 80 54 76 70 72 86 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.592 STEM ASM; PARKING BRK	8-97076-056-0	01	1	9210-	●	●	●	●	●	●	●	●
4	04.592 STEM; PARKING BRK	8-94479-088-0	01	1	9210-	●	●	●	●	●	●	●	●
5	04.592 BUSHING; PARKING BRK	9-46129-022-0	01	1	9210-	●	●	●	●	●	●	●	●
6	04.589 PIN; STEM,PARK BRK	5-46129-009-0	01	1	9210-	●	●	●	●	●	●	●	●
8	04.592 GUIDE; PARKING BRK	8-97076-059-0	01	1	9210-	●	●	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9210-	●	●	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9210-9412	●	●	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9501-	●	●	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.531 M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9210-9412	●	●	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9501-	●	●	●	●	●	●	●	●
34	04.591 LEVER; PARK BRK CONT	8-94479-100-1	01	1	9210-	●	●	●	●	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9210-	●	●	●	●	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9210-	●	●	●	●	●	●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK	8-94408-022-0	02	1	9210-	●	●	●	●	●	●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●	●	●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 09.011 M10	9-09110-410-0	01	1	9210-	●	●	●	●	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT	8-94479-091-1	01	1	9210-	●	●	●	●	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER 04.792 (A) L=25	8-94315-888-0	02	1	9210-	●	●	●	●	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER 08.942 (B) OD=8 L=20	9-08233-820-0	02	1	9210-	●	●	●	●	●	●	●	●
52	04.785 WASHER; CURVED RELAY LEVER 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9210-	●	●	●	●	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	9210-	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-099-0	01	1	9210-					●	●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 04.634 (A)	8-94177-865-0	02	1	9210-	●	●	●	●	●	●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 00.793 (B)	9-08112-015-0	02	1	9210-	●	●	●	●	●	●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE 16.674 ID=8.4	9-09160-508-0	02	1	9210-	●	●	●	●	●	●	●	●
57	04.592 BUSHING; RELAY LEVER 04.439	5-33659-053-0	02	1	9210-	●	●	●	●	●	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9210-9412	●	●	●	●	●	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9501-9509	●	●	●	●	●	●	●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	9210-	●	●	●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-098-1	01	1	9210-					●	●	●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	9210-	●	●	●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-633-1	01	1	9210-					●	●	●	●
65	04.594 NUT; RELAY LEVER 09.011 M10	9-09110-410-0	01	1	9210-	●	●	●	●	●	●	●	●
66	04.592 WASHER; LK,RELAY LEVER 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●	●	●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR	8-94404-908-1	01	1	9210-	●	●	●	●	●	●	●	●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	9210-	●	●	●	●
69	04.589 ROD; RELAY LEVER 04.765	8-94479-248-0	01	1	9210-					●	●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 00.787 M8	9-09111-408-0	02	1	9210-	●	●	●	●	●	●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 03.302	8-94479-600-2	01	1	9210-	●	●	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK (A)	8-94367-286-0	01	1	9210-	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1604	8-94366-770-2	01	1	9210-	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1684	8-94366-769-2	01	1	9210-	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1300	8-94367-285-0	01	1	9210-		●
72	04.779 CABLE; PARKING BRK (B) L=1684	8-94366-772-2	01	1	9210-		●
72	04.779 CABLE; PARKING BRK (B) L=1464	8-94366-771-2	01	1	9210-		●
72	04.779 CABLE; PARKING BRK (A) L=1380	8-94367-287-0	01	1	9210-					●	●	●	●
72	04.779 CABLE; PARKING BRK (B) L=1609 WHITE	8-94366-774-2	01	1	9210-					●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1694 WHITE	8-94366-773-2	01	1	9210-					●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1264 WHITE	8-94366-776-2	01	1	9210-						●
72	04.779 CABLE; PARKING BRK (B) L=1344 WHITE	8-94366-775-2	01	1	9210-						●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 05.601	8-11042-301-3	01	1	9210-	●	●	●	●	●	●	●	●
80	04.790 WASHER; PL,PARK BRK CABLE JOINT 16.674 ID=8.4	9-09160-508-0	02	1	9210-	●	●	●	●	●	●	●	●
82	04.790 WASHER; CURVED,BRK CABLE JOINT 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9210-	●	●	●	●	●	●	●	●
85	04.785 CLIP; BRKT ID=14	9-09916-883-0	01	1	9210-		●
86	04.785 BOLT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	06	1	9210-9503	●	●	●	●	●	●	●	●
86	04.785 BOLT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	04	1	9504-9512	●	●	●	●	●	●	●	●
86	04.785 BOLT 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9504-9512	●	●	●	●	●	●	●	●
86	04.785 BOLT 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9601-	●	●	●	●	●	●	●	●
86	04.785 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9510-	●	●	●	●	●	●	●	●
86	04.785 BOLT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9210-9503	●		●	●	●		●	●
86	04.785 BOLT 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9504-	●		●	●	●		●	●
86	04.785 BOLT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9210-9503		●				●
86	04.785 BOLT 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9504-		●				●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9210-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9210-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9210-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94450-389-0	01	1	9210-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94459-413-0	02	1	9210-	●		●	●	●		●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94459-413-0	01	1	9210-		●				●
169	04.589 BOLT; SWITCH 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9210-	●	●	●	●	●	●	●	●
187	04.606 BRACKET; HAND BRK	8-94327-452-0	01	1	9210-					●	●	●	●
188	04.606 BOLT; BRKT SET 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9210-9412					●	●	●	●
188	04.606 BOLT; BRKT SET 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9501-					●	●	●	●
205	04.785 CLIP; 3RD C/MBR 04.681	5-09709-039-0	02	1	9210-	●	●	●	●	●	●	●	●
