3-10 — BRAKE PEDAL AND CONTROL (#48052) — 25 parça

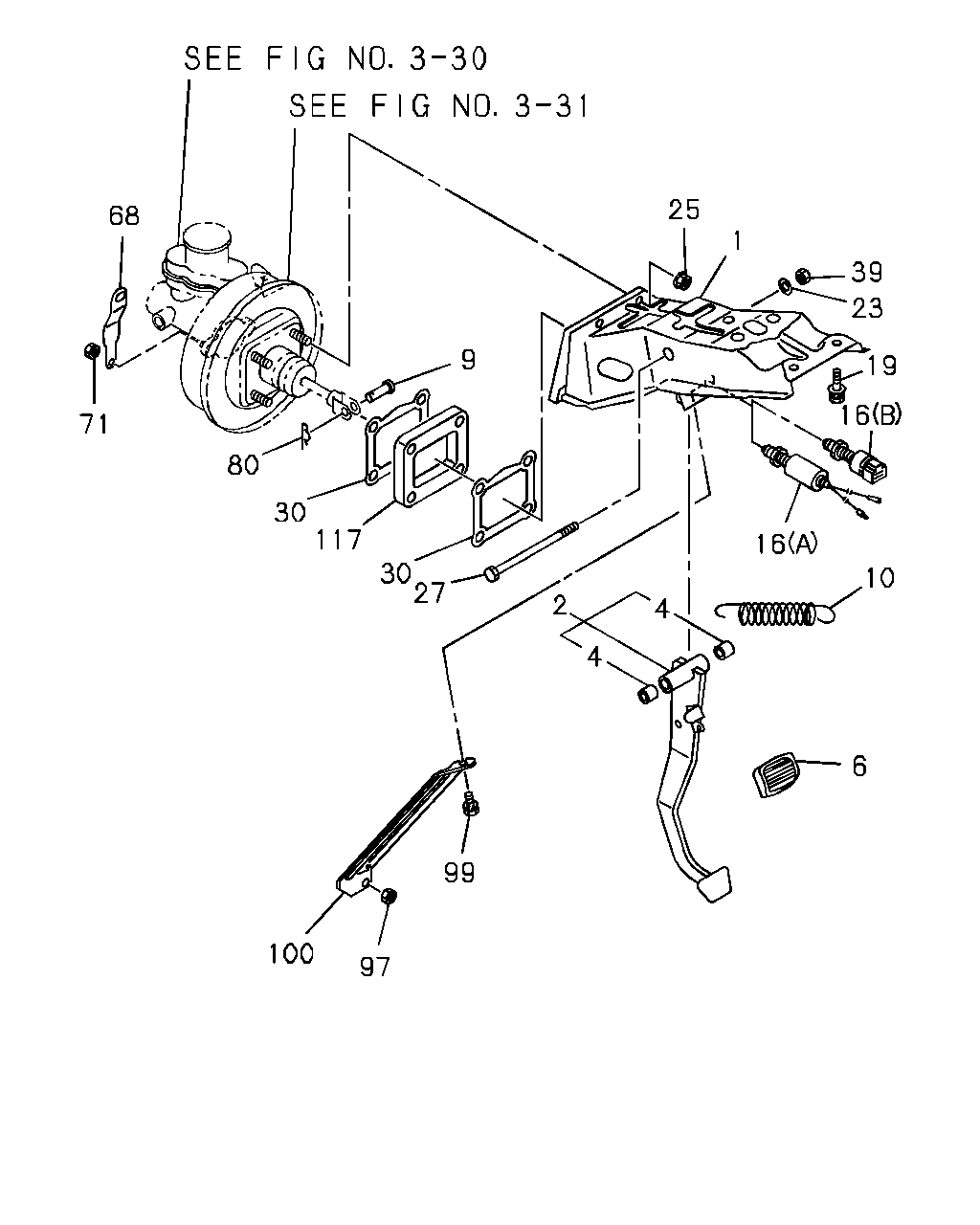

çizim 66041
68 71 80 9 25 1 39 23 19 16 16 10 6 4 4 2 27 30 117 30 99 97 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.634 BRACKET ASM; PEDAL 8-94370-606-2 01 1 9210- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK 8-94329-613-1 01 1 9210- ● ● ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
00.833 		8-94244-439-0 02 1 9407- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL 8-94222-524-1 01 1 9210- ● ● ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT
04.662 		8-94250-182-0 01 1 9210- ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
(B) 12V 12A 		8-94362-930-0 01 1 9210- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> (A) 		8-94109-863-0 01 1 9403-9406 ●
19 04.634 BOLT; BRKT
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 05 1 9210-9412 ● ● ● ● ● ● ● ●
19 04.634 BOLT; BRKT
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9501- ● ● ● ● ● ● ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-510-0 01 1 9210- ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
00.854 M8 FLANGE 		5-09440-005-0 04 1 9210- ● ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9210- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-94111-590-0 02 1 9210- ● ● ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
09.011 M10 		9-09110-410-0 01 1 9210- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-97061-908-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-97061-908-0 01 1 9309- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-97061-908-0 01 1 9309- ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9210- ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
04.662 L=27.7 		1-09747-005-0 01 1 9210-9211 ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9212- ● ● ● ● ● ● ● ●
97 04.634 NUT; STAY
00.854 M8 FLANGE 		5-09440-005-0 01 1 9210-9408 ● ● ● ● ● ● ● ●
99 04.634 BOLT; STAY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9210-9408 ● ● ● ● ● ● ● ●
100 04.634 STAY; BRK PEDAL MTG 8-94381-806-1 01 1 9210-9407 ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-94126-762-0 01 1 9210- ● ● ● ● ● ● ● ●
