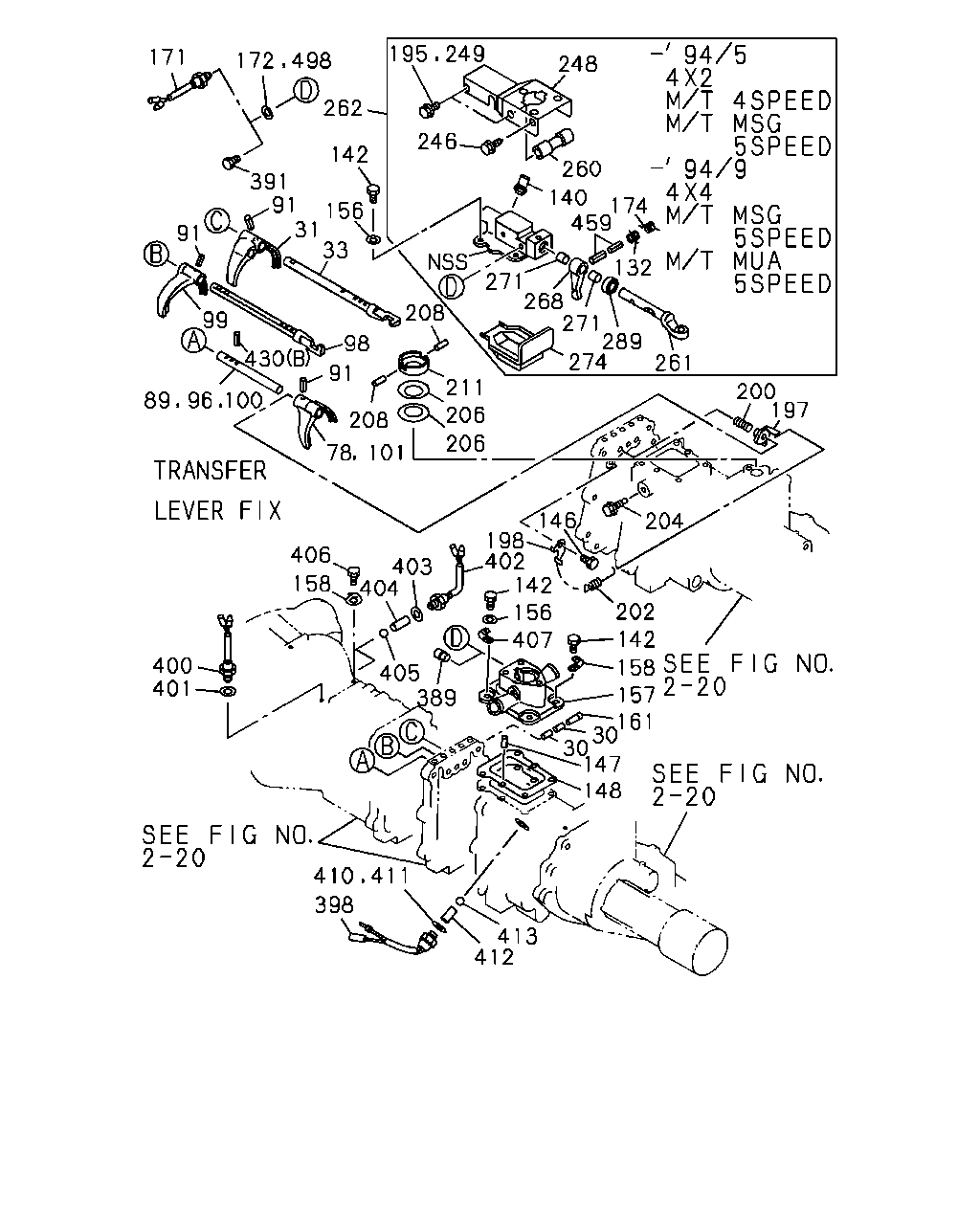

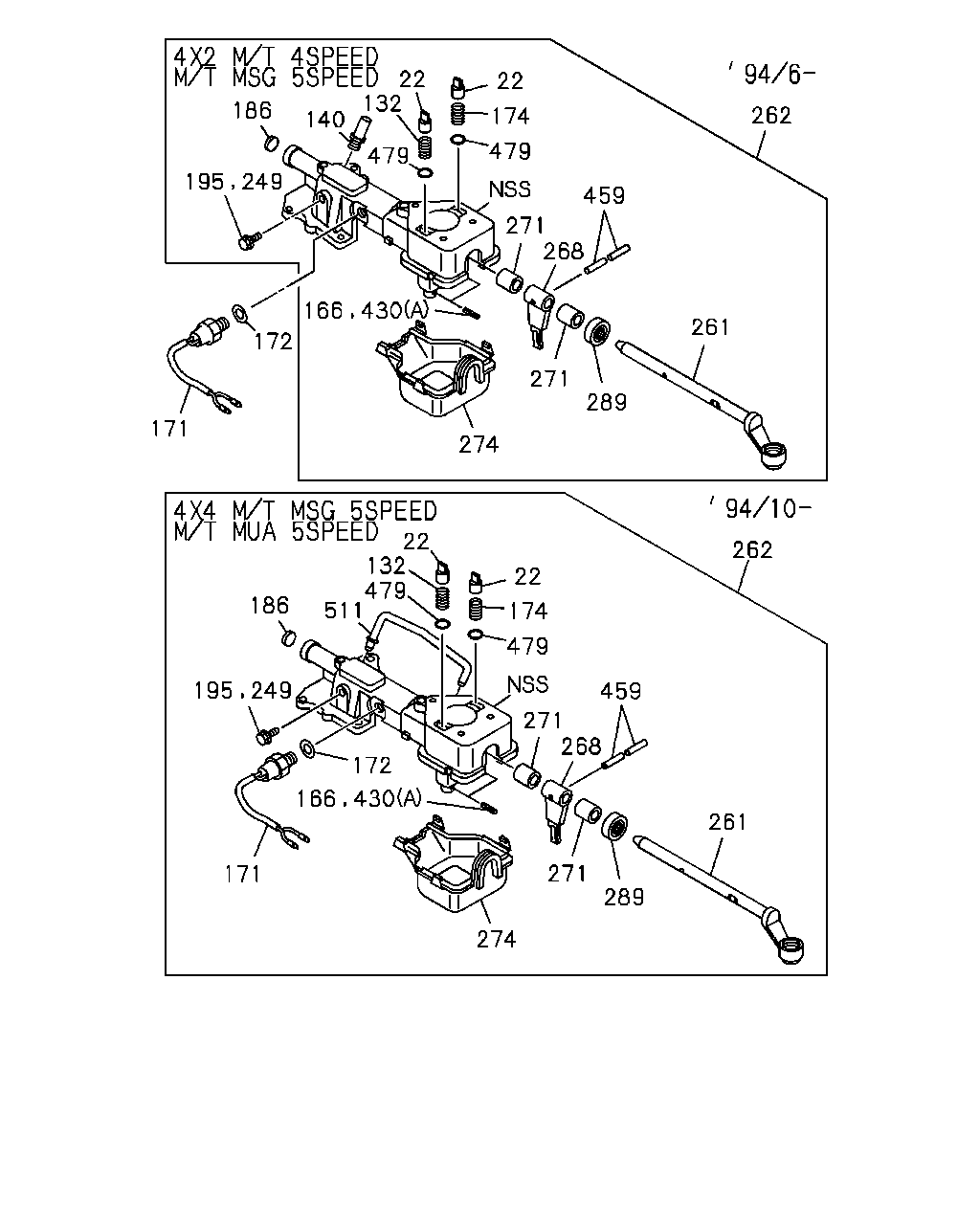

2-30 — GEAR SHIFTER AND QUADRANT BOX (#48047) — 420 parça

171 172 498 195 249 248 246 262 260 140 132 459 174 261 289 271 268 271 274 208 33 31 156 142 391 211 91 91 99 98 91 430 100 96 89 208 206 101 206 78 200 197 204 146 198 403 404 406 402 158 142 405 156 202 142 158 157 161 30 30 147 148 389 411 410 398 413 412 407 400 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9210-	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9210-	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9210-			●
33	04.309 ROD; SHIFT,LOW & 2ND C223 ENG(LQ7),4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9210-9308	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2)	8-94455-849-1	01	1	9210-9308		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9309-9411	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2)	8-94455-849-1	01	1	9309-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9412-	●	●
33	04.309 ROD; SHIFT,LOW & 2ND C223 ENG(LQ7),4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9210-9308	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9210-9308		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) 4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9309-9411	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9309-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9412-	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF)	8-94474-328-1	01	1	9210-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2),FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94435-157-1	01	1	9210-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-97019-061-1	01	1	9210-			●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94421-915-3	01	1	9210-			●
78	04.302 ARM; SHIFT,REV 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11> 04.309	8-94474-332-1	01	1	9210-9308	●
78	04.302 ARM; SHIFT,REV 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11> 04.309	8-94474-332-3	01	1	9309-9509	●
78	04.302 ARM; SHIFT,REV 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11> 04.309	8-94474-332-3	01	1	9510-	●
78	04.302 ARM; SHIFT,REV 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11> 04.309	8-94472-377-1	01	1	9210-9308	●
78	04.302 ARM; SHIFT,REV 4X2(TFB***) 4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11> 04.309	8-94472-377-3	01	1	9309-	●
89	04.309 ROD; SHIFT,REV 4X2(TFB***) 4ZA1 ENG(L17)	8-94474-330-2	01	1	9210-	●
89	04.309 ROD; SHIFT,REV 4X4(TFS***) C223 ENG(LQ7)	8-94474-331-1	01	1	9210-9308	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9210-	●	●	●
96	04.309 ROD; SHIFT,5TH FLOOR REMOTE SHIFT<M11>	8-94440-079-0	01	1	9210-9409			●
96	04.309 ROD; SHIFT,5TH	8-94440-079-0	01	1	9410-			●
96	04.309 ROD; SHIFT,5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94421-916-1	01	1	9210-9409			●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-94372-767-0	01	1	9210-	●	●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94372-766-0	01	1	9210-	●	●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-97019-060-2	01	1	9210-			●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94421-914-3	01	1	9210-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9210-	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9210-			●
100	04.309 ROD; SHIFT,REV & 5TH 4X2(TFB***) C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE)	8-94474-329-1	01	1	9210-9308		●
100	04.309 ROD; SHIFT,REV & 5TH 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94474-329-2	01	1	9309-		●
100	04.309 ROD; SHIFT,REV & 5TH 4X2 SPACE CAB(TFBC) 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94474-330-2	01	1	9403-9411		●
100	04.309 ROD; SHIFT,REV & 5TH 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94474-330-2	01	1	9403-9411		●
100	04.309 ROD; SHIFT,REV & 5TH 4X2(TFB***) 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG>	8-94474-330-2	01	1	9412-		●
100	04.309 ROD; SHIFT,REV & 5TH 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94456-016-1	01	1	9210-9308		●
100	04.309 ROD; SHIFT,REV & 5TH 4X4(TFS***) C223 ENG(LQ7)	8-94456-016-1	01	1	9210-9308		●
100	04.309 ROD; SHIFT,REV & 5TH 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94456-016-2	01	1	9309-		●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94455-851-1	01	1	9210-9308	●	●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94455-851-3	01	1	9309-		●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94440-061-1	01	1	9210-9308	●	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94440-061-3	01	1	9309-		●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94448-755-2	01	1	9210-			●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94448-754-3	01	1	9210-9409			●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9410-			●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9406-9409	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9410-	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11> 04.042	8-94473-790-1	01	1	9210-9405	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11> 04.042	8-94473-790-1	01	1	9406-9409		●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=32	8-94407-774-1	01	1	9210-9308	●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=32	8-94407-774-1	01	1	9309-	●	●
140	04.104 BREATHER; AIR,TRANS EXC. FLOOR REMOTE SHIFT<M11> L=39	8-94440-556-0	01	1	9210-	●	●
140	04.104 BREATHER; AIR,TRANS L=39	8-97035-693-2	01	1	9210-9308			●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=39	8-97035-693-2	01	1	9309-9409			●
142	04.012 BOLT; QUAD BOX M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	04	1	9210-	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9210-			●
146	04.032 BOLT; REV INHIBITOR 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9210-9609			●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9610-			●
147	04.020 PIN; KNOCK 4X2(TFB***) 4ZE1 ENG(RLJ) 04.510 OD=6 L=12	9-08150-612-0	02	1	9210-9406			●
147	04.020 PIN; KNOCK 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.510 OD=6 L=12	9-08150-612-0	02	1	9407-			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 04.109	8-94462-112-0	01	1	9210-	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.012	8-94462-113-0	01	1	9210-9308	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.012	8-94462-113-0	01	1	9309-		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94473-945-0	01	1	9210-9308			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9309-			●
156	00.349 WASHER; PL,HARNESS CLIP 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 16.674 ID=8.4	9-09160-508-0	01	1	9210-		●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-2	01	1	9210-9308	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-2	01	1	9210-9308		●
157	04.105 BOX; QUAD,TRANS 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-3	01	1	9309-9310	●
157	04.105 BOX; QUAD,TRANS 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-3	01	1	9309-9310		●
157	04.105 BOX; QUAD,TRANS 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9311-9602	●	●
157	04.105 BOX; QUAD,TRANS 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9311-9602		●
157	04.105 BOX; QUAD,TRANS 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9311-9602		●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9603-	●	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) ELECTRIC FUEL INJECTION<6GG> EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9603-	●	●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) C223 ENG(LQ7) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-2	01	1	9210-9308	●	●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-146-2	01	1	9210-9308		●
157	04.105 BOX; QUAD,TRANS 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-146-3	01	1	9309-9402		●
157	04.105 BOX; QUAD,TRANS 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-146-3	01	1	9403-9406		●
157	04.105 BOX; QUAD,TRANS 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-146-3	01	1	9403-9406		●
157	04.105 BOX; QUAD,TRANS 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-146-3	01	1	9407-9411		●
157	04.105 BOX; QUAD,TRANS 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-146-3	01	1	9407-9411		●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9412-		●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) ELECTRIC FUEL INJECTION<6GG> EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9412-		●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-110-3	01	1	9210-9411		●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2),FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-110-4	01	1	9412-		●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	8-94161-143-3	01	1	9210-9411		●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2),FLOOR REMOTE SHIFT<M11>,ELECTRIC FUEL INJECTION <6GG>,M/T LOW GEARED(6WF)	8-94161-143-4	01	1	9412-		●
157	04.105 BOX; QUAD,TRANS 4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-94379-321-2	01	1	9210-9407			●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FLOOR REMOTE SHIFT<M11>	8-94379-321-2	01	1	9210-9407			●
157	04.105 BOX; QUAD,TRANS 4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-0	01	1	9408-9509			●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-0	01	1	9408-9509			●
157	04.105 BOX; QUAD,TRANS EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-1	01	1	9510-			●
158	04.105 CLIP; HARNESS 4X2(TFB***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9210-	●	●
158	04.105 CLIP; HARNESS 4X4(TFS***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	9210-9308	●	●
158	04.105 CLIP; HARNESS 4X4(TFS***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	9309-		●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9210-	●	●	●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9210-9411		●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9210-9411			●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>	5-82440-004-1	01	1	9412-		●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9412-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9407		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2	8-94462-114-0	01	1	9210-9407			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9407			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY),FRT 185R14-6 RR 1 85R14-8 5JX14(9PB),FRT&RR 185R14-8 5JX14(9PC),FRT&RR P205/75R14 5.5JJX14(9PS) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZE1 ENG(RLJ) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2). 04.075 ID=14.2	8-94462-114-0	01	1	9510-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9510-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9407			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FLOOR REMOTE SHIFT<M11> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9407			●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11> 04.042	8-94473-791-1	01	1	9210-9405	●	●	●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11>	8-97103-105-0	01	1	9406-	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 04.012 M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9605-	●	●	●
197	04.309 INHIBITOR; REV SHIFT FLOOR REMOTE SHIFT<M11>	8-94448-753-0	01	1	9210-			●
197	04.309 INHIBITOR; REV SHIFT EXC. FLOOR REMOTE SHIFT<M11>	8-94448-201-1	01	1	9210-			●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9210-			●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9210-			●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9210-			●
204	04.309 STOPPER; REV INHIBITOR 4ZE1 ENG(RLJ)	8-94479-434-2	01	1	9210-9509			●
204	04.309 STOPPER; REV INHIBITOR 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94479-434-2	01	1	9210-9509			●
204	04.309 STOPPER; REV INHIBITOR 4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-434-2	01	1	9510-			●
204	04.309 STOPPER; REV INHIBITOR 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94479-434-2	01	1	9510-			●
206	04.307 SPRING; BALL SEAT 4X4(TFS***) M/T LOW GEARED(6WF) 04.570	9-33619-632-0	02	1	9210-			●
208	04.307 PIN; BALL SEAT 4X4(TFS***) M/T LOW GEARED(6WF)	8-94204-186-0	02	1	9210-			●
211	04.307 SEAT; BALL 4X4(TFS***) M/T LOW GEARED(6WF) 04.570	5-33619-042-0	01	1	9210-			●
246	04.105 SCREW; DUST COVER FLOOR REMOTE SHIFT<M11> M4X10 FLANGE	8-94328-359-1	04	1	9210-9405	●	●	●
246	04.105 SCREW; DUST COVER FLOOR REMOTE SHIFT<M11> M4X10 FLANGE	8-94328-359-1	04	1	9406-9409		●	●
248	04.105 RETAINER; CONT BOX 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9210-9405	●	●
248	04.105 RETAINER; CONT BOX FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9210-9405			●
248	04.105 RETAINER; CONT BOX 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9406-9409			●
248	04.105 RETAINER; CONT BOX 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94328-360-2	01	1	9406-9409			●
248	04.105 RETAINER; CONT BOX 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-784-2	01	1	9210-9308	●	●
248	04.105 RETAINER; CONT BOX 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-784-2	01	1	9309-9409		●
249	04.012 BOLT; RET,CONT BOX FLOOR REMOTE SHIFT<M11> M8X12 FLANGE	8-97049-142-0	05	1	9210-9308	●	●	●
249	04.012 BOLT; RET,CONT BOX FLOOR REMOTE SHIFT<M11> M8X12 FLANGE	8-97049-142-0	03	1	9309-9405	●	●	●
249	04.012 BOLT; RET,CONT BOX FLOOR REMOTE SHIFT<M11> M8X12 FLANGE	8-97049-142-0	03	1	9406-9409		●	●
260	04.309 SHAFT; SPRING SET,CONT BOX FLOOR REMOTE SHIFT<M11>	8-94473-789-0	01	1	9210-9405	●	●	●
260	04.309 SHAFT; SPRING SET,CONT BOX FLOOR REMOTE SHIFT<M11>	8-94473-789-0	01	1	9406-9409		●	●
261	04.309 ROD; GEAR CONT C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9210-9308	●	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9309-9402	●	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94328-366-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF)	8-94328-366-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> SAUDI ARABIA EQUIPMENT(EU2),ELECTRIC FUEL INJECTION<6GG>	8-97103-092-0	01	1	9406-9409	●	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410		●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9411-9601	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>,ELECTRIC FUEL INJECTION<6GG>	8-97103-092-0	01	1	9411-9601		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9602-	●	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9602-		●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9210-9402		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9210-9402			●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9403-9405			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-788-3	01	1	9403-9405			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-94473-788-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9406-9409			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-788-3	01	1	9406-9409			●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-090-0	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-090-0	01	1	9410-9411		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-090-0	01	1	9410-9411			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-090-0	01	1	9410-9411			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-090-0	01	1	9412-9509	●	●	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>	8-97103-090-0	01	1	9412-9509		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-090-0	01	1	9412-9509			●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97103-090-1	01	1	9510-		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9510-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9210-9308	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9309-9402	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9403-9405	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG>	8-94462-343-5	01	1	9403-9405	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> SAUDI ARABIA EQUIPMENT(EU2),ELECTRIC FUEL INJECTION<6GG>	8-97104-339-1	01	1	9406-	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94462-342-5	01	1	9210-9402		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-94462-342-5	01	1	9403-9405		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97104-338-0	01	1	9406-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>	8-97104-338-1	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94474-402-5	01	1	9210-9402		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94474-402-5	01	1	9403-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF)	8-94474-402-5	01	1	9403-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97104-409-1	01	1	9410-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF)	8-97104-409-1	01	1	9410-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> SAUDI ARABIA EQUIPMENT(EU2),ELECTRIC FUEL INJECTION<6GG> EXC. M/T LOW GEARED(6WF)	8-97104-409-2	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97104-409-2	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94474-401-5	01	1	9210-9402		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-94474-401-5	01	1	9403-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-97103-081-1	01	1	9410-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-97103-081-2	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97033-096-3	01	1	9210-9409			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97033-096-3	01	1	9210-9409			●
262	04.105 BOX ASM; SHIFT CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97100-878-1	01	1	9410-9509			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97100-878-1	01	1	9410-9509			●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-3	01	1	9510-			●
268	04.302 LEVER; CONT,INTERNAL C223 ENG(LQ7),4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9210-9308	●	●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94473-787-1	01	1	9210-9308		●
268	04.302 LEVER; CONT,INTERNAL 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9309-9402	●	●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94473-787-1	01	1	9309-9402		●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9403-9405	●	●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9406-9409		●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9406-	●	●
268	04.302 LEVER; CONT,INTERNAL 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-786-1	01	1	9210-9409			●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-786-1	01	1	9210-9409			●
268	04.302 LEVER; CONT,INTERNAL 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9410-9509			●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-089-0	01	1	9410-9509			●
268	04.302 LEVER; CONT,INTERNAL 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9510-			●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-089-0	01	1	9510-			●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94151-447-0	02	1	9210-9310	●	●	●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11> ID=14 L=15	8-94478-119-0	02	1	9311-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-093-1	01	1	9406-9409	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-97103-093-2	01	1	9410-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94473-785-2	01	1	9210-9405	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94473-785-2	01	1	9406-9409		●
274	04.105 COVER; SHAFT,QUAD BOX 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-785-2	01	1	9406-9409			●
274	04.105 COVER; SHAFT,QUAD BOX 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-785-2	01	1	9406-9409			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94221-533-1	01	1	9210-9310	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94478-118-0	01	1	9311-	●	●	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW C223 ENG(LQ7),4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11> 04.042	8-94205-805-2	01	1	9210-9308	●	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF) 04.042	8-94205-805-2	01	1	9210-9308		●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF) 04.042	8-94205-805-2	01	1	9309-9310	●	●	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4X2(TFB***) 4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11> 04.042	8-94205-805-2	01	1	9309-9310	●	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF) 04.042	8-94205-805-2	01	1	9311-9410	●	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4X2(TFB***) 4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11> 04.042	8-94205-805-2	01	1	9311-9410	●	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4X2(TFB***) 4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11> 04.042	8-94205-805-2	01	1	9411-9511	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11> 04.042	8-94205-805-2	01	1	9411-9511		●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11> 04.042	8-94205-805-2	01	1	9411-9511		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4ZE1 ENG(RLJ) 08.971 M14X9	9-99202-314-0	01	1	9210-9312			●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1 ENG(RLE),4ZE1 ENG(RLJ) 08.971 M14X9	9-99202-314-0	01	1	9210-9312			●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4ZE1 ENG(RLJ) M14X11	8-94252-142-0	01	1	9401-9509			●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1 ENG(RLE),4ZE1 ENG(RLJ) M14X11	8-94252-142-0	01	1	9401-9509			●
391	04.104 PLUG; SW HOLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X11	8-94252-142-0	01	1	9510-			●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) M14X11	8-94252-142-0	01	1	9510-			●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) M14X11	8-94252-142-0	01	1	9510-			●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9210-	●	●
398	02.698 SWITCH; REV LAMP	8-94464-566-0	01	1	9210-9609			●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9610-			●
400	02.698 SWITCH; SHIFT,TOP 3RD 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 04.439	8-94411-366-1	01	1	9210-		●
401	04.075 GASKET; SWITCH,TOP & 3RD 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) ID=14.2	8-94462-114-0	01	1	9210-		●
402	02.698 SWITCH; SHIFT,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 04.439	8-94411-366-1	01	1	9210-		●
403	04.075 GASKET; SWITCH,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) ID=14.2	8-94462-114-0	01	1	9210-		●
404	04.075 PLUNGER; SWITCH,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) D=5.5 L=20.7	8-94225-228-0	01	1	9210-		●
405	04.307 BALL; SWITCH,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2)	9-00097-517-0	01	1	9210-		●
406	02.559 BOLT; HARNESS CLIP C223 ENG(LQ7),4ZA1 ENG(L17) 01.428 M8X16 W/LK WASHER	8-94200-833-0	01	1	9210-9308	●	●
406	02.559 BOLT; HARNESS CLIP 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.428 M8X16 W/LK WASHER	8-94200-833-0	01	1	9210-9308		●
406	02.559 BOLT; HARNESS CLIP 4X2(TFB***) 4ZA1 ENG(L17) 01.428 M8X16 W/LK WASHER	8-94200-833-0	01	1	9309-9406	●	●
406	02.559 BOLT; HARNESS CLIP 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.428 M8X16 W/LK WASHER	8-94200-833-0	01	1	9309-9406		●
406	02.559 BOLT; HARNESS CLIP 4X2(TFB***) 4ZA1 ENG(L17) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9407-9601	●	●
406	02.559 BOLT; HARNESS CLIP 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9407-9601		●
406	02.559 BOLT; HARNESS CLIP 4X2(TFB***) 4ZA1 ENG(L17) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9602-	●
406	02.559 BOLT; HARNESS CLIP 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9602-			●
406	02.559 BOLT; HARNESS CLIP 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9602-			●
406	02.559 BOLT; HARNESS CLIP 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9210-		●
407	02.698 CLIP; SWITCH HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9210-	●	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-			●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). C223 ENG(LQ7),4ZA1 ENG(L17) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9308	●	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9308		●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4ZA1 ENG(L17) 04.075 ID=14.2	8-94462-114-0	01	1	9309-9410	●	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9309-9410		●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9411-	●	●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) C223 ENG(LQ7) 04.302 D=5.5 L=26.7	8-94161-122-0	01	1	9210-9308	●	●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 04.302 D=5.5 L=26.7	8-94161-122-0	01	1	9210-9308		●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 04.302 D=5.5 L=26.7	8-94161-122-0	01	1	9309-		●
412	02.698 PLUNGER; REV LAMP SW 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9210-9410		●
412	02.698 PLUNGER; REV LAMP SW 4X2(TFB***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9411-9411		●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9411-9411		●
412	02.698 PLUNGER; REV LAMP SW 4X2(TFB***) 4JA1 ENG(RLE) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9411-9411		●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9411-9411		●
413	04.307 BALL; BACK SW 4X4(TFS***) C223 ENG(LQ7)	9-00097-517-0	01	1	9210-9308	●
413	04.307 BALL; BACK SW 4X2(TFB***) 4JA1 ENG(RLE)	9-00097-517-0	01	1	9210-9308		●
413	04.307 BALL; BACK SW 4X4(TFS***) C223 ENG(LQ7),4JA1 ENG(RLE)	9-00097-517-0	01	1	9210-9308		●
413	04.307 BALL; BACK SW 4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	9-00097-517-0	01	1	9210-9308		●
413	04.307 BALL; BACK SW 4JA1 ENG(RLE)	9-00097-517-0	01	1	9309-9410		●
413	04.307 BALL; BACK SW 4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>,M/T LOW GEARED(6WF)	9-00097-517-0	01	1	9309-9410		●
413	04.307 BALL; BACK SW 4X2(TFB***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2)	9-00097-517-0	01	1	9411-9411		●
413	04.307 BALL; BACK SW 4X4(TFS***) 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF)	9-00097-517-0	01	1	9411-9411		●
413	04.307 BALL; BACK SW 4JA1 ENG(RLE)	9-00097-517-0	01	1	9411-9411		●
413	04.307 BALL; BACK SW 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	9-00097-517-0	01	1	9412-		●
430	04.307 PIN; SPR,SHIFT ROD C223 ENG(LQ7),4ZA1 ENG(L17) 04.303 (B) D=4.2 L=25	8-94171-541-0	01	1	9210-9308	●
430	04.307 PIN; SPR,SHIFT ROD 4X2(TFB***) 4ZA1 ENG(L17) 04.303 (B) D=4.2 L=25	8-94171-541-0	01	1	9309-	●
430	04.307 PIN; SPR,SHIFT ROD 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9406-	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4	9-09678-510-0	01	1	9210-	●	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3	9-09678-519-0	01	1	9311-	●	●	●
498	04.075 GASKET; SWITCH,1ST & 2ND 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9309-9509			●
498	04.075 GASKET; SWITCH,1ST & 2ND 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9510-9601			●
498	04.075 GASKET; SWITCH,1ST & 2ND 4X4 LONG(TFS**F) 4JB1 ENG(RLF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9510-9601			●
498	04.075 GASKET; SWITCH,1ST & 2ND 4X2 CREW CAB(TFBW) 4JB1 ENG(RLF) FRT 185R14-6 RR 185R14-8 5JX14(9PB), FRT&RR 185R14-8 5JX14(9PC) EXC. FLOOR REMOTE SHIFT<M11> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9602-			●
498	04.075 GASKET; SWITCH,1ST & 2ND 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9602-			●
498	04.075 GASKET; SWITCH,1ST & 2ND 4X4 LONG(TFS**F) 4JB1 ENG(RLF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9602-			●

186 195 249 140 132 22 22 479 174 479 271 459 261 268 271 274 289 430 166 172 171 186 195 249 511 479 132 22 22 479 271 268 459 174 261 289 274 271 430 166 171 172 262 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-102-0	02	1	9406-9409	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK FLOOR REMOTE SHIFT<M11>	8-97103-102-0	02	1	9410-	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9406-9409	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9410-	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11> 04.042	8-94473-790-1	01	1	9210-9405	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11> 04.042	8-94473-790-1	01	1	9406-9409		●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=32	8-94407-774-1	01	1	9210-9308	●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=32	8-94407-774-1	01	1	9309-	●	●
140	04.104 BREATHER; AIR,TRANS EXC. FLOOR REMOTE SHIFT<M11> L=39	8-94440-556-0	01	1	9210-	●	●
140	04.104 BREATHER; AIR,TRANS L=39	8-97035-693-2	01	1	9210-9308			●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=39	8-97035-693-2	01	1	9309-9409			●
166	04.302 PIN; SPR,SELECT LEVER FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25	8-97103-142-0	02	1	9410-			●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9210-9411		●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9210-9411			●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>	5-82440-004-1	01	1	9412-		●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9412-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9407		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2	8-94462-114-0	01	1	9210-9407			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9407			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY),FRT 185R14-6 RR 1 85R14-8 5JX14(9PB),FRT&RR 185R14-8 5JX14(9PC),FRT&RR P205/75R14 5.5JJX14(9PS) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZE1 ENG(RLJ) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.075 ID=14.2	8-94462-114-0	01	1	9408-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2). 04.075 ID=14.2	8-94462-114-0	01	1	9510-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9510-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9407			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FLOOR REMOTE SHIFT<M11> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9407			●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11> 04.042	8-94473-791-1	01	1	9210-9405	●	●	●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11>	8-97103-105-0	01	1	9406-	●	●	●
186	04.105 PLUG; SHIFTER ROD FLOOR REMOTE SHIFT<M11> 00.253 OD=16	9-11129-081-0	01	1	9406-	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 04.012 M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9605-	●	●	●
249	04.012 BOLT; RET,CONT BOX FLOOR REMOTE SHIFT<M11> M8X12 FLANGE	8-97049-142-0	05	1	9210-9308	●	●	●
249	04.012 BOLT; RET,CONT BOX FLOOR REMOTE SHIFT<M11> M8X12 FLANGE	8-97049-142-0	03	1	9309-9405	●	●	●
249	04.012 BOLT; RET,CONT BOX FLOOR REMOTE SHIFT<M11> M8X12 FLANGE	8-97049-142-0	03	1	9406-9409		●	●
261	04.309 ROD; GEAR CONT C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9210-9308	●	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9309-9402	●	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94328-366-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF)	8-94328-366-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> SAUDI ARABIA EQUIPMENT(EU2),ELECTRIC FUEL INJECTION<6GG>	8-97103-092-0	01	1	9406-9409	●	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410		●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9411-9601	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>,ELECTRIC FUEL INJECTION<6GG>	8-97103-092-0	01	1	9411-9601		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9602-	●	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9602-		●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9210-9402		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9210-9402			●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9403-9405			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-788-3	01	1	9403-9405			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-94473-788-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9406-9409			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-788-3	01	1	9406-9409			●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-090-0	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-090-0	01	1	9410-9411		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-090-0	01	1	9410-9411			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-090-0	01	1	9410-9411			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-090-0	01	1	9412-9509	●	●	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>	8-97103-090-0	01	1	9412-9509		●
261	04.309 ROD; GEAR CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-090-0	01	1	9412-9509			●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97103-090-1	01	1	9510-		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9510-			●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9210-9308	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9309-9402	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9403-9405	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG>	8-94462-343-5	01	1	9403-9405	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> SAUDI ARABIA EQUIPMENT(EU2),ELECTRIC FUEL INJECTION<6GG>	8-97104-339-1	01	1	9406-	●	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94462-342-5	01	1	9210-9402		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-94462-342-5	01	1	9403-9405		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97104-338-0	01	1	9406-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>	8-97104-338-1	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94474-402-5	01	1	9210-9402		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94474-402-5	01	1	9403-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF)	8-94474-402-5	01	1	9403-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97104-409-1	01	1	9410-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X4 CREW CAB(TFSW) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> ELECTRIC FUEL INJECTION<6GG> EXC. SAUDI ARABIA EQUIPMENT(EU2),M/T LOWGEARED(6WF)	8-97104-409-1	01	1	9410-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> SAUDI ARABIA EQUIPMENT(EU2),ELECTRIC FUEL INJECTION<6GG> EXC. M/T LOW GEARED(6WF)	8-97104-409-2	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97104-409-2	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94474-401-5	01	1	9210-9402		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-94474-401-5	01	1	9403-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-97103-081-1	01	1	9410-9411		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	8-97103-081-2	01	1	9412-		●
262	04.105 BOX ASM; SHIFT CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97033-096-3	01	1	9210-9409			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97033-096-3	01	1	9210-9409			●
262	04.105 BOX ASM; SHIFT CONT 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97100-878-1	01	1	9410-9509			●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97100-878-1	01	1	9410-9509			●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-3	01	1	9510-			●
268	04.302 LEVER; CONT,INTERNAL C223 ENG(LQ7),4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9210-9308	●	●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94473-787-1	01	1	9210-9308		●
268	04.302 LEVER; CONT,INTERNAL 4X2(TFB***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9309-9402	●	●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94473-787-1	01	1	9309-9402		●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9403-9405	●	●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9406-9409		●
268	04.302 LEVER; CONT,INTERNAL 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9406-	●	●
268	04.302 LEVER; CONT,INTERNAL 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-786-1	01	1	9210-9409			●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-786-1	01	1	9210-9409			●
268	04.302 LEVER; CONT,INTERNAL 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9410-9509			●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-089-0	01	1	9410-9509			●
268	04.302 LEVER; CONT,INTERNAL 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9510-			●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97103-089-0	01	1	9510-			●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94151-447-0	02	1	9210-9310	●	●	●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11> ID=14 L=15	8-94478-119-0	02	1	9311-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-093-1	01	1	9406-9409	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-97103-093-2	01	1	9410-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94473-785-2	01	1	9210-9405	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94473-785-2	01	1	9406-9409		●
274	04.105 COVER; SHAFT,QUAD BOX 4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-94473-785-2	01	1	9406-9409			●
274	04.105 COVER; SHAFT,QUAD BOX 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-94473-785-2	01	1	9406-9409			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94221-533-1	01	1	9210-9310	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94478-118-0	01	1	9311-	●	●	●
430	04.307 PIN; SPR,SHIFT ROD C223 ENG(LQ7),4ZA1 ENG(L17) 04.303 (B) D=4.2 L=25	8-94171-541-0	01	1	9210-9308	●
430	04.307 PIN; SPR,SHIFT ROD 4X2(TFB***) 4ZA1 ENG(L17) 04.303 (B) D=4.2 L=25	8-94171-541-0	01	1	9309-	●
430	04.307 PIN; SPR,SHIFT ROD 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9406-	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4	9-09678-510-0	01	1	9210-	●	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3	9-09678-519-0	01	1	9311-	●	●	●
479	04.307 PLATE; SELECT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> D=13	8-97103-110-0	02	1	9406-9409	●	●
479	04.307 PLATE; SELECT FLOOR REMOTE SHIFT<M11> D=13	8-97103-110-0	02	1	9410-	●	●	●
511	04.302 PIPE; AIR FLOOR REMOTE SHIFT<M11>	8-97104-725-0	01	1	9410-9509		●	●
511	04.302 PIPE; AIR 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97104-725-0	01	1	9510-		●
511	04.302 PIPE; AIR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11>	8-97104-725-0	01	1	9510-			●
511	04.302 PIPE; AIR 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> M/T LOW GEARED(6WF)	8-97104-725-0	01	1	9510-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
