2-25 — SPEEDOMETER DRIVEN GEAR (#48045) — 104 parça

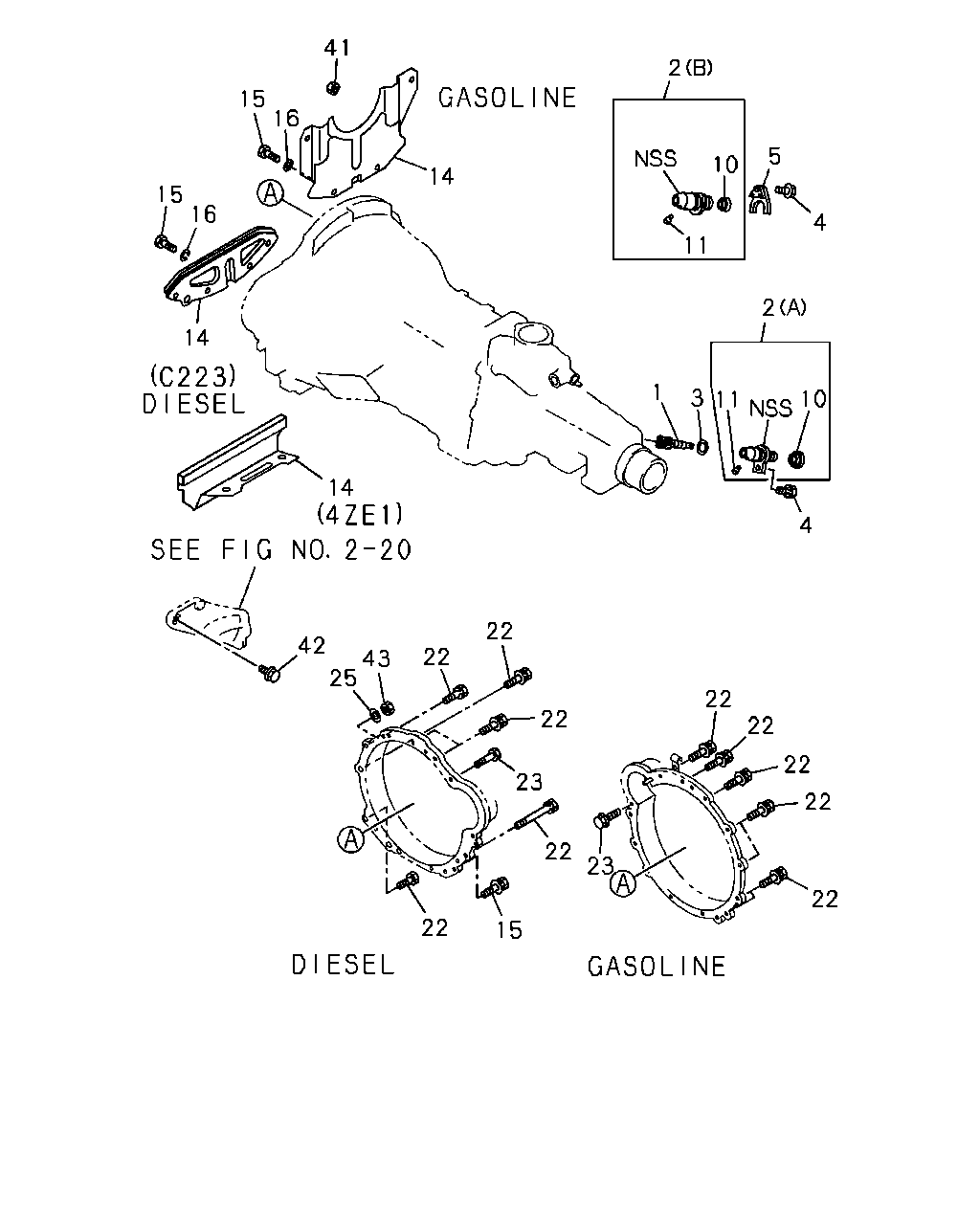

çizim 17721
41 15 14 16 15 2 10 5 4 11 2 1 3 11 4 10 22 22 22 22 22 22 22 23 22 23 22 43 42 25 22 15 14 14 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17) Z=17 		8-94473-307-1 01 1 9210-9308 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9210-9308 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZA1 ENG(L17) Z=17 		8-94473-307-1 01 1 9309- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9309- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17) Z=17 		8-94473-307-1 01 1 9309- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) C223 ENG(LQ7) Z=20 		8-94473-302-1 01 1 9210-9308 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9210-9308 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9309- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) EXC. REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-304-1 01 1 9210-9602 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) EXC. REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-304-1 01 1 9602- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9210-9406 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JA1 ENG(RLE) M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9210-9406 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZE1 ENG(RLJ) Z=16 		8-94473-308-1 01 1 9210-9406 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9407-9509 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9407-9509 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZE1 ENG(RLJ) Z=16 		8-94473-308-1 01 1 9407-9509 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9510- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9510- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=16 		8-94473-308-1 01 1 9510- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9210- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3) M/T LOW GEARED(6WF) Z=18 		8-97012-086-1 01 1 9210-9406 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
(A) 		8-94463-608-4 01 1 9210- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
(B) 		8-97021-133-4 01 1 9210- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9210- ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9504- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
08.900 M8X18 FLANGE 		0-28080-818-0 01 1 9210-9503 ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
08.900 M8X18 FLANGE 		0-28080-818-0 01 1 9504-9609 ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9610- ●
5 04.338 RETAINER; SPD DRIVEN GEAR 8-97021-019-0 01 1 9210- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-113-0 01 1 9210-9505 ● ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9506- ● ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9210- ● ● ●
14 00.679 COVER; UNDER,TRANS
4ZD1 ENG(LW3),4ZA1 ENG(L17) 		8-97074-336-1 01 1 9210- ● ● ●
14 00.679 COVER; UNDER,TRANS
C223 ENG(LQ7) 		5-31131-013-1 01 1 9210-9308 ● ●
14 00.679 COVER; UNDER,TRANS
4ZE1 ENG(RLJ) 		8-94310-655-2 01 1 9210- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3),4ZA1 ENG(L17) 05.815 M6X10 		0-20800-610-0 02 1 9210- ● ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
C223 ENG(LQ7) 05.815 M6X10 		0-20800-610-0 04 1 9210-9308 ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
C223 ENG(LQ7) M10X35 FLANGE 		0-28081-035-0 01 1 9210-9303 ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
C223 ENG(LQ7),4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9304-9308 ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9309-9601 ●
15 00.685 BOLT; UNDER COVER TO TRANS
4X2(TFB***) 4JA1 ENG(RLE),4JB1 ENG(RLF) M10X35 FLANGE 		0-28081-035-0 01 1 9602- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 02 1 9210-9303 ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X30 FLANGE 		0-28081-030-0 01 1 9304-9308 ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X30 FLANGE 		0-28081-030-0 01 1 9309- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X45 FLANGE 		0-28081-045-0 01 1 9210-9509 ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M10X45 FLANGE 		0-28081-045-0 01 1 9510- ●
16 00.685 WASHER; LK,UNDER COVER
C223 ENG(LQ7) 00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ● ●
16 00.685 WASHER; LK,UNDER COVER
4ZD1 ENG(LW3),4ZA1 ENG(L17) 00.206 ID=6.1 		9-09150-506-0 02 1 9210- ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
C223 ENG(LQ7) M10X35 FLANGE 		0-28081-035-0 02 1 9210-9308 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28081-035-0 02 1 9210-9308 ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28081-035-0 02 1 9309- ●
22 00.685 BOLT; TRANS CASE TO ENG
C223 ENG(LQ7) 00.780 M12X85 FLANGE 		8-94480-345-1 01 1 9210-9308 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
C223 ENG(LQ7),4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9210-9308 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2(TFB***) 4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9309-9509 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9309-9509 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9510-9601 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9602- ●
22 00.685 BOLT; TRANS CASE TO ENG
C223 ENG(LQ7),4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9210-9308 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2(TFB***) 4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9309-9509 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9309-9509 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9510-9601 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9602- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17) M10X30 FLANGE 		0-28081-030-0 01 1 9210-9607 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17) 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 9608- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17) M10X35 FLANGE 		0-28081-035-0 04 1 9210-9607 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17) 03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9608- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9210-9601 ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2(TFB***) 4JA1 ENG(RLE),4JB1 ENG(RLF) M10X35 FLANGE 		0-28081-035-0 01 1 9602-9607 ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X35 FLANGE 		0-28081-035-0 01 1 9608- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9210-9601 ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2(TFB***) 4JA1 ENG(RLE),4JB1 ENG(RLF) M12X90 		8-94475-060-1 01 1 9602- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.317 M10X55 FLANGE 		8-94473-959-1 01 1 9210- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9210- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9210-9509 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9510- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X30 FLANGE 		0-28081-030-0 02 1 9210- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9210- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X45 FLANGE 		0-28081-045-0 02 1 9210- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZE1 ENG(RLJ) M10X50 FLANGE 		0-28081-050-0 02 1 9210- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2(TFB***) 4JA1 ENG(RLE) M10X60 FLANGE 		0-28081-060-0 02 1 9210-9509 ●
22 00.685 BOLT; TRANS CASE TO ENG
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M10X60 FLANGE 		0-28081-060-0 02 1 9210-9509 ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2(TFB***) 4JA1 ENG(RLE),4JB1 ENG(RLF) M10X60 FLANGE 		0-28081-060-0 02 1 9510- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X60 FLANGE 		0-28081-060-0 02 1 9510- ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZA1 ENG(L17) 04.510 M10X35 FLANGE 		0-28181-035-0 01 1 9210-9607 ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZD1 ENG(LW3),4ZA1 ENG(L17) 04.510 M10X35 FLANGE 		0-28181-035-0 01 1 9210-9607 ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.510 M10X35 FLANGE 		0-28181-035-0 01 1 9210-9607 ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZA1 ENG(L17) M10X35 FLANGE 		0-28781-035-0 01 1 9608- ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZD1 ENG(LW3),4ZA1 ENG(L17) M10X35 FLANGE 		0-28781-035-0 01 1 9608- ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28781-035-0 01 1 9608- ●
23 00.685 BOLT; STARTER TO TRANS CASE
4JA1 ENG(RLE) M12X68 FLANGE 		8-94480-344-1 02 1 9210-9509 ●
23 00.685 BOLT; STARTER TO TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) M12X68 FLANGE 		8-94480-344-1 02 1 9510- ●
25 00.685 WASHER; PL,TRANS CASE
4JA1 ENG(RLE) 03.430 ID=12.5 		9-09160-512-0 01 1 9210-9509 ●
25 00.685 WASHER; PL,TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.430 ID=12.5 		9-09160-512-0 01 1 9510- ●
41 04.105 NUT; UNDER COVER
4ZE1 ENG(RLJ) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9210- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZD1 ENG(LW3),4ZA1 ENG(L17) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9210-9607 ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZD1 ENG(LW3),4ZA1 ENG(L17) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 9608- ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4X2(TFB***) 4ZA1 ENG(L17) M10X60 FLANGE 		0-28081-060-0 02 1 9210- ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZD1 ENG(LW3) M10X72 FLANGE 		8-94475-057-1 02 1 9210- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9210-9509 ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9510- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9210-9509 ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9510- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE) 05.816 M12 		9-99110-412-0 01 1 9210-9509 ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 05.816 M12 		9-99110-412-0 01 1 9510- ●
