◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#48043) — 42 parça

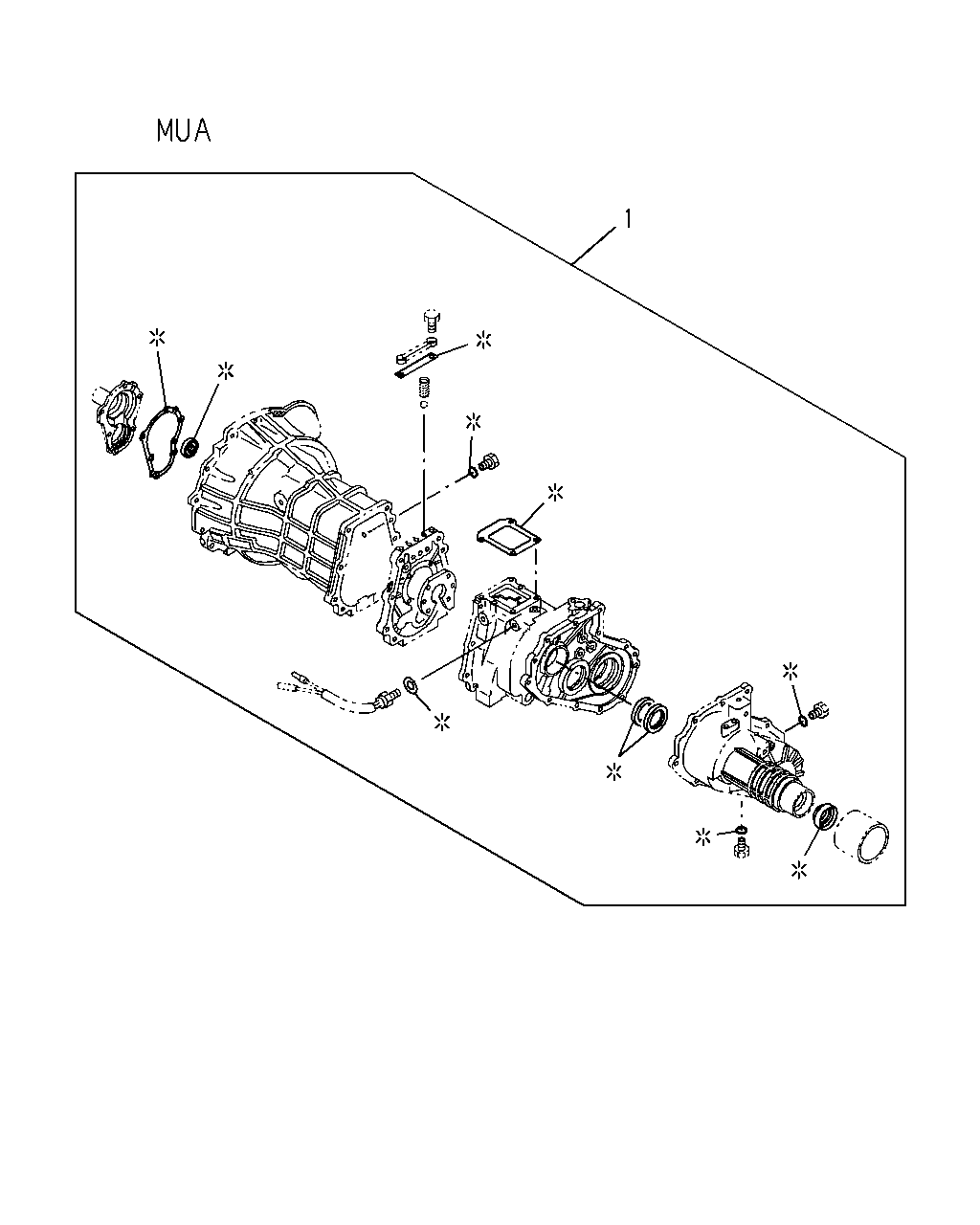

çizim 17045
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17) 		5-87830-934-1 01 1 9210-9308 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87830-934-1 01 1 9210-9308 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87830-934-2 01 1 9309-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87831-513-0 01 1 9412-9509 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZA1 ENG(L17) 		5-87831-401-1 01 1 9309-9410 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZA1 ENG(L17) 		5-87831-512-0 01 1 9411- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87830-939-0 01 1 9210-9308 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87830-939-2 01 1 9309-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87831-514-0 01 1 9412- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87831-513-0 01 1 9510- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZE1 ENG(RLJ) 		5-87831-307-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZE1 ENG(RLJ) 		5-87831-416-0 01 1 9308-9309 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZE1 ENG(RLJ) 		5-87831-455-1 01 1 9310-9409 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4ZE1 ENG(RLJ) 		5-87831-455-1 01 1 9410- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-87831-455-1 01 1 9410- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.010 		5-87831-456-1 01 1 9510- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 00.010 		5-87831-456-1 01 1 9510- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZE1 ENG(RLJ) 		5-87831-308-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		5-87831-308-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZE1 ENG(RLJ) 00.010 		5-87831-456-1 01 1 9308-9509 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 00.010 		5-87831-456-1 01 1 9308-9509 ●

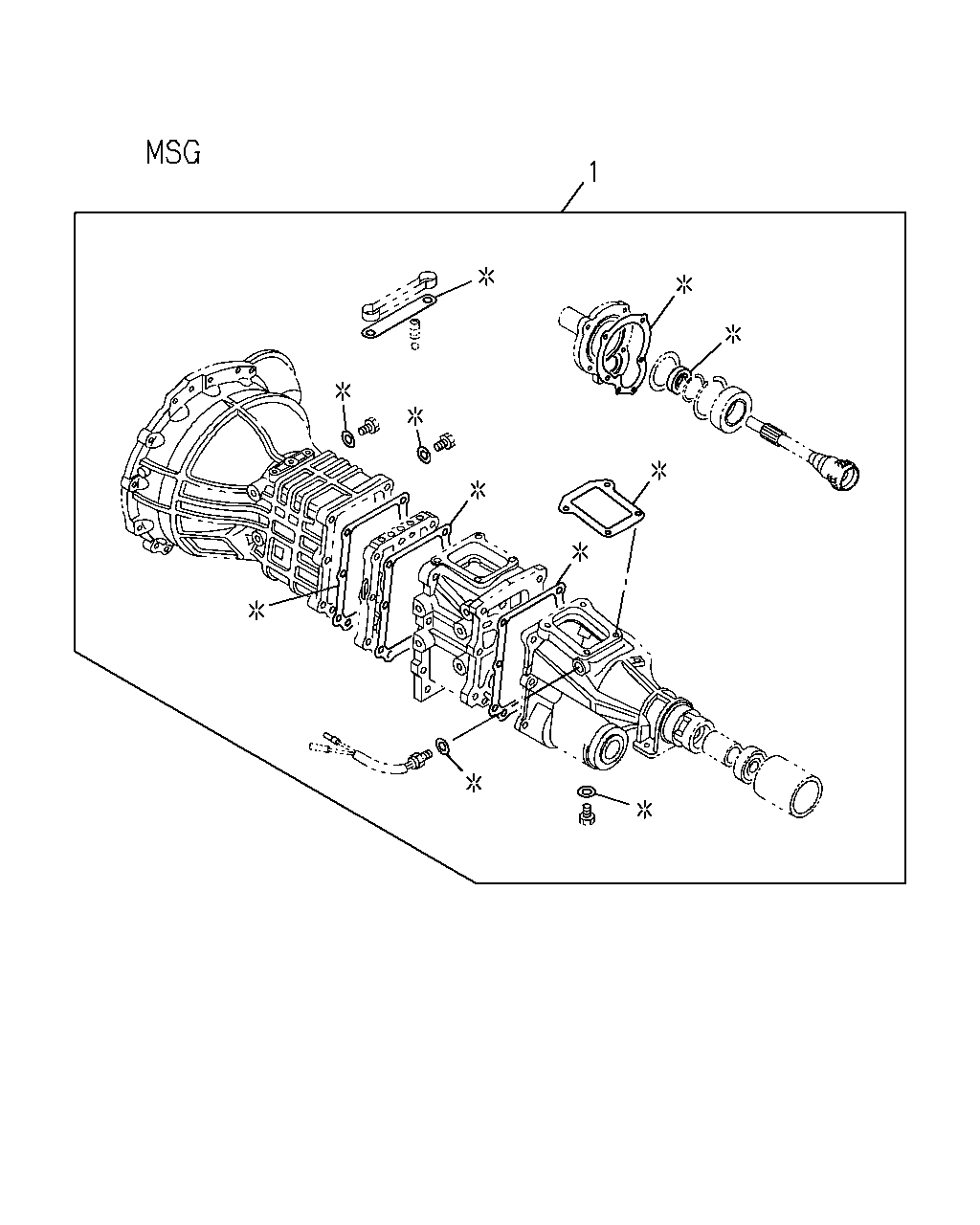

çizim 68379
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17) 		5-87830-934-1 01 1 9210-9308 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87830-934-1 01 1 9210-9308 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87830-934-2 01 1 9309-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87831-513-0 01 1 9412-9509 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZA1 ENG(L17) 		5-87831-401-1 01 1 9309-9410 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZA1 ENG(L17) 		5-87831-512-0 01 1 9411- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87830-939-0 01 1 9210-9308 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87830-939-2 01 1 9309-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87831-514-0 01 1 9412- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) 		5-87831-513-0 01 1 9510- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZE1 ENG(RLJ) 		5-87831-307-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZE1 ENG(RLJ) 		5-87831-416-0 01 1 9308-9309 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 4ZE1 ENG(RLJ) 		5-87831-455-1 01 1 9310-9409 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4ZE1 ENG(RLJ) 		5-87831-455-1 01 1 9410- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-87831-455-1 01 1 9410- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.010 		5-87831-456-1 01 1 9510- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 00.010 		5-87831-456-1 01 1 9510- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZE1 ENG(RLJ) 		5-87831-308-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		5-87831-308-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZE1 ENG(RLJ) 00.010 		5-87831-456-1 01 1 9308-9509 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 00.010 		5-87831-456-1 01 1 9308-9509 ●
