◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#48042) — 28 parça

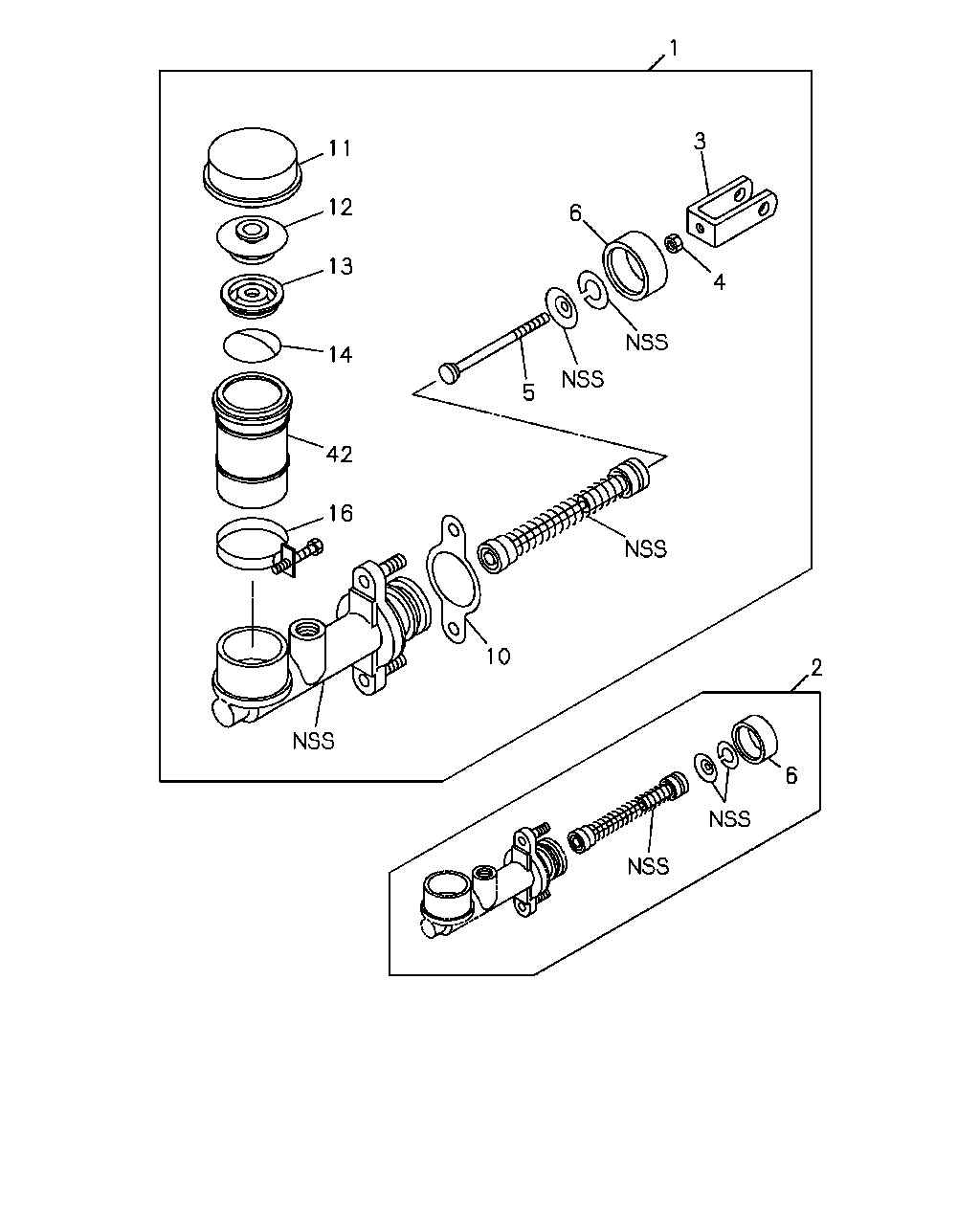

çizim 66733
11 1 3 6 4 5 10 16 42 14 13 12 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 CYLINDER ASM; CLUTCH MASTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97022-614-2 01 1 9210-9402 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97110-222-0 01 1 9403-9507 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97136-445-0 01 1 9508-9509 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97136-445-0 01 1 9510- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		5-87831-187-0 01 1 9210-9402 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		5-87831-486-1 01 1 9403-9509 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		5-87831-486-1 01 1 9510- ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-201-0 01 1 9210-9509 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-201-0 01 1 9510- ● ● ● ●
4 00.777 NUT; JAW JOINT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.787 M8 		9-09111-408-0 01 1 9210-9509 ● ● ●
4 00.777 NUT; JAW JOINT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.787 M8 		9-09111-408-0 01 1 9510- ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-197-2 01 1 9210-9509 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-197-2 01 1 9510- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-200-0 01 1 9210-9509 ● ● ●
6 00.775 BOOT; CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-200-0 01 1 9510- ● ● ● ●
10 00.777 GASKET; CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94427-298-0 01 1 9210-9509 ● ● ●
10 00.777 GASKET; CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94427-298-0 01 1 9510- ● ● ● ●
11 00.777 CAP; OUTER,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-207-0 01 1 9210-9509 ● ● ●
11 00.777 CAP; OUTER,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-207-0 01 1 9510- ● ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-206-0 01 1 9210-9509 ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-206-0 01 1 9510- ● ● ● ●
13 00.777 GASKET; OIL TANK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-205-0 01 1 9210-9509 ● ● ●
13 00.777 GASKET; OIL TANK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-205-0 01 1 9510- ● ● ● ●
14 00.775 FLOAT; OIL TANK,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-204-0 01 1 9210-9407 ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-202-0 01 1 9210-9509 ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94412-202-0 01 1 9510- ● ● ● ●
42 00.777 TANK; OIL,CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97037-335-0 01 1 9210-9509 ● ● ●
42 00.777 TANK; OIL,CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97037-335-0 01 1 9510- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
