2-05 — CLUTCH PIPING (#48040) — 34 parça

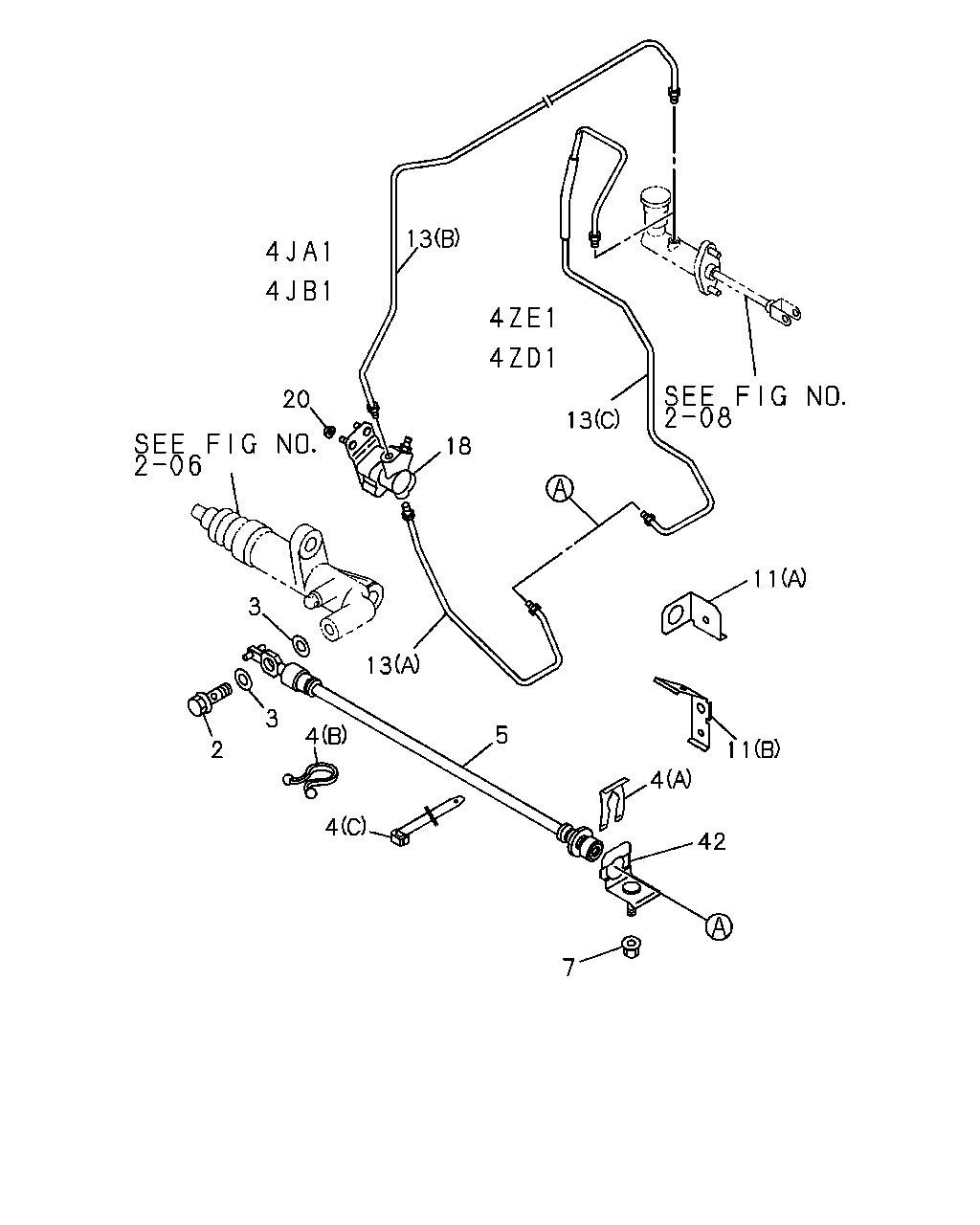

çizim 65591
13 13 11 11 42 4 5 13 4 7 4 3 2 3 20 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 9210-9509 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 9510- ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 9210-9509 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 9510- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(A) 		8-94436-216-0 01 1 9210-9509 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
(A) 		8-94436-216-0 01 1 9510- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4X2(TFB***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 04.047 (B) ID=11.5 		1-09709-083-0 01 1 9406-9406 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4X4(TFS***) M/T MSG 5 SPEED(M75) 04.047 (B) ID=11.5 		1-09709-083-0 01 1 9406-9406 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4X2(TFB***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 03.162 (C) L=170 		5-09707-054-0 01 1 9406-9410 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4X4(TFS***) M/T MSG 5 SPEED(M75) 03.162 (C) L=170 		5-09707-054-0 01 1 9406-9410 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97039-203-0 01 1 9210- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97014-916-1 01 1 9210-9509 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97014-916-1 01 1 9510- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9210-9509 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9510- ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
(B) 		8-94474-228-2 01 1 9210-9407 ●
11 00.785 BRACKET; FLEX HOSE,CLU
04.337 (A) 		8-94474-229-1 01 1 9210-9407 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (C) 		8-97079-463-1 01 1 9210- ● ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
(B) 		8-94435-228-3 01 1 9210-9406 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94435-228-3 01 1 9407-9509 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94435-228-4 01 1 9510- ● ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
(A) 		8-94435-229-3 01 1 9210-9406 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) 		8-94435-229-3 01 1 9407-9509 ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) 		8-94435-229-3 01 1 9510- ● ●
18 00.830 DAMPER ASM; CLU OIL 8-94441-936-0 01 1 9210-9407 ●
18 00.830 DAMPER ASM; CLU OIL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94441-936-0 01 1 9408-9506 ●
18 00.830 DAMPER ASM; CLU OIL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97130-319-0 01 1 9507-9509 ●
18 00.830 DAMPER ASM; CLU OIL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97130-319-0 01 1 9510- ● ●
20 00.837 NUT; CLU OIL DAMPER
04.594 M6 FLANGE 		0-91150-106-0 02 1 9210-9407 ●
20 00.837 NUT; CLU OIL DAMPER
4X2(TFB***) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9408-9509 ●
20 00.837 NUT; CLU OIL DAMPER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9408-9509 ●
20 00.837 NUT; CLU OIL DAMPER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9510- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
00.829 		8-94425-108-2 01 1 9210-9509 ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
00.829 		8-94425-108-2 01 1 9510- ● ● ● ●
