2-01A — CLUTCH (#4804) — 151 parça

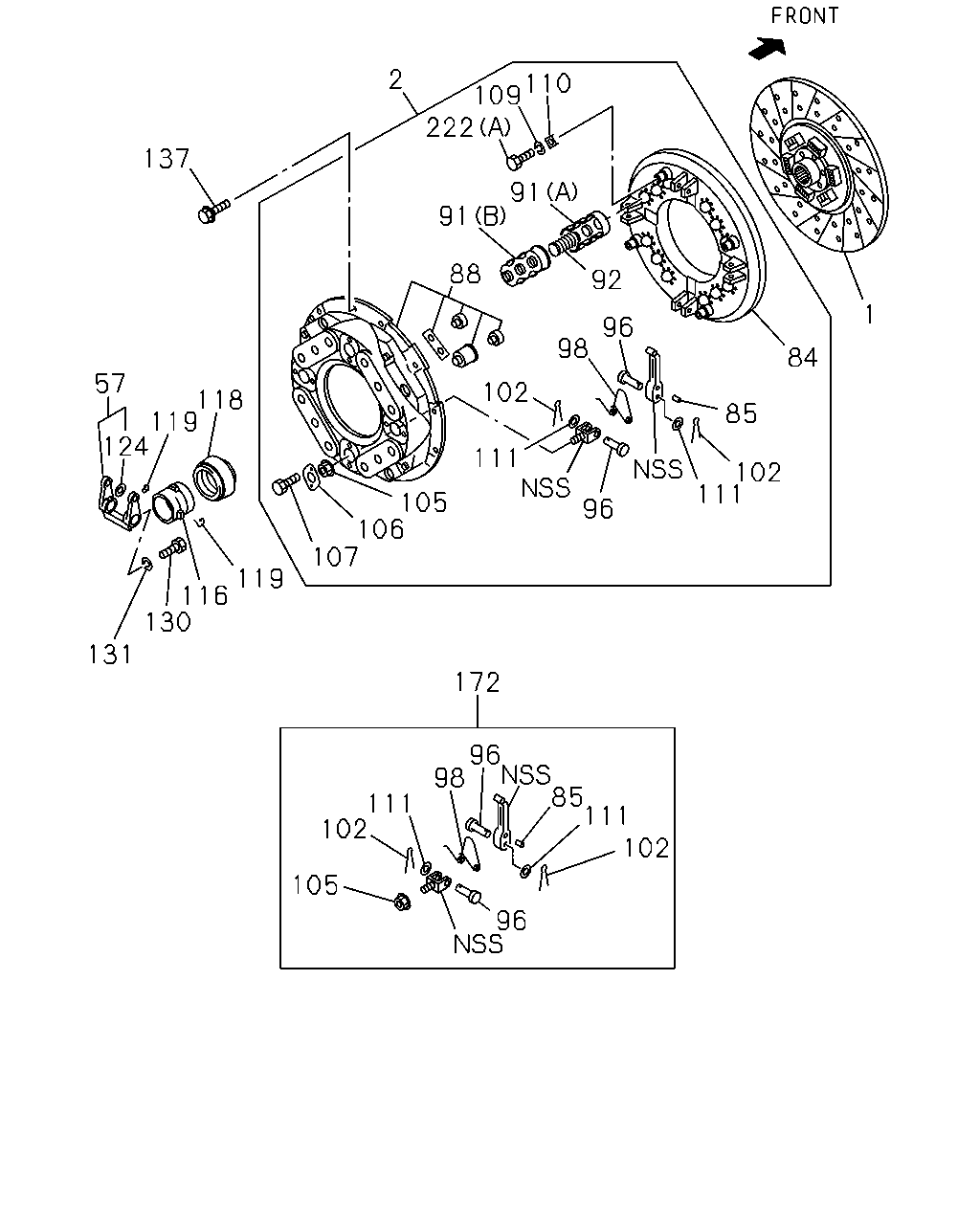

2 110 109 222 137 91 91 88 92 1 96 98 84 57 102 118 119 124 85 111 102 111 105 106 107 96 119 116 130 131 172 96 98 85 111 102 111 102 105 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 10PE1S(60L) 17"	1-31240-700-0	01	1	9601-9904	●	●
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) 17"	1-31240-700-0	01	1	9905-	●	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-624-0	01	1	9601-9602	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-753-1	01	1	9603-9704	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-775-0	01	1	9705-9707	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-773-1	01	1	9708-9810	●	●
1	DISC; CLUTCH 6WA1 TC-C(55L),6WA1 TC-S(56L) 17"	1-31240-773-1	01	1	9811-9904	●	●
1	DISC; CLUTCH 6WA1 TC-N(54L),6WA1 TC-C(55L) 17"	1-31240-773-1	01	1	9905-9908	●	●	●
1	DISC; CLUTCH 6WA1 TC-N(54L),6WA1 TC-C(55L) 17"	1-31240-824-0	01	1	9909-	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-265-2	01	1	9601-9602	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L)	1-31220-265-2	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-265-2	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L)	1-31220-321-0	01	1	9708-9810	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-321-0	01	1	9708-9810	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),6WA1 TC-S(56L)	1-31220-321-0	01	1	9811-9904	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-321-0	01	1	9811-9904	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),L TYPE ENG<90L>	1-31220-321-2	01	1	9905-	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-277-0	01	1	9603-9707	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-320-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L)	1-31220-320-2	01	1	9905-	●	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9601-0004	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0005-	●	●	●
84	PLATE; PRESSURE	1-31221-083-1	01	1	9601-9602	●	●
84	PLATE; PRESSURE 6WA1 TC-S(56L)	1-31221-083-1	01	1	9603-9707	●	●
84	PLATE; PRESSURE 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31221-083-1	01	1	9603-9707	●	●
84	PLATE; PRESSURE	1-31221-083-1	01	1	9708-9904	●	●
84	PLATE; PRESSURE	1-31221-083-1	01	1	9905-	●	●	●
84	PLATE; PRESSURE 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31221-041-0	01	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	08	1	9601-9602	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L)	1-31239-021-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31239-021-0	08	1	9603-9707	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	9708-9904	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	9905-	●	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31239-003-0	08	1	9603-9707	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9905-	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9601-9904	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9601-9904	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9905-	●	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9601-9904	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9905-	●	●	●
92	SPRING; CLU	1-31214-040-0	12	1	9601-9602	●	●
92	SPRING; CLU 6WA1 TC-S(56L)	1-31214-040-0	12	1	9603-9810	●	●
92	SPRING; CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31214-040-0	12	1	9603-9810	●	●
92	SPRING; CLU 6WA1 TC-C(55L),6WA1 TC-S(56L)	1-31214-040-0	12	1	9811-9904	●	●
92	SPRING; CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31214-040-0	12	1	9811-9904	●	●
92	SPRING; CLU 10PE1S(60L),L TYPE ENG<90L>	1-31214-040-0	12	1	9905-	●	●	●
92	SPRING; CLU 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09580-297-0	12	1	9603-9904	●	●
92	SPRING; CLU 10PE1N(61L)	1-09580-297-0	12	1	9905-	●	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	9601-9602	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L)	1-31232-017-0	08	1	9603-9707	●	●
96	PIN; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31232-017-0	08	1	9603-9707	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	9708-9904	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	9905-	●	●	●
96	PIN; RELEASE LEVER 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31232-010-0	08	1	9603-9707	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9601-9602	●	●
98	SPRING; RETURN 6WA1 TC-S(56L)	1-31233-007-0	04	1	9603-9707	●	●
98	SPRING; RETURN 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31233-007-0	04	1	9603-9707	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9708-9904	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9905-	●	●	●
98	SPRING; RETURN 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31233-001-0	04	1	9603-9707	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9601-9904	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9905-	●	●	●
105	NUT; SUPPORT	1-31235-009-0	04	1	9601-9602	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L)	1-31235-009-0	04	1	9603-9707	●	●
105	NUT; SUPPORT 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31235-009-0	04	1	9603-9707	●	●
105	NUT; SUPPORT	1-31235-009-0	04	1	9708-9904	●	●
105	NUT; SUPPORT	1-31235-009-0	04	1	9905-	●	●	●
105	NUT; SUPPORT 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	9-31235-061-0	04	1	9603-9707	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9601-9904	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9905-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9601-9904	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9601-9904	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9905-	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9601-9904	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9905-	●	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9601-9904	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9905-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9601-0004	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0005-	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9601-0003	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-0004	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0005-	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9601-0004	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0005-	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9601-0004	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0005-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9601-0004	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0005-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9601-0004	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0005-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9601-0004	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9601-9904	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9905-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-650-1	01	1	9601-9602	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L)	1-87830-650-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-87830-650-1	01	1	9603-9707	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-885-1	01	1	9708-9904	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-885-2	01	1	9905-	●	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-87830-526-1	01	1	9603-9707	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	9601-9602	●	●
222	BOLT; STRAP 6WA1 TC-S(56L) (A)	1-09040-102-0	04	1	9603-9707	●	●
222	BOLT; STRAP 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-09040-102-0	04	1	9603-9707	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	9708-9904	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	9905-	●	●	●
222	BOLT; STRAP 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) M12X30	1-09040-016-0	04	1	9603-9707	●	●

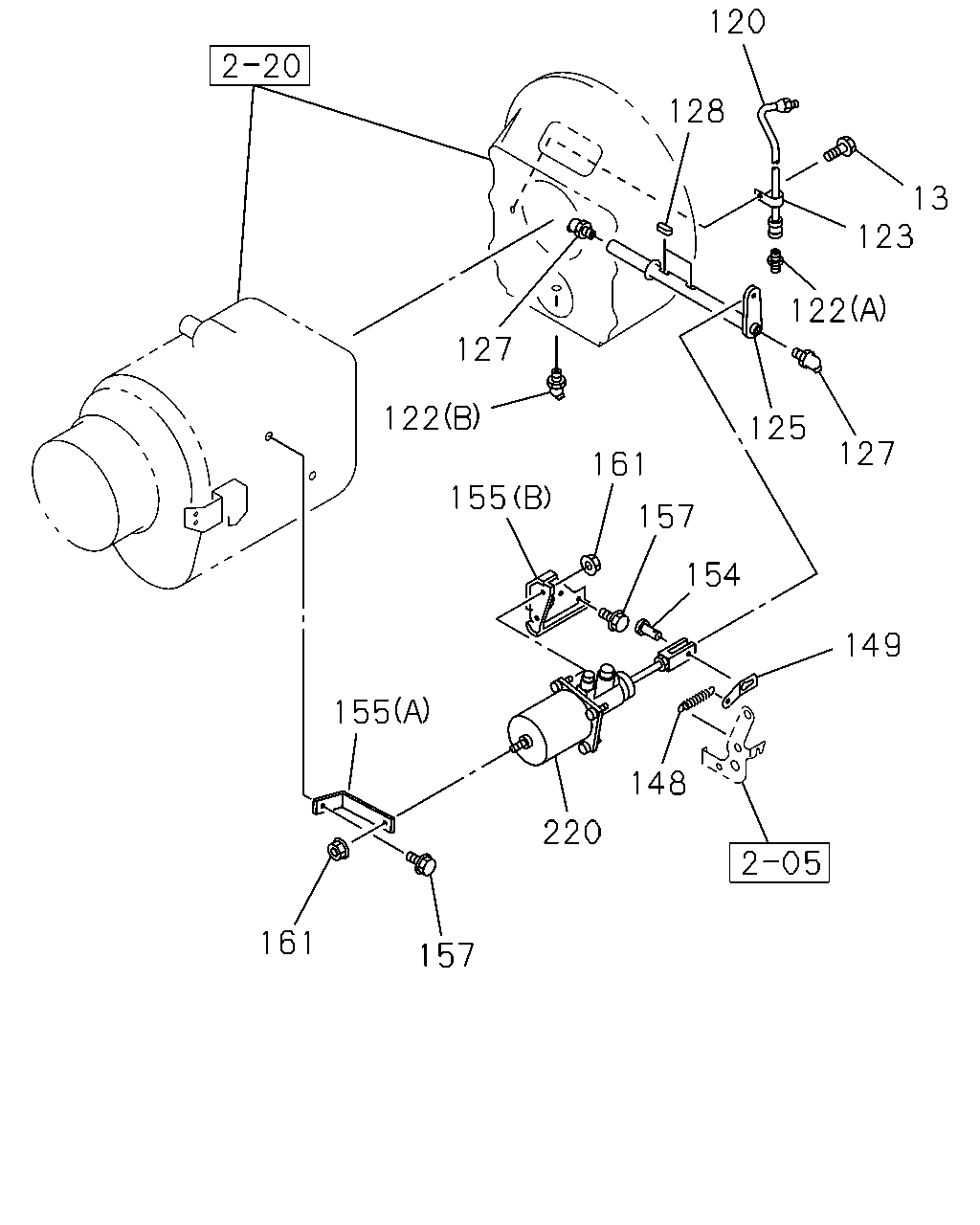

120 128 13 123 122 127 122 125 127 161 155 157 154 149 155 148 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9601-0003	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-0004	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9601-9701	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9705-9904	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-9906	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9907-0004	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0005-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9601-9904	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-9906	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9907-0004	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9601-0004	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0005-	●	●	●
125	SHAFT; CLU L=477	1-31342-240-1	01	1	9601-9901	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	9902-0004	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	0005-	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9601-9810	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9811-9904	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9905-0004	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0005-	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9601-0004	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0005-	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9601-0004	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0005-	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9601-9904	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9905-0004	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	0005-	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9601-0004	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0005-	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9601-	●	●
155	BRACKET; MINIPACK (B)	1-31429-301-0	01	1	9601-9901	●	●
155	BRACKET; MINIPACK (B)	1-31429-402-0	01	1	9902-0004	●	●
155	BRACKET; MINIPACK (B)	1-31429-402-0	01	1	0005-	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-350-0	01	1	0005-			●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9601-0004	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0005-	●	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9601-0004	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0005-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-382-0	01	1	9601-0004	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-382-1	01	1	0005-0011	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-0	01	1	0012-	●	●	●
