Sayfa 2-03 - Isuzu EPC

2-03 — CLUTCH PEDAL AND CONTROL (#48039) — 136 parça

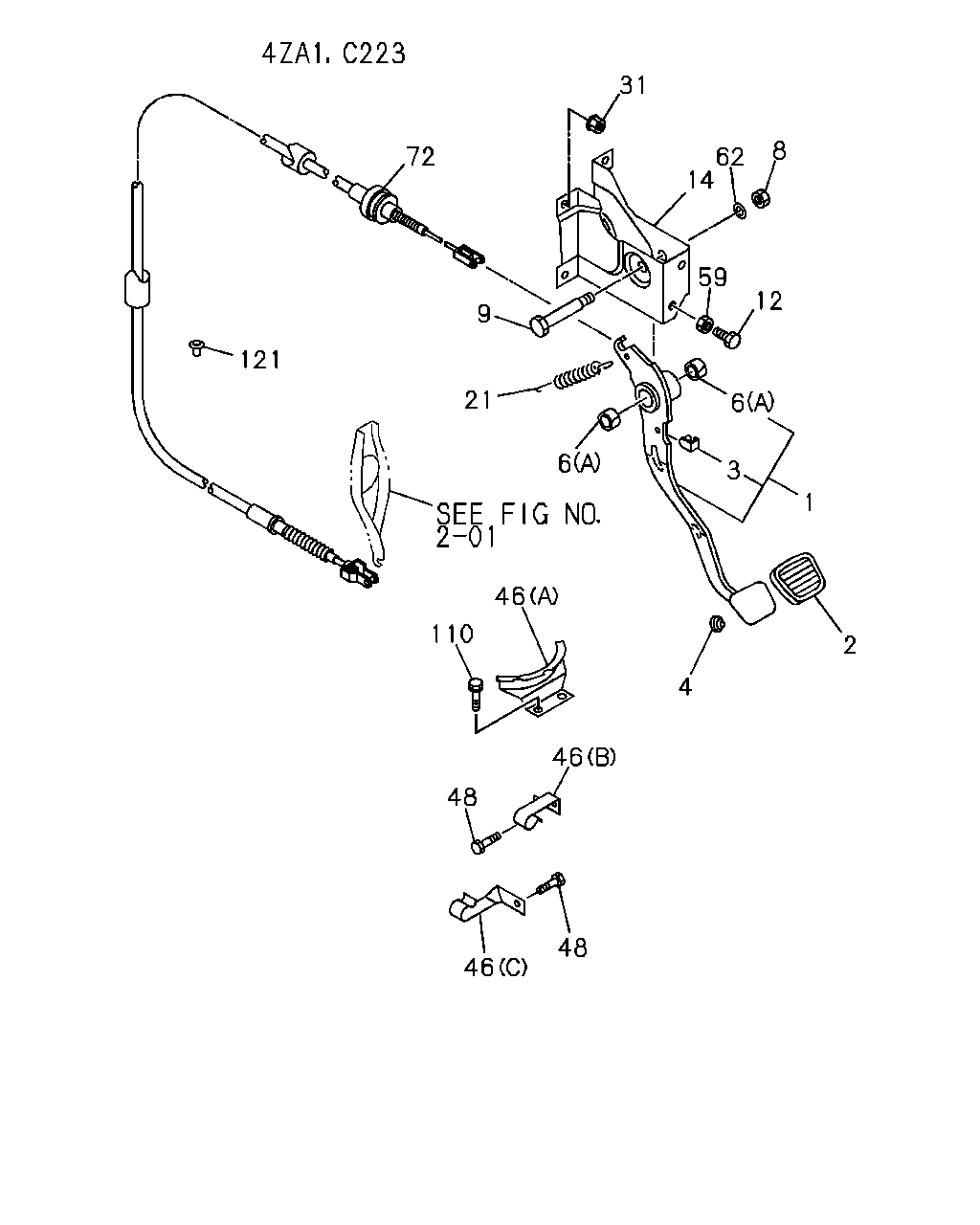

72 121 9 21 6 3 1 6 12 59 14 62 8 31 46 46 48 110 46 48 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU C223 ENG(LQ7),4ZA1 ENG(L17)	8-94360-883-0	01	1	9210-9308	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4ZA1 ENG(L17)	8-94360-883-1	01	1	9309-	●	●	●	●
1	00.830 PEDAL; CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-97071-835-0	01	1	9210-9509	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97071-835-0	01	1	9510-	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL	8-94222-524-1	01	1	9210-	●	●	●	●	●	●	●	●
3	00.785 RUBBER; STOPPER,CLU PEDAL	8-94463-258-0	01	1	9210-	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL	8-94103-675-0	01	1	9210-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17) 00.833 (A)	8-94244-439-0	02	1	9210-9308	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZA1 ENG(L17) 00.833 (A)	8-94244-439-0	01	1	9309-9502	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 00.833 (A)	8-94244-439-0	02	1	9210-9502	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 00.833 (A)	8-94244-439-0	02	1	9503-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 00.833 (B)	8-97035-885-0	01	1	9210-9509	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.833 (B)	8-97035-885-0	01	1	9510-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 09.011 M10	9-09110-410-0	01	1	9210-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17)	8-94469-842-0	01	1	9210-9308	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZA1 ENG(L17)	8-94469-842-0	01	1	9309-	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-94455-308-0	01	1	9210-9509	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94455-308-0	01	1	9510-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 00.805 M10X35	0-20801-035-0	01	1	9210-9308	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9309-9408	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) 00.805 M10X35	0-20801-035-0	01	1	9309-9408	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●		●	●				●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 00.805 M10X35	0-20801-035-0	01	1	9510-9602	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9603-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.805 M10X35	0-20801-035-0	01	1	9603-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) 00.805 M10X35	0-20801-035-0	01	1	9603-	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 00.805 M10X35	0-20801-035-0	01	1	9603-	●		●	●				●
14	00.829 BRACKET ASM; CLU PEDAL MTG C223 ENG(LQ7),4ZA1 ENG(L17)	8-94314-014-4	01	1	9210-9308	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZA1 ENG(L17)	8-94314-014-5	01	1	9309-	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-94315-200-3	01	1	9210-9509	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94315-200-3	01	1	9510-	●	●	●	●	●	●	●	●
21	00.793 SPRING; RETURN,CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17) 00.844	8-94222-475-0	01	1	9210-9308	●	●	●	●	●	●	●	●
21	00.793 SPRING; RETURN,CLU PEDAL 4ZA1 ENG(L17) 00.844	8-94222-475-0	01	1	9309-	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-9308	●	●	●	●		●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-9308					●
31	01.153 NUT; MTG BRKT TO BODY 00.854 M8 FLANGE	5-09440-005-0	04	1	9309-	●	●	●	●	●	●	●	●
46	00.785 BRACKET; CLU CABLE C223 ENG(LQ7),4ZA1 ENG(L17) (A)	8-94464-895-2	01	1	9210-9308	●	●	●	●	●	●	●	●
46	00.785 BRACKET; CLU CABLE 4ZA1 ENG(L17) (A)	8-94464-895-2	01	1	9309-	●	●	●	●
46	00.785 BRACKET; CLU CABLE C223 ENG(LQ7),4ZA1 ENG(L17) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) (B)	8-94319-018-3	01	1	9210-9308	●	●	●	●
46	00.785 BRACKET; CLU CABLE 4ZA1 ENG(L17) (B)	8-94319-018-3	01	1	9309-	●	●	●	●
46	00.785 BRACKET; CLU CABLE C223 ENG(LQ7) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) (C)	8-94330-031-1	01	1	9210-9308						●	●	●
48	00.785 BOLT; BRKT,CLU CABLE C223 ENG(LQ7),4ZA1 ENG(L17) 12.809 M6X16 FLANGE	0-28280-616-0	01	1	9210-9308	●	●	●	●	●	●	●	●
48	00.785 BOLT; BRKT,CLU CABLE 4ZA1 ENG(L17) 12.809 M6X16 FLANGE	0-28280-616-0	01	1	9309-	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 09.011 M10	9-09110-410-0	01	1	9210-9308	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9309-9408	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) 09.011 M10	9-09110-410-0	01	1	9309-9408	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9409-9509	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 09.011 M10	9-09110-410-0	01	1	9409-9509	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) 09.011 M10	9-09110-410-0	01	1	9409-9509	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 09.011 M10	9-09110-410-0	01	1	9409-9509	●		●	●				●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 09.011 M10	9-09110-410-0	01	1	9510-9602	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9602-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 09.011 M10	9-09110-410-0	01	1	9602-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) 09.011 M10	9-09110-410-0	01	1	9602-	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 09.011 M10	9-09110-410-0	01	1	9602-	●		●	●				●
62	00.833 WASHER; LK,PIN TO PEDAL 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●	●	●	●	●
72	00.785 CABLE; CLU CONT 4ZA1 ENG(L17)	8-94334-082-3	01	1	9210-	●	●	●	●
72	00.785 CABLE; CLU CONT C223 ENG(LQ7)	8-94334-081-4	01	1	9210-9308		●	●	●		●	●	●
110	00.785 BOLT; CLU CABLE TO STAY C223 ENG(LQ7),4ZA1 ENG(L17) 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9210-9308	●	●	●	●	●	●	●	●
110	00.785 BOLT; CLU CABLE TO STAY 4ZA1 ENG(L17) 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9309-	●	●	●	●
121	00.855 GROMMET; CLU PIPE HOLE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12	9-09956-122-0	02	1	9210-9308	●	●	●	●	●	●	●	●
121	00.855 GROMMET; CLU PIPE HOLE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12	9-09956-122-0	02	1	9309-	●	●	●	●	●	●	●	●

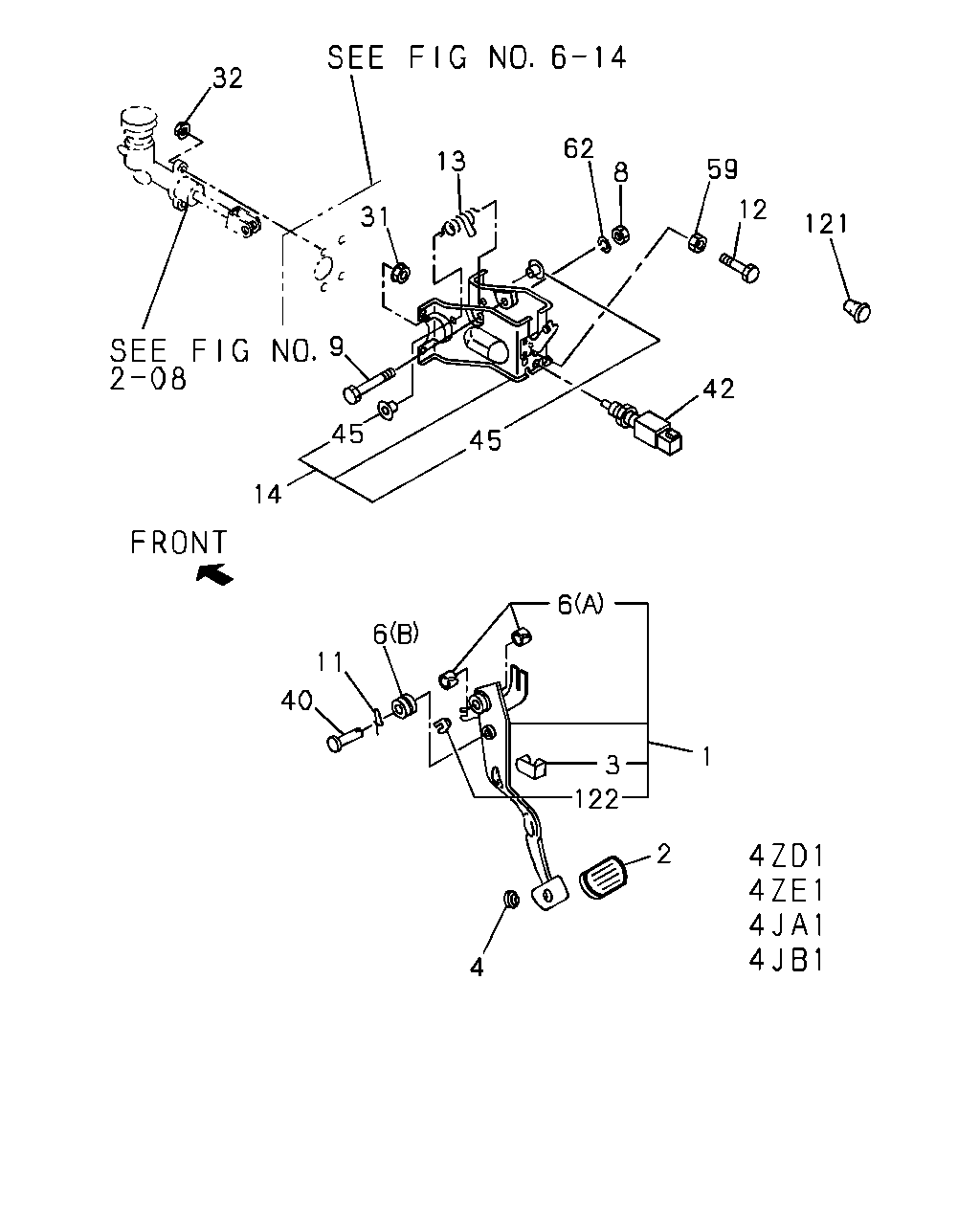

32 31 13 62 8 59 12 121 42 45 45 14 9 6 11 40 6 1 3 122 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU C223 ENG(LQ7),4ZA1 ENG(L17)	8-94360-883-0	01	1	9210-9308	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4ZA1 ENG(L17)	8-94360-883-1	01	1	9309-	●	●	●	●
1	00.830 PEDAL; CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-97071-835-0	01	1	9210-9509	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97071-835-0	01	1	9510-	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL	8-94222-524-1	01	1	9210-	●	●	●	●	●	●	●	●
3	00.785 RUBBER; STOPPER,CLU PEDAL	8-94463-258-0	01	1	9210-	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL	8-94103-675-0	01	1	9210-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17) 00.833 (A)	8-94244-439-0	02	1	9210-9308	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZA1 ENG(L17) 00.833 (A)	8-94244-439-0	01	1	9309-9502	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 00.833 (A)	8-94244-439-0	02	1	9210-9502	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 00.833 (A)	8-94244-439-0	02	1	9503-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 00.833 (B)	8-97035-885-0	01	1	9210-9509	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.833 (B)	8-97035-885-0	01	1	9510-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 09.011 M10	9-09110-410-0	01	1	9210-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17)	8-94469-842-0	01	1	9210-9308	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZA1 ENG(L17)	8-94469-842-0	01	1	9309-	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-94455-308-0	01	1	9210-9509	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94455-308-0	01	1	9510-	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 04.662 L=27.7	1-09747-005-0	01	1	9210-9509	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.662 L=27.7	1-09747-005-0	01	1	9510-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 00.805 M10X35	0-20801-035-0	01	1	9210-9308	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9309-9408	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) 00.805 M10X35	0-20801-035-0	01	1	9309-9408	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 00.805 M10X35	0-20801-035-0	01	1	9409-9509	●		●	●				●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 00.805 M10X35	0-20801-035-0	01	1	9510-9602	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9603-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.805 M10X35	0-20801-035-0	01	1	9603-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) 00.805 M10X35	0-20801-035-0	01	1	9603-	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 00.805 M10X35	0-20801-035-0	01	1	9603-	●		●	●				●
13	00.844 SPRING; ASSIST,CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 00.837	8-97036-041-0	01	1	9210-9509	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.837	8-97036-041-0	01	1	9510-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG C223 ENG(LQ7),4ZA1 ENG(L17)	8-94314-014-4	01	1	9210-9308	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZA1 ENG(L17)	8-94314-014-5	01	1	9309-	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-94315-200-3	01	1	9210-9509	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94315-200-3	01	1	9510-	●	●	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-9308	●	●	●	●		●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-9308					●
31	01.153 NUT; MTG BRKT TO BODY 00.854 M8 FLANGE	5-09440-005-0	04	1	9309-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 07.633 M8 FLANGE	0-91150-108-0	02	1	9210-9509	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.633 M8 FLANGE	0-91150-108-0	02	1	9510-	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-94318-383-0	01	1	9210-9509	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94318-383-0	01	1	9510-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 02.447	8-94362-930-0	01	1	9210-9402	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4JA1 ENG(RLE) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 02.447 12V 12A	8-94362-930-0	01	1	9403-9408	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> 02.447 12V 12A	8-94362-930-0	01	1	9403-9408	●		●	●				●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94310-272-0	01	1	9409-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 02.447	8-94109-863-0	01	1	9210-9402	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) EXC. ELECTRIC FUEL INJECTION<6GG> 02.447	8-94109-863-0	01	1	9403-9407	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 02.447	8-94109-863-0	01	1	9408-9408	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-94175-433-0	02	1	9407-9509	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94175-433-0	02	1	9510-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 09.011 M10	9-09110-410-0	01	1	9210-9308	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9309-9408	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) 09.011 M10	9-09110-410-0	01	1	9309-9408	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9409-9509	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 09.011 M10	9-09110-410-0	01	1	9409-9509	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) 09.011 M10	9-09110-410-0	01	1	9409-9509	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 09.011 M10	9-09110-410-0	01	1	9409-9509	●		●	●				●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF) 09.011 M10	9-09110-410-0	01	1	9510-9602	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9602-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 09.011 M10	9-09110-410-0	01	1	9602-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) 09.011 M10	9-09110-410-0	01	1	9602-	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 09.011 M10	9-09110-410-0	01	1	9602-	●		●	●				●
62	00.833 WASHER; LK,PIN TO PEDAL 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●	●	●	●	●
121	00.855 GROMMET; CLU PIPE HOLE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12	9-09956-122-0	02	1	9210-9308	●	●	●	●	●	●	●	●
121	00.855 GROMMET; CLU PIPE HOLE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12	9-09956-122-0	02	1	9309-	●	●	●	●	●	●	●	●
122	00.831 BUSHING; ASSIST PEDAL,CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ)	8-94175-434-0	01	1	9210-9509	●	●	●	●	●	●	●	●
122	00.831 BUSHING; ASSIST PEDAL,CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94175-434-0	01	1	9510-	●	●	●	●	●	●	●	●
