2-01 — CLUTCH (#48038) — 67 parça

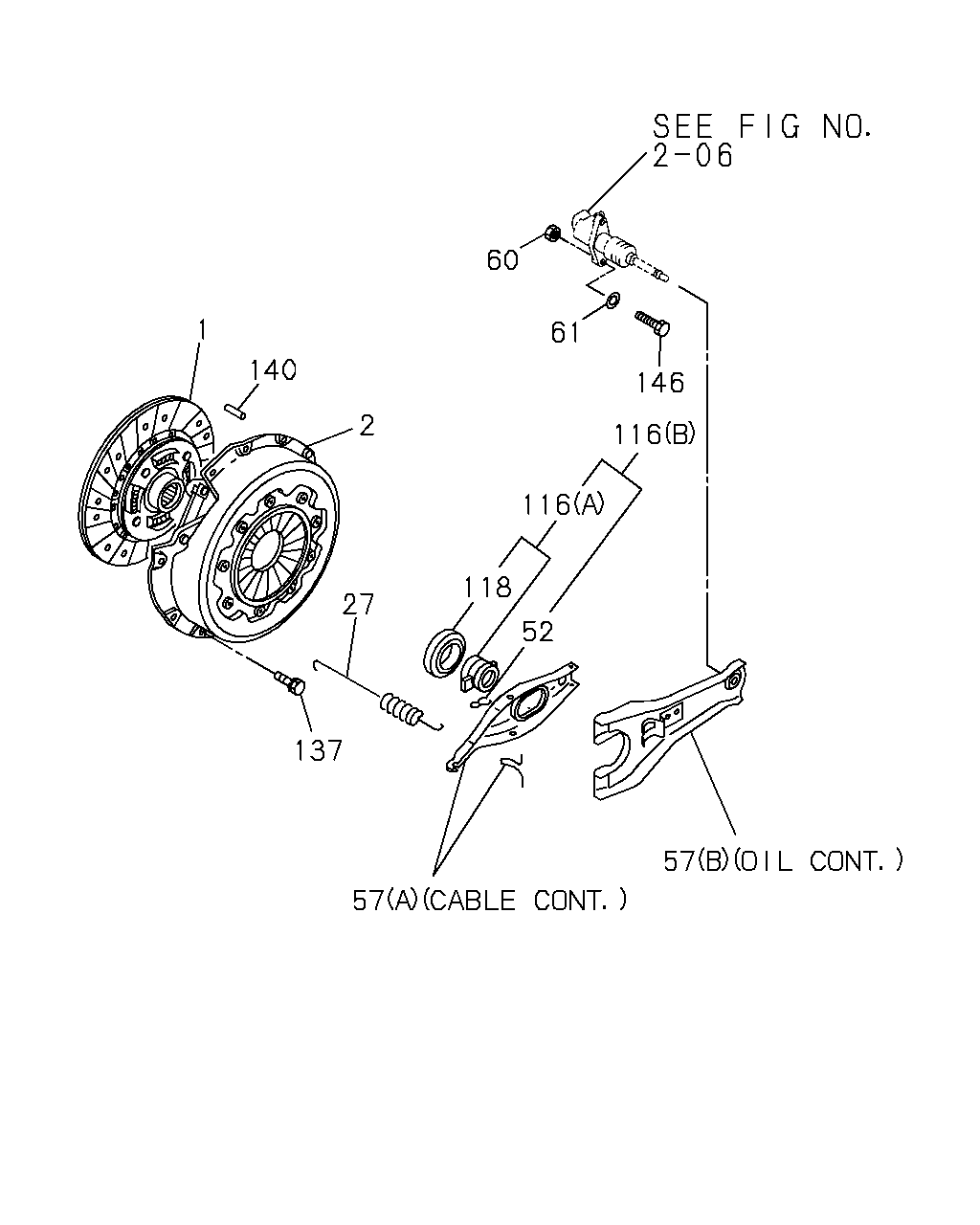

çizim 66732
1 2 140 27 137 118 116 52 116 146 61 60 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH 8-94451-041-0 01 1 9210- ●
1 00.886 DISC; CLUTCH 8-94314-677-0 01 1 9210-9311 ●
1 00.886 DISC; CLUTCH 8-97106-979-0 01 1 9312- ●
1 00.886 DISC; CLUTCH 8-94371-706-0 01 1 9210-9509 ●
1 00.886 DISC; CLUTCH 8-97036-062-0 01 1 9510- ●
1 00.886 DISC; CLUTCH 8-94479-249-0 01 1 9210-9308 ●
1 00.886 DISC; CLUTCH 8-94453-749-1 01 1 9210-9604 ●
1 00.886 DISC; CLUTCH 8-97143-203-0 01 1 9605-9605 ●
1 00.886 DISC; CLUTCH 8-97143-203-0 01 1 9605- ●
1 00.886 DISC; CLUTCH
4X2(TFB***) 		8-97143-203-0 01 1 9605- ●
1 00.886 DISC; CLUTCH
4X4(TFS***) 		8-97036-063-0 01 1 9510- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94203-354-2 01 1 9210- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97040-268-0 01 1 9210- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94462-030-3 01 1 9210- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94419-969-0 01 1 9210-9308 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94435-011-1 01 1 9210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
TURBOCHARGER(K51) 		8-94454-010-1 01 1 9510- ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 00.844 		5-09583-020-0 01 1 9210-9308 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 00.844 		5-09583-020-0 01 1 9309- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 00.805 		5-31329-003-0 02 1 9210-9308 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 00.805 		5-31329-003-0 02 1 9309- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4X2(TFB***) M/T MSG 5 SPEED(M75) 00.805 		9-31329-010-0 01 1 9210- ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.805 		9-31329-010-0 01 1 9210- ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4X4(TFS***) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) 		8-94311-807-0 01 1 9210-9509 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MUA 5 SPEED(RMN) 		8-94311-807-0 01 1 9210-9509 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4X4(TFS***) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) 		8-94311-807-0 01 1 9510- ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MUA 5 SPEED(RMN) 		8-94311-807-0 01 1 9510- ● ●
57 00.795 FORK; SHIFT,CLU
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) (A) 		8-94235-755-0 01 1 9210-9308 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) (A) 		8-94235-755-0 01 1 9309- ●
57 00.795 FORK; SHIFT,CLU
4X2(TFB***) M/T MSG 5 SPEED(M75) (B) 		8-94167-751-0 01 1 9210- ● ●
57 00.795 FORK; SHIFT,CLU
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) 		8-94167-751-0 01 1 9210- ● ●
57 00.795 FORK; SHIFT,CLU
4X4(TFS***) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) (B) 		8-97039-266-0 01 1 9210-9406 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) (B) 		8-97039-266-0 01 1 9210-9406 ●
57 00.795 FORK; SHIFT,CLU
4X4(TFS***) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) (B) 		8-97039-266-0 01 1 9407- ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) (B) 		8-97039-266-0 01 1 9407- ● ●
60 00.780 NUT; SLAVE CYL
05.816 M12 		9-99110-412-0 01 1 9210-9406 ●
60 00.780 NUT; SLAVE CYL
05.816 M12 		9-99110-412-0 01 1 9407-9601 ●
60 00.780 NUT; SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 05.816 M12 		9-99110-412-0 01 1 9602- ●
60 00.780 NUT; SLAVE CYL
M/T MSG 5 SPEED(M75) 05.816 M12 		9-99110-412-0 01 1 9602- ●
61 00.782 WASHER; PL,SLAVE CYL,CLU
03.430 ID=12.5 		9-09160-512-0 01 1 9210-9601 ●
61 00.782 WASHER; PL,SLAVE CYL,CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.430 ID=12.5 		9-09160-512-0 01 1 9602- ●
61 00.782 WASHER; PL,SLAVE CYL,CLU
M/T MSG 5 SPEED(M75) 03.430 ID=12.5 		9-09160-512-0 01 1 9602- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) (A) 		5-31321-003-3 01 1 9210-9308 ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) (A) 		5-31321-003-3 01 1 9309- ●
116 00.799 BLOCK; SHIFT,CLU
4X2(TFB***) M/T MSG 5 SPEED(M75) (B) 		8-94438-300-0 01 1 9210- ● ●
116 00.799 BLOCK; SHIFT,CLU
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) 		8-94438-300-0 01 1 9210- ● ●
116 00.799 BLOCK; SHIFT,CLU
4X4(TFS***) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) (B) 		8-94328-238-0 01 1 9210- ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) (B) 		8-94379-441-0 01 1 9210-9406 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) (B) 		8-94379-441-0 01 1 9407- ● ●
118 00.799 BEARING; CLU RELEASE
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) NSK ID=38 OD=67 		9-00095-040-1 01 1 9210-9308 ● ●
118 00.799 BEARING; CLU RELEASE
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) NSK ID=38 OD=67 		9-00095-040-1 01 1 9309- ●
118 00.799 BEARING; CLU RELEASE
4X2(TFB***) M/T MSG 5 SPEED(M75) NSK ID=43 OD=66.6 		8-94101-243-0 01 1 9210- ● ●
118 00.799 BEARING; CLU RELEASE
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) NSK ID=43 OD=66.6 		8-94101-243-0 01 1 9210- ● ●
118 00.799 BEARING; CLU RELEASE
4X4(TFS***) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) NSK ID=35 OD=77 		8-94453-346-1 01 1 9210- ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) JTEKT 		8-94379-499-0 01 1 9210-9406 ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) JTEKT 		8-94379-499-0 01 1 9407- ● ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9210-9308 ● ● ● ● ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9309-9509 ● ● ● ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9510- ● ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9210-9308 ● ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9309-9509 ● ● ● ●
140 00.862 PIN; STRAIGHT
TURBOCHARGER(K51) OD=6 L=24 		9-09878-532-0 02 1 9510- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9510- ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
00.685 M12X90 		8-94475-060-1 01 1 9210-9601 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.685 M12X90 		8-94475-060-1 01 1 9602- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) 00.685 M12X90 		8-94475-060-1 01 1 9602- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M12X85 FLANGE 		8-94480-345-1 02 1 9210- ● ●
