1-41 — FUEL PIPING; CHASSIS (#48035) — 327 parça

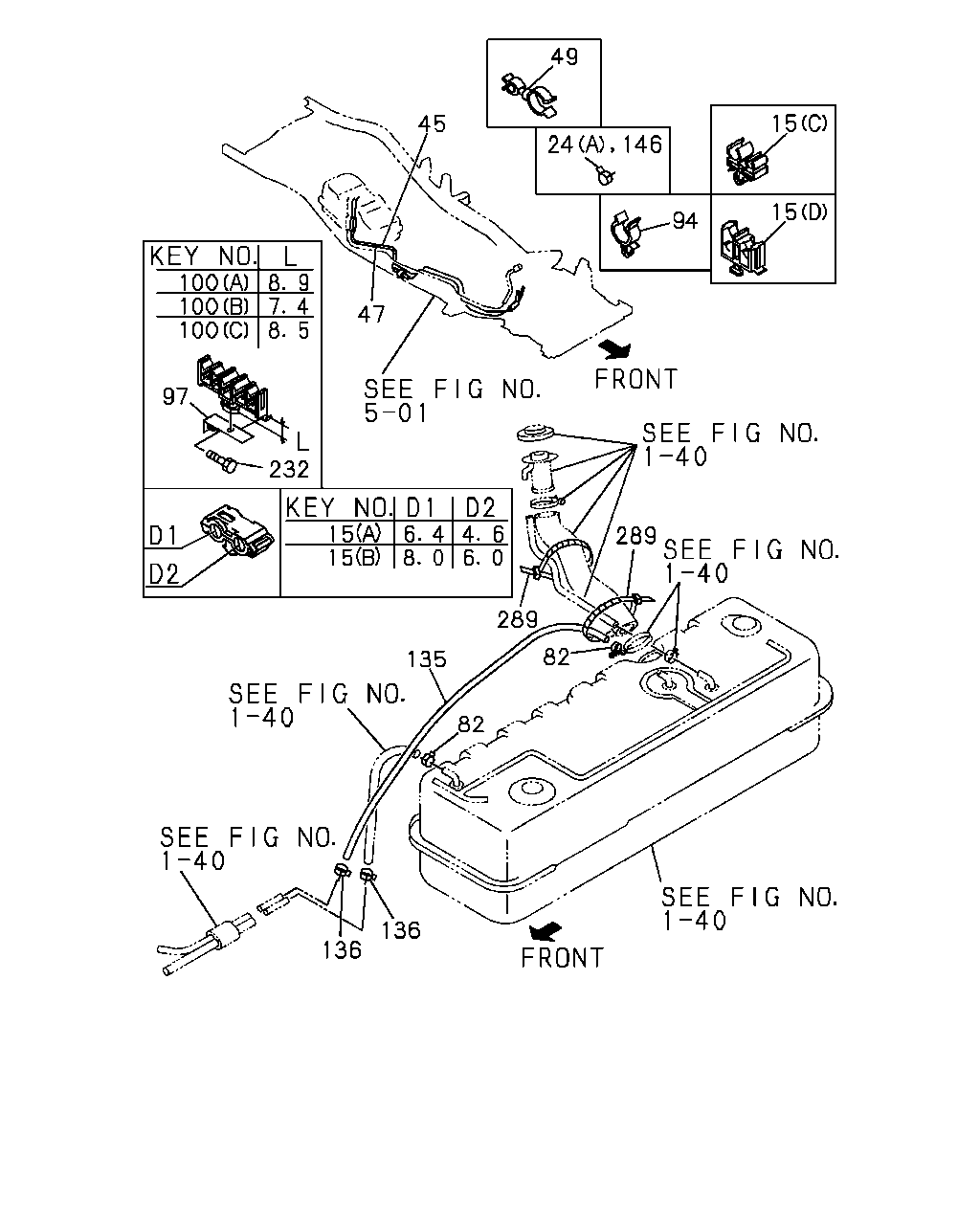

çizim 66000
100 100 100 47 45 49 24 146 94 15 15 15 15 289 289 82 135 82 136 136 232 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
15 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94455-380-1 02 1 9210- ●
15 03.162 CLIP; FUEL PIPE
(A) 		8-94176-073-0 01 1 9210-9406 ● ● ● ●
15 03.162 CLIP; FUEL PIPE
(A) 		8-94176-073-0 01 1 9407- ● ● ●
15 03.162 CLIP; FUEL PIPE
EXC. REAR AXLE W/LSPV<7KA> (A) 		8-94176-073-0 01 1 9407- ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (D) 		8-94328-836-0 01 1 9210-9509 ● ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (D) 		8-94328-836-0 01 1 9510- ● ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) 		8-94222-876-0 05 1 9210-9509 ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) 		8-94222-876-0 05 1 9510- ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) 		8-94222-876-0 07 1 9210- ●
15 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94455-380-1 01 1 9210-9308 ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94455-380-1 01 1 9309- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) (E) 		8-94176-073-0 02 1 9407- ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) 		8-94466-385-0 01 1 9210-9509 ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) 		8-94466-385-0 01 1 9510- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) 		8-94222-876-0 04 1 9210- ●
24 03.162 CLIP; FUEL HOSE
03.163 (A) ID=11 		8-94238-570-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 03.163 (A) ID=11 		8-94238-570-0 02 1 9403-9509 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.163 (A) ID=11 		8-94238-570-0 02 1 9510- ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9403- ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) FOUR FOLD H=10.5 		8-94455-381-0 03 1 9210-9406 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
04.686 (B) FOUR FOLD H=9.5 		8-94375-291-0 03 1 9407-9606 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9403- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 01.219 (A) ID=13 		8-94238-571-0 02 1 9403-9509 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94473-556-2 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-581-4 01 1 9210-9509 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94450-581-4 01 1 9510- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-218-1 01 1 9210-9308 ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-218-1 01 1 9309- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-582-4 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-253-2 01 1 9210-9308 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-253-2 01 1 9309- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94473-557-2 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-583-3 01 1 9210-9509 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94450-583-3 01 1 9510- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-217-1 01 1 9210-9308 ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-217-1 01 1 9309- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-584-3 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-254-1 01 1 9210-9308 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-254-1 01 1 9309- ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94473-558-2 01 1 9404- ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-221-2 01 1 9210-9308 ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-221-2 01 1 9309-9402 ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94435-221-2 01 1 9403- ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-598-0 01 1 9210-9509 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97085-598-1 01 1 9510- ● ● ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94462-635-1 01 1 9210-9308 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94462-635-1 01 1 9309- ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-678-1 01 1 9210- ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94435-255-1 01 1 9404- ● ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94450-576-1 01 1 9210-9308 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94450-576-1 01 1 9309-9402 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94450-576-1 01 1 9403- ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-219-2 01 1 9210-9308 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-219-2 01 1 9309- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-679-0 01 1 9210-9509 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97085-679-0 01 1 9510- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-680-0 01 1 9210- ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94450-577-2 01 1 9210-9308 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94450-577-2 01 1 9309-9402 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94450-577-2 01 1 9403- ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94439-080-2 01 1 9404- ●
49 03.162 CLIP; PIPE TO FRAME
4JA1 ENG(RLE) 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
49 03.162 CLIP; PIPE TO FRAME
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9510- ● ● ● ● ● ● ● ●
82 03.163 CLIP; FUEL HOSE
C223 ENG(LQ7),4JA1 ENG(RLE) 01.166 ID=14 		8-94238-572-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
82 03.163 CLIP; FUEL HOSE
4JA1 ENG(RLE) 01.166 ID=14 		8-94238-572-0 02 1 9309-9509 ● ● ● ● ● ● ● ●
82 03.163 CLIP; FUEL HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.166 ID=14 		8-94238-572-0 02 1 9510- ● ● ● ● ● ● ● ●
94 03.890 CLIP; HOSE,FILTER
4JA1 ENG(RLE) POWER STEERING<N40> 01.166 ID=21 BLACK 		8-94422-733-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
94 03.890 CLIP; HOSE,FILTER
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.166 ID=21 BLACK 		8-94422-733-0 01 1 9510- ● ● ● ● ● ● ● ●
97 03.162 BRACKET; CLIP 8-94461-011-0 01 1 9210-9407 ● ● ● ● ● ● ● ●
97 03.162 BRACKET; CLIP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94461-011-0 01 1 9408-9411 ● ● ● ● ● ● ● ●
97 03.162 BRACKET; CLIP 8-94461-011-0 01 1 9412- ● ● ● ●
97 03.162 BRACKET; CLIP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94461-011-0 01 1 9412- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 10 1 9210- ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 04 1 9210-9509 ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 04 1 9210-9509 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 05 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) L=7.4 		8-94435-550-0 05 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (A) L=8.9 		8-94435-551-1 01 1 9210-9509 ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 05 1 9210-9308 ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 05 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 05 1 9309-9509 ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 05 1 9309-9509 ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) L=7.4 		8-94435-550-0 04 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 08 1 9210- ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 06 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 06 1 9309- ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 11 1 9210-9509 ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) L=7.4 		8-94435-550-0 11 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 02 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 02 1 9309- ● ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (A) L=8.9 		8-94435-551-1 03 1 9210-9308 ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (A) L=8.9 		8-94435-551-1 03 1 9309- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (A) L=8.9 		8-94435-551-1 04 1 9210-9509 ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) L=8.9 		8-94435-551-1 04 1 9510- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) L=8.5 		8-97014-423-0 01 1 9210-9509 ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) L=8.5 		8-97014-423-0 01 1 9510- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 03 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 03 1 9309- ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4JA1 ENG(RLE) 08.962 L=560 SERVICED BY L=3000 		0-01158-300-0 01 1 9210-9307 ● ● ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4JA1 ENG(RLE) 08.962 L=560 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9509 ● ● ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.962 L=560 SERVICED BY L=3000 		0-01258-300-0 01 1 9510- ● ● ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4JA1 ENG(RLE) 08.962 L=400 SERVICED BY L=3000 		0-01158-300-0 01 1 9210-9307 ● ● ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4JA1 ENG(RLE) 08.962 L=400 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9509 ● ● ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.962 L=400 SERVICED BY L=3000 		0-01258-300-0 01 1 9510- ● ● ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
C223 ENG(LQ7) 08.962 L=500 SERVICED BY L=3000 		0-01158-300-0 01 1 9210-9307 ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
C223 ENG(LQ7) 08.962 L=500 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9308 ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
C223 ENG(LQ7) 08.962 L=600 SERVICED BY L=3000 		0-01158-300-0 01 1 9210-9307 ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
C223 ENG(LQ7) 08.962 L=600 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9308 ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
C223 ENG(LQ7) 08.962 L=660 SERVICED BY L=3000 		0-01158-300-0 01 1 9210-9307 ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
C223 ENG(LQ7) 08.962 L=660 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9308 ● ●
136 03.162 CLIP; HOSE,FUEL TANK
C223 ENG(LQ7),4JA1 ENG(RLE) 01.166 ID=14 		8-94238-572-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
136 03.162 CLIP; HOSE,FUEL TANK
4JA1 ENG(RLE) 01.166 ID=14 		8-94238-572-0 02 1 9309-9509 ● ● ● ● ● ● ● ●
136 03.162 CLIP; HOSE,FUEL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.166 ID=14 		8-94238-572-0 02 1 9510- ● ● ● ● ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-94238-570-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-94238-570-0 02 1 9403- ● ● ● ● ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13 		8-94238-571-0 02 1 9404- ● ● ● ●
232 03.162 BOLT; CLIP,PIPE 0-51040-616-0 01 1 9210-9407 ● ● ● ● ● ● ● ●
232 03.162 BOLT; CLIP,PIPE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		0-51040-616-0 01 1 9408-9411 ● ● ● ● ● ● ● ●
232 03.162 BOLT; CLIP,PIPE 0-51040-616-0 01 1 9412- ● ● ● ●
232 03.162 BOLT; CLIP,PIPE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		0-51040-616-0 01 1 9412- ● ● ● ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9210- ● ● ● ● ● ● ● ●

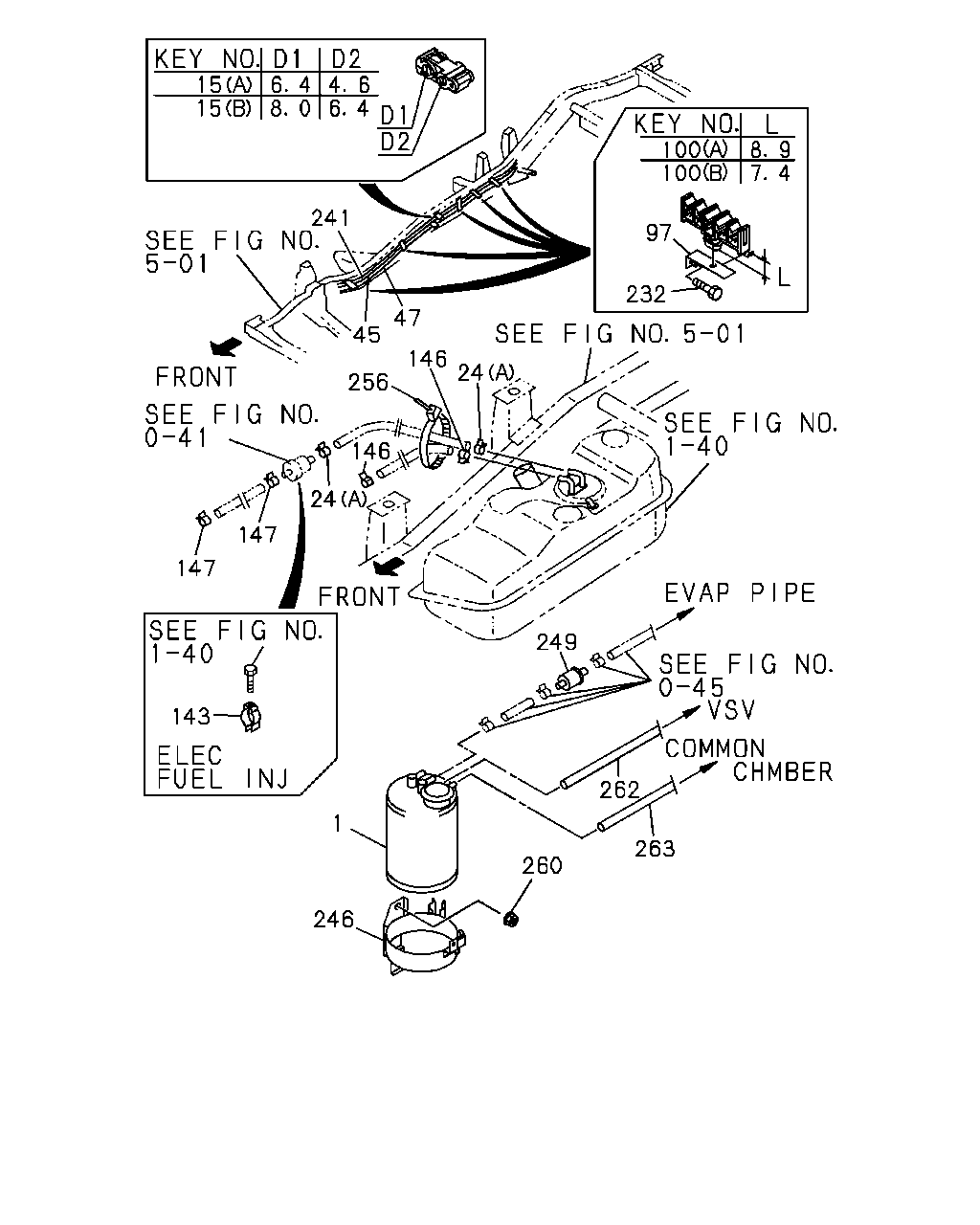

çizim 66430
15 15 241 47 45 232 97 100 100 24 146 256 146 24 147 147 249 262 263 260 1 246 143
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.130 CANISTER; FUEL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94224-892-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
1 03.130 CANISTER; FUEL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-17090-119-0 01 1 9309-9403 ● ● ● ● ● ● ● ●
1 03.130 CANISTER; FUEL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-17090-119-0 01 1 9404-9411 ● ● ● ● ● ● ● ●
1 03.130 CANISTER; FUEL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-17090-119-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
1 03.130 CANISTER; FUEL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-17090-119-0 01 1 9604- ● ● ● ● ● ● ● ●
1 03.130 CANISTER; FUEL
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-17090-120-0 01 1 9404- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94455-380-1 02 1 9210- ●
15 03.162 CLIP; FUEL PIPE
(A) 		8-94176-073-0 01 1 9210-9406 ● ● ● ●
15 03.162 CLIP; FUEL PIPE
(A) 		8-94176-073-0 01 1 9407- ● ● ●
15 03.162 CLIP; FUEL PIPE
EXC. REAR AXLE W/LSPV<7KA> (A) 		8-94176-073-0 01 1 9407- ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (D) 		8-94328-836-0 01 1 9210-9509 ● ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (D) 		8-94328-836-0 01 1 9510- ● ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) 		8-94222-876-0 05 1 9210-9509 ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) 		8-94222-876-0 05 1 9510- ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) 		8-94222-876-0 07 1 9210- ●
15 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94455-380-1 01 1 9210-9308 ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) 		8-94455-380-1 01 1 9309- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
REAR AXLE W/LSPV<7KA> SAUDI ARABIA EQUIPMENT(EU2) (E) 		8-94176-073-0 02 1 9407- ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) 		8-94466-385-0 01 1 9210-9509 ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) 		8-94466-385-0 01 1 9510- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) 		8-94222-876-0 04 1 9210- ●
24 03.162 CLIP; FUEL HOSE
03.163 (A) ID=11 		8-94238-570-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 03.163 (A) ID=11 		8-94238-570-0 02 1 9403-9509 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.163 (A) ID=11 		8-94238-570-0 02 1 9510- ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9403- ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) FOUR FOLD H=10.5 		8-94455-381-0 03 1 9210-9406 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
04.686 (B) FOUR FOLD H=9.5 		8-94375-291-0 03 1 9407-9606 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9403- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 01.219 (A) ID=13 		8-94238-571-0 02 1 9403-9509 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94473-556-2 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-581-4 01 1 9210-9509 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94450-581-4 01 1 9510- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-218-1 01 1 9210-9308 ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-218-1 01 1 9309- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-582-4 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-253-2 01 1 9210-9308 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-253-2 01 1 9309- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94473-557-2 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-583-3 01 1 9210-9509 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94450-583-3 01 1 9510- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-217-1 01 1 9210-9308 ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-217-1 01 1 9309- ●
45 03.163 PIPE; FUEL,DELIVERY
4JA1 ENG(RLE) 		8-94450-584-3 01 1 9210- ●
45 03.163 PIPE; FUEL,DELIVERY
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-254-1 01 1 9210-9308 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-254-1 01 1 9309- ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94473-558-2 01 1 9404- ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-221-2 01 1 9210-9308 ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94435-221-2 01 1 9309-9402 ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94435-221-2 01 1 9403- ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-598-0 01 1 9210-9509 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97085-598-1 01 1 9510- ● ● ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94462-635-1 01 1 9210-9308 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94462-635-1 01 1 9309- ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-678-1 01 1 9210- ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94435-255-1 01 1 9404- ● ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94450-576-1 01 1 9210-9308 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 		8-94450-576-1 01 1 9309-9402 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94450-576-1 01 1 9403- ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-219-2 01 1 9210-9308 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94435-219-2 01 1 9309- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-679-0 01 1 9210-9509 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97085-679-0 01 1 9510- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4JA1 ENG(RLE) 		8-97085-680-0 01 1 9210- ●
47 03.163 PIPE; FUEL,RETURN
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94450-577-2 01 1 9210-9308 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94450-577-2 01 1 9309-9402 ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94450-577-2 01 1 9403- ●
47 03.163 PIPE; FUEL,RETURN
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94439-080-2 01 1 9404- ●
97 03.162 BRACKET; CLIP 8-94461-011-0 01 1 9210-9407 ● ● ● ● ● ● ● ●
97 03.162 BRACKET; CLIP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94461-011-0 01 1 9408-9411 ● ● ● ● ● ● ● ●
97 03.162 BRACKET; CLIP 8-94461-011-0 01 1 9412- ● ● ● ●
97 03.162 BRACKET; CLIP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94461-011-0 01 1 9412- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 10 1 9210- ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 04 1 9210-9509 ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 04 1 9210-9509 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 05 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) L=7.4 		8-94435-550-0 05 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (A) L=8.9 		8-94435-551-1 01 1 9210-9509 ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 05 1 9210-9308 ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 05 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 05 1 9309-9509 ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 05 1 9309-9509 ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) L=7.4 		8-94435-550-0 04 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 08 1 9210- ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 06 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 06 1 9309- ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (B) L=7.4 		8-94435-550-0 11 1 9210-9509 ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) L=7.4 		8-94435-550-0 11 1 9510- ● ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 02 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 02 1 9309- ● ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (A) L=8.9 		8-94435-551-1 03 1 9210-9308 ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (A) L=8.9 		8-94435-551-1 03 1 9309- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (A) L=8.9 		8-94435-551-1 04 1 9210-9509 ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) L=8.9 		8-94435-551-1 04 1 9510- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE) (C) L=8.5 		8-97014-423-0 01 1 9210-9509 ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) L=8.5 		8-97014-423-0 01 1 9510- ● ● ● ●
100 03.162 CLIP; FUEL PIPE
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 03 1 9210-9308 ● ●
100 03.162 CLIP; FUEL PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=7.4 		8-94435-550-0 03 1 9309- ● ●
143 03.162 CLAMP; FUEL FILTER
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94446-739-1 01 1 9404-9505 ● ● ● ●
143 03.162 CLAMP; FUEL FILTER
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-97049-810-1 01 1 9506- ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-94238-570-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-94238-570-0 02 1 9403- ● ● ● ● ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13 		8-94238-571-0 02 1 9404- ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 01.166 ID=14 		8-94238-572-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9403- ● ● ● ● ● ● ● ●
232 03.162 BOLT; CLIP,PIPE 0-51040-616-0 01 1 9210-9407 ● ● ● ● ● ● ● ●
232 03.162 BOLT; CLIP,PIPE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		0-51040-616-0 01 1 9408-9411 ● ● ● ● ● ● ● ●
232 03.162 BOLT; CLIP,PIPE 0-51040-616-0 01 1 9412- ● ● ● ●
232 03.162 BOLT; CLIP,PIPE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		0-51040-616-0 01 1 9412- ● ● ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94435-224-2 01 1 9210-9406 ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-94435-224-2 01 1 9407-9411 ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94435-224-2 01 1 9412- ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2) 		8-94462-636-2 01 1 9210-9604 ●
241 03.163 PIPE; EVAP
COLOMBIA EQUIPMENT(X74) 		8-94462-636-2 01 1 9210-9604 ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E) 		8-94462-636-2 01 1 9605- ●
241 03.163 PIPE; EVAP
COLOMBIA EQUIPMENT(X74) 		8-94462-636-2 01 1 9605- ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-94450-578-3 01 1 9210-9411 ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94450-578-3 01 1 9412-9604 ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) 		8-94450-578-3 01 1 9605- ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94435-223-2 01 1 9210-9308 ● ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-94435-223-2 01 1 9309-9411 ● ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94435-223-2 01 1 9412-9604 ● ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) 		8-94435-223-2 01 1 9605- ● ● ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-94450-579-3 01 1 9210-9411 ●
241 03.163 PIPE; EVAP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94450-579-3 01 1 9412- ●
246 03.130 BRACKET; CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94474-291-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
246 03.130 BRACKET; CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97089-472-0 01 1 9309-9411 ● ● ● ● ● ● ● ●
246 03.130 BRACKET; CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97089-472-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
246 03.130 BRACKET; CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) 		8-97089-472-0 01 1 9604- ● ● ● ● ● ● ● ●
249 03.120 VALVE; CONT,EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 03.164 		8-94151-559-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
249 03.120 VALVE; CONT,EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.164 		8-94151-559-1 01 1 9309-9309 ● ● ● ● ● ● ● ●
249 03.120 VALVE; CONT,EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.162 		8-97076-391-0 01 1 9310-9411 ● ● ● ● ● ● ● ●
249 03.120 VALVE; CONT,EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 9412-9509 ● ● ● ● ● ● ● ●
249 03.120 VALVE; CONT,EVAP
EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) 03.162 		8-97076-391-0 01 1 9510-9605 ● ● ● ● ● ● ● ●
249 03.120 VALVE; CONT,EVAP
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 9606- ● ● ● ● ● ● ● ●
256 03.162 CLIP; BAND,FUEL HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) L=140 		5-09707-031-0 01 1 9210-9308 ● ●
256 03.162 CLIP; BAND,FUEL HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) L=140 		5-09707-031-0 01 1 9309-9411 ● ●
256 03.162 CLIP; BAND,FUEL HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=140 		5-09707-031-0 01 1 9412-9604 ● ●
256 03.162 CLIP; BAND,FUEL HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) L=140 		5-09707-031-0 01 1 9605- ●
256 03.162 CLIP; BAND,FUEL HOSE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=140 		5-09707-031-0 01 1 9605- ●
260 03.130 NUT; CANISTER BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9210-9308 ● ● ● ● ● ● ● ●
260 03.130 NUT; CANISTER BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9309-9411 ● ● ● ● ● ● ● ●
260 03.130 NUT; CANISTER BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9412-9603 ● ● ● ● ● ● ● ●
260 03.130 NUT; CANISTER BRKT
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9604- ● ● ● ● ● ● ● ●
262 03.163 HOSE; CANISTER PURGE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=230 SERVICED BY L=3000 		0-04743-300-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
262 03.163 HOSE; CANISTER PURGE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97089-098-0 01 1 9309-9403 ● ● ● ● ● ● ● ●
262 03.163 HOSE; CANISTER PURGE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97089-098-0 01 1 9404-9411 ● ● ● ● ● ● ● ●
262 03.163 HOSE; CANISTER PURGE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97089-098-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
262 03.163 HOSE; CANISTER PURGE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97089-098-0 01 1 9604- ● ● ● ● ● ● ● ●
262 03.163 HOSE; CANISTER PURGE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 08.962 L=300 SERVICED BY L=3000 		0-04750-300-0 01 1 9404- ● ● ● ●
263 03.163 HOSE; CANISTER SIGNAL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
263 03.163 HOSE; CANISTER SIGNAL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74) 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9309-9403 ● ● ● ● ● ● ● ●
263 03.163 HOSE; CANISTER SIGNAL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9404-9503 ● ● ● ● ● ● ● ●
263 03.163 HOSE; CANISTER SIGNAL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9504-9603 ● ● ● ● ● ● ● ●
263 03.163 HOSE; CANISTER SIGNAL
4ZD1 ENG(LW3) IGN TIMING ADVANCE FOR CHILE<7LF> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9504-9603 ● ● ● ● ● ● ●
263 03.163 HOSE; CANISTER SIGNAL
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9604- ● ● ● ● ● ● ● ●
263 03.163 HOSE; CANISTER SIGNAL
4ZD1 ENG(LW3) IGN TIMING ADVANCE FOR CHILE<7LF> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9604- ● ● ● ● ● ● ●

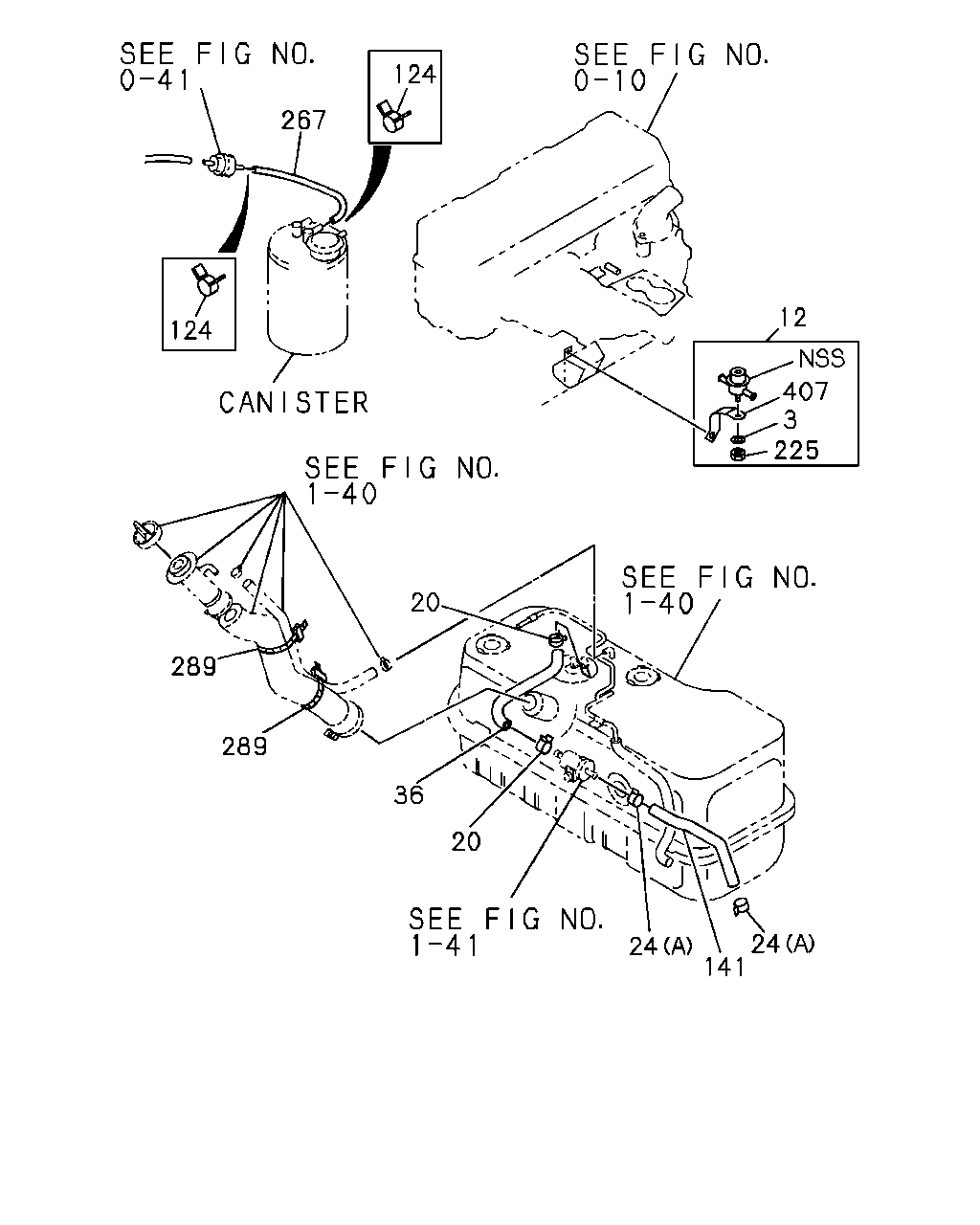

çizim 67086
267 124 124 12 407 225 3 20 289 289 36 20 24 141 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 03.162 WASHER; LK,BRKT
4ZD1 ENG(LW3) EXC. CHILE EQUIPMENT(6KB) 00.002 ID=8.2 		9-09150-608-0 01 1 9210- ● ● ● ● ● ● ● ●
3 03.162 WASHER; LK,BRKT
4ZA1 ENG(L17),4ZE1 ENG(RLJ) 00.002 ID=8.2 		9-09150-608-0 01 1 9210- ● ● ● ●
3 03.162 WASHER; LK,BRKT
4ZE1 ENG(RLJ) 00.002 ID=8.2 		9-09150-608-0 01 1 9210- ● ● ● ●
12 03.163 DAMPER ASM; FUEL
4ZA1 ENG(L17) 		8-94453-352-0 01 1 9210- ● ● ● ●
12 03.163 DAMPER ASM; FUEL
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94407-633-0 01 1 9210- ● ● ● ● ● ● ● ●
20 03.162 CLIP; HOSE,FUEL TANK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 01.166 ID=14 		8-94238-572-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
20 03.162 CLIP; HOSE,FUEL TANK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9403- ● ● ● ● ● ● ● ●
20 03.162 CLIP; HOSE,FUEL TANK
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9404- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (A) ID=11 		8-94238-570-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 03.163 (A) ID=11 		8-94238-570-0 02 1 9403-9509 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.163 (A) ID=11 		8-94238-570-0 02 1 9510- ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9210-9402 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9403- ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) FOUR FOLD H=10.5 		8-94455-381-0 03 1 9210-9406 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
04.686 (B) FOUR FOLD H=9.5 		8-94375-291-0 03 1 9407-9606 ● ● ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9403- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 01.219 (A) ID=13 		8-94238-571-0 02 1 9403-9509 ● ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.901 L=300 SERVICED BY L=3000 		0-01458-300-0 01 1 9403- ● ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 08.962 L=380 SERVICED BY L=3000 		0-01258-300-0 01 1 9210-9402 ● ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=380 SERVICED BY L=3000 		0-01258-300-0 01 1 9403- ● ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 08.962 L=300 SERVICED BY L=3000 		0-01258-300-0 01 1 9210-9402 ● ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=300 SERVICED BY L=3000 		0-01258-300-0 01 1 9403- ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2) 03.163 ID=11 		8-94238-570-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.163 ID=11 		8-94238-570-0 01 1 9407-9411 ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2) 03.163 ID=11 		8-94238-570-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 03.163 ID=11 		8-94238-570-0 01 1 9412-9603 ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2) 03.163 ID=11 		8-94238-570-0 01 1 9604- ● ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GU ATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11 		8-94238-570-0 01 1 9604- ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 01.097 WO/PVC COATING ID=11 		8-94238-925-0 01 1 9407-9411 ● ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.097 WO/PVC COATING ID=11 		8-94238-925-0 01 1 9412-9603 ● ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.097 ID=11 		8-94238-925-0 01 1 9604- ● ● ● ● ● ● ● ●
124 03.162 CLIP; HOSE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 01.219 ID=12 		8-94238-610-0 01 1 9407- ● ● ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.901 L=240 SERVICED BY L=3000 		0-01458-300-0 01 1 9404- ● ● ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 08.962 L=240 SERVICED BY L=3000 		0-01258-300-0 01 1 9210-9402 ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=240 SERVICED BY L=3000 		0-01258-300-0 01 1 9403- ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 08.962 L=170 SERVICED BY L=3000 		0-01258-300-0 01 1 9210- ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 08.962 L=250 SERVICED BY L=3000 		0-01258-300-0 01 1 9210-9402 ● ● ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000 		0-01258-300-0 01 1 9403- ● ● ● ●
225 03.162 NUT; FUEL DAMPER
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 00.002 M8 		9-09110-508-0 01 1 9210- ● ● ● ● ● ● ● ●
267 03.145 HOSE; CONT VALVE TO CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=190 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
267 03.145 HOSE; CONT VALVE TO CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 08.962 L=190 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9309 ● ● ● ● ● ● ● ●
267 03.145 HOSE; CONT VALVE TO CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) L=180 		8-94457-890-1 01 1 9310-9411 ● ● ● ● ● ● ● ●
267 03.145 HOSE; CONT VALVE TO CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=180 		8-94457-890-1 01 1 9412-9603 ● ● ● ● ● ● ● ●
267 03.145 HOSE; CONT VALVE TO CANISTER
4ZD1 ENG(LW3),4ZA1 ENG(L17) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) L=180 		8-94457-890-1 01 1 9604- ● ● ● ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9210- ● ● ● ● ● ● ● ●
407 03.162 BRACKET; FUEL DAMPER
4ZA1 ENG(L17) 03.163 		8-94453-353-0 01 1 9210- ● ● ● ●
407 03.162 BRACKET; FUEL DAMPER
4ZE1 ENG(RLJ) 03.163 		8-94407-343-0 01 1 9210- ● ● ● ● ● ● ● ●
407 03.162 BRACKET; FUEL DAMPER
4ZD1 ENG(LW3) EXC. CHILE EQUIPMENT(6KB) 03.163 		8-94407-343-0 01 1 9210- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
