1-11 — RADIATOR HOSE AND SUB TANK (#48031) — 126 parça
çizim 65532
88 20 2 1 13 18 34 33 20 56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD 8-97032-681-1 01 1 9210-9307 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-0 01 1 9308-9308 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-1 01 1 9309-9509 ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-1 01 1 9510- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9210-9307 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97100-665-0 01 1 9308-9308 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97100-665-0 01 1 9309-9506 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97130-964-0 01 1 9507-9509 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97130-964-0 01 1 9510- ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9210-9308 ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9309-9403 ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9404-9509 ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 02.559 L=103 		8-94239-339-0 02 1 9404-9509 ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9510- ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 02.559 L=103 		8-94239-339-0 02 1 9510- ●
13 01.240 CLIP; HOSE,SURGE TANK
ELECTRIC FUEL INJECTION<6GG> 02.559 L=103 		8-94239-339-0 01 1 9404- ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-0 01 1 9210-9308 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-0 01 1 9309-9509 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-0 01 1 9510-9606 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97016-104-1 01 1 9607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-1 01 1 9607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-97161-787-0 01 1 9607- ● ●
20 01.166 CLIP; HOSE,RAD
01.219 ID=12 		8-94238-610-0 02 1 9210- ● ● ● ● ● ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-94408-386-1 02 1 9210-9308 ● ● ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-94408-386-1 02 1 9309-9411 ● ●
33 01.277 BOLT; BRKT
ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-94408-386-1 02 1 9412-9508 ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-94408-386-1 02 1 9412-9508 ●
33 01.277 BOLT; BRKT
ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-97071-681-0 02 1 9509-9509 ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-97071-681-0 02 1 9509-9509 ●
33 01.277 BOLT; BRKT
ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-97071-681-0 02 1 9510-9512 ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-97071-681-0 02 1 9510-9512 ● ●
33 01.277 BOLT; BRKT
EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-97071-681-0 02 1 9601- ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-97071-681-0 02 1 9601- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97017-390-0 02 1 9210-9302 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9303-9308 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9309-9509 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9510- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94337-300-0 01 1 9210- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94438-040-1 01 1 9210-9308 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94388-165-2 01 1 9210-9509 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94388-165-2 01 1 9510- ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=45 		9-09915-281-1 01 1 9210- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 03 1 9210-9410 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 03 1 9411-9509 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 03 1 9510- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=46 		8-94160-650-0 01 1 9210-9308 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		9-09915-512-1 01 1 9210-9509 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		9-09915-512-1 01 1 9510- ● ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9210-9308 ● ● ● ● ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9309-9403 ● ● ● ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9404-9509 ● ● ●
88 01.219 BRACKET; SUB TANK HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-988-3 01 1 9404-9509 ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9510- ● ● ● ●
88 01.219 BRACKET; SUB TANK HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-988-3 01 1 9510- ●
88 01.219 BRACKET; SUB TANK HOSE
ELECTRIC FUEL INJECTION<6GG> 		8-94473-989-1 01 1 9404- ●
128 01.159 HOSE; WATER,RAD INL 8-94389-481-0 01 1 9210-9402 ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-94389-481-0 01 1 9403- ● ●
128 01.159 HOSE; WATER,RAD INL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94389-481-0 01 1 9403- ●
128 01.159 HOSE; WATER,RAD INL
ELECTRIC FUEL INJECTION<6GG> 		8-94447-549-1 01 1 9403- ●
128 01.159 HOSE; WATER,RAD INL 8-94438-037-1 01 1 9210-9308 ●
128 01.159 HOSE; WATER,RAD INL 8-94388-164-1 01 1 9210-9409 ●
128 01.159 HOSE; WATER,RAD INL 8-97023-019-0 01 1 9410-9509 ●
128 01.159 HOSE; WATER,RAD INL 8-97023-019-0 01 1 9510- ● ●

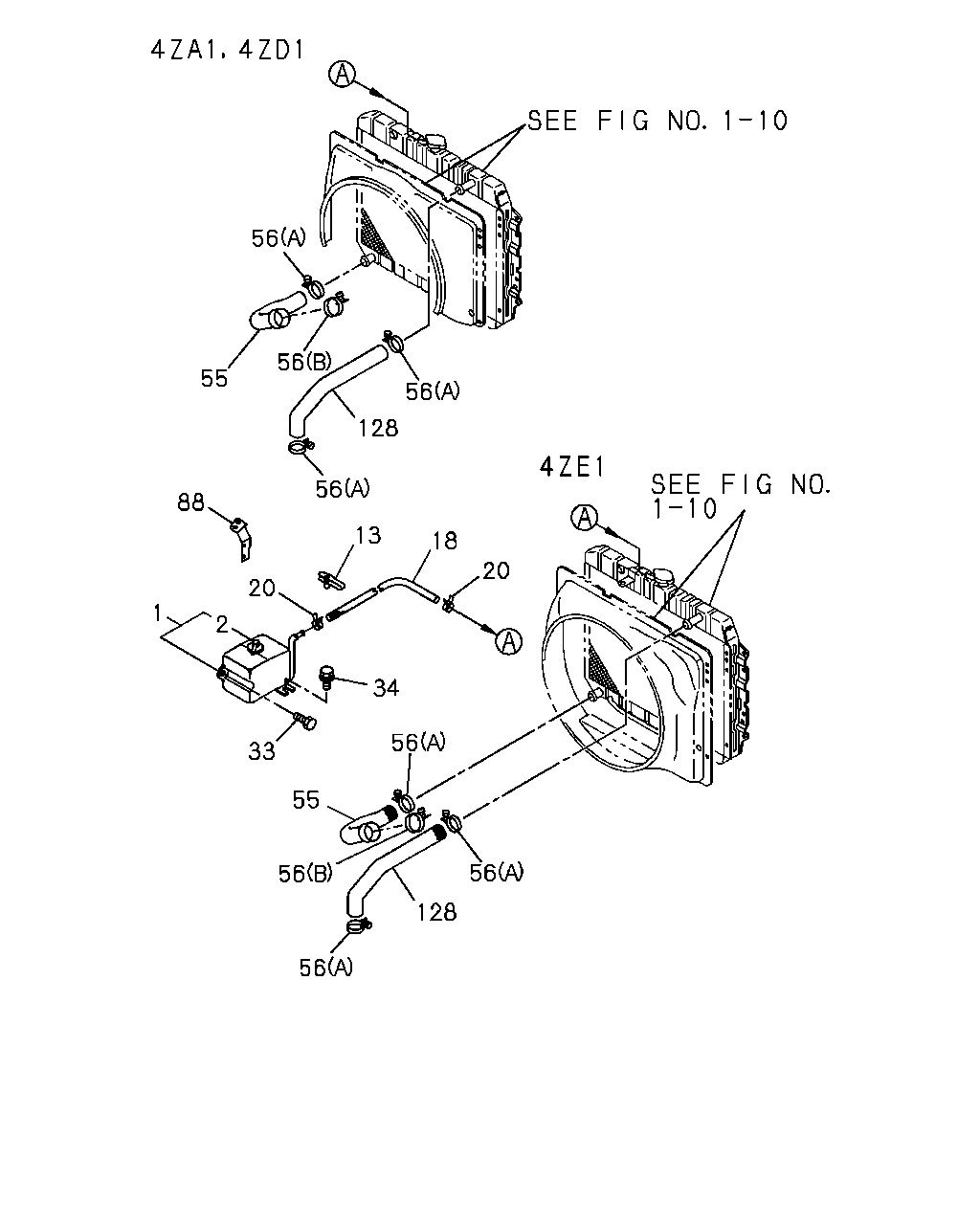

çizim 68395
56 56 55 56 128 56 20 88 13 18 34 20 56 56 128 56 56 55 33 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD 8-97032-681-1 01 1 9210-9307 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-0 01 1 9308-9308 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-1 01 1 9309-9509 ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-1 01 1 9510- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9210-9307 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97100-665-0 01 1 9308-9308 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97100-665-0 01 1 9309-9506 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97130-964-0 01 1 9507-9509 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97130-964-0 01 1 9510- ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9210-9308 ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9309-9403 ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9404-9509 ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 02.559 L=103 		8-94239-339-0 02 1 9404-9509 ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9510- ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 02.559 L=103 		8-94239-339-0 02 1 9510- ●
13 01.240 CLIP; HOSE,SURGE TANK
ELECTRIC FUEL INJECTION<6GG> 02.559 L=103 		8-94239-339-0 01 1 9404- ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-0 01 1 9210-9308 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-0 01 1 9309-9509 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-0 01 1 9510-9606 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97016-104-1 01 1 9607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97016-104-1 01 1 9607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-97161-787-0 01 1 9607- ● ●
20 01.166 CLIP; HOSE,RAD
01.219 ID=12 		8-94238-610-0 02 1 9210- ● ● ● ● ● ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-94408-386-1 02 1 9210-9308 ● ● ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-94408-386-1 02 1 9309-9411 ● ●
33 01.277 BOLT; BRKT
ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-94408-386-1 02 1 9412-9508 ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-94408-386-1 02 1 9412-9508 ●
33 01.277 BOLT; BRKT
ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-97071-681-0 02 1 9509-9509 ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-97071-681-0 02 1 9509-9509 ●
33 01.277 BOLT; BRKT
ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-97071-681-0 02 1 9510-9512 ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-97071-681-0 02 1 9510-9512 ● ●
33 01.277 BOLT; BRKT
EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-97071-681-0 02 1 9601- ●
33 01.277 BOLT; BRKT
08.077 M6X18 		8-97071-681-0 02 1 9601- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97017-390-0 02 1 9210-9302 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9303-9308 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9309-9509 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9510- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94337-300-0 01 1 9210- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94438-040-1 01 1 9210-9308 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94388-165-2 01 1 9210-9509 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94388-165-2 01 1 9510- ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=45 		9-09915-281-1 01 1 9210- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 03 1 9210-9410 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 03 1 9411-9509 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 03 1 9510- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=46 		8-94160-650-0 01 1 9210-9308 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		9-09915-512-1 01 1 9210-9509 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		9-09915-512-1 01 1 9510- ● ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9210-9308 ● ● ● ● ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9309-9403 ● ● ● ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9404-9509 ● ● ●
88 01.219 BRACKET; SUB TANK HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-988-3 01 1 9404-9509 ●
88 01.219 BRACKET; SUB TANK HOSE 8-94473-988-3 01 1 9510- ● ● ● ●
88 01.219 BRACKET; SUB TANK HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-988-3 01 1 9510- ●
88 01.219 BRACKET; SUB TANK HOSE
ELECTRIC FUEL INJECTION<6GG> 		8-94473-989-1 01 1 9404- ●
128 01.159 HOSE; WATER,RAD INL 8-94389-481-0 01 1 9210-9402 ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-94389-481-0 01 1 9403- ● ●
128 01.159 HOSE; WATER,RAD INL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94389-481-0 01 1 9403- ●
128 01.159 HOSE; WATER,RAD INL
ELECTRIC FUEL INJECTION<6GG> 		8-94447-549-1 01 1 9403- ●
128 01.159 HOSE; WATER,RAD INL 8-94438-037-1 01 1 9210-9308 ●
128 01.159 HOSE; WATER,RAD INL 8-94388-164-1 01 1 9210-9409 ●
128 01.159 HOSE; WATER,RAD INL 8-97023-019-0 01 1 9410-9509 ●
128 01.159 HOSE; WATER,RAD INL 8-97023-019-0 01 1 9510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
