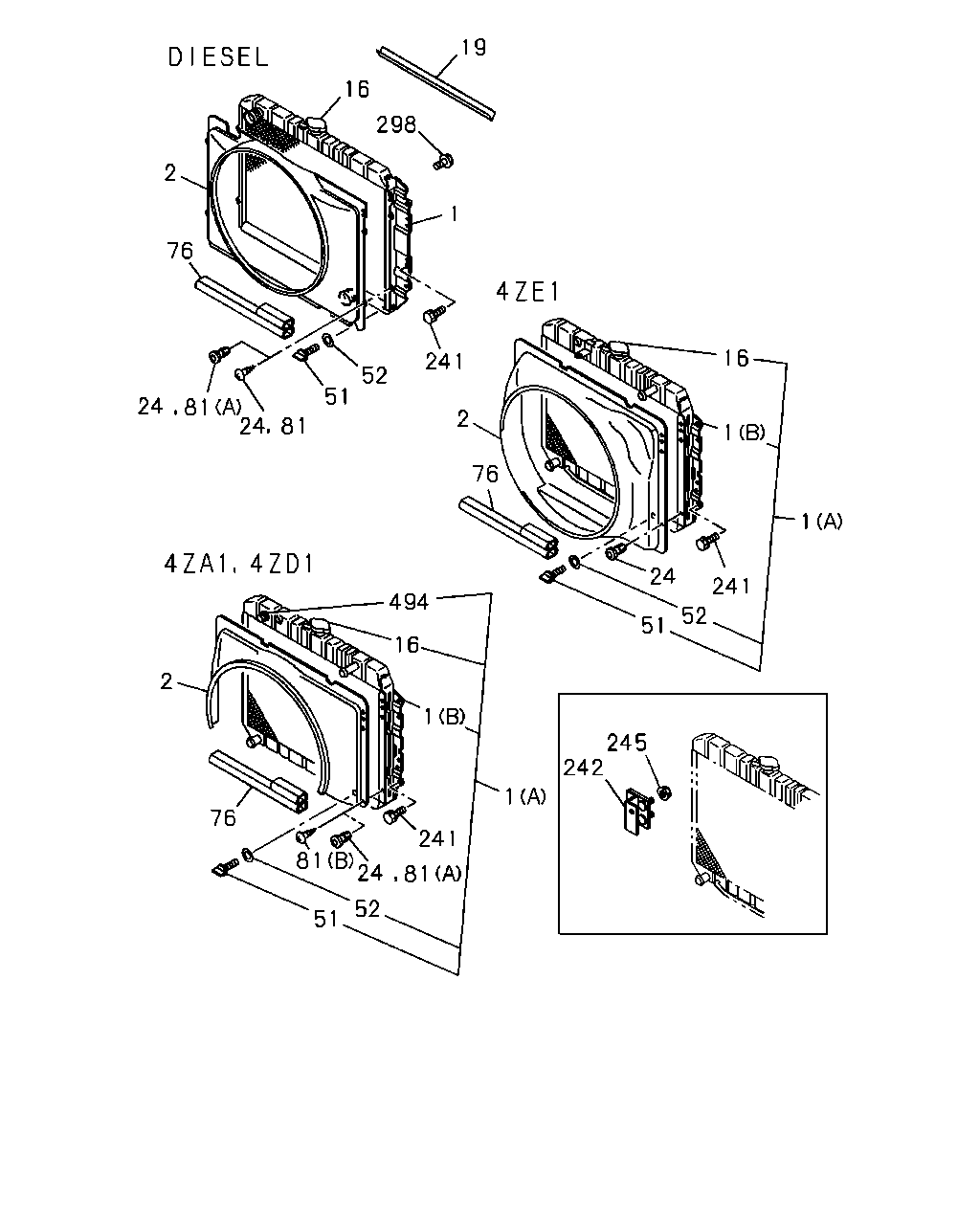

1-10 — RADIATOR (#48030) — 71 parça

16 19 298 1 2 76 241 52 51 81 24 81 24 2 16 1 1 241 24 52 51 76 494 1 16 1 241 81 24 81 51 52 76 2 242 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. RADIATOR W/FAN GUIDE(RM3), RADIATOR HEAVY DUTY(V05) (A)	8-97093-691-1	01	1	9309-9311	●
1	01.219 RADIATOR ASM RADIATOR W/FAN GUIDE(RM3),RADIATOR HEAVY DUTY(V05) (A)	8-97093-691-1	01	1	9309-9311	●
1	01.219 RADIATOR ASM RADIATOR HEAVY DUTY(V05) (A)	8-94474-044-4	01	1	9210-9303	●
1	01.219 RADIATOR ASM RADIATOR HEAVY DUTY(V05) (A)	8-94474-049-4	01	1	9304-9308	●
1	01.219 RADIATOR ASM EXC. RADIATOR HEAVY DUTY(V05) (A)	8-94474-048-4	01	1	9210-9308	●
1	01.219 RADIATOR ASM EXC. AIR CONDITIONER(C60),RADIATOR W/FAN GUIDE(RM3),RADIATOR HEAVY DUTY(V05),COOLER WO/HEATER(YL1) (A)	8-97090-019-1	01	1	9309-9311	●
1	01.219 RADIATOR ASM EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> (A)	8-97090-019-1	01	1	9309-9311		●
1	01.219 RADIATOR ASM (A)	8-97090-019-1	01	1	9309-9311			●
1	01.219 RADIATOR ASM (B)	8-97091-298-1	01	1	9312-	●		●
1	01.219 RADIATOR ASM EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> (B)	8-97091-298-1	01	1	9312-		●
1	01.219 RADIATOR ASM RADIATOR COOLANT LEVELING WARNING<7DL> (A)	8-97088-182-0	01	1	9210-		●
1	01.219 RADIATOR ASM EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> (A)	8-94474-051-7	01	1	9210-9308		●
1	01.219 RADIATOR ASM (A)	8-94474-051-7	01	1	9210-9308			●
1	01.219 RADIATOR ASM	8-94474-172-4	01	1	9210-9308				●
1	01.219 RADIATOR ASM	8-94474-171-4	01	1	9210-9308					●
1	01.219 RADIATOR ASM	8-97093-692-1	01	1	9309-9309					●
1	01.219 RADIATOR ASM	8-97091-300-0	01	1	9310-9409					●
1	01.219 RADIATOR ASM	8-97116-005-0	01	1	9410-					●
1	01.219 RADIATOR ASM	8-94383-646-1	01	1	9510-						●
2	01.277 GUIDE; FAN	8-94433-862-0	01	1	9210-9308	●
2	01.277 GUIDE; FAN	8-97091-301-1	01	1	9309-	●
2	01.277 GUIDE; FAN	8-94460-441-3	01	1	9210-9509		●
2	01.277 GUIDE; FAN	8-94460-441-3	01	1	9510-		●
2	01.277 GUIDE; FAN	8-94460-440-3	01	1	9210-9509			●
2	01.277 GUIDE; FAN	8-94460-440-3	01	1	9510-			●
2	01.277 GUIDE; FAN	8-94437-711-3	01	1	9210-9308				●
2	01.277 GUIDE; FAN	8-94478-865-2	01	1	9210-9409					●
2	01.277 GUIDE; FAN	8-97019-861-1	01	1	9410-9509					●
2	01.277 GUIDE; FAN	8-97019-861-1	01	1	9510-					●	●
16	01.203 CAP; RAD	8-94116-916-1	01	1	9210-9308	●	●	●	●	●
16	01.203 CAP; RAD	8-97104-194-0	01	1	9309-9409	●	●	●		●
16	01.203 CAP; RAD	8-97104-194-0	01	1	9410-9509	●		●		●
16	01.203 CAP; RAD EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL>	8-97104-194-0	01	1	9410-9509		●
16	01.203 CAP; RAD	8-97104-194-0	01	1	9510-	●		●		●	●
16	01.203 CAP; RAD EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL>	8-97104-194-0	01	1	9510-		●
16	01.203 CAP; RAD RADIATOR COOLANT LEVELING WARNING<7DL>	8-94116-916-0	01	1	9407-		●
19	01.270 SEAL; RAD UPR L=540	8-94468-115-1	01	1	9210-9509					●
19	01.270 SEAL; RAD UPR L=540	8-94468-115-1	01	1	9510-					●	●
24	01.276 SCREW; RAD FAN GUIDE PLASTIC RIVET	1-09734-009-0	04	1	9210-9509		●	●
24	01.276 SCREW; RAD FAN GUIDE PLASTIC RIVET	1-09734-009-0	04	1	9510-9510		●	●			●
24	01.276 SCREW; RAD FAN GUIDE PLASTIC RIVET	1-09734-009-0	04	1	9511-		●	●		●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9210-9308	●	●	●	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9309-9509	●	●	●		●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9510-	●	●	●		●	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9210-9308	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9309-9509	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9510-	●	●	●		●	●
76	01.174 SEAL; RAD,LWR 01.276	8-94316-413-0	02	1	9210-9308	●	●	●	●	●
76	01.174 SEAL; RAD,LWR 01.276	8-94316-413-0	02	1	9309-9509	●	●	●		●
76	01.174 SEAL; RAD,LWR 01.276	8-94316-413-0	02	1	9510-	●	●	●		●	●
81	01.277 SCREW; FAN GUIDE,RAD 01.276 (A) PLASTIC RIVET	1-09734-009-0	04	1	9309-9409	●
81	01.277 SCREW; FAN GUIDE,RAD 01.276 (A) PLASTIC RIVET	1-09734-009-0	04	1	9410-9510	●				●
81	01.277 SCREW; FAN GUIDE,RAD 01.276 (A) PLASTIC RIVET	1-09734-009-0	04	1	9511-	●
81	01.277 SCREW; FAN GUIDE,RAD 12.009 (B) M5X10 TAPPING	9-07076-510-0	04	1	9210-9308	●			●	●
81	01.277 SCREW; FAN GUIDE,RAD 12.009 (B) M5X10 TAPPING	9-07076-510-0	04	1	9309-9406					●
81	01.277 SCREW; FAN GUIDE,RAD 12.009 (B) M5X10 TAPPING	9-07076-510-0	04	1	9407-9409					●
241	01.274 BOLT; RAD TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9210-9308	●	●	●	●	●
241	01.274 BOLT; RAD TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9309-9509	●	●	●		●
241	01.274 BOLT; RAD TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9510-	●	●	●		●	●
242	01.219 BRACKET; RAD	8-97041-226-2	01	1	9210-9308	●	●	●	●	●
242	01.219 BRACKET; RAD	8-97041-226-2	01	1	9309-9509	●	●	●		●
242	01.219 BRACKET; RAD	8-97041-226-2	01	1	9510-	●	●	●		●	●
242	01.219 BRACKET; RAD	8-97041-225-2	01	1	9210-9308	●	●	●	●	●
242	01.219 BRACKET; RAD	8-97041-225-2	01	1	9309-9509	●	●	●		●
242	01.219 BRACKET; RAD	8-97041-225-2	01	1	9510-	●	●	●		●	●
245	01.219 NUT; BRKT 03.023 M8 FLANGE	8-94328-243-0	04	1	9210-9308	●	●	●	●	●
245	01.219 NUT; BRKT 03.023 M8 FLANGE	8-94328-243-0	04	1	9309-9402	●	●	●		●
245	01.219 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	9403-9509	●	●	●		●
245	01.219 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	9510-	●	●	●		●	●
298	01.274 SCREW; RAD,UPR 01.277 M4X8 TAPPING W/PL WASHER	0-74100-408-0	01	1	9210-9308				●
494	01.219 SENSOR; LEVEL RADIATOR COOLANT LEVELING WARNING<7DL> 01.240	8-97061-492-0	01	1	9210-9509		●
