1-56B — EXHAUST BRAKE SYSTEM (#4803) — 27 parça

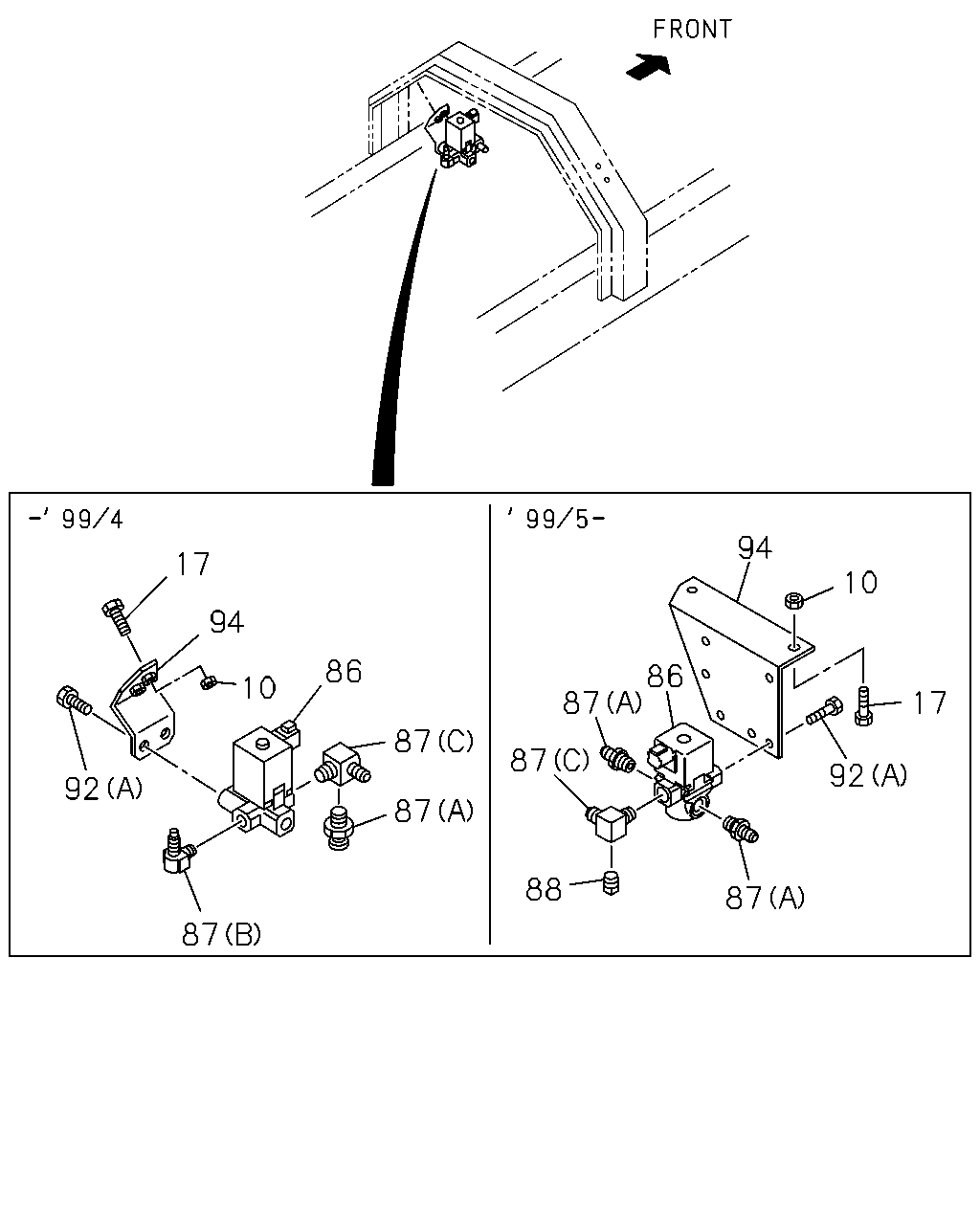

çizim 43016
94 17 10 94 86 86 10 87 17 87 87 92 92 87 88 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
10 NUT; BRKT,EXH BRAKE
M8 		9-09110-508-0 03 1 9601-9606 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9607-9610 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9611-9904 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 02 1 9905-0103 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 01 1 0104- ● ●
10 NUT; BRKT,EXH BRAKE
M10 FLANGE 		0-91150-210-0 01 1 0104- ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0103 ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0104- ● ●
17 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 0104- ● ●
86 VALVE; MAG,EXH BRK 1-82563-598-3 01 1 9601-9610 ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 9905- ● ●
86 VALVE; MAG,EXH BRK 1-82563-598-3 01 1 9611-9904 ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-9610 ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9611-9904 ●
87 CONNECTOR
(A) M20 & PT1/4 		9-09902-386-0 01 1 9601-9702 ●
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9611-9904 ●
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9905- ● ●
87 CONNECTOR
(C) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 9601- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 9905- ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9608 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9609-9904 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-153-0 01 1 9601-9904 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-277-2 01 1 9905- ●
