1-01 — ACCELERATOR PEDAL AND CONTROL (#48029) — 120 parça

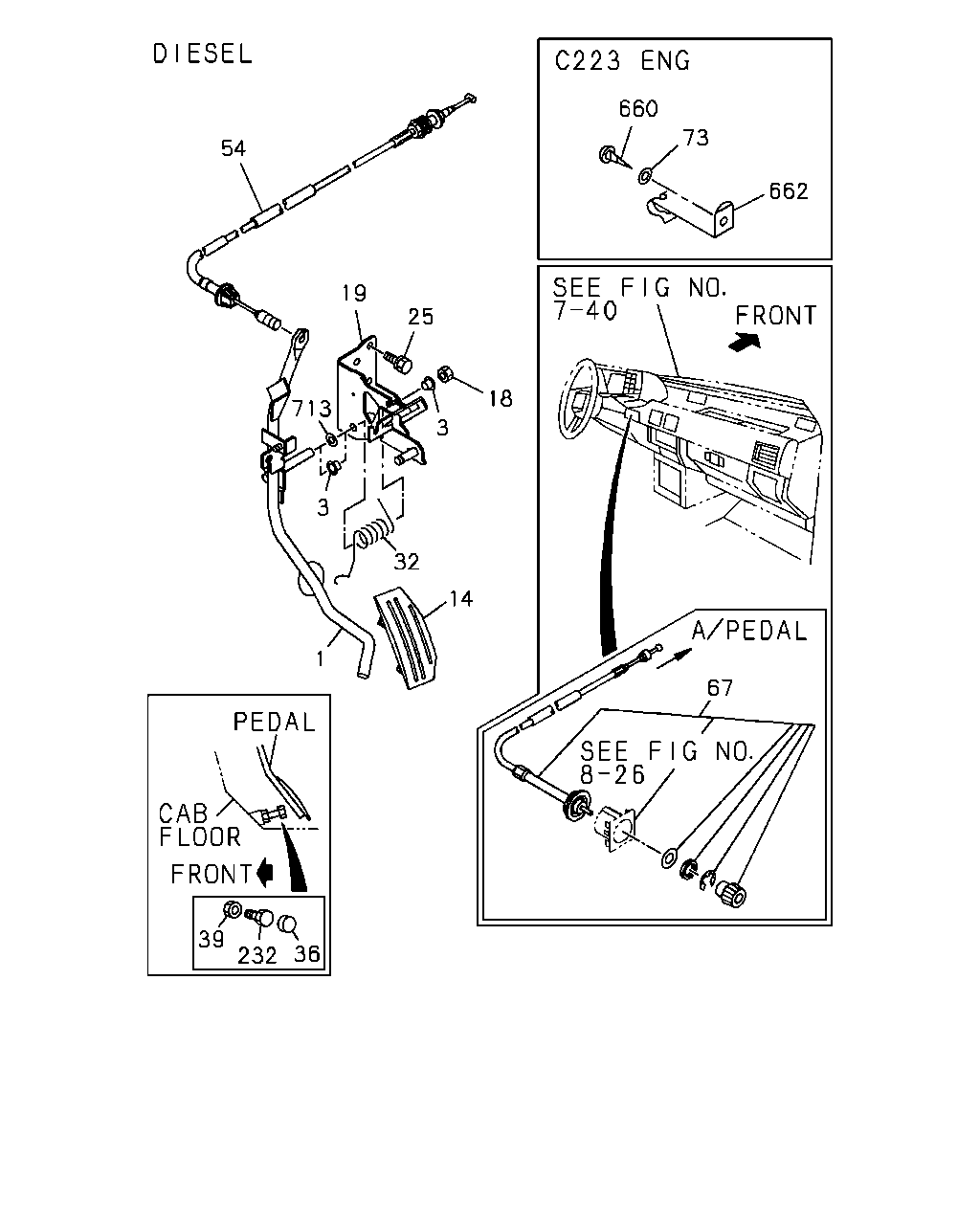

çizim 66103
54 19 18 25 3 713 3 32 1 14 39 232 36 67 73 660 662
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.451 LEVER; PEDAL SIDE 8-97022-894-0 01 1 9210-9402 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97084-915-1 01 1 9403-9505 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97084-915-1 01 1 9506-9506 ● ●
1 03.451 LEVER; PEDAL SIDE
ELECTRIC FUEL INJECTION<6GG> 		8-97084-915-1 01 1 9506-9506 ●
1 03.451 LEVER; PEDAL SIDE
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97131-722-0 01 1 9506-9506 ●
1 03.451 LEVER; PEDAL SIDE 8-97131-722-0 01 1 9507- ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9210-9308 ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9309-9509 ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9510- ● ●
3 03.454 BUSHING; PEDAL
16.585 OD=9.9 		8-94279-701-3 02 1 9210-9308 ● ● ● ● ●
3 03.454 BUSHING; PEDAL
16.585 OD=9.9 		8-94279-701-3 02 1 9309-9501 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-0 01 1 9210-9308 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9309-9509 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9510- ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9210-9308 ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9309-9509 ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9510- ● ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9210-9308 ● ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9309-9402 ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9403-9403 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-370-2 01 1 9404-9501 ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9404-9501 ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97117-119-0 01 1 9502-9509 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9502-9509 ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97117-119-0 01 1 9510- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9510- ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94344-054-1 01 1 9403-9403 ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94344-054-1 01 1 9404-9501 ● ●
19 03.452 BRACKET; ACCEL PEDAL
ELECTRIC FUEL INJECTION<6GG> 		8-94344-054-1 01 1 9404-9501 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-117-0 01 1 9502- ● ●
19 03.452 BRACKET; ACCEL PEDAL
ELECTRIC FUEL INJECTION<6GG> 		8-97117-117-0 01 1 9502- ●
25 03.452 BOLT; SHAFT SIDE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9210- ● ● ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9210-9308 ● ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9309-9509 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9510- ● ● ● ● ●
36 03.451 PAD; ACCEL PEDAL STOPPER 8-94328-339-0 01 1 9210-9501 ● ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9210- ● ● ● ● ● ●
54 03.430 CABLE; ENG CONT 8-94434-524-5 01 1 9210-9509 ●
54 03.430 CABLE; ENG CONT 8-94434-524-5 01 1 9510- ●
54 03.430 CABLE; ENG CONT
ELECTRIC FUEL INJECTION<6GG> 		8-97066-917-1 01 1 9404- ●
54 03.430 CABLE; ENG CONT 8-94473-377-3 01 1 9210-9402 ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9403- ● ●
54 03.430 CABLE; ENG CONT 8-94434-598-3 01 1 9210-9308 ●
54 03.430 CABLE; ENG CONT 8-97016-380-0 01 1 9210-9509 ●
54 03.430 CABLE; ENG CONT 8-97016-380-0 01 1 9510-9603 ● ●
54 03.430 CABLE; ENG CONT 8-97016-380-0 01 1 9604- ●
54 03.430 CABLE; ENG CONT
EXC. CHINA EQUIPMENT(YT2) 		8-97016-380-0 01 1 9604- ●
54 03.430 CABLE; ENG CONT
CHINA EQUIPMENT(YT2) 		8-97132-218-0 01 1 9604- ●
67 03.480 CABLE ASM; IDLE CONT 8-94473-378-6 01 1 9210-9308 ● ●
67 03.480 CABLE ASM; IDLE CONT 8-97100-937-2 01 1 9309-9509 ●
67 03.480 CABLE ASM; IDLE CONT 8-97100-937-2 01 1 9510- ● ●
73 03.463 WASHER; PL,ACCEL CONT CABLE
00.206 ID=6.1 		9-09150-506-0 01 1 9210-9308 ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9210- ● ● ● ● ● ●
660 03.463 SCREW; CLIP TO BRKT
02.343 		8-94470-854-1 01 1 9210-9308 ●
662 03.430 CLIP; ACCEL CONT CABLE
ID=10.5 H=60 		8-94323-658-0 01 1 9210-9308 ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9502-9509 ● ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9510- ● ● ● ● ●

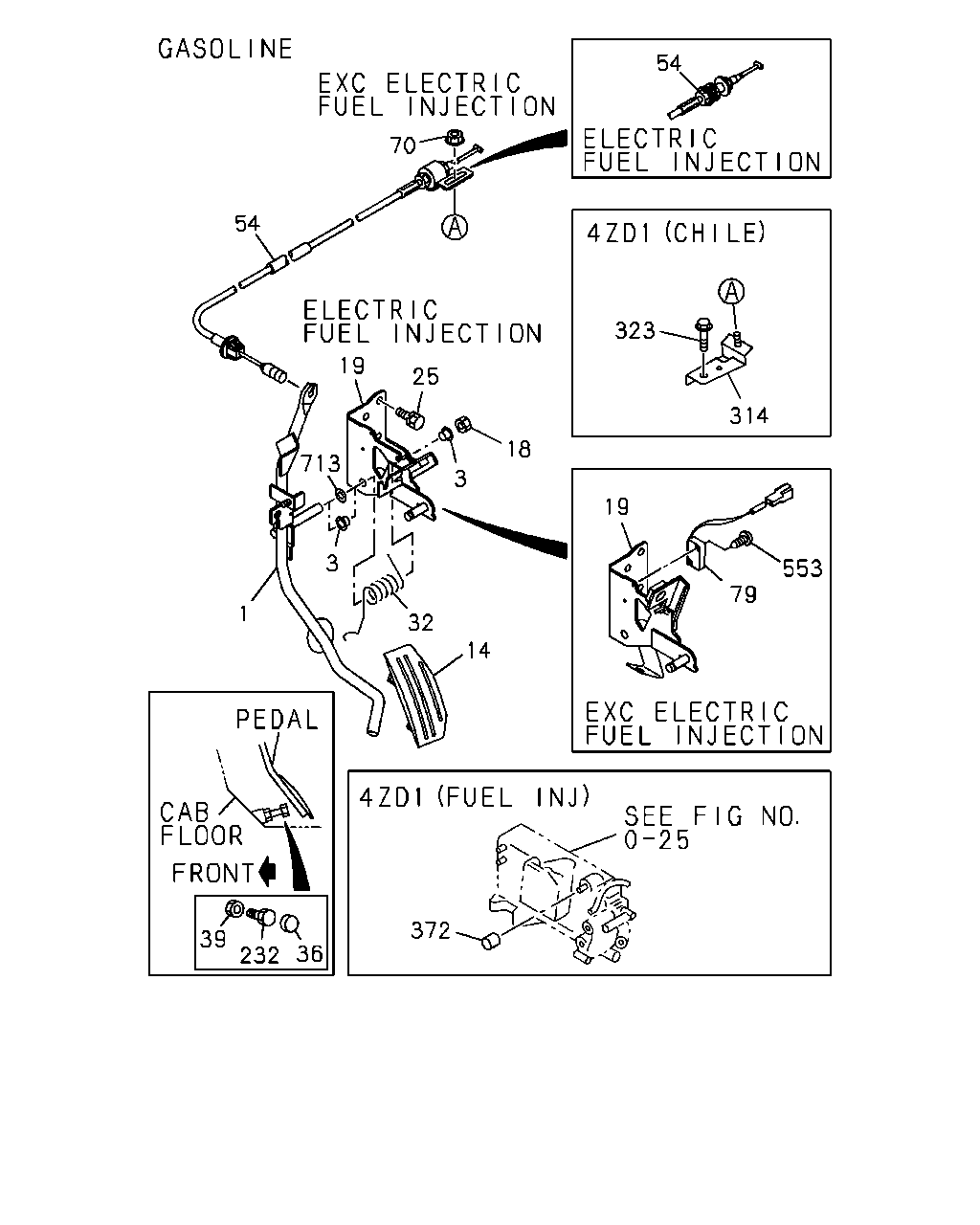

çizim 68464
70 54 323 314 79 553 19 18 25 19 54 713 3 14 32 3 1 39 232 36 372
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.451 LEVER; PEDAL SIDE 8-97022-894-0 01 1 9210-9402 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97084-915-1 01 1 9403-9505 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97084-915-1 01 1 9506-9506 ● ●
1 03.451 LEVER; PEDAL SIDE
ELECTRIC FUEL INJECTION<6GG> 		8-97084-915-1 01 1 9506-9506 ●
1 03.451 LEVER; PEDAL SIDE
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97131-722-0 01 1 9506-9506 ●
1 03.451 LEVER; PEDAL SIDE 8-97131-722-0 01 1 9507- ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9210-9308 ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9309-9509 ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9510- ● ●
3 03.454 BUSHING; PEDAL
16.585 OD=9.9 		8-94279-701-3 02 1 9210-9308 ● ● ● ● ●
3 03.454 BUSHING; PEDAL
16.585 OD=9.9 		8-94279-701-3 02 1 9309-9501 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-0 01 1 9210-9308 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9309-9509 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9510- ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9210-9308 ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9309-9509 ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9510- ● ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9210-9308 ● ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9309-9402 ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9403-9403 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-370-2 01 1 9404-9501 ●
19 03.452 BRACKET; ACCEL PEDAL 8-94473-370-2 01 1 9404-9501 ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97117-119-0 01 1 9502-9509 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9502-9509 ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97117-119-0 01 1 9510- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9510- ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94344-054-1 01 1 9403-9403 ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-94344-054-1 01 1 9404-9501 ● ●
19 03.452 BRACKET; ACCEL PEDAL
ELECTRIC FUEL INJECTION<6GG> 		8-94344-054-1 01 1 9404-9501 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-117-0 01 1 9502- ● ●
19 03.452 BRACKET; ACCEL PEDAL
ELECTRIC FUEL INJECTION<6GG> 		8-97117-117-0 01 1 9502- ●
25 03.452 BOLT; SHAFT SIDE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9210- ● ● ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9210-9308 ● ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9309-9509 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9510- ● ● ● ● ●
36 03.451 PAD; ACCEL PEDAL STOPPER 8-94328-339-0 01 1 9210-9501 ● ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9210- ● ● ● ● ● ●
54 03.430 CABLE; ENG CONT 8-94434-524-5 01 1 9210-9509 ●
54 03.430 CABLE; ENG CONT 8-94434-524-5 01 1 9510- ●
54 03.430 CABLE; ENG CONT
ELECTRIC FUEL INJECTION<6GG> 		8-97066-917-1 01 1 9404- ●
54 03.430 CABLE; ENG CONT 8-94473-377-3 01 1 9210-9402 ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9403- ● ●
54 03.430 CABLE; ENG CONT 8-94434-598-3 01 1 9210-9308 ●
54 03.430 CABLE; ENG CONT 8-97016-380-0 01 1 9210-9509 ●
54 03.430 CABLE; ENG CONT 8-97016-380-0 01 1 9510-9603 ● ●
54 03.430 CABLE; ENG CONT 8-97016-380-0 01 1 9604- ●
54 03.430 CABLE; ENG CONT
EXC. CHINA EQUIPMENT(YT2) 		8-97016-380-0 01 1 9604- ●
54 03.430 CABLE; ENG CONT
CHINA EQUIPMENT(YT2) 		8-97132-218-0 01 1 9604- ●
70 03.483 NUT; CONT CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 9210- ● ●
79 03.451 SWITCH; ACCEL PEDAL 8-97069-328-1 01 1 9210-9403 ●
79 03.451 SWITCH; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97069-328-1 01 1 9404- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9210- ● ● ● ● ● ●
314 03.481 BRACKET; ACCEL CABLE
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97037-794-2 01 1 9404-9509 ●
314 03.481 BRACKET; ACCEL CABLE
ELECTRIC FUEL INJECTION<6GG> 		8-97037-794-2 01 1 9510- ●
323 03.483 BOLT; CLIP
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9404-9509 ●
323 03.483 BOLT; CLIP
ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9510- ●
323 03.483 BOLT; CLIP
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9404-9509 ●
323 03.483 BOLT; CLIP
ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9510- ●
372 03.402 PLUG; COMMON CHAMBER
ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4 		8-94217-809-0 01 1 9406-9406 ●
553 03.451 SCREW; TAP,PEDAL TO SW
M3X16 TAPPING 		0-71280-316-0 02 1 9210-9403 ●
553 03.451 SCREW; TAP,PEDAL TO SW
EXC. ELECTRIC FUEL INJECTION<6GG> M3X16 TAPPING 		0-71280-316-0 02 1 9404- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9502-9509 ● ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9510- ● ● ● ● ●
