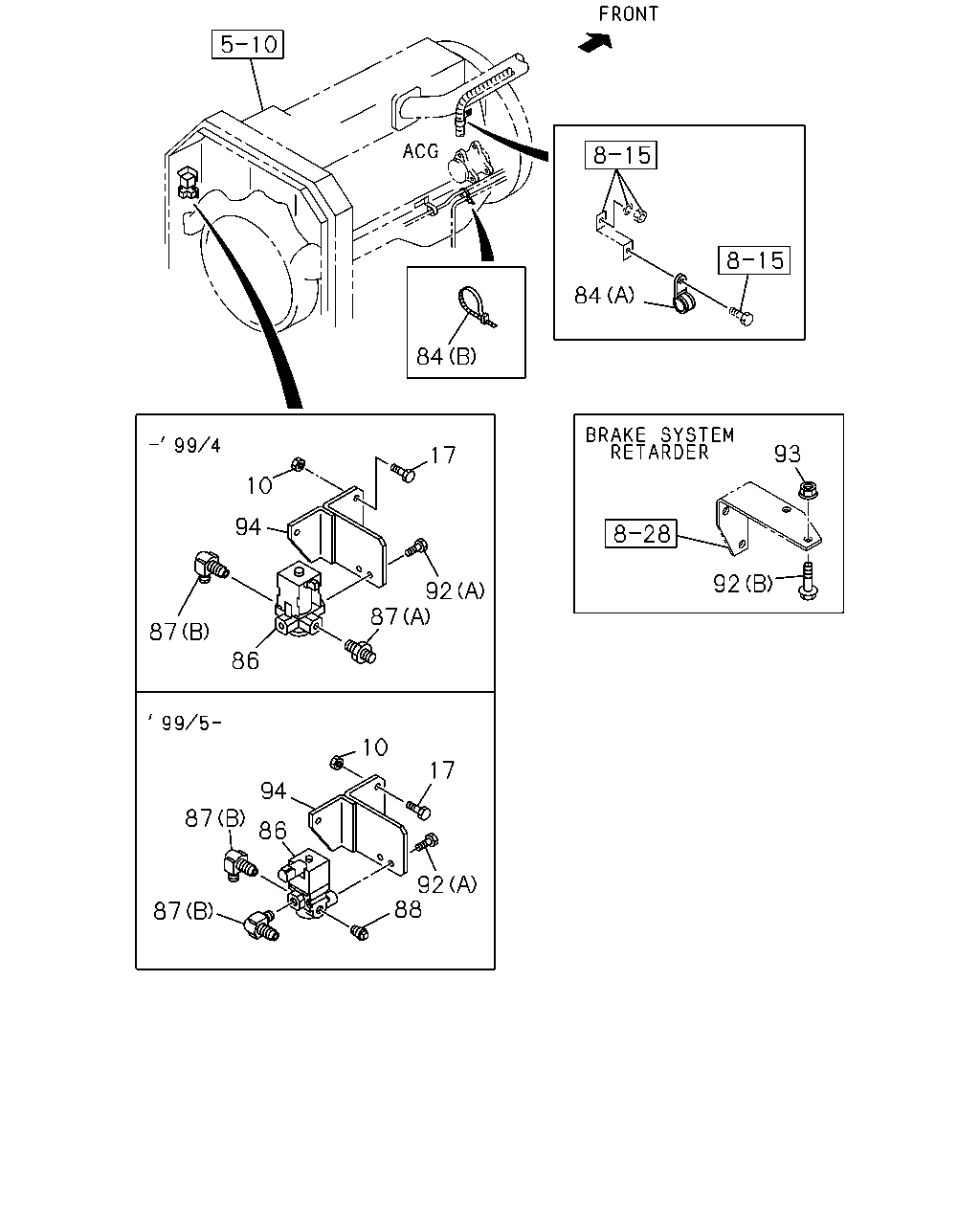

1-56A — EXHAUST BRAKE SYSTEM
(#4802) — 33 parça
Tümü
A - 6WA1 TC-S
B - 6WA1 TC-N
C - 6WA1 TC-C
D - 6WA1 TC-R
84
84
93
17
10
94
92
92
87
87
86
10
17
94
87
86
92
88
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
10
NUT; BRKT,EXH BRAKE
M8
9-09110-508-0
03
1
9601-9606
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
9607-9610
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
9905-
●
●
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
9611-9904
●
●
17
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
03
1
9601-9606
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
9607-9904
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
9905-
●
●
●
84
CLIP; HARNESS
(A) ID=26 L=27
1-09701-006-0
01
1
9601-9610
●
84
CLIP; HARNESS
(A) ID=26 L=27
1-09701-006-0
01
1
9905-
●
●
●
84
CLIP; HARNESS
(A) ID=26 L=27
1-09701-006-0
01
1
9611-9904
●
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
9601-9904
●
84
CLIP; HARNESS
EXC. ELECTRONIC GOV RED3(KG5) (B) L=140
5-09707-031-1
01
1
9905-9907
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
9905-9907
●
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
9908-
●
●
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
9908-
●
●
86
VALVE; MAG,EXH BRK
1-82563-598-3
01
1
9601-9610
●
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
9905-
●
●
●
86
VALVE; MAG,EXH BRK
1-82563-598-3
01
1
9611-9904
●
●
87
CONNECTOR
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9601-9610
●
87
CONNECTOR
(B) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
9905-
●
●
●
87
CONNECTOR
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9611-9904
●
●
87
CONNECTOR
(A) M20 & PT1/4
9-09902-386-0
01
1
9601-9702
●
87
CONNECTOR
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9611-9904
●
●
88
PLUG
PT1/4
9-99204-513-0
01
1
9905-
●
●
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28080-820-0
02
1
9601-9606
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE
0-28680-825-0
02
1
9607-9608
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28680-820-0
02
1
9609-9904
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28680-820-0
02
1
9905-
●
●
●
92
BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE
0-28080-870-0
02
1
9905-9907
●
●
●
93
NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE
0-91150-108-0
02
1
9905-9907
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-173-0
01
1
9601-9610
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-273-0
01
1
9905-
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-173-0
01
1
9611-9904
●
●
