0-71 — DISTRIBUTOR (#48015) — 113 parça

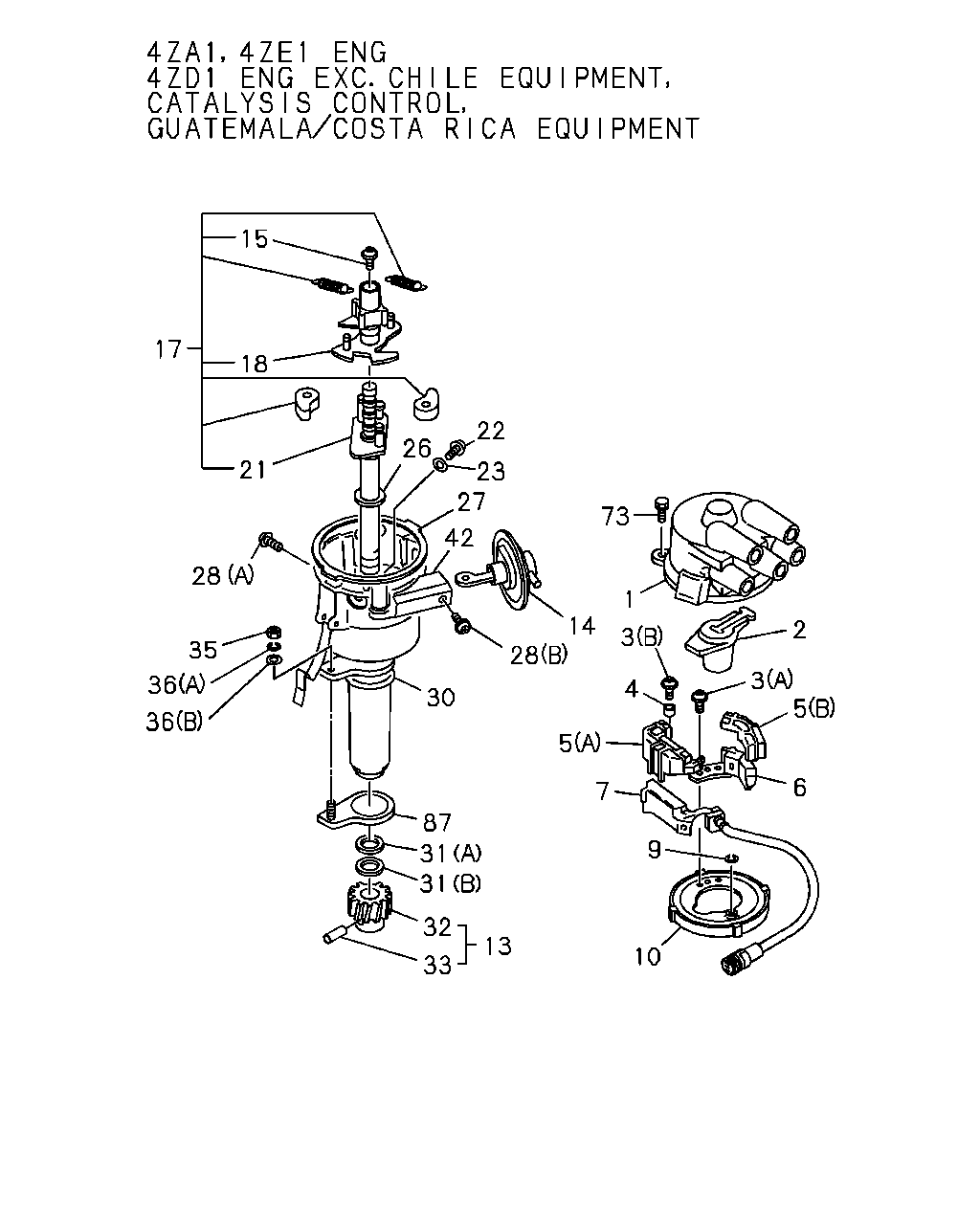

15 17 18 21 28 35 36 36 26 22 27 23 42 73 1 2 3 3 14 28 30 4 5 6 5 7 9 10 13 33 32 31 31 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.367 CAP; DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-537-0	01	1	-
1	02.367 CAP; DISTR ASM PART: A = 8-94341-340-0, 94341340, D = 8-97040-454-0, 97040454	8-94322-990-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-468-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: B = 8-94450-250-1, 94450250	8-94221-206-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94338-910-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-327-0	01	1	-
3	02.385 SCREW; BREAKER,DISTR 02.387, (A) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94206-155-0	02	1	-
3	02.385 SCREW; BREAKER,DISTR (B) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94212-645-0	02	1	-
3	02.385 SCREW; BREAKER,DISTR 02.379 ASM PART: A = 8-94341-340-0, 94341340	8-94243-354-0	02	1	-
4	02.387 NUT; SPACER ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94147-857-0	01	1	-
5	02.385 COVER; DUST,BREAKER,DISTR (A) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94129-193-0	01	1	-
5	02.385 COVER; DUST,BREAKER,DISTR (B) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94129-194-0	01	1	-
6	02.383 GENERATOR; DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-97080-226-0	01	1	-
7	02.170 IGNITER; DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-528-0	01	1	-
9	02.385 WASHER; SNAP,BREAKER,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94207-822-0	01	1	-
10	02.381 PLATE; BREAKER,DIST ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94129-198-0	01	1	-
10	02.381 PLATE; BREAKER,DIST ASM PART: A = 8-94341-340-0, 94341340	8-94172-142-0	01	1	-
13	02.379 COUPLING; DISTR 02.374 ASM PART: A = 8-94341-340-0, 94341340	8-94172-146-0	01	1	-
13	02.379 COUPLING; DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-585-0	01	1	-
13	02.379 COUPLING; DISTR 02.374 ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94237-156-0	01	1	-
14	02.410 CONTROL; VAC,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-532-0	01	1	-
14	02.410 CONTROL; VAC,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94382-439-0	01	1	-
15	02.387 SCREW; CAM,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94206-155-0	01	1	-
17	02.381 GOVERNOR; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94321-534-0	01	1	-
17	02.381 GOVERNOR; DISTR ASM PART: B = 8-94450-250-1, 94450250	8-94321-535-0	01	1	-
18	02.382 CAM; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94129-218-0	01	1	-
18	02.382 CAM; DISTR 02.372 ASM PART: A = 8-94341-340-0, 94341340	8-94172-141-0	01	1	-
18	02.382 CAM; DISTR ASM PART: B = 8-94450-250-1, 94450250	8-94321-536-0	01	1	-
21	02.372 SHAFT; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-326-0	01	1	-
21	02.372 SHAFT; DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94480-330-0	01	1	-
22	02.368 SCREW; CLAMP,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94480-331-0	02	1	-
23	02.385 WASHER; CLAMP SCREW,DISTR 02.368 ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94216-700-0	02	1	-
26	02.379 WASHER; SHAFT,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94480-332-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-530-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94322-991-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-330-0	01	1	-
28	02.368 SCREW; VAC CONT 02.393, (A) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94108-473-0	02	1	-
28	02.368 SCREW; VAC CONT 02.414, (B) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94237-241-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94172-150-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-469-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94206-165-0	01	1	-
31	02.379 WASHER; THRUST,DISTR 02.385, (A) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94206-157-0	01	1	-
31	02.379 WASHER; THRUST,DISTR 02.385, (B) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94207-823-0	01	1	-
32	02.374 GEAR; DRIVE,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94237-176-0	01	1	-
33	02.379 PIN; STRAIGHT,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94237-157-0	01	1	-
35	02.379 NUT; PLATE,DISTR 00.002, M8 ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	9-09110-508-0	01	1	-
36	02.379 WASHER; PLATE,DISTR 00.002, S/P (A) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	9-09150-508-0	01	1	-
36	02.379 WASHER; PLATE,DISTR 16.716, P/L (B) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	9-09160-608-0	01	1	-
42	02.362 HOUSING; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94321-531-0	01	1	-
73	02.381 BOLT; PLATE,DISTR 02.393 ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94405-199-0	03	1	-
87	02.362 PLATE; DISTR 02.381 ASM PART: A = 8-94341-340-0, 94341340	8-94172-149-0	01	1	-
87	02.362 PLATE; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94321-527-0	01	1	-

49 1 46 2 64 27 45 30 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.367 CAP; DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-537-0	01	1	-
1	02.367 CAP; DISTR ASM PART: A = 8-94341-340-0, 94341340, D = 8-97040-454-0, 97040454	8-94322-990-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-468-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: B = 8-94450-250-1, 94450250	8-94221-206-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94338-910-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-327-0	01	1	-
13	02.379 COUPLING; DISTR 02.374 ASM PART: A = 8-94341-340-0, 94341340	8-94172-146-0	01	1	-
13	02.379 COUPLING; DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-585-0	01	1	-
13	02.379 COUPLING; DISTR 02.374 ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94237-156-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-530-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94322-991-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-330-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94172-150-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-469-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94206-165-0	01	1	-
45	02.363 BUSHING; DUST,HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94322-992-0	01	1	-
45	02.363 BUSHING; DUST,HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94322-992-0	02	1	-
46	02.384 POINT; CARBON,DISTR 02.367 ASM PART: A = 8-94341-340-0, 94341340, D = 8-97040-454-0, 97040454	9-82315-088-0	01	1	-
49	02.393 BOLT; CAP,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-97082-004-0	03	1	-
64	02.383 SCREW; ROTOR,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-97122-534-0	01	1	-

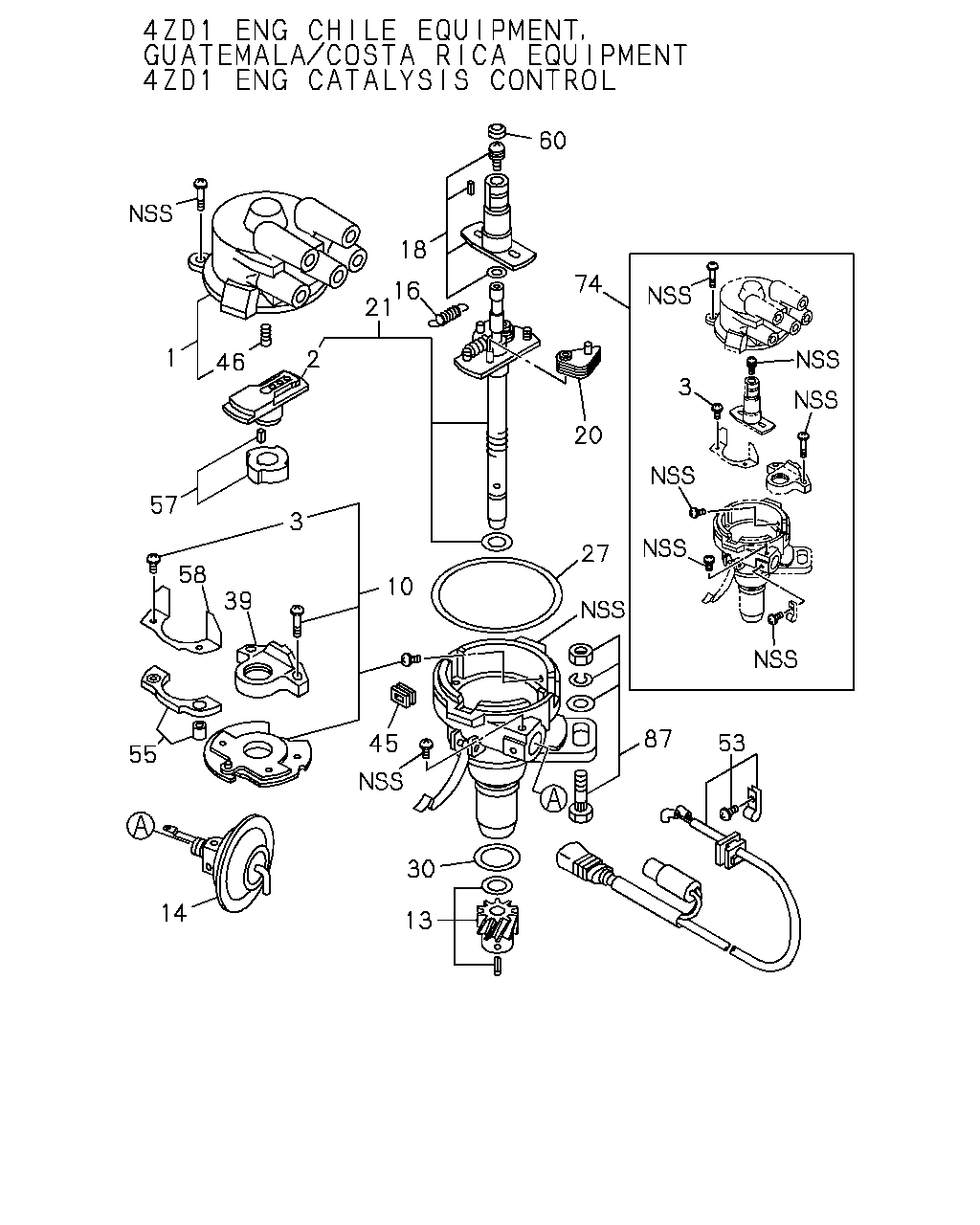

1 46 2 21 16 18 60 74 20 3 27 87 53 13 30 45 10 3 39 58 57 55 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.367 CAP; DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-537-0	01	1	-
1	02.367 CAP; DISTR ASM PART: A = 8-94341-340-0, 94341340, D = 8-97040-454-0, 97040454	8-94322-990-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-468-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: B = 8-94450-250-1, 94450250	8-94221-206-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94338-910-0	01	1	-
2	02.382 ROTOR; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-327-0	01	1	-
3	02.385 SCREW; BREAKER,DISTR 02.387, (A) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94206-155-0	02	1	-
3	02.385 SCREW; BREAKER,DISTR (B) ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94212-645-0	02	1	-
3	02.385 SCREW; BREAKER,DISTR 02.379 ASM PART: A = 8-94341-340-0, 94341340	8-94243-354-0	02	1	-
10	02.381 PLATE; BREAKER,DIST ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94129-198-0	01	1	-
10	02.381 PLATE; BREAKER,DIST ASM PART: A = 8-94341-340-0, 94341340	8-94172-142-0	01	1	-
13	02.379 COUPLING; DISTR 02.374 ASM PART: A = 8-94341-340-0, 94341340	8-94172-146-0	01	1	-
13	02.379 COUPLING; DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-585-0	01	1	-
13	02.379 COUPLING; DISTR 02.374 ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94237-156-0	01	1	-
14	02.410 CONTROL; VAC,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-532-0	01	1	-
14	02.410 CONTROL; VAC,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94382-439-0	01	1	-
16	02.389 SPRING; GOV,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94172-140-0	01	1	-
18	02.382 CAM; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94129-218-0	01	1	-
18	02.382 CAM; DISTR 02.372 ASM PART: A = 8-94341-340-0, 94341340	8-94172-141-0	01	1	-
18	02.382 CAM; DISTR ASM PART: B = 8-94450-250-1, 94450250	8-94321-536-0	01	1	-
20	02.388 FLYWEIGHT; GOV,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94172-139-0	02	1	-
21	02.372 SHAFT; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-326-0	01	1	-
21	02.372 SHAFT; DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94480-330-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94321-530-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94322-991-0	01	1	-
27	02.367 GASKET; HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94360-330-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94172-150-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94174-469-0	01	1	-
30	02.363 GASKET; HSG,DISTR ASM PART: B = 8-94450-250-1, 94450250, C = 8-94476-142-1, 94476142	8-94206-165-0	01	1	-
39	02.383 MODULE; DISTR 02.361 ASM PART: A = 8-94341-340-0, 94341340	8-94243-344-0	01	1	-
45	02.363 BUSHING; DUST,HSG,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94322-992-0	01	1	-
45	02.363 BUSHING; DUST,HSG,DISTR ASM PART: D = 8-97040-454-0, 97040454	8-94322-992-0	02	1	-
46	02.384 POINT; CARBON,DISTR 02.367 ASM PART: A = 8-94341-340-0, 94341340, D = 8-97040-454-0, 97040454	9-82315-088-0	01	1	-
53	02.393 WIRE; LEAD,DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94382-438-0	01	1	-
55	02.383 MAGNET SET; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94243-342-1	01	1	-
57	02.383 RETRACTOR; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94243-340-0	01	1	-
58	02.383 STATOR; DISTR ASM PART: A = 8-94341-340-0, 94341340	8-94243-341-0	01	1	-
60	02.363 GASKET; CAM,DISTR ASM PART: A = 8-94341-340-0, 94341340	5-81349-003-0	01	1	-
74	02.379 SCREW SET; DISTR 03.308 ASM PART: A = 8-94341-340-0, 94341340	8-94360-329-0	01	1	-
87	02.362 PLATE; DISTR 02.381 ASM PART: A = 8-94341-340-0, 94341340	8-94172-149-0	01	1	-
87	02.362 PLATE; DISTR ASM PART: C = 8-94476-142-1, 94476142	8-94321-527-0	01	1	-
