Sayfa 0-66 - Isuzu EPC

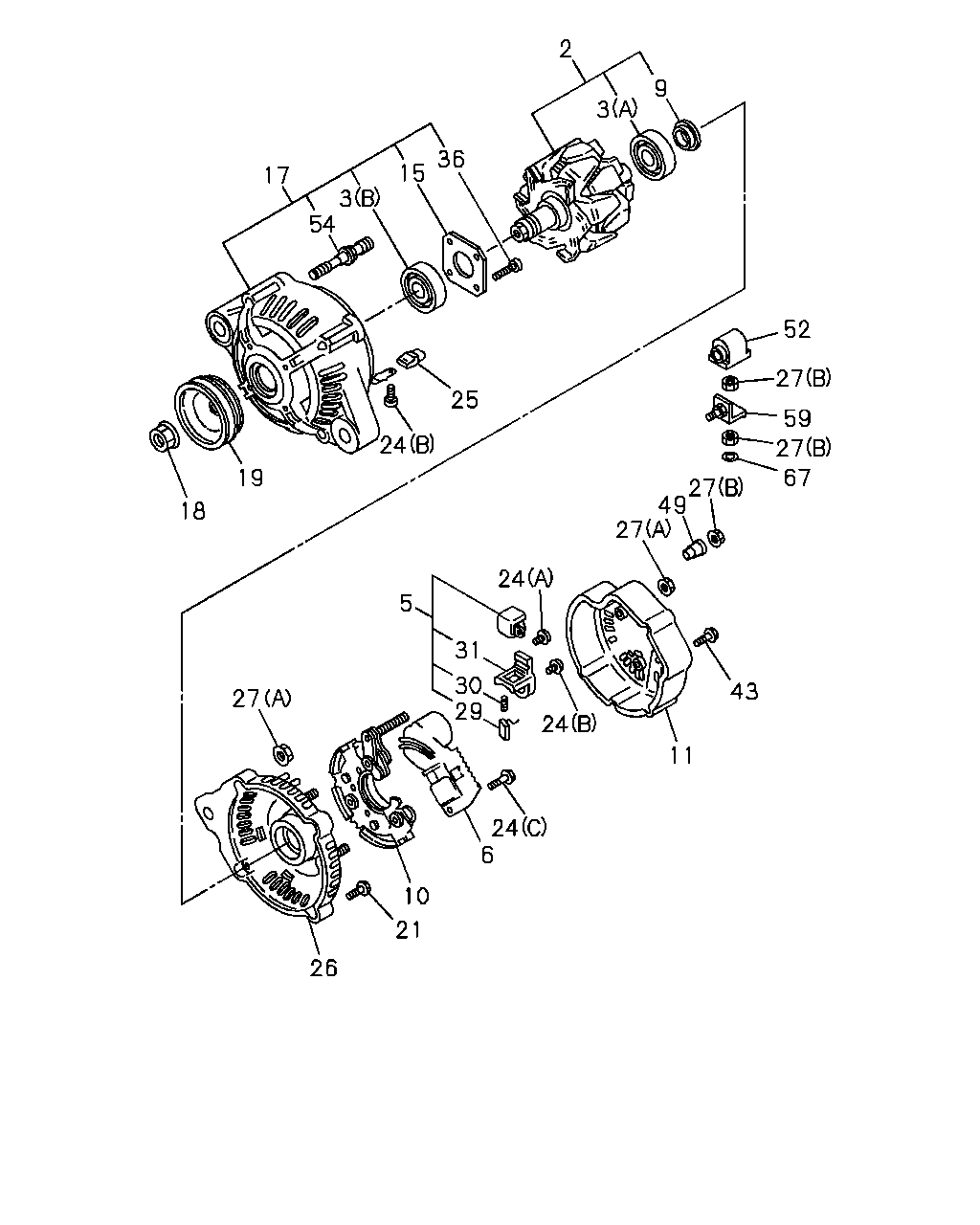

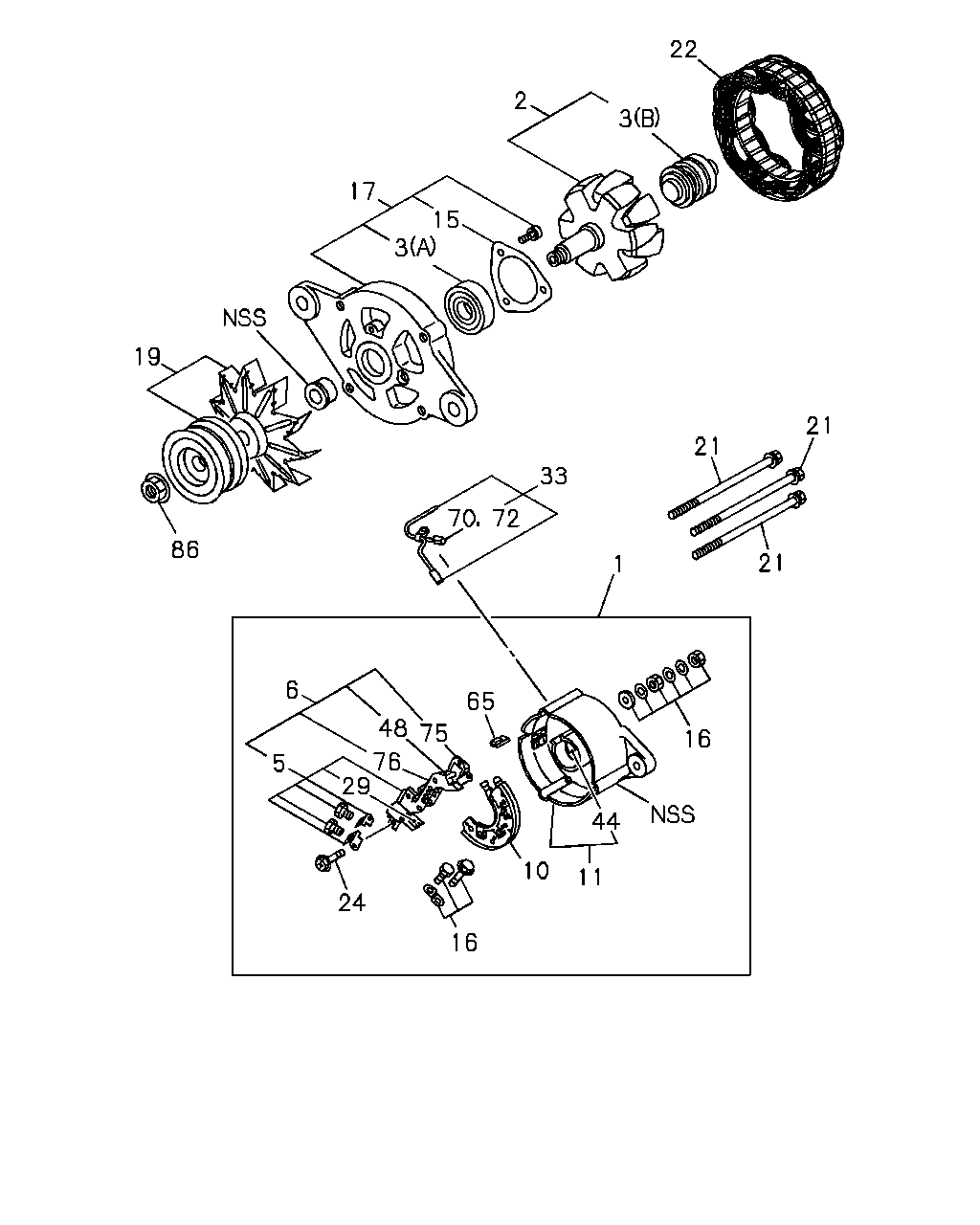

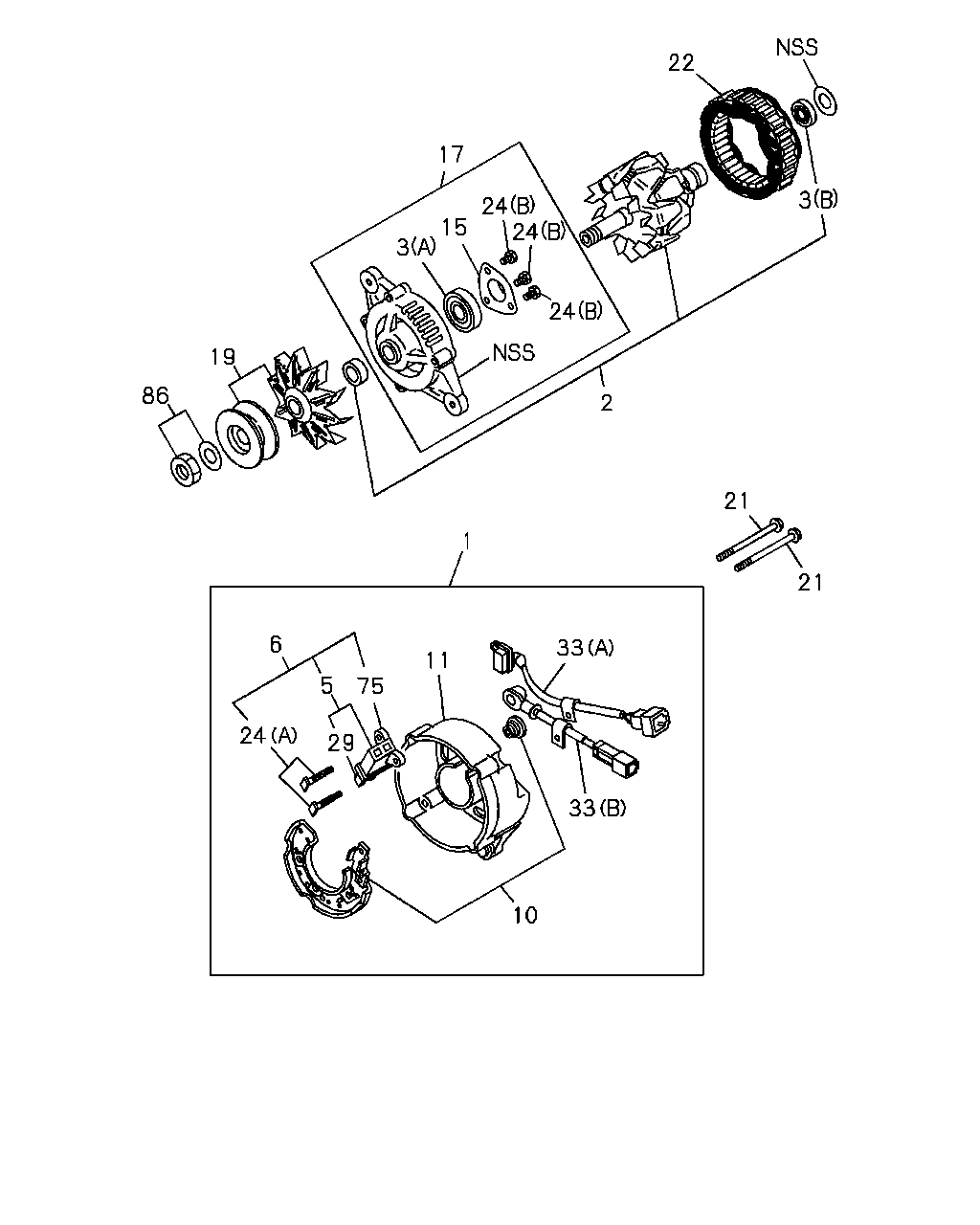

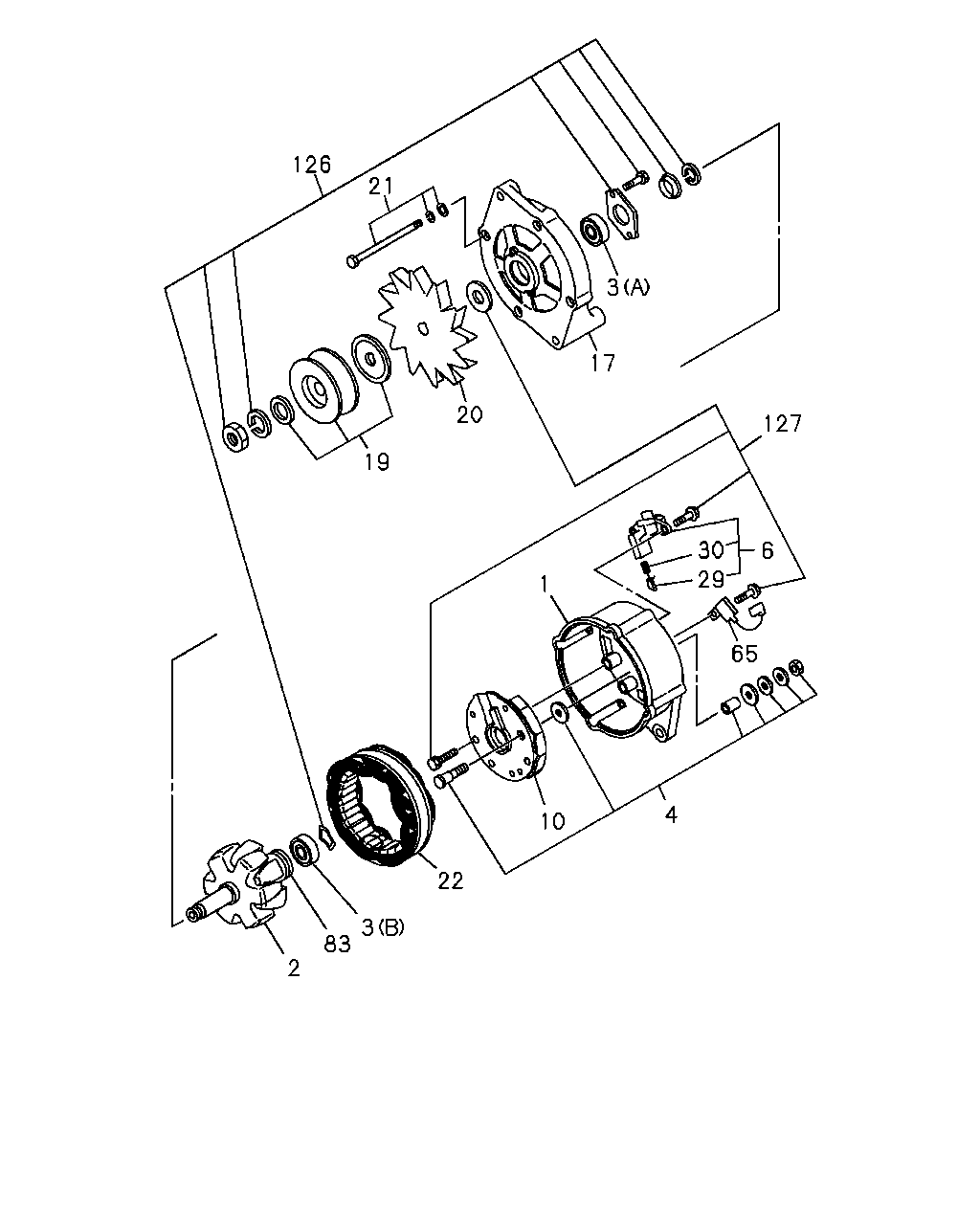

0-66 — GENERATOR (#48013) — 1131 parça

17 2 9 3 36 15 3 54 25 24 19 18 27 5 24 30 31 29 24 11 24 6 10 21 26 43 27 49 27 67 27 59 27 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: K = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: K = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-1, 94156672	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: J = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-013-1	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94159-781-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-720-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-478-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-051-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
11	02.305 COVER; RR,GEN 02.297 ASM PART: H = 8-94401-793-2, 94401793	5-81214-091-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: I = 8-94405-045-3, 94405045	5-81214-116-1	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81214-132-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-1, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-718-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-029-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: J = 8-94454-188-1, 94454188	8-94455-165-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, BEARING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-055-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, PACKING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-058-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-1, 94156672	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-980-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-287-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-287-0	01	1	-9411
19	02.274 PULLEY; GEN 02.247 ASM PART: H = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816, L = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: H = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: D = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: D = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: H = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: J = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: J = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: A = 8-94156-672-1, 94156672	8-94123-059-0	04	1	-
26	02.297 COVER; RR END,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94178-603-0	01	1	-
26	02.297 COVER; RR END,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-158-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94123-064-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94156-672-1, 94156672	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: J = 8-94454-188-1, 94454188	8-94206-186-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-577-0	02	1	-9411
27	02.291 NUT; RECTIFIER,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-577-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-605-0	01	1	9412-
31	02.291 SHEET; BRUSH,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-014-1	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	02	1	-9411
36	02.277 SCREW; FRT COVER ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	02	1	-
43	02.307 SCREW; RR END COVER 02.316 ASM PART: J = 8-94454-188-1, 94454188	8-94455-163-0	03	1	-
49	02.313 BUSHING; RECTIFIER,GEN 02.298 ASM PART: A = 8-94156-672-1, 94156672	8-94123-063-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN 02.291 ASM PART: J = 8-94454-188-1, 94454188	8-94465-403-0	01	1	-
52	02.313 CAP; RUBBER,TERMINAL ASM PART: J = 8-94454-188-1, 94454188	8-94465-405-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: A = 8-94156-672-1, 94156672	8-94123-048-0	04	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-580-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-580-0	01	1	-9411
54	02.291 BOLT; RECTIFIER,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-156-0	02	1	-
59	02.297 PLATE; BRUSH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-404-0	01	1	-
67	02.307 COLLAR; SPACE,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94423-439-0	01	1	-

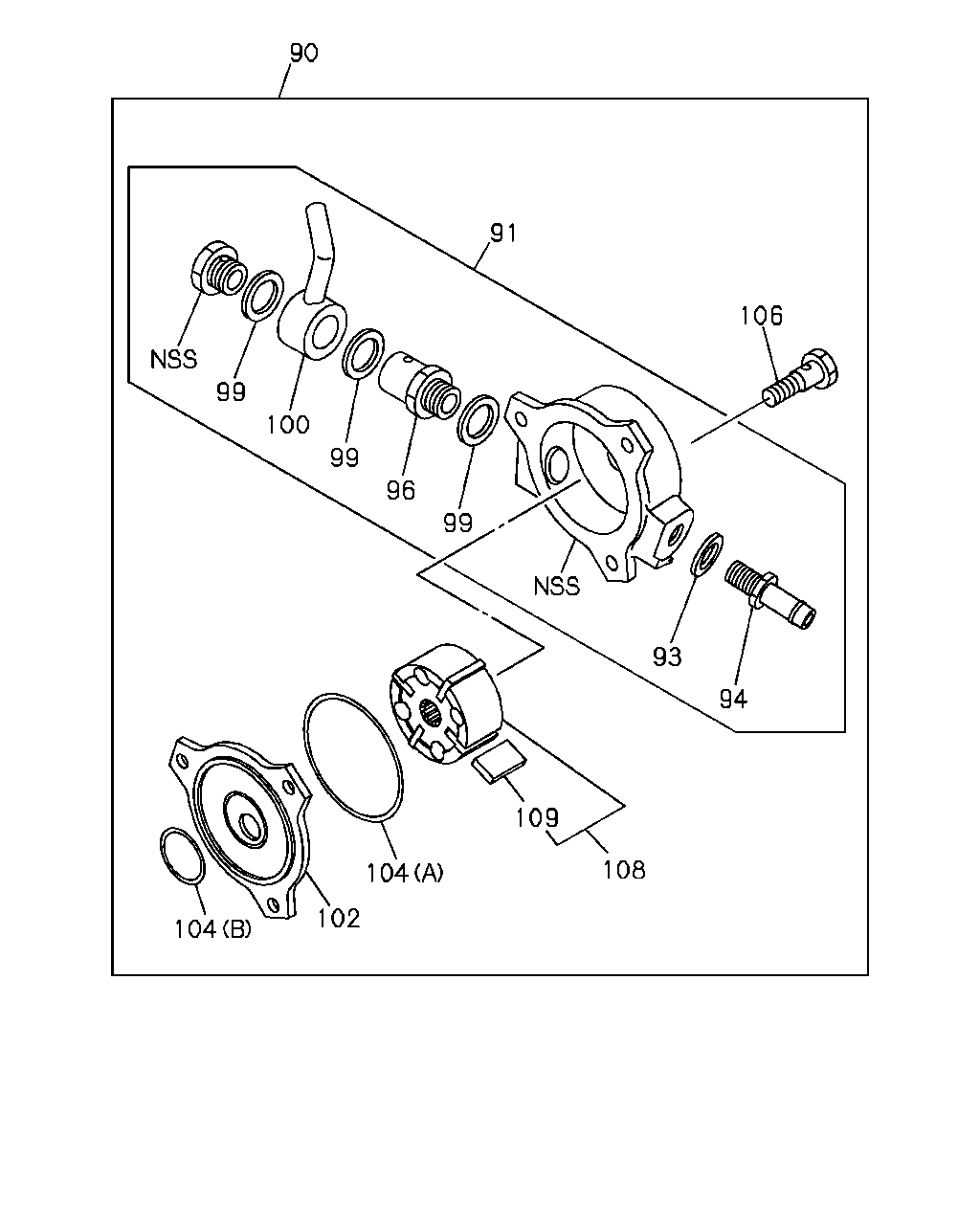

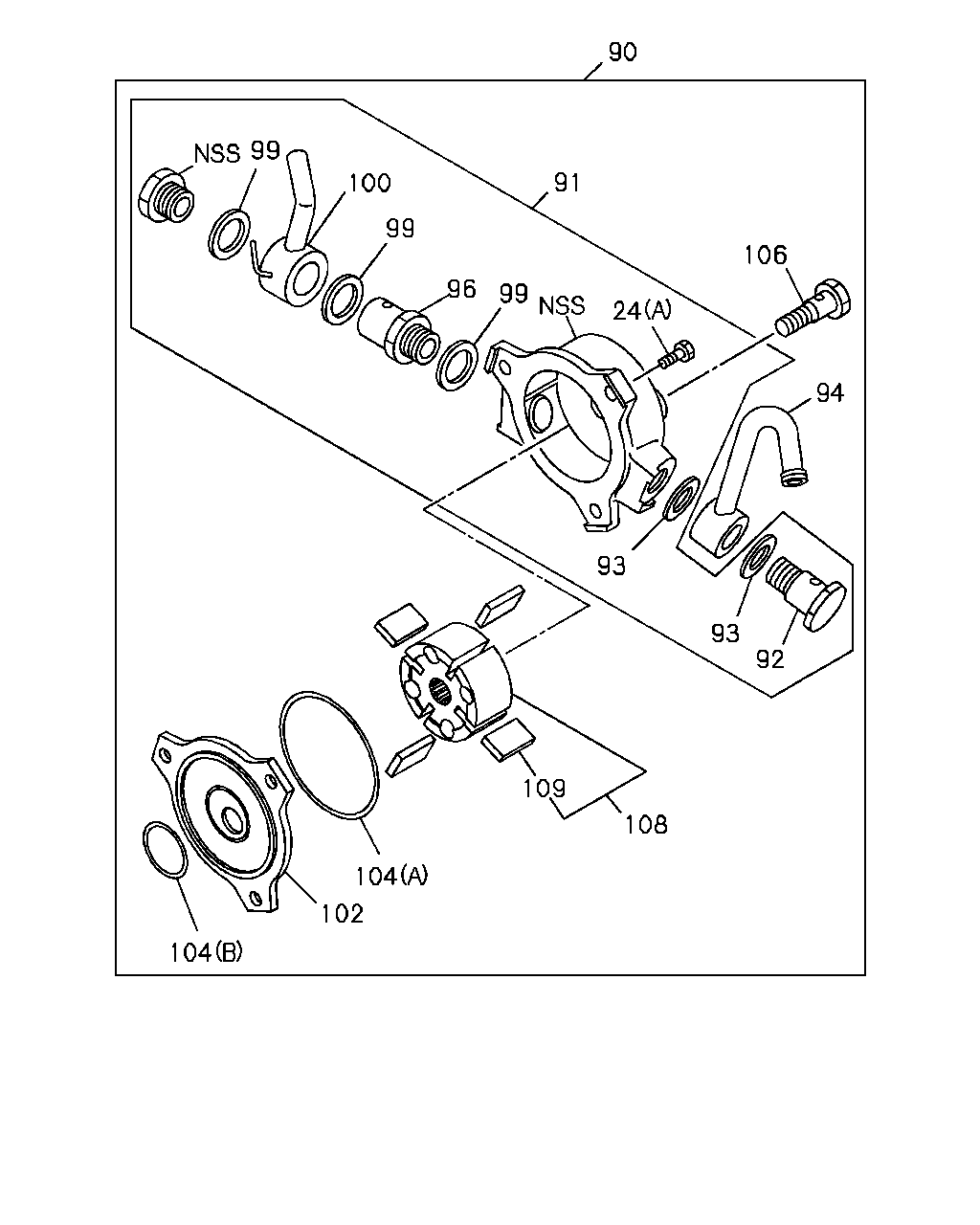

97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-

21 68 68 3 15 17 36 127 30 29 6 77 6 27 7 7 64 53 45 4 65 1 89 45 10 54 22 24 3 83 126 2 78 84 18 87 88 19 20 85 87 18 15 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81214-115-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-186-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94381-025-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-026-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
1	02.297 COVER ASM; RR,GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: K = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: K = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-1, 94156672	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: J = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
4	02.291 TERMINAL; BRUSH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-602-0	01	1	9412-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
7	02.291 WASHER; INSULATE,RECTIFIER,GEN LK WASHER ASM PART: L = 8-94472-817-4, 94472817	8-94379-576-0	02	1	-9411
7	02.291 WASHER; INSULATE,RECTIFIER,GEN LK WASHER ASM PART: K = 8-94472-816-3, 94472816	8-94379-576-0	02	1	-
7	02.291 WASHER; INSULATE,RECTIFIER,GEN PL WASHER ASM PART: L = 8-94472-817-4, 94472817	8-94379-579-0	01	1	-9411
7	02.291 WASHER; INSULATE,RECTIFIER,GEN PL WASHER ASM PART: K = 8-94472-816-3, 94472816	8-94379-579-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, BEARING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-055-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, PACKING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-058-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-1, 94156672	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-980-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-287-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-287-0	01	1	-9411
19	02.274 PULLEY; GEN 02.247 ASM PART: H = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816, L = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
20	02.274 FAN; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94330-008-0	01	1	-
20	02.274 FAN; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94330-008-0	01	1	-9411
20	02.274 FAN; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-599-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: H = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: D = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: D = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: H = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81211-054-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-114-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: J = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: J = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94123-064-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94156-672-1, 94156672	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: J = 8-94454-188-1, 94454188	8-94206-186-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-577-0	02	1	-9411
27	02.291 NUT; RECTIFIER,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-577-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-605-0	01	1	9412-
36	02.277 SCREW; FRT COVER ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	02	1	-9411
36	02.277 SCREW; FRT COVER ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	02	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-578-0	02	1	-9411
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-578-0	02	1	-
53	02.291 TUBE; RECTIFIER,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-575-0	01	1	-9411
53	02.291 TUBE; RECTIFIER,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-575-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: A = 8-94156-672-1, 94156672	8-94123-048-0	04	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-580-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-580-0	01	1	-9411
54	02.291 BOLT; RECTIFIER,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-156-0	02	1	-
64	02.319 SCREW; CONDENSER ASM PART: L = 8-94472-817-4, 94472817	8-94379-581-0	01	1	-9411
64	02.319 SCREW; CONDENSER ASM PART: K = 8-94472-816-3, 94472816	8-94379-581-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-582-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-582-0	01	1	-9411
65	02.319 CONDENSER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-598-0	01	1	9412-
68	02.277 WASHER; THROUGH BOLT,GEN LK WASHER ASM PART: L = 8-94472-817-4, 94472817	8-94379-570-0	04	1	-9411
68	02.277 WASHER; THROUGH BOLT,GEN LK WASHER ASM PART: K = 8-94472-816-3, 94472816	8-94379-570-0	04	1	-
68	02.277 WASHER; THROUGH BOLT,GEN PL WASHER ASM PART: L = 8-94472-817-4, 94472817	8-94379-571-0	04	1	-9411
68	02.277 WASHER; THROUGH BOLT,GEN PL WASHER ASM PART: K = 8-94472-816-3, 94472816	8-94379-571-0	04	1	-
77	02.319 SCREW; REG 02.277 ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	02	1	-
77	02.319 SCREW; REG 02.277 ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	02	1	-9411
78	02.307 CLIP; ROTOR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-561-0	01	1	-
78	02.307 CLIP; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-561-0	01	1	-9411
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-701-0	01	1	9412-
84	02.307 RING; SUPPORT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-562-0	01	1	-9411
84	02.307 RING; SUPPORT,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-562-0	01	1	-
85	02.277 SPACER; PULLEY,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-563-0	01	1	-9411
85	02.277 SPACER; PULLEY,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-563-0	01	1	-
87	02.307 WASHER; PULLEY,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-586-0	01	1	-
87	02.307 WASHER; PULLEY,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-586-0	01	1	-9411
88	02.277 WASHER; PL,PULLEY GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-584-0	01	1	-9411
88	02.277 WASHER; PL,PULLEY GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-584-0	01	1	-
89	02.291 BOLT; RECTIFIER,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-573-0	01	1	-9411
89	02.291 BOLT; RECTIFIER,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-573-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-
126	02.279 RETAINER KIT; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-600-0	01	1	9412-
127	02.277 BOLT SET; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97161-598-0	01	1	9412-

22 3 2 15 3 17 19 86 70 72 33 1 21 21 21 16 44 11 10 65 48 75 6 5 29 24 16 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81214-115-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-186-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94381-025-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-026-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
1	02.297 COVER ASM; RR,GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: K = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: K = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-1, 94156672	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: J = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-013-1	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94159-781-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-720-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-478-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
11	02.305 COVER; RR,GEN 02.297 ASM PART: H = 8-94401-793-2, 94401793	5-81214-091-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: I = 8-94405-045-3, 94405045	5-81214-116-1	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81214-132-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-1, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-718-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-029-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: J = 8-94454-188-1, 94454188	8-94455-165-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, BEARING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-055-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, PACKING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-058-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-1, 94156672	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.319 ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-81229-175-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-980-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
19	02.274 PULLEY; GEN 02.247 ASM PART: H = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816, L = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: H = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: D = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: D = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: H = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81211-054-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-114-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: J = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: J = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	8-94237-731-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: H = 8-94401-793-2, 94401793	8-94252-184-0	01	1	-
33	02.500 WIRE; LEAD,GEN RIGHT ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-724-0	01	1	-
33	02.500 WIRE; LEAD,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-725-0	01	1	-
33	02.500 WIRE; LEAD,GEN RIGHT ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-400-0	01	1	-
33	02.500 WIRE; LEAD,GEN 02.313, (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94411-285-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-003-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: N = 8-97137-004-0, 97137004	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: O = 8-97137-009-0, 97137009	8-97111-391-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-589-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-981-1	01	1	-
48	02.319 DIODE; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-582-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-582-0	01	1	-9411
65	02.319 CONDENSER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-598-0	01	1	9412-
70	02.319 CONDENSER; LEAD WIRE,GEN 02.279 ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94310-267-0	01	1	-
72	02.319 CONDENSER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-594-0	01	1	-
72	02.319 CONDENSER; GEN 02.279 ASM PART: O = 8-97137-009-0, 97137009	8-94310-267-0	01	1	-
72	02.319 CONDENSER; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94447-332-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-722-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-591-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94237-726-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94156-601-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-978-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97016-301-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: D = 8-94337-635-0, 94337635	9-82235-015-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-

126 20 17 3 21 19 127 6 30 1 29 65 4 10 22 3 83 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81214-115-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-186-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94381-025-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-026-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
1	02.297 COVER ASM; RR,GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: K = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: K = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-1, 94156672	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: J = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
4	02.291 TERMINAL; BRUSH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-602-0	01	1	9412-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-980-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
19	02.274 PULLEY; GEN 02.247 ASM PART: H = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816, L = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
20	02.274 FAN; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94330-008-0	01	1	-
20	02.274 FAN; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94330-008-0	01	1	-9411
20	02.274 FAN; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-599-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: H = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: D = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: D = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: H = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81211-054-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-114-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-605-0	01	1	9412-
65	02.319 CONDENSER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-582-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-582-0	01	1	-9411
65	02.319 CONDENSER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-598-0	01	1	9412-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-701-0	01	1	9412-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-
126	02.279 RETAINER KIT; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-600-0	01	1	9412-
127	02.277 BOLT SET; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97161-598-0	01	1	9412-

19 86 17 13 3 15 22 2 3 33 72 1 21 21 21 16 11 6 44 57 24 75 48 76 6 33 5 24 10 16 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81214-115-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-186-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94381-025-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-026-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
1	02.297 COVER ASM; RR,GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: K = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: K = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-1, 94156672	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: J = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-013-1	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94159-781-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-720-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-478-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
11	02.305 COVER; RR,GEN 02.297 ASM PART: H = 8-94401-793-2, 94401793	5-81214-091-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: I = 8-94405-045-3, 94405045	5-81214-116-1	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81214-132-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-1, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-718-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-029-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: J = 8-94454-188-1, 94454188	8-94455-165-0	01	1	-
13	02.298 GASKET; ROTOR,GEN 02.307 ASM PART: I = 8-94405-045-3, 94405045	9-82215-823-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, BEARING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-055-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, PACKING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-058-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-1, 94156672	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.319 ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-81229-175-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-980-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
19	02.274 PULLEY; GEN 02.247 ASM PART: H = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816, L = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: H = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: D = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: D = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: H = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81211-054-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-114-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: J = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: J = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	8-94237-731-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: H = 8-94401-793-2, 94401793	8-94252-184-0	01	1	-
33	02.500 WIRE; LEAD,GEN RIGHT ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-724-0	01	1	-
33	02.500 WIRE; LEAD,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-725-0	01	1	-
33	02.500 WIRE; LEAD,GEN RIGHT ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-400-0	01	1	-
33	02.500 WIRE; LEAD,GEN 02.313, (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94411-285-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-003-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: N = 8-97137-004-0, 97137004	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: O = 8-97137-009-0, 97137009	8-97111-391-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-589-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-981-1	01	1	-
48	02.319 DIODE; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94237-727-0	01	1	-
57	02.277 COVER; BRUSH,GEN 02.297 ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-982-0	01	1	-
72	02.319 CONDENSER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-594-0	01	1	-
72	02.319 CONDENSER; GEN 02.279 ASM PART: O = 8-97137-009-0, 97137009	8-94310-267-0	01	1	-
72	02.319 CONDENSER; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94447-332-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-722-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-591-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94237-726-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94156-601-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-978-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97016-301-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: D = 8-94337-635-0, 94337635	9-82235-015-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-

17 3 15 24 24 24 22 3 21 21 2 1 11 75 5 6 29 24 33 33 10 86 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81214-115-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-186-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94381-025-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-026-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
1	02.297 COVER ASM; RR,GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: O = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: N = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: J = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: K = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: K = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-1, 94156672	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: J = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: L = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: L = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-013-1	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94159-781-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-720-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-478-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-1, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
11	02.305 COVER; RR,GEN 02.297 ASM PART: H = 8-94401-793-2, 94401793	5-81214-091-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: I = 8-94405-045-3, 94405045	5-81214-116-1	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81214-132-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-1, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-718-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94381-029-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: J = 8-94454-188-1, 94454188	8-94455-165-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, BEARING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-055-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, PACKING RETAINER ASM PART: I = 8-94405-045-3, 94405045	5-81229-058-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-1, 94156672	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-980-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
19	02.274 PULLEY; GEN 02.247 ASM PART: H = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816, L = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-1, 94156672	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: H = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: D = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: D = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: H = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: J = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: K = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: I = 8-94405-045-3, 94405045	5-81211-054-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, N = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-94401-793-2, 94401793	8-94237-114-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: K = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: J = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: J = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: L = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: I = 8-94405-045-3, 94405045	8-94237-731-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: H = 8-94401-793-2, 94401793	8-94252-184-0	01	1	-
33	02.500 WIRE; LEAD,GEN RIGHT ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, O = 8-97137-009-0, 97137009	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-724-0	01	1	-
33	02.500 WIRE; LEAD,GEN (B) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-725-0	01	1	-
33	02.500 WIRE; LEAD,GEN RIGHT ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186	8-94408-400-0	01	1	-
33	02.500 WIRE; LEAD,GEN 02.313, (B) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94411-285-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-003-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: N = 8-97137-004-0, 97137004	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: O = 8-97137-009-0, 97137009	8-97111-391-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94361-722-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94156-601-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-978-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97016-301-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: D = 8-94337-635-0, 94337635	9-82235-015-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-

90 91 106 94 92 93 93 24 99 96 99 100 99 109 108 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: D = 8-94337-635-0, 94337635, E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-1, 94156672, J = 8-94454-188-1, 94454188	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-1, 94156672	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94337-636-0, 94337636, F = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: K = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: L = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: J = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: J = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-94320-407-1, 94320407	8-94335-640-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-94330-186-0, 94330186	8-94337-566-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94447-328-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94447-329-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-005-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97137-332-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-19613-004-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94156-607-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94424-381-0	01	1	-
92	03.280 BOLT; DELIVERY,VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-19619-031-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	5-19679-004-2	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-19679-004-2	02	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-19619-042-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-991-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060	8-94337-567-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: M = 8-97046-826-0, 97046826	8-94435-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793	8-94447-330-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: I = 8-94405-045-3, 94405045	8-94447-331-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP 04.830 ASM PART: C = 8-94330-186-0, 94330186	8-94156-606-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-988-1	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-995-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP 04.830 ASM PART: C = 8-94330-186-0, 94330186	8-94156-605-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-987-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407	8-94440-270-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-985-0	04	1	-

90 91 106 93 94 109 108 104 102 104 99 96 99 100 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-94320-407-1, 94320407	8-94335-640-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-94330-186-0, 94330186	8-94337-566-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-94405-045-3, 94405045	8-94447-328-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: H = 8-94401-793-2, 94401793	8-94447-329-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-97029-005-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97137-332-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-19613-004-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94156-607-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94424-381-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	5-19679-004-2	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-19679-004-2	02	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	5-19619-042-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-991-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060	8-94337-567-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: M = 8-97046-826-0, 97046826	8-94435-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793	8-94447-330-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: I = 8-94405-045-3, 94405045	8-94447-331-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP 04.830 ASM PART: C = 8-94330-186-0, 94330186	8-94156-606-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-988-1	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-995-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP 04.830 ASM PART: C = 8-94330-186-0, 94330186	8-94156-605-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045	8-94223-987-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-94382-060-0, 94382060, M = 8-97046-826-0, 97046826	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407	8-94440-270-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-94320-407-1, 94320407, C = 8-94330-186-0, 94330186, G = 8-94382-060-0, 94382060, H = 8-94401-793-2, 94401793, I = 8-94405-045-3, 94405045, M = 8-97046-826-0, 97046826, N = 8-97137-004-0, 97137004, O = 8-97137-009-0, 97137009	8-94223-985-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
