Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#48012) — 232 parça

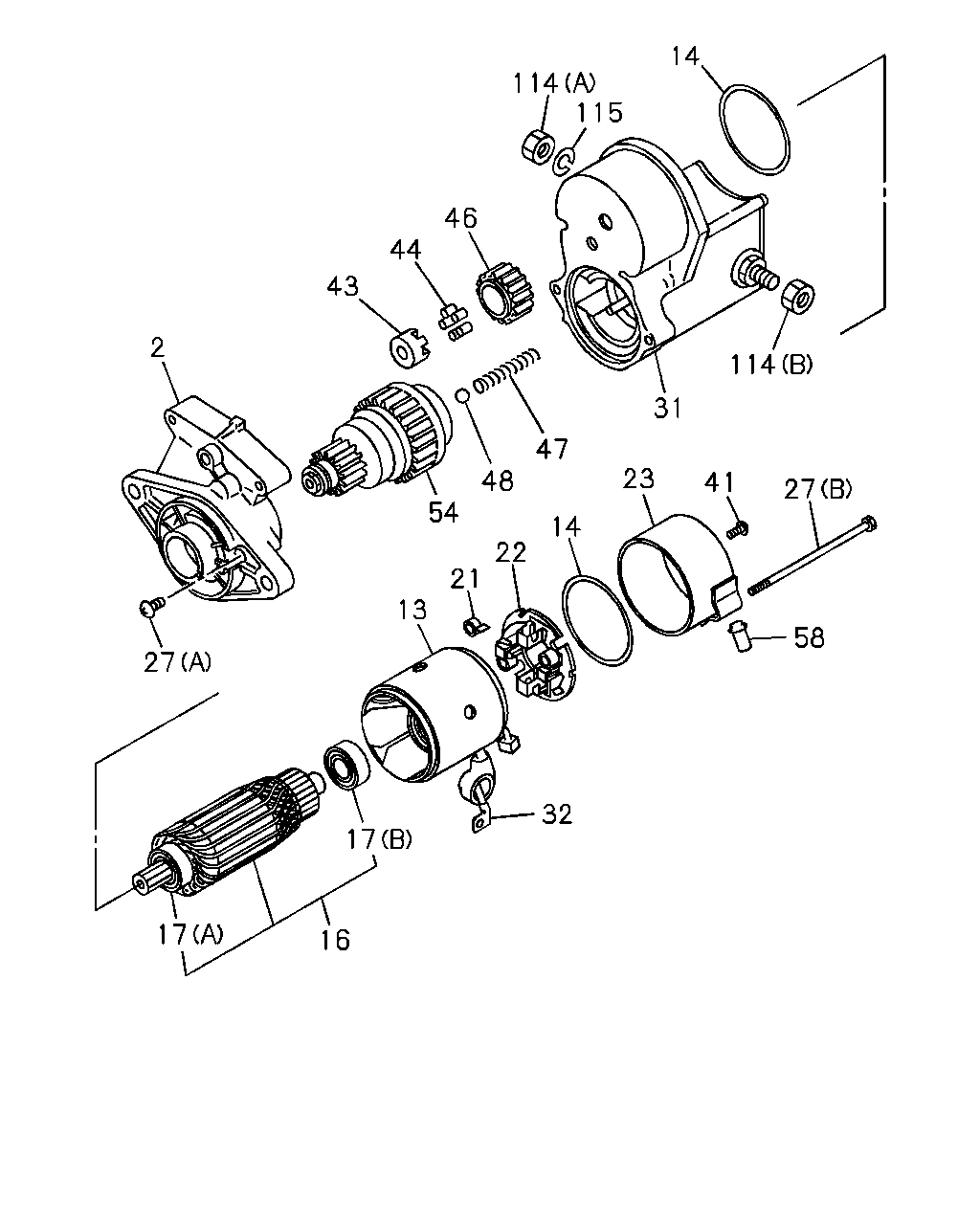

17 16 17 32 27 13 21 22 14 58 27 41 23 114 31 47 48 54 2 43 44 46 114 115 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94172-328-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94311-463-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94381-935-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-560-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81111-010-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81111-011-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-260-0	01	1	-9503
13	02.049 YOKE; STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-855-0	01	1	9504-
14	02.087 GASKET; YOKE,STARTER 02.086 ASM PART: C = 8-94448-959-1, 94448959	5-81129-210-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.049 ASM PART: B = 8-94371-833-1, 94371833	8-94170-214-0	02	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81121-031-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94324-346-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-259-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-555-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER 02.067, (B) ASM PART: A = 8-94156-671-0, 94156671	5-09800-040-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94156-671-0, 94156671	5-09800-079-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94371-833-1, 94371833	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94371-833-1, 94371833	8-94377-241-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81117-007-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94371-833-1, 94371833	5-81177-007-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94242-064-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-1, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: A = 8-94156-671-0, 94156671	5-81118-022-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: D = 8-94460-417-1, 94460417	8-94136-901-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-258-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97112-549-0, 97112549	8-97112-559-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: F = 8-97136-687-0, 97136687	8-97118-544-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94129-184-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94242-062-0	01	1	9409-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-257-0	01	1	-9503
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97032-145-0	01	1	9504-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-558-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER 02.104, (A) ASM PART: A = 8-94156-671-0, 94156671	5-81129-182-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 02.085, (B) ASM PART: A = 8-94156-671-0, 94156671	5-81129-183-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-1, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-1, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94242-071-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94371-833-1, 94371833	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94371-833-1, 94371833	8-94381-944-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-565-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94317-192-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94381-936-0	01	1	-9503
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-1, 94448959	8-94450-045-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-854-0	01	1	9504-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER 02.067 ASM PART: A = 8-94156-671-0, 94156671	8-94129-182-0	01	1	-
32	02.115 COVER; RUBBER,STARTER 02.067 ASM PART: B = 8-94371-833-1, 94371833	8-94129-182-0	01	1	-9503
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-852-0	01	1	9504-
41	02.067 SCREW; RR COVER,STARTER 02.049 ASM PART: A = 8-94156-671-0, 94156671	5-81129-181-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94170-216-0	02	1	-9503
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-853-0	02	1	9504-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-94156-671-0, 94156671, C = 8-94448-959-1, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94435-570-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: A = 8-94156-671-0, 94156671, B = 8-94371-833-1, 94371833, C = 8-94448-959-1, 94448959	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: C = 8-94448-959-1, 94448959	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-94448-959-1, 94448959	5-81123-011-0	01	1	-
46	02.086 GEAR; CLU STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94129-183-0	01	1	-
46	02.086 GEAR; CLU STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-247-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: A = 8-94156-671-0, 94156671, C = 8-94448-959-1, 94448959	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671, B = 8-94371-833-1, 94371833, C = 8-94448-959-1, 94448959	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81124-003-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94129-187-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94324-621-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-252-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97047-548-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: B = 8-94371-833-1, 94371833	8-94377-239-0	01	1	-
114	02.055 NUT; TERMINAL 02.042 ASM PART: C = 8-94448-959-1, 94448959	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (A) ASM PART: A = 8-94156-671-0, 94156671, B = 8-94371-833-1, 94371833	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (B) ASM PART: B = 8-94371-833-1, 94371833	8-94377-238-0	01	1	-
114	02.055 NUT; TERMINAL 00.787, (B) ASM PART: A = 8-94156-671-0, 94156671	9-09111-408-0	01	1	-
115	02.063 WASHER; TERMINAL 00.002, ID=8.2 ASM PART: A = 8-94156-671-0, 94156671	9-09150-508-0	01	1	-

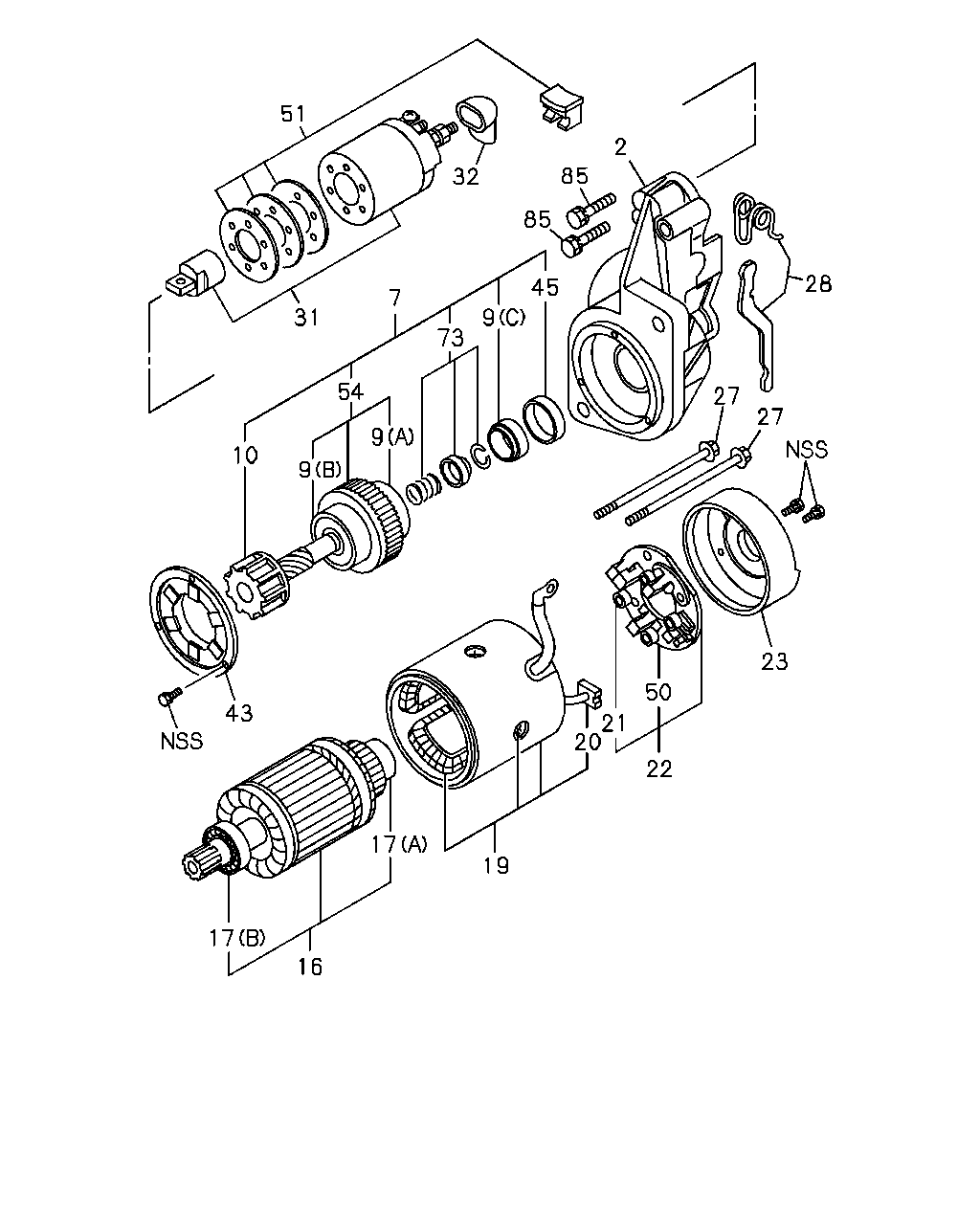

51 32 85 2 85 45 7 31 54 73 9 28 27 27 23 50 22 9 9 21 20 19 17 16 17 43 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94172-328-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94311-463-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94381-935-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-560-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94435-563-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97047-547-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: D = 8-94460-417-1, 94460417	8-94228-448-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: D = 8-94460-417-1, 94460417	8-94228-449-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: D = 8-94460-417-1, 94460417	8-94435-566-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97047-551-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94324-622-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81121-031-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94324-346-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-259-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-555-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER 02.067, (B) ASM PART: A = 8-94156-671-0, 94156671	5-09800-040-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94156-671-0, 94156671	5-09800-079-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94371-833-1, 94371833	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94371-833-1, 94371833	8-94377-241-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94136-899-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97112-549-0, 97112549	8-97112-556-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: F = 8-97136-687-0, 97136687	8-97118-543-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81116-040-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94136-900-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-97112-549-0, 97112549	8-97112-557-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: F = 8-97136-687-0, 97136687	8-97113-285-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81117-007-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94371-833-1, 94371833	5-81177-007-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94242-064-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-1, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: A = 8-94156-671-0, 94156671	5-81118-022-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: D = 8-94460-417-1, 94460417	8-94136-901-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-258-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97112-549-0, 97112549	8-97112-559-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: F = 8-97136-687-0, 97136687	8-97118-544-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94129-184-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94242-062-0	01	1	9409-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-257-0	01	1	-9503
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97032-145-0	01	1	9504-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-558-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER 02.104, (A) ASM PART: A = 8-94156-671-0, 94156671	5-81129-182-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 02.085, (B) ASM PART: A = 8-94156-671-0, 94156671	5-81129-183-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-1, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-1, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94242-071-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94371-833-1, 94371833	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94371-833-1, 94371833	8-94381-944-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-565-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94435-571-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94317-192-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94381-936-0	01	1	-9503
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-1, 94448959	8-94450-045-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-854-0	01	1	9504-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER 02.067 ASM PART: A = 8-94156-671-0, 94156671	8-94129-182-0	01	1	-
32	02.115 COVER; RUBBER,STARTER 02.067 ASM PART: B = 8-94371-833-1, 94371833	8-94129-182-0	01	1	-9503
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-852-0	01	1	9504-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-94156-671-0, 94156671, C = 8-94448-959-1, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94435-570-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94435-567-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94136-900-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-97112-549-0, 97112549	8-97112-557-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: F = 8-97136-687-0, 97136687	8-97113-285-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94435-572-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81124-003-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94129-187-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94324-621-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-252-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97047-548-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER 02.041 ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	5-81129-294-0	02	1	-

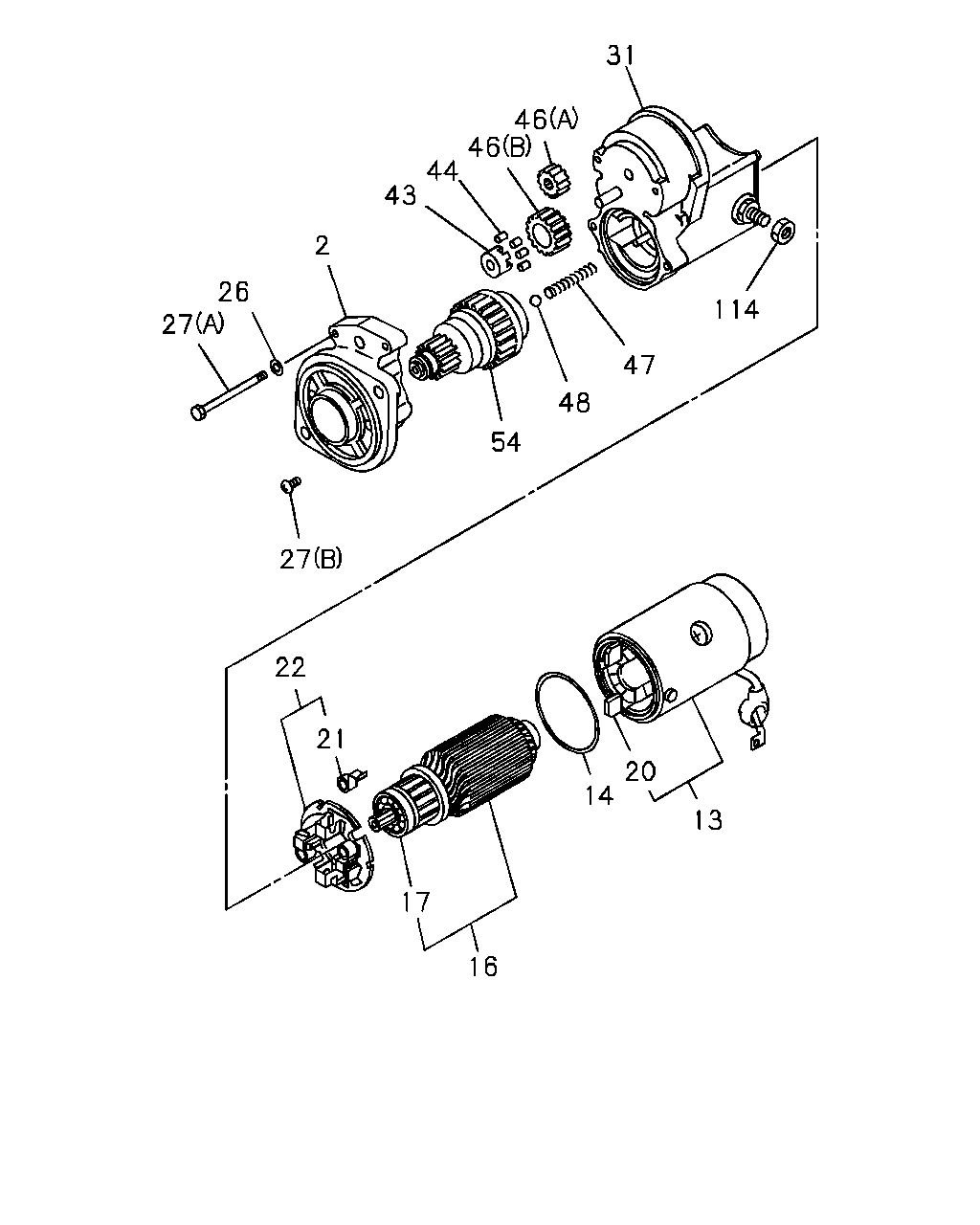

26 27 2 43 44 46 46 31 114 48 47 54 27 22 21 17 16 14 20 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94172-328-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94311-463-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94381-935-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-560-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81111-010-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81111-011-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-260-0	01	1	-9503
13	02.049 YOKE; STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-855-0	01	1	9504-
14	02.087 GASKET; YOKE,STARTER 02.086 ASM PART: C = 8-94448-959-1, 94448959	5-81129-210-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.049 ASM PART: B = 8-94371-833-1, 94371833	8-94170-214-0	02	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81121-031-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94324-346-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-259-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-555-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER 02.067, (B) ASM PART: A = 8-94156-671-0, 94156671	5-09800-040-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94156-671-0, 94156671	5-09800-079-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94371-833-1, 94371833	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94371-833-1, 94371833	8-94377-241-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81116-040-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94136-900-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-97112-549-0, 97112549	8-97112-557-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: F = 8-97136-687-0, 97136687	8-97113-285-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94156-671-0, 94156671	5-81117-007-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94371-833-1, 94371833	5-81177-007-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94242-064-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-1, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: A = 8-94156-671-0, 94156671	5-81118-022-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: D = 8-94460-417-1, 94460417	8-94136-901-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-258-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97112-549-0, 97112549	8-97112-559-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: F = 8-97136-687-0, 97136687	8-97118-544-0	01	1	-
26	02.077 SEAL; THROUGH BOLT STARTER 02.085 ASM PART: C = 8-94448-959-1, 94448959	5-81129-211-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 02.104, (A) ASM PART: A = 8-94156-671-0, 94156671	5-81129-182-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 02.085, (B) ASM PART: A = 8-94156-671-0, 94156671	5-81129-183-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-1, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-1, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94242-071-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94371-833-1, 94371833	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94371-833-1, 94371833	8-94381-944-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97112-565-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94317-192-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94381-936-0	01	1	-9503
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-1, 94448959	8-94450-045-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1, 94371833	8-97125-854-0	01	1	9504-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-94156-671-0, 94156671, C = 8-94448-959-1, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: D = 8-94460-417-1, 94460417, E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-94435-570-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: A = 8-94156-671-0, 94156671, B = 8-94371-833-1, 94371833, C = 8-94448-959-1, 94448959	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: C = 8-94448-959-1, 94448959	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-94448-959-1, 94448959	5-81123-011-0	01	1	-
46	02.086 GEAR; CLU STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94129-183-0	01	1	-
46	02.086 GEAR; CLU STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-247-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: A = 8-94156-671-0, 94156671, C = 8-94448-959-1, 94448959	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671, B = 8-94371-833-1, 94371833, C = 8-94448-959-1, 94448959	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-1, 94448959	5-81124-003-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-94156-671-0, 94156671	8-94129-187-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-94460-417-1, 94460417	8-94324-621-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94371-833-1, 94371833	8-94377-252-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97112-549-0, 97112549, F = 8-97136-687-0, 97136687	8-97047-548-0	01	1	-
114	02.055 NUT; TERMINAL 02.042 ASM PART: C = 8-94448-959-1, 94448959	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (A) ASM PART: A = 8-94156-671-0, 94156671, B = 8-94371-833-1, 94371833	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (B) ASM PART: B = 8-94371-833-1, 94371833	8-94377-238-0	01	1	-
114	02.055 NUT; TERMINAL 00.787, (B) ASM PART: A = 8-94156-671-0, 94156671	9-09111-408-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
