0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#48011) — 96 parça

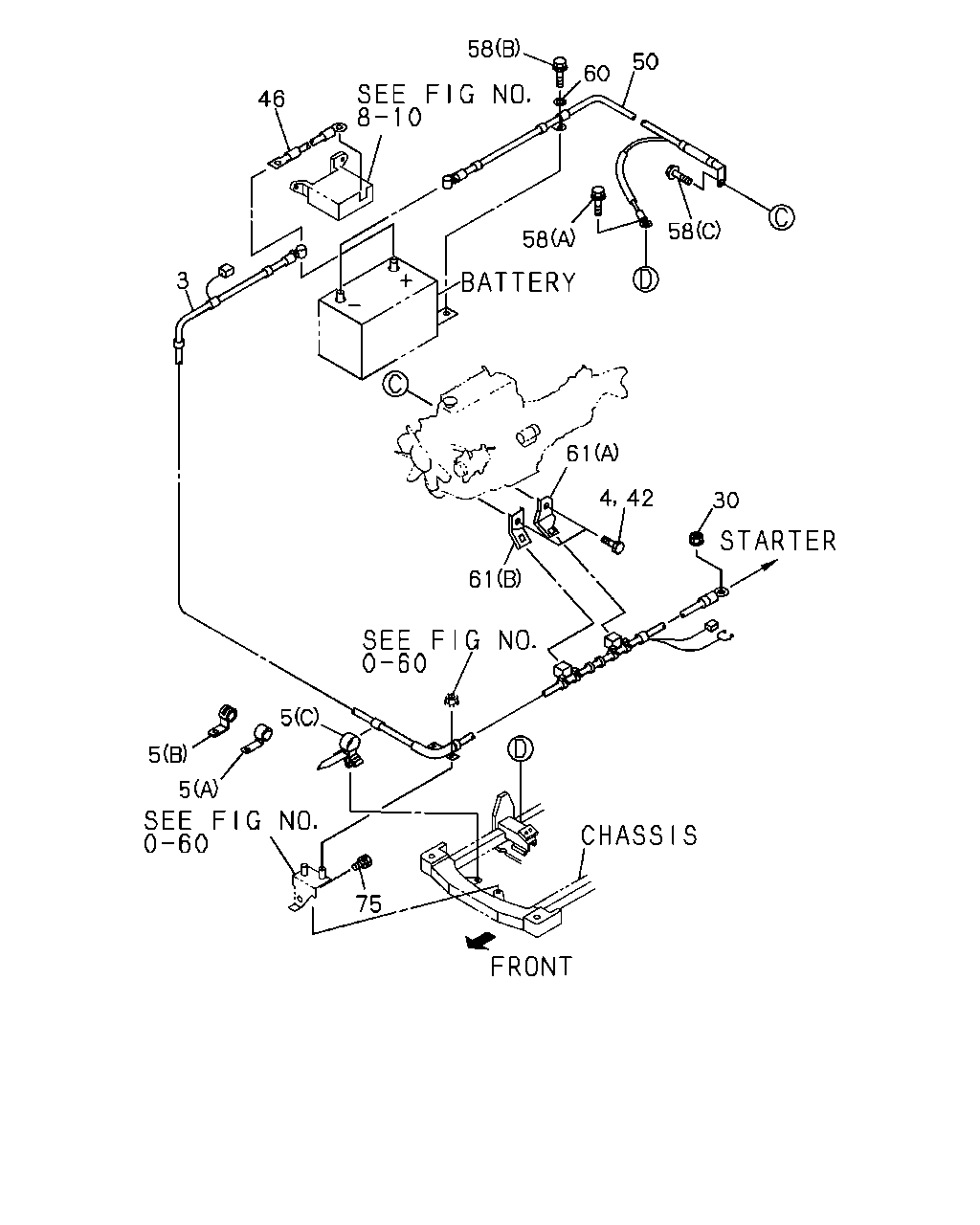

çizim 65555
75 5 5 5 61 30 42 4 61 58 50 60 58 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 34B19R S MF(6QV) 		8-94341-263-0 01 1 9210-9406 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 34B19R S MF(6QV) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94341-263-1 01 1 9407- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 34B19R S MF(6QV) 		8-94317-843-2 01 1 9210-9403 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. ELECTRIC FUEL INJECTION<6GG>, BATTERY 34B19R S MF(6QV) 		8-94317-843-3 01 1 9404- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-94317-842-2 01 1 9404-9405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97116-101-1 01 1 9406- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
ELECTRIC FUEL INJECTION<6GG> EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94386-293-1 01 1 9510- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97015-329-1 01 1 9210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94317-840-2 01 1 9210-9308 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97079-137-3 01 1 9210-9509 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97079-137-4 01 1 9510- ● ●
4 02.559 BOLT; BATTERY CABLE
00.206 M6X14 W/LK WASHER 		0-50040-614-0 02 1 9210-9308 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(C) L=142 		8-94232-619-0 01 1 9210-9308 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.343 (B) 		8-94329-852-0 01 1 9210-9308 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) D=20 		8-94451-259-0 02 1 9210-9308 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.587 (C) L=172 		8-94232-620-0 01 1 9210-9308 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.587 (C) L=172 		8-94232-620-0 01 1 9309-9509 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.587 (C) L=172 		8-94232-620-0 01 1 9510- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9210-9308 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9309-9509 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9510- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.206 M6X14 W/LK WASHER 		0-50040-614-0 02 1 9210-9509 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.206 M6X14 W/LK WASHER 		0-50040-614-0 02 1 9510- ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
BATTERY 34B19R S MF(6QV) 		8-94317-787-1 01 1 9210-9308 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-1 01 1 9210-9308 ● ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
BATTERY 34B19R S MF(6QV) 		8-94317-787-1 01 1 9309-9403 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-1 01 1 9309-9403 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
BATTERY 34B19R S MF(6QV) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94317-787-2 01 1 9404-9509 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
ELECTRIC FUEL INJECTION<6GG> 		8-94317-787-2 01 1 9404-9509 ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-2 01 1 9404-9509 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-2 01 1 9510- ● ● ● ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
BATTERY 34B19R S MF(6QV) 		8-94434-683-4 01 1 9210- ● ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-683-4 01 1 9210- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. BATTERY 34B19R S MF(6QV) 		8-94435-269-3 01 1 9210- ● ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-684-2 01 1 9210-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-685-3 01 1 9210-9509 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-685-3 01 1 9510- ● ●
58 02.343 BOLT; CABLE,BATTERY
13.090 (A) M6X22 W/LK&PL WASHER 		8-94122-769-0 01 1 9210-9210 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9211- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X22 		8-94122-771-0 01 1 9210-9210 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9211- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X16 		8-97807-251-0 01 1 9210-9406 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X16 		8-97807-251-0 01 1 9407-9504 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505-9509 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9510- ● ● ● ● ●
60 00.002 WASHER; LK,BATTERY CABLE
ID=10.2 		9-09150-510-0 01 1 9210-9210 ● ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE 8-94389-953-1 01 1 9210- ● ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97077-656-0 01 1 9210-9509 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97077-656-0 01 1 9510- ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-657-0 01 1 9210-9403 ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (B) 		8-94315-286-0 01 1 9404-9509 ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (B) 		8-94315-286-0 01 1 9510- ● ●
75 02.333 BOLT; BRKT
04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 9210-9308 ● ●
75 02.333 BOLT; BRKT
04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 9309-9509 ●
75 02.333 BOLT; BRKT
04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 9510- ● ●

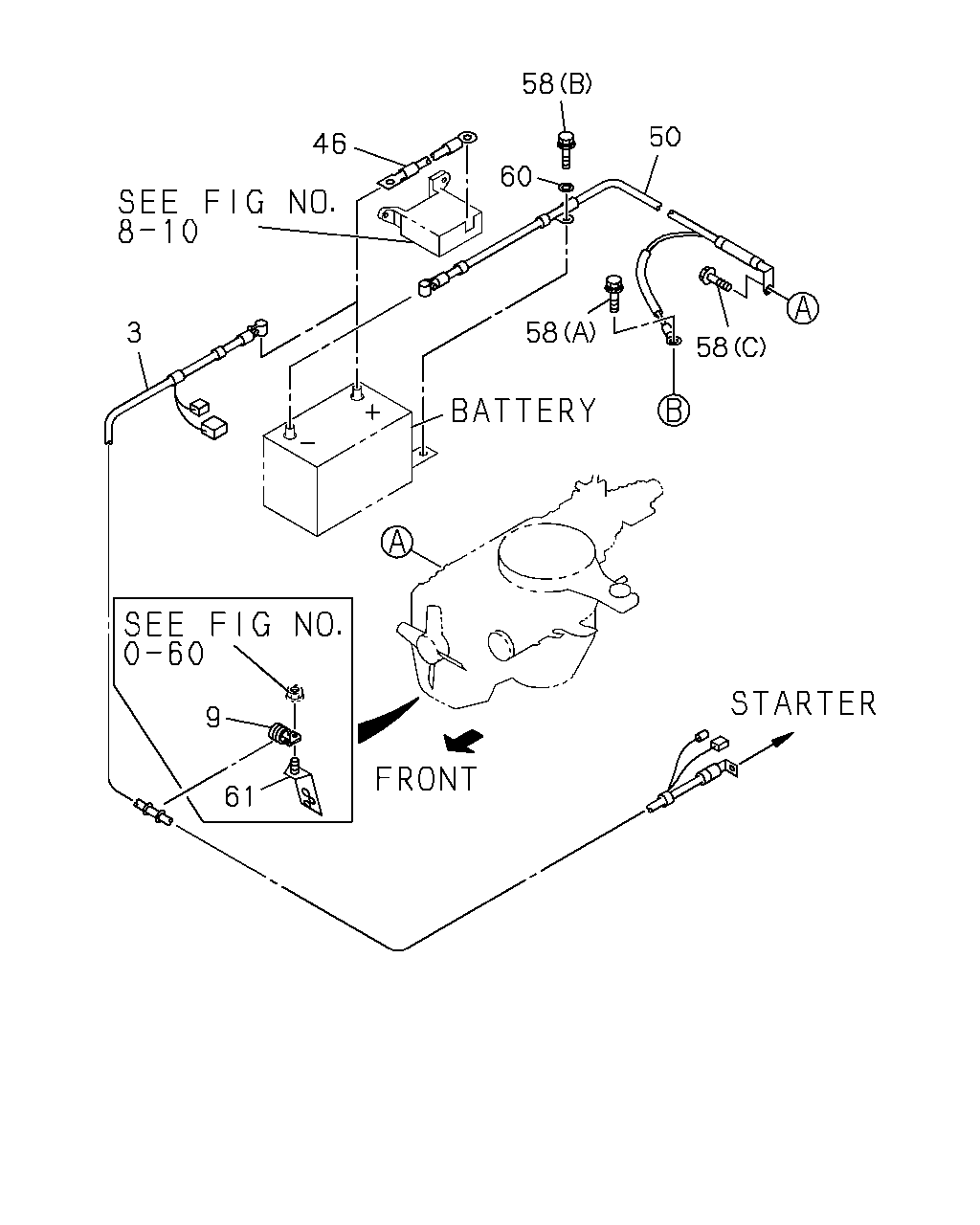

çizim 66039
3 9 61 58 58 50 60 58 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 34B19R S MF(6QV) 		8-94341-263-0 01 1 9210-9406 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 34B19R S MF(6QV) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94341-263-1 01 1 9407- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 34B19R S MF(6QV) 		8-94317-843-2 01 1 9210-9403 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. ELECTRIC FUEL INJECTION<6GG>, BATTERY 34B19R S MF(6QV) 		8-94317-843-3 01 1 9404- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-94317-842-2 01 1 9404-9405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97116-101-1 01 1 9406- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
ELECTRIC FUEL INJECTION<6GG> EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94386-293-1 01 1 9510- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97015-329-1 01 1 9210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94317-840-2 01 1 9210-9308 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97079-137-3 01 1 9210-9509 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97079-137-4 01 1 9510- ● ●
9 02.343 CLIP; BATTERY CABLE
02.559 ID=20.5 H=21 L=23 		8-94389-952-0 01 1 9210- ● ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
BATTERY 34B19R S MF(6QV) 		8-94317-787-1 01 1 9210-9308 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-1 01 1 9210-9308 ● ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
BATTERY 34B19R S MF(6QV) 		8-94317-787-1 01 1 9309-9403 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-1 01 1 9309-9403 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
BATTERY 34B19R S MF(6QV) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94317-787-2 01 1 9404-9509 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX
ELECTRIC FUEL INJECTION<6GG> 		8-94317-787-2 01 1 9404-9509 ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-2 01 1 9404-9509 ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-2 01 1 9510- ● ● ● ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
BATTERY 34B19R S MF(6QV) 		8-94434-683-4 01 1 9210- ● ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-683-4 01 1 9210- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. BATTERY 34B19R S MF(6QV) 		8-94435-269-3 01 1 9210- ● ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-684-2 01 1 9210-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-685-3 01 1 9210-9509 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94434-685-3 01 1 9510- ● ●
58 02.343 BOLT; CABLE,BATTERY
13.090 (A) M6X22 W/LK&PL WASHER 		8-94122-769-0 01 1 9210-9210 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9211- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X22 		8-94122-771-0 01 1 9210-9210 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9211- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X16 		8-97807-251-0 01 1 9210-9406 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X16 		8-97807-251-0 01 1 9407-9504 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505-9509 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9510- ● ● ● ● ●
60 00.002 WASHER; LK,BATTERY CABLE
ID=10.2 		9-09150-510-0 01 1 9210-9210 ● ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE 8-94389-953-1 01 1 9210- ● ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97077-656-0 01 1 9210-9509 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97077-656-0 01 1 9510- ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-657-0 01 1 9210-9403 ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (B) 		8-94315-286-0 01 1 9404-9509 ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (B) 		8-94315-286-0 01 1 9510- ● ●
