0-60 — ENGINE ELECTRICAL CONTROL PARTS (#48010) — 326 parça

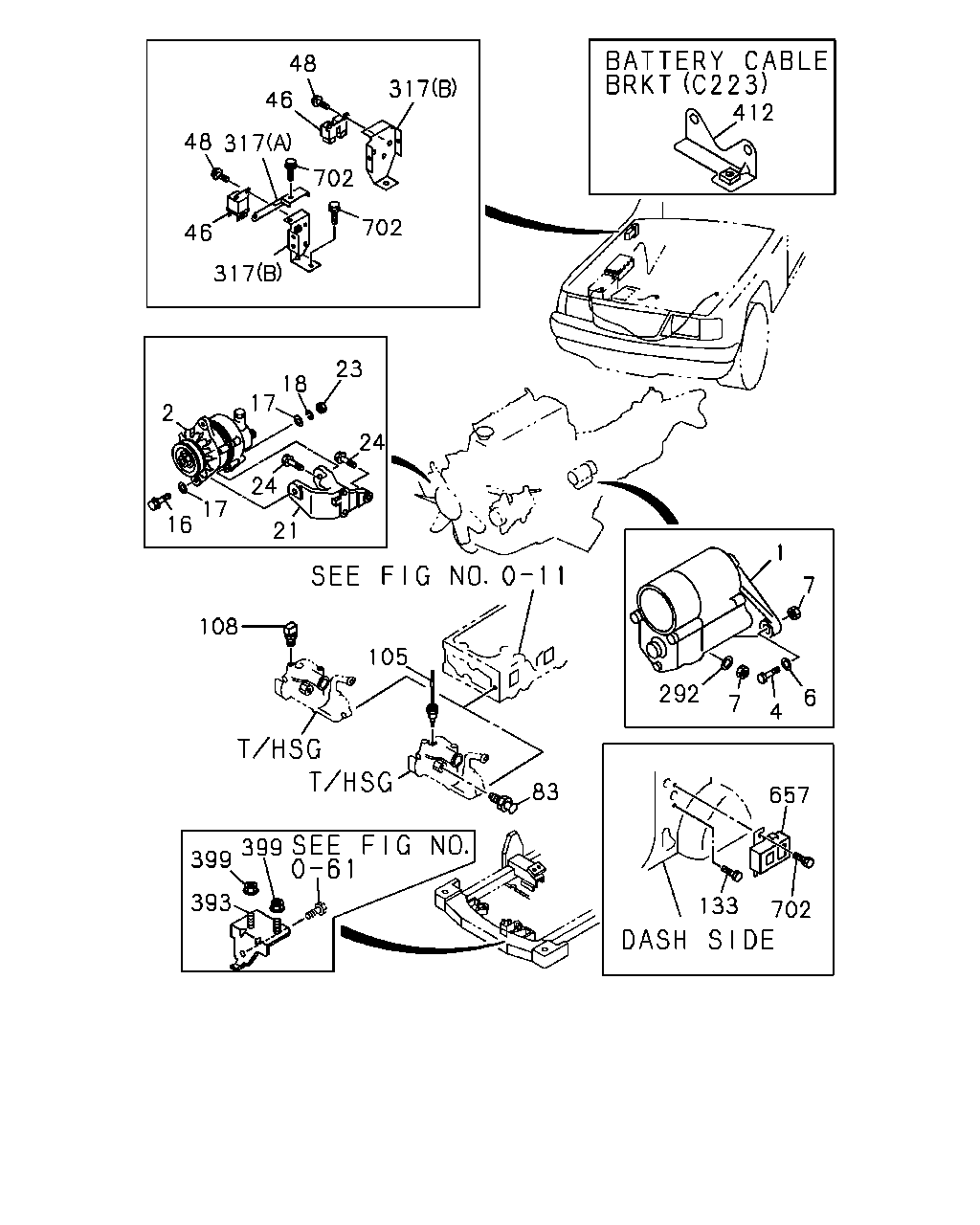

çizim 18161
48 46 48 317 46 702 317 317 702 412 24 23 18 17 2 16 17 24 21 108 105 83 399 393 399 133 702 657 6 4 7 292 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9210- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9210- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94448-959-1 01 1 9210-9308 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94460-417-1 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97112-549-0 01 1 9412-9509 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97112-549-0 01 1 9510-9511 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97136-687-0 01 1 9512- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 35A(K83) HITACHI 12V 35A 		8-94337-635-0 01 1 9210-9411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 40A(K78) HITACHI 12V 40A 		8-94337-636-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER(C60) HITACHI 12V 50A 		8-97046-826-0 01 1 9510-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 50A(RN9) HITACHI 12V 50A 		8-94337-637-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER(C60) HITACHI 12V 50A 		8-94382-060-0 01 1 9510-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HITACHI 12V 50A 		8-97137-009-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) BOSCH 12V 45A 		8-94472-816-3 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) BOSCH 12V 55A 		8-94472-817-4 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. BOSCH 12V 55A 		8-94472-817-4 01 1 9510- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) DENSO 12V 45A 		8-94454-188-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) DENSO 12V 55A 		8-94156-672-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 02.251 HITACHI 12V 50A 		8-94401-793-2 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) HITACHI 12V 40A 		8-94405-045-3 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) HITACHI 12V 50A 		8-94320-407-1 01 1 9210-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HITACHI 12V 40A 		8-97137-004-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) HITACHI 12V 50A 		8-94330-186-0 01 1 9210-9511 ●
4 02.042 BOLT; STARTER
05.130 M12X60 		0-10806-260-0 02 1 9210-9308 ●
4 02.042 BOLT; STARTER
07.347 M12X55 		0-10806-255-0 02 1 9309-9509 ●
4 02.042 BOLT; STARTER
07.347 M12X55 		0-10806-255-0 02 1 9510-9607 ● ●
4 02.042 BOLT; STARTER
00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9608- ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 04 1 9210-9308 ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 04 1 9309-9402 ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 04 1 9403-9509 ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 04 1 9510-9607 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9210- ● ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9210-9308 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9309-9607 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9609- ● ●
16 02.277 BOLT; GEN
GENERATOR 35A(K83) M8X107 L=120 		9-09801-030-1 01 1 9210-9411 ●
16 02.277 BOLT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) M10X118 		9-09801-061-1 01 1 9210-9509 ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9210-9603 ● ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9604- ● ●
16 02.277 BOLT; GEN
01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9210-9308 ●
16 02.277 BOLT; GEN
M10X130 		8-94402-322-1 01 1 9210-9304 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9305-9308 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9309- ● ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9210-9308 ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9309- ● ●
18 02.317 WASHER; LK,GEN
GENERATOR 35A(K83) 00.002 ID=8.2 		9-09150-508-0 01 1 9210-9411 ●
18 02.317 WASHER; LK,GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ● ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9510- ● ● ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 35A(K83) 		8-94450-237-1 01 1 9210-9411 ●
21 02.277 BRACKET; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 		8-94450-238-1 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9510- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9210- ●
21 02.277 BRACKET; GEN 8-94114-007-0 01 1 9210-9308 ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9210-9308 ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9309- ● ●
23 02.277 NUT; GEN
GENERATOR 35A(K83) 00.002 M8 		9-09110-508-0 01 1 9210-9411 ●
23 02.277 NUT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 M10 		9-09110-510-0 01 1 9210-9509 ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9210-9509 ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9510- ● ● ● ● ●
23 02.277 NUT; GEN
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9210-9405 ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9411 ●
24 02.277 BOLT; GEN BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9411 ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9411 ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9412-9509 ●
24 02.277 BOLT; GEN BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9412-9509 ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9412-9509 ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9210- ● ● ●
24 02.277 BOLT; GEN BRKT
00.029 M10X28 W/LK WASHER 		0-50041-028-0 04 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9309- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9309- ● ●
46 02.510 RELAY; GLOW PLUG 8-94248-161-0 01 1 9210-9308 ●
46 02.510 RELAY; GLOW PLUG 8-94459-495-0 01 1 9210-9509 ●
46 02.510 RELAY; GLOW PLUG 8-94459-495-0 01 1 9510- ● ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9210-9308 ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9210-9509 ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9510- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9210- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9210- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9210- ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9210-9509 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9510- ● ●
108 01.150 SWITCH; THERMO
CHILE EQUIPMENT(6KB) 		8-94158-361-0 01 1 9210-9403 ●
108 01.150 SWITCH; THERMO
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94158-361-0 01 1 9404-9411 ●
108 01.150 SWITCH; THERMO
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94158-361-0 01 1 9404-9411 ●
108 01.150 SWITCH; THERMO
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94158-361-0 01 1 9412- ●
108 01.150 SWITCH; THERMO
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94158-361-0 01 1 9412- ●
108 01.150 SWITCH; THERMO 8-94326-772-0 01 1 9210-9308 ●
133 02.500 BOLT; EGR CONTROLLER
03.342 M6X16 		8-97012-496-0 02 1 9301-9509 ●
133 02.500 BOLT; EGR CONTROLLER
03.342 M6X16 		8-97012-496-0 02 1 9510- ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9210-9308 ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9309-9402 ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9403-9509 ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9510-9607 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-94318-577-0 01 1 9210-9308 ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9210-9308 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9309-9509 ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9510- ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9210-9509 ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9510- ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9210-9308 ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9309-9509 ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9510- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9210- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9210-9308 ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9309-9509 ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9510- ● ●
412 02.343 BRACKET; BATTERY CABLE
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-94233-402-0 02 1 9210-9308 ●
657 02.510 TIMER; GLOW PLUG 8-97068-786-0 01 1 9210-9509 ●
657 02.510 TIMER; GLOW PLUG 8-97068-786-0 01 1 9510- ● ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9210-9308 ● ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9309-9509 ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510- ● ●

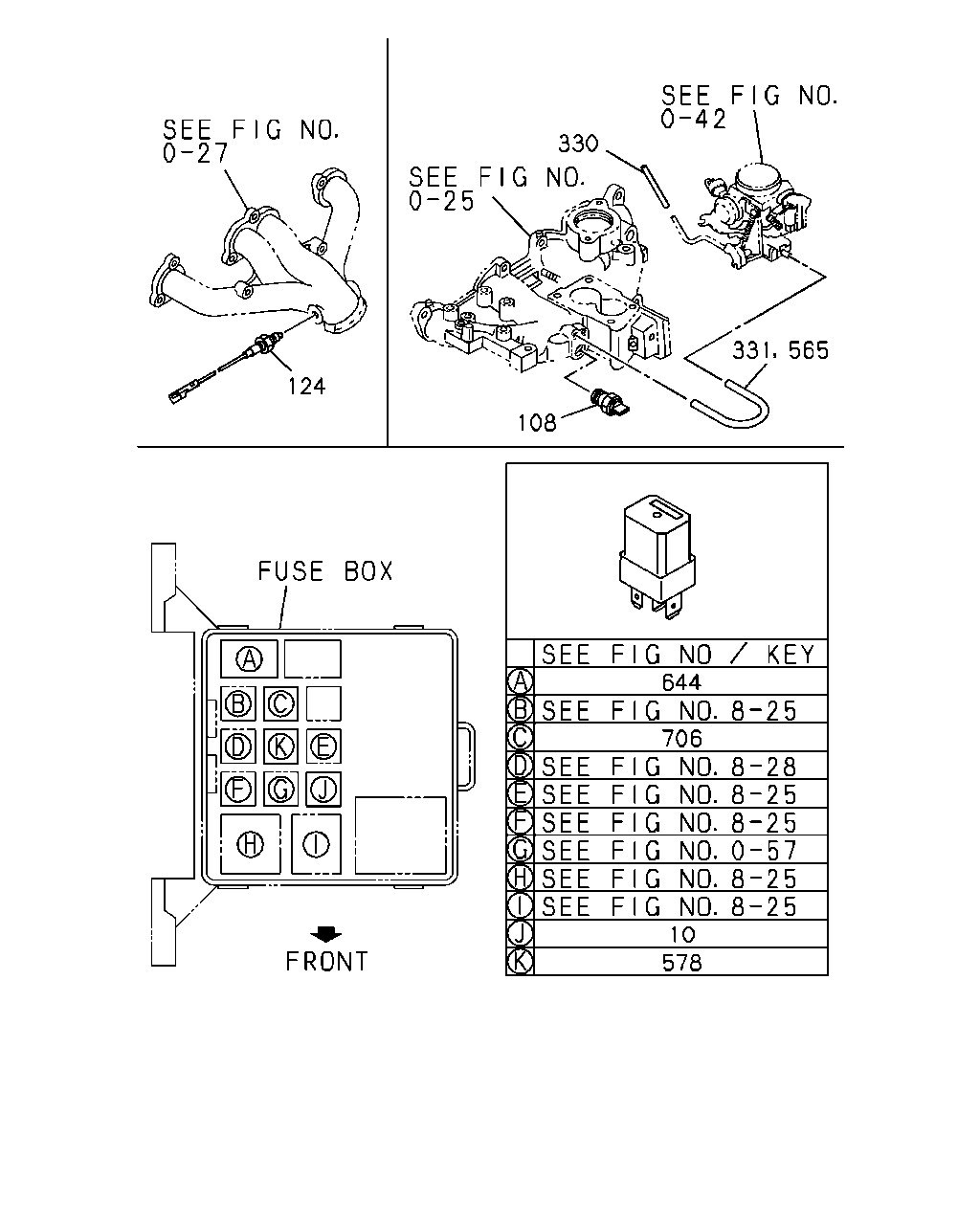

çizim 66730
124 108 330 331 565 644 706 10 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9210- ●
10 02.100 RELAY; STARTER
03.910 12V 20A 		8-94218-497-0 01 1 9210-9308 ●
108 01.150 SWITCH; THERMO
CHILE EQUIPMENT(6KB) 		8-94158-361-0 01 1 9210-9403 ●
108 01.150 SWITCH; THERMO
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94158-361-0 01 1 9404-9411 ●
108 01.150 SWITCH; THERMO
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94158-361-0 01 1 9404-9411 ●
108 01.150 SWITCH; THERMO
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94158-361-0 01 1 9412- ●
108 01.150 SWITCH; THERMO
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94158-361-0 01 1 9412- ●
108 01.150 SWITCH; THERMO 8-94326-772-0 01 1 9210-9308 ●
124 01.150 SENSOR; OXYGEN
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97062-292-0 01 1 9404-9509 ●
124 01.150 SENSOR; OXYGEN
ELECTRIC FUEL INJECTION<6GG> 		8-97062-292-0 01 1 9510- ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9403 ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. CHILE EQUIPMENT(6KB) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9403 ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9404-9411 ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9404-9411 ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9412- ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9412- ●
330 03.726 HOSE; CARBURETOR TO DISTR
CHILE EQUIPMENT(6KB) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9403 ●
330 03.726 HOSE; CARBURETOR TO DISTR
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9404-9411 ●
330 03.726 HOSE; CARBURETOR TO DISTR
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9404-9411 ●
330 03.726 HOSE; CARBURETOR TO DISTR
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9412- ●
330 03.726 HOSE; CARBURETOR TO DISTR
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9412- ●
331 03.726 HOSE; CARB TO 3 WAY 8-94372-343-1 01 1 9210-9309 ●
331 03.726 HOSE; CARB TO 3 WAY 8-94372-343-1 01 1 9310-9509 ● ●
331 03.726 HOSE; CARB TO 3 WAY
SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9308 ●
331 03.726 HOSE; CARB TO 3 WAY
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9309-9403 ●
331 03.726 HOSE; CARB TO 3 WAY
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9404-9503 ●
331 03.726 HOSE; CARB TO 3 WAY
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9504-9509 ●
331 03.726 HOSE; CARB TO 3 WAY
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) IGN TIMING ADVANCE FOR CHILE<7LF> EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9504-9509 ●
331 03.726 HOSE; CARB TO 3 WAY 8-94372-344-0 01 1 9210-9309 ●
565 03.672 HOSE; RUBBER
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9308 ●
565 03.672 HOSE; RUBBER
EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9309-9309 ●
565 03.672 HOSE; RUBBER
EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9310-9509 ●
565 03.672 HOSE; RUBBER
EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/CO STA RICA EQUIPMENT(7LD) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9510-9603 ●
565 03.672 HOSE; RUBBER
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9604- ●
578 02.510 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9210-9308 ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9309-9509 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9510- ● ● ● ● ●
644 02.510 RELAY; COLD START DEVICE
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9509 ●
644 02.510 RELAY; COLD START DEVICE
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 03.910 12V 20A 		8-94218-497-0 01 1 9510- ●
644 02.510 RELAY; COLD START DEVICE
03.910 12V 20A 		8-94218-497-0 01 1 9510- ●
706 02.510 RELAY; QWS
03.910 12V 20A 		8-94218-497-0 01 1 9510- ● ●

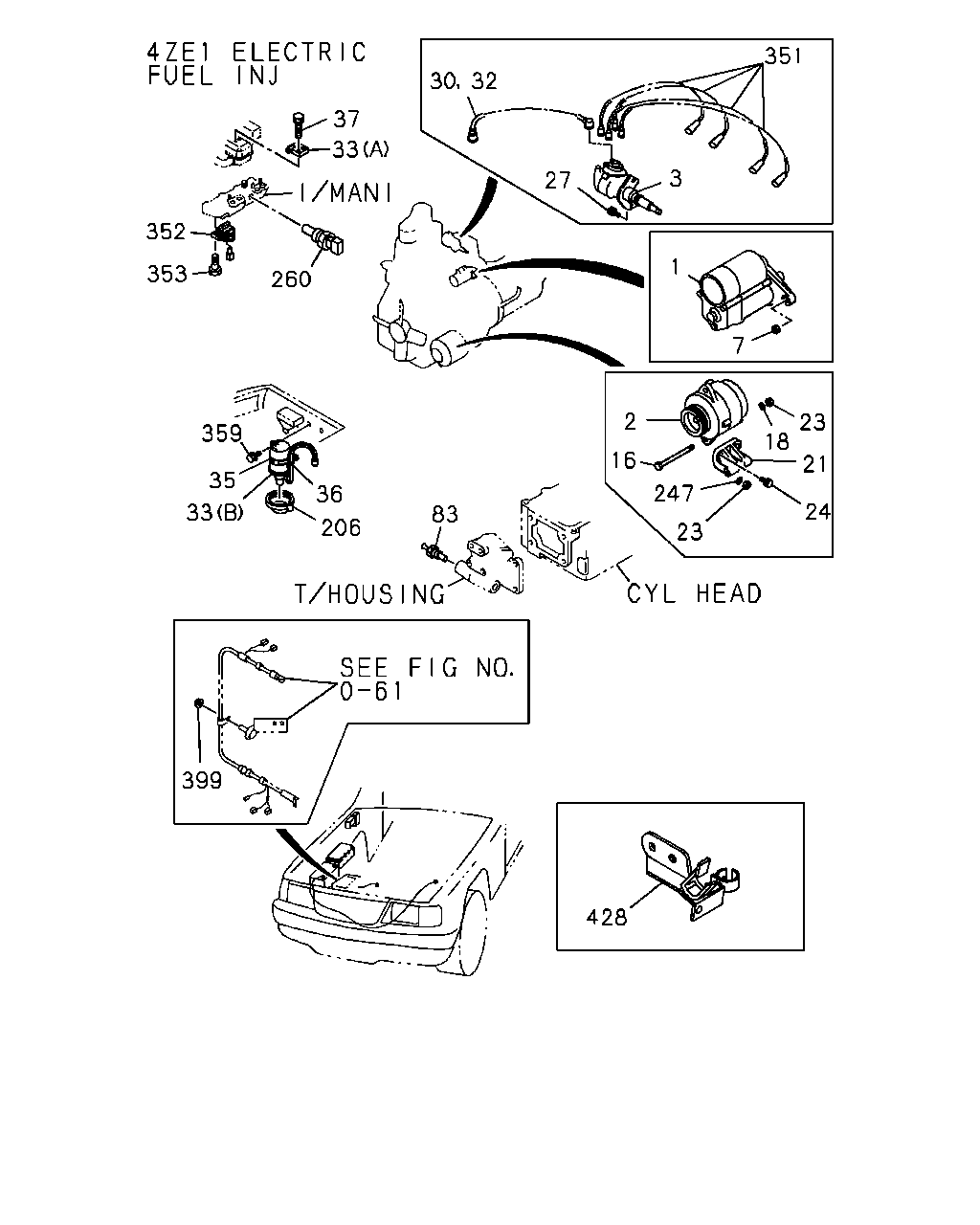

çizim 67526
351 32 30 27 3 1 7 23 2 16 18 247 21 24 23 428 399 83 206 36 33 35 359 260 353 352 33 37 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9210- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9210- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94448-959-1 01 1 9210-9308 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94460-417-1 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97112-549-0 01 1 9412-9509 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97112-549-0 01 1 9510-9511 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97136-687-0 01 1 9512- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 35A(K83) HITACHI 12V 35A 		8-94337-635-0 01 1 9210-9411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 40A(K78) HITACHI 12V 40A 		8-94337-636-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER(C60) HITACHI 12V 50A 		8-97046-826-0 01 1 9510-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 50A(RN9) HITACHI 12V 50A 		8-94337-637-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER(C60) HITACHI 12V 50A 		8-94382-060-0 01 1 9510-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HITACHI 12V 50A 		8-97137-009-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) BOSCH 12V 45A 		8-94472-816-3 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) BOSCH 12V 55A 		8-94472-817-4 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. BOSCH 12V 55A 		8-94472-817-4 01 1 9510- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) DENSO 12V 45A 		8-94454-188-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) DENSO 12V 55A 		8-94156-672-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 02.251 HITACHI 12V 50A 		8-94401-793-2 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) HITACHI 12V 40A 		8-94405-045-3 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) HITACHI 12V 50A 		8-94320-407-1 01 1 9210-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HITACHI 12V 40A 		8-97137-004-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) HITACHI 12V 50A 		8-94330-186-0 01 1 9210-9511 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94450-250-1 01 1 9210- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. CHILE EQUIPMENT(6KB) 		8-94341-340-0 01 1 9210-9403 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94341-340-0 01 1 9404-9411 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. CATALYSIS CONTROL<6MZ> 		8-94341-340-0 01 1 9404-9411 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94341-340-0 01 1 9412- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. CATALYSIS CONTROL<6MZ> 		8-94341-340-0 01 1 9412- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97040-454-0 01 1 9404-9509 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. ELECTRIC FUEL INJECTION<6GG> 		8-97040-454-0 01 1 9510- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. CHILE EQUIPMENT(6KB) 		8-94476-142-1 01 1 9210-9403 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9210-9403 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-94476-142-1 01 1 9404-9411 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9404-9411 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94476-142-1 01 1 9412- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9412- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9210- ● ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9210-9308 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9309-9607 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9609- ● ●
16 02.277 BOLT; GEN
GENERATOR 35A(K83) M8X107 L=120 		9-09801-030-1 01 1 9210-9411 ●
16 02.277 BOLT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) M10X118 		9-09801-061-1 01 1 9210-9509 ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9210-9603 ● ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9604- ● ●
16 02.277 BOLT; GEN
01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9210-9308 ●
16 02.277 BOLT; GEN
M10X130 		8-94402-322-1 01 1 9210-9304 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9305-9308 ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9309- ● ●
18 02.317 WASHER; LK,GEN
GENERATOR 35A(K83) 00.002 ID=8.2 		9-09150-508-0 01 1 9210-9411 ●
18 02.317 WASHER; LK,GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ● ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9510- ● ● ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 35A(K83) 		8-94450-237-1 01 1 9210-9411 ●
21 02.277 BRACKET; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 		8-94450-238-1 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9510- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9210- ●
21 02.277 BRACKET; GEN 8-94114-007-0 01 1 9210-9308 ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9210-9308 ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9309- ● ●
23 02.277 NUT; GEN
GENERATOR 35A(K83) 00.002 M8 		9-09110-508-0 01 1 9210-9411 ●
23 02.277 NUT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 M10 		9-09110-510-0 01 1 9210-9509 ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9210-9509 ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9510- ● ● ● ● ●
23 02.277 NUT; GEN
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9210-9405 ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9411 ●
24 02.277 BOLT; GEN BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9411 ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9411 ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9412-9509 ●
24 02.277 BOLT; GEN BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9412-9509 ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9412-9509 ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9210- ● ● ●
24 02.277 BOLT; GEN BRKT
00.029 M10X28 W/LK WASHER 		0-50041-028-0 04 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9309- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9309- ● ●
27 02.363 BOLT; DISTR
02.559 M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9210- ● ● ●
30 02.240 CABLE; DISTR TO IGN COIL 8-94329-908-0 01 1 9210-9403 ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. CHILE EQUIPMENT(6KB) 		8-94329-908-0 01 1 9210-9403 ●
30 02.240 CABLE; DISTR TO IGN COIL 8-94329-908-0 01 1 9404-9411 ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-94329-908-0 01 1 9404-9411 ●
30 02.240 CABLE; DISTR TO IGN COIL 8-94329-908-0 01 1 9412- ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94329-908-0 01 1 9412- ●
32 02.525 CABLE; DISTR TO IGN COIL
CHILE EQUIPMENT(6KB) 02.240 		8-94136-794-0 01 1 9210-9403 ●
32 02.525 CABLE; DISTR TO IGN COIL
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 02.240 		8-94136-794-0 01 1 9404-9411 ●
32 02.525 CABLE; DISTR TO IGN COIL
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 02.240 		8-94136-794-0 01 1 9404-9411 ●
32 02.525 CABLE; DISTR TO IGN COIL
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 02.240 		8-94136-794-0 01 1 9412- ●
32 02.525 CABLE; DISTR TO IGN COIL
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 02.240 		8-94136-794-0 01 1 9412- ●
32 02.525 CABLE; DISTR TO IGN COIL
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-94449-496-0 01 1 9404-9509 ●
32 02.525 CABLE; DISTR TO IGN COIL
ELECTRIC FUEL INJECTION<6GG> 		8-94449-496-1 01 1 9510- ●
33 02.170 COIL ASM; IGN
(B) 		8-94416-513-0 01 1 9210-9403 ● ●
33 02.170 COIL ASM; IGN
EXC. CHILE EQUIPMENT(6KB) (B) 		8-94416-513-0 01 1 9210-9403 ●
33 02.170 COIL ASM; IGN
(B) 		8-94416-513-0 01 1 9404-9411 ● ●
33 02.170 COIL ASM; IGN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> (B) 		8-94416-513-0 01 1 9404-9411 ●
33 02.170 COIL ASM; IGN
(B) 		8-94416-513-0 01 1 9412- ● ●
33 02.170 COIL ASM; IGN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-94416-513-0 01 1 9412- ●
33 02.170 COIL ASM; IGN
CHILE EQUIPMENT(6KB) (A) 		8-94371-838-0 01 1 9210-9403 ●
33 02.170 COIL ASM; IGN
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-94371-838-0 01 1 9404-9411 ●
33 02.170 COIL ASM; IGN
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> (A) 		8-94371-838-0 01 1 9404-9411 ●
33 02.170 COIL ASM; IGN
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-94371-838-0 01 1 9412- ●
33 02.170 COIL ASM; IGN
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> (A) 		8-94371-838-0 01 1 9412- ●
33 02.170 COIL ASM; IGN
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (A) 		8-94338-923-0 01 1 9404-9509 ●
33 02.170 COIL ASM; IGN
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94338-923-0 01 1 9510- ●
35 02.183 BRACKET; IGN COIL 8-94109-761-0 01 1 9210-9403 ● ●
35 02.183 BRACKET; IGN COIL
EXC. CHILE EQUIPMENT(6KB) 		8-94109-761-0 01 1 9210-9403 ●
35 02.183 BRACKET; IGN COIL 8-94109-761-0 01 1 9404-9411 ● ●
35 02.183 BRACKET; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-94109-761-0 01 1 9404-9411 ●
35 02.183 BRACKET; IGN COIL 8-94109-761-0 01 1 9412- ● ●
35 02.183 BRACKET; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94109-761-0 01 1 9412- ●
36 02.239 WIRE; IGN COIL 8-94416-512-0 01 1 9210-9403 ● ●
36 02.239 WIRE; IGN COIL
EXC. CHILE EQUIPMENT(6KB) 		8-94416-512-0 01 1 9210-9403 ●
36 02.239 WIRE; IGN COIL 8-94416-512-0 01 1 9404-9411 ● ●
36 02.239 WIRE; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-94416-512-0 01 1 9404-9411 ●
36 02.239 WIRE; IGN COIL 8-94416-512-0 01 1 9412- ● ●
36 02.239 WIRE; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94416-512-0 01 1 9412- ●
37 02.559 BOLT; IGN COIL
GENERATOR 55A(K96) CHILE EQUIPMENT(6KB) M6X28 		0-28080-628-0 02 1 9210-9403 ●
37 02.559 BOLT; IGN COIL
GENERATOR 55A(K96) CHILE EQUIPMENT(6KB) M6X28 		0-28080-628-0 02 1 9404-9411 ●
37 02.559 BOLT; IGN COIL
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> M6X28 		0-28080-628-0 02 1 9404-9411 ●
37 02.559 BOLT; IGN COIL
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> M6X28 		0-28080-628-0 02 1 9412-9503 ●
37 02.559 BOLT; IGN COIL
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> M6X28 		0-28080-628-0 02 1 9412-9503 ●
37 02.559 BOLT; IGN COIL
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X28 		0-28080-628-0 02 1 9504- ●
37 02.559 BOLT; IGN COIL
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> M6X28 		0-28080-628-0 02 1 9504- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9210- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9210- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9210- ● ●
206 02.183 CAP; IGN COIL 8-94235-010-0 01 1 9210-9403 ● ●
206 02.183 CAP; IGN COIL
EXC. CHILE EQUIPMENT(6KB) 		8-94235-010-0 01 1 9210-9403 ●
206 02.183 CAP; IGN COIL 8-94235-010-0 01 1 9404-9411 ● ●
206 02.183 CAP; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-94235-010-0 01 1 9404-9411 ●
206 02.183 CAP; IGN COIL 8-94235-010-0 01 1 9412- ● ●
206 02.183 CAP; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94235-010-0 01 1 9412- ●
247 02.277 WASHER; PL,BRKT,GEN
00.206 ID=8.4 		9-09164-508-0 01 1 9210-9411 ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB) 00.206 ID=8.4 		9-09164-508-0 01 1 9210-9411 ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9210-9411 ●
247 02.277 WASHER; PL,BRKT,GEN
00.206 ID=8.4 		9-09164-508-0 01 1 9412-9509 ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 00.206 ID=8.4 		9-09164-508-0 01 1 9412-9509 ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9412-9509 ●
247 02.277 WASHER; PL,BRKT,GEN
00.206 ID=8.4 		9-09164-508-0 01 1 9510- ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 00.206 ID=8.4 		9-09164-508-0 01 1 9510- ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9510- ●
260 01.150 SENSOR; WATER TEMP
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 03.682 		8-94205-866-0 01 1 9404-9509 ●
260 01.150 SENSOR; WATER TEMP
ELECTRIC FUEL INJECTION<6GG> 03.682 		8-94205-866-0 01 1 9510- ●
351 02.239 CABLE KIT; HIGH TENSION 8-94433-364-1 01 1 9210- ● ● ●
351 02.239 CABLE KIT; HIGH TENSION
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-94342-910-0 01 1 9404-9409 ●
352 02.188 SWITCH ASM; POWER,IGN COIL
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97094-755-0 01 1 9404-9509 ●
352 02.188 SWITCH ASM; POWER,IGN COIL
ELECTRIC FUEL INJECTION<6GG> 		8-97094-755-0 01 1 9510- ●
353 02.195 BOLT; POWER SW,IGN COIL
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9404-9509 ●
353 02.195 BOLT; POWER SW,IGN COIL
ELECTRIC FUEL INJECTION<6GG> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9510- ●
359 02.393 SCREW; COIL TO BODY 8-94457-204-0 02 1 9210-9403 ● ●
359 02.393 SCREW; COIL TO BODY
EXC. CHILE EQUIPMENT(6KB) 		8-94457-204-0 02 1 9210-9403 ●
359 02.393 SCREW; COIL TO BODY 8-94457-204-0 02 1 9404-9411 ● ●
359 02.393 SCREW; COIL TO BODY
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 		8-94457-204-0 02 1 9404-9411 ●
359 02.393 SCREW; COIL TO BODY 8-94457-204-0 02 1 9412- ● ●
359 02.393 SCREW; COIL TO BODY
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94457-204-0 02 1 9412- ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9210- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9210-9308 ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9309-9509 ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9510- ● ●
428 02.559 CLIP; HARNESS
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97070-357-1 01 1 9404-9404 ●
428 02.559 CLIP; HARNESS
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97115-188-0 01 1 9405-9509 ●
428 02.559 CLIP; HARNESS
ELECTRIC FUEL INJECTION<6GG> 		8-97115-188-0 01 1 9510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
