1-55B — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#4801) — 103 parça

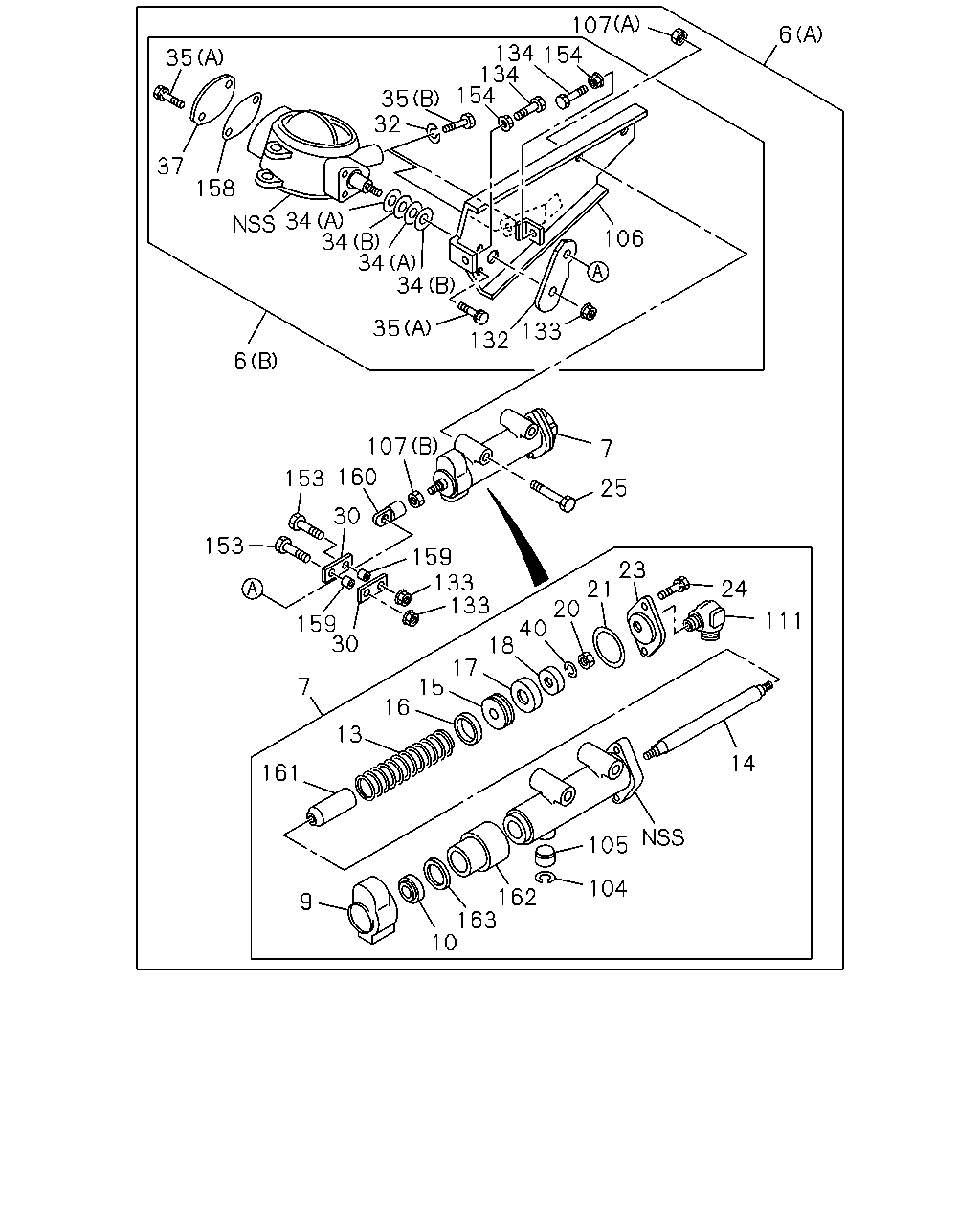

çizim 8544
6 134 134 154 154 35 35 32 37 158 34 34 34 34 106 35 133 132 6 107 7 160 153 25 30 153 159 133 133 23 21 20 40 18 24 111 159 30 17 7 15 16 13 14 161 105 104 162 163 10 9 107
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-330-1 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-349-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-364-0 01 1 9806-9904 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-364-0 01 1 9905- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22180-341-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-144-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-340-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-348-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-363-0 01 1 9806-9904 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-363-0 01 1 9905- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22180-343-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-145-0 01 1 9703-9805 ●
7 CYLINDER ASM; CONT 1-22190-627-0 01 1 9601-9702 ●
7 CYLINDER ASM; CONT 1-22190-639-0 01 1 9703-9805 ●
7 CYLINDER ASM; CONT 1-22190-630-0 01 1 9601-9702 ●
7 CYLINDER ASM; CONT 1-22190-640-0 01 1 9703-9805 ●
9 COVER; CYL 1-22199-069-0 01 1 9601-9805 ●
9 COVER; CYL 1-22199-070-0 01 1 9601-9805 ●
10 SEAL; DUST,CONT 1-22199-071-0 02 1 9601-9805 ●
13 SPRING; CONT CYL 1-22199-157-0 02 1 9601-9805 ●
14 SHAFT; CONT CYL 1-22199-158-0 02 1 9601-9805 ●
15 PLATE; CONT CYL 1-22199-156-0 02 1 9601-9805 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 02 1 9601-9805 ●
17 GASKET; CONT CYL 1-22199-103-0 02 1 9601-9805 ●
18 RETAINER; CONT CYL 9-88510-324-0 02 1 9601-9805 ●
20 NUT; CONT CYL 9-83315-085-0 02 1 9601-9805 ●
21 GASKET; COVER 1-22199-072-0 02 1 9601-9805 ●
23 COVER; CONT CYL 9-88510-375-0 02 1 9601-9805 ●
24 BOLT; COVER 1-22199-155-0 04 1 9601-9805 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 04 1 9601-9805 ●
30 ROD; LINK,CONT CYL 1-22199-124-0 04 1 9601-9702 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 04 1 9703-9805 ●
32 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9601-9702 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 04 1 9601-9805 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 04 1 9601-9805 ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 10 1 9601-9702 ●
35 BOLT; PLATE FIX
(B) M10X20 FLANGE 		0-28021-020-0 02 1 9703-9805 ●
35 BOLT; PLATE FIX
(B) M10X20 		9-02051-020-0 02 1 9601-9702 ●
35 BOLT; PLATE FIX
(A) 		1-22189-308-0 10 1 9703-9805 ●
37 COVER; BODY 1-22189-274-0 02 1 9601-9805 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 02 1 9601-9805 ●
104 RING; RET 9-88510-331-0 02 1 9601-9805 ●
105 FILTER; CONT CYL 9-88510-330-0 02 1 9601-9805 ●
106 BRACKET; CONT CYL 1-22189-290-0 01 1 9601-9805 ●
106 BRACKET; CONT CYL 1-22189-292-0 01 1 9601-9805 ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 04 1 9601-9805 ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 02 1 9601-9805 ●
111 ELBOW; CONT CYL
M20 & PT1/4 ELBOW 		1-09660-137-1 02 1 9601-9702 ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 02 1 9703-9805 ●
132 LEVER; BRK VLV 1-22196-342-0 02 1 9601-9805 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 06 1 9601-9805 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 04 1 9601-9805 ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 04 1 9601-9805 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 04 1 9601-9805 ●
158 GASKET; COVER 1-22189-286-0 02 1 9601-9805 ●
159 COLLAR; CONT CYL 1-22199-138-0 04 1 9601-9805 ●
160 JOINT; CONT CYL 1-22199-137-0 02 1 9601-9702 ●
160 JOINT; CONT CYL 1-22199-163-0 02 1 9703-9805 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 02 1 9601-9805 ●
162 GUIDE; CONT CYL 1-22199-147-0 02 1 9601-9805 ●
163 WASHER; CONT CYL 1-22199-148-0 02 1 9601-9805 ●

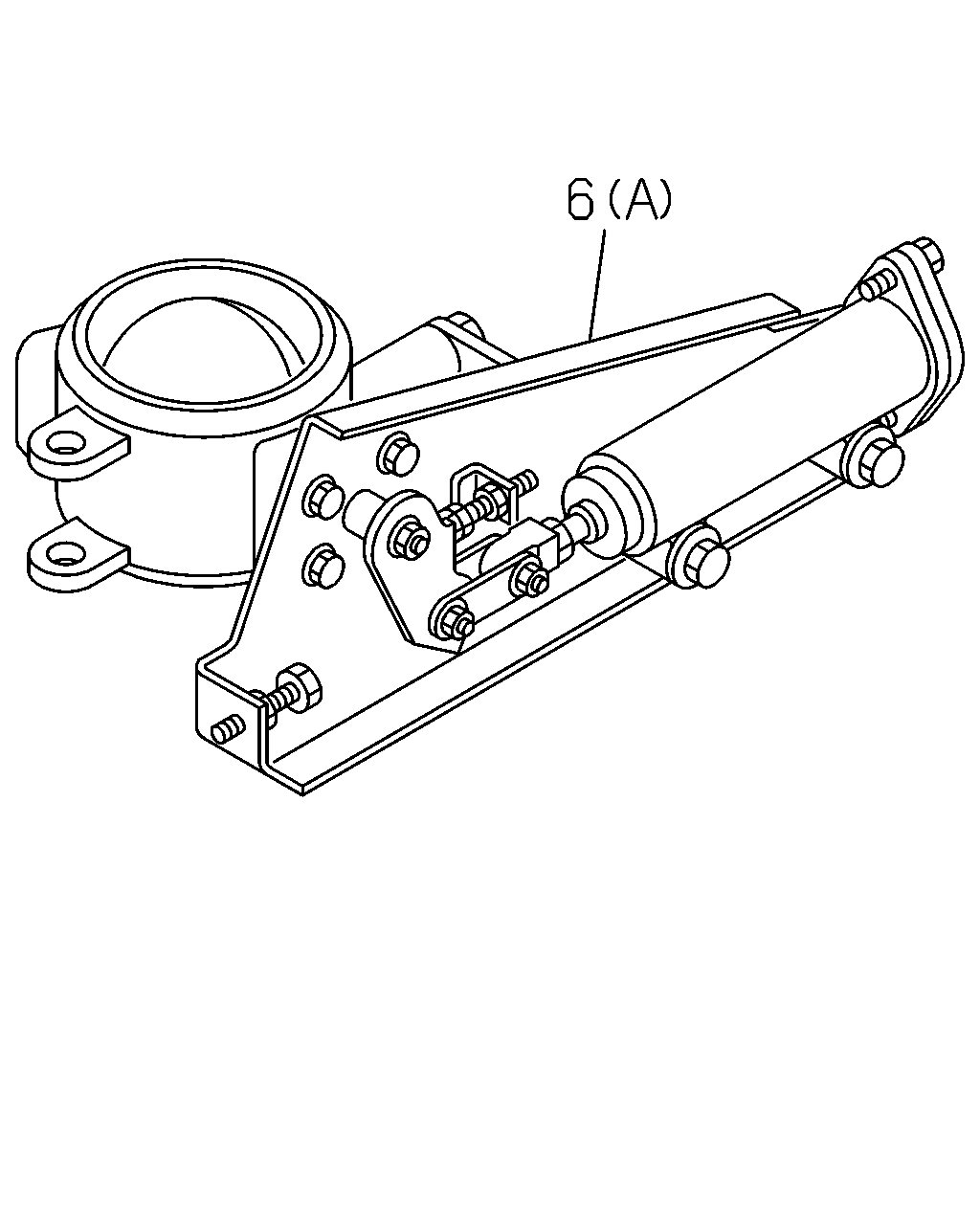

çizim 8961
6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-330-1 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-349-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-364-0 01 1 9806-9904 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-364-0 01 1 9905- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22180-341-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-144-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-340-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-348-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-363-0 01 1 9806-9904 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-363-0 01 1 9905- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22180-343-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-145-0 01 1 9703-9805 ●

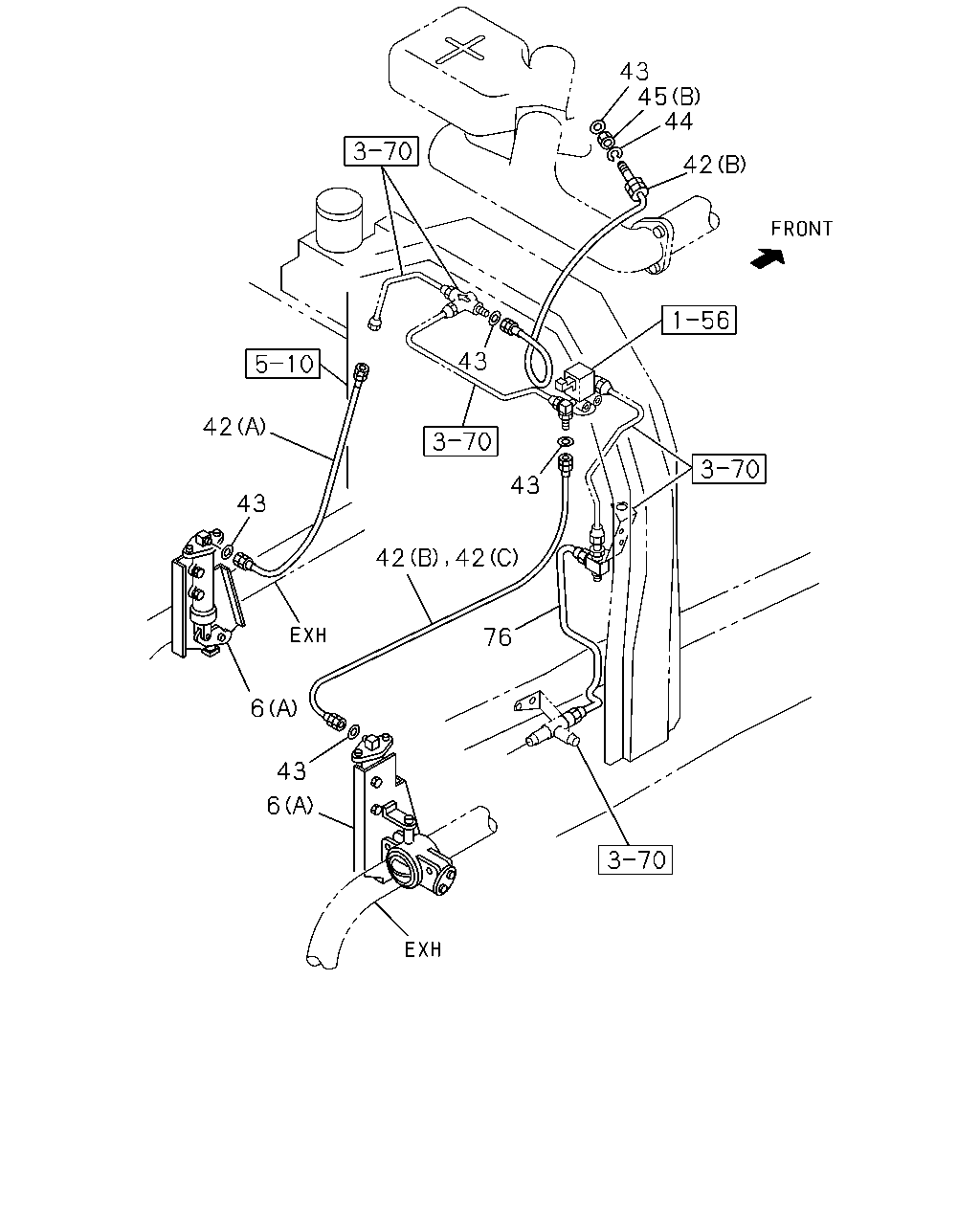

çizim 41953
43 45 44 42 43 42 43 43 76 6 43 6 42 42
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-330-1 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-349-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-364-0 01 1 9806-9904 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-364-0 01 1 9905- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22180-341-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-144-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-340-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-348-0 01 1 9703-9805 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-363-0 01 1 9806-9904 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-363-0 01 1 9905- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22180-343-0 01 1 9601-9702 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-145-0 01 1 9703-9805 ●
42 HOSE; FLEX,EXH BRK
(A) L=320 		1-09363-656-0 01 1 9905- ● ●
42 HOSE; FLEX,EXH BRK
(A) L=320 		0-07120-320-0 01 1 9601-9702 ●
42 HOSE; FLEX,EXH BRK
(B) L=270 		0-07150-270-0 02 1 9601-9702 ●
42 HOSE; FLEX,EXH BRK
(B) L=250 		1-09363-618-0 02 1 9703-9904 ●
42 HOSE; FLEX,EXH BRK
(A) L=320 		1-09363-656-0 01 1 9703-9904 ●
42 HOSE; FLEX,EXH BRK
(C) L=300 		1-09363-611-0 01 1 9905- ● ●
42 HOSE; FLEX,EXH BRK
(B) L=250 		1-09363-618-0 01 1 9905- ● ●
43 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 05 1 9601-9702 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9601-9610 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9905- ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9611-9904 ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9905- ● ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9601-9904 ●
76 PIPE ASM; AIR UNION TO UNION 1-49114-669-0 01 1 9601-9602 ●
76 PIPE ASM; AIR UNION TO UNION
L=436 		1-49117-294-0 01 1 9603-9610 ●
76 PIPE ASM; AIR UNION TO UNION
L=436 SERVICED BY L=460 		1-47428-806-0 01 1 9611-9904 ●
76 PIPE ASM; AIR UNION TO UNION
L=436 		1-49117-294-0 01 1 9905-9908 ● ●
76 PIPE ASM; AIR UNION TO UNION 1-49122-244-0 01 1 9909- ● ●
