Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#48008) — 183 parça

9 4 9 162 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.675 HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9210-9509	●	●
4	03.675 HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9510-	●	●
4	03.675 HOSE; CARB TO TVV CHILE EQUIPMENT(6KB) 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9210-9403		●
4	03.675 HOSE; CARB TO TVV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9404-9411		●
4	03.675 HOSE; CARB TO TVV COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9404-9411		●
4	03.675 HOSE; CARB TO TVV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9412-		●
4	03.675 HOSE; CARB TO TVV COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9412-		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2)	8-97072-381-0	01	1	9210-	●
6	03.675 PIPE; EGR CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9510-		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-94482-305-0	01	1	9210-9403		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94482-305-0	01	1	9404-9411		●
6	03.675 PIPE; EGR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-94482-305-0	01	1	9404-9411		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94482-305-0	01	1	9412-		●
6	03.675 PIPE; EGR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-94482-305-0	01	1	9412-		●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9210-9403	●	●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9404-9411	●	●
7	03.670 BOLT; BRKT,EGR PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9404-9411		●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9412-9509	●	●
7	03.670 BOLT; BRKT,EGR PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9412-9509		●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9510-	●	●
7	03.670 BOLT; BRKT,EGR PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9510-		●
9	03.675 HOSE; RUBBER,MCV,VAC CHILE EQUIPMENT(6KB) 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9210-9403		●
9	03.675 HOSE; RUBBER,MCV,VAC CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9404-9411		●
9	03.675 HOSE; RUBBER,MCV,VAC COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9404-9411		●
9	03.675 HOSE; RUBBER,MCV,VAC CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9412-		●
9	03.675 HOSE; RUBBER,MCV,VAC COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9412-		●
9	03.675 HOSE; RUBBER,MCV,VAC SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9210-		●
162	03.670 CLIP; PIPE,EGR SAUDI ARABIA EQUIPMENT(EU2)	8-94323-739-0	01	1	9210-	●

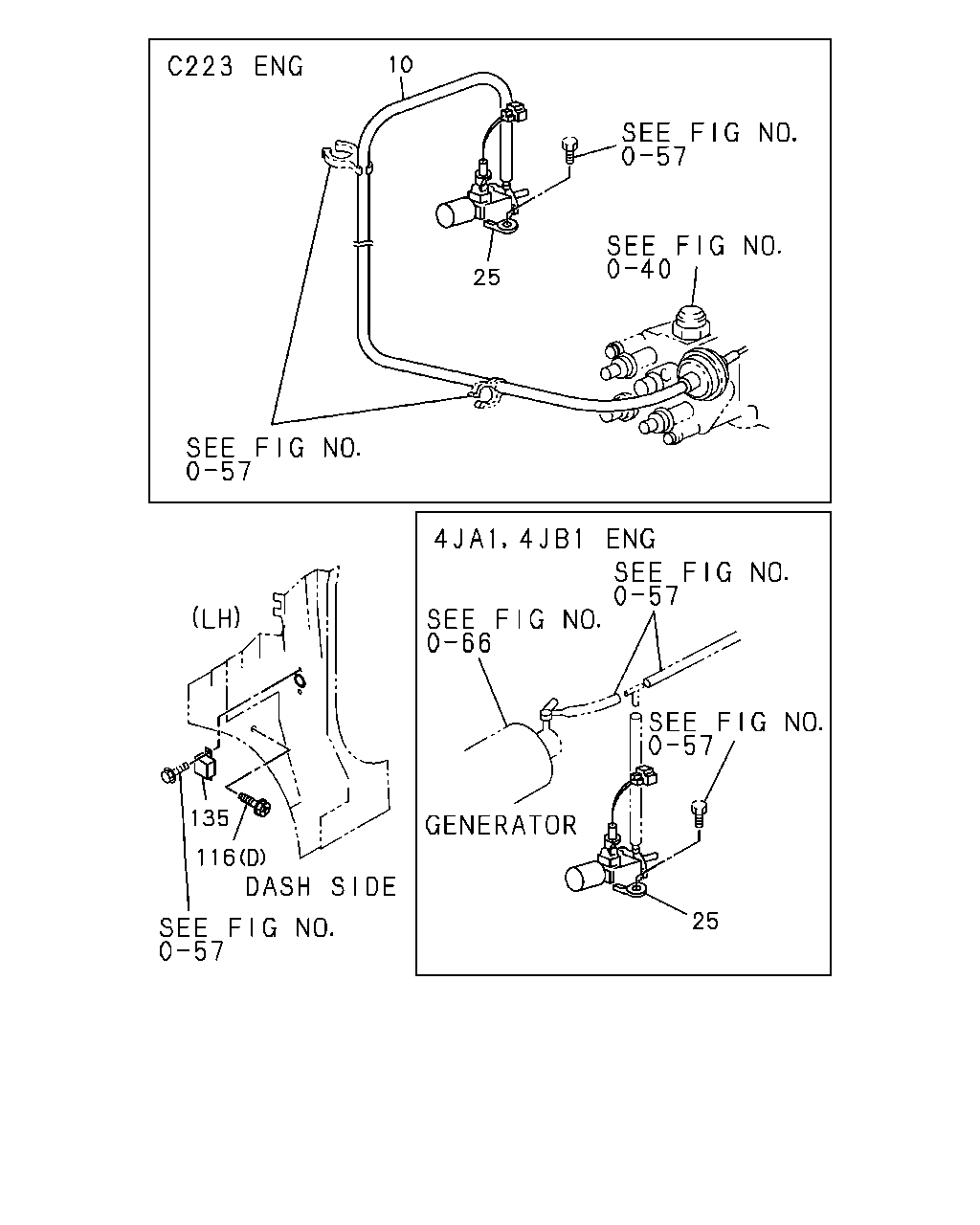

10 25 25 116 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	03.675 HOSE; RUBBER,PUMP TO VSV AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.962 L=1500 SERVICED BY L=3000	0-04732-300-0	01	1	9210-9308			●
25	03.670 SWITCH; VAC,FUEL CONT	8-94144-597-1	01	1	9210-9308			●	●
25	03.670 SWITCH; VAC,FUEL CONT	8-94144-597-1	01	1	9309-9509				●
25	03.670 SWITCH; VAC,FUEL CONT AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94144-597-1	01	1	9510-				●	●
116	03.415 BOLT; ENG CONT MODULE 03.342 (D) M6X16	8-97012-496-0	02	1	9210-9212	●	●	●	●	●	●
116	03.415 BOLT; ENG CONT MODULE 03.342 (D) M6X16	8-97012-496-0	02	1	9301-9403	●	●				●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (D) M6X16	8-97012-496-0	02	1	9404-	●	●				●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 03.342 (D) M6X16	8-97012-496-0	01	1	9404-		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (B) M6X15 L=53.6	8-97030-212-0	01	1	9404-9406		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (C) M6X15 L=47	8-97113-772-0	01	1	9407-9606		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9607-		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9404-		●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94337-634-1	01	1	9210-	●
135	03.670 SENSOR; ENG SPD	8-94337-634-1	01	1	9210-						●
135	03.670 SENSOR; ENG SPD SAUDI ARABIA EQUIPMENT(EU2)	8-94362-506-0	01	1	9210-	●	●
135	03.670 SENSOR; ENG SPD CHILE EQUIPMENT(6KB)	8-94337-779-0	01	1	9210-9403		●
135	03.670 SENSOR; ENG SPD CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94337-779-0	01	1	9404-9411		●
135	03.670 SENSOR; ENG SPD CATALYSIS CONTROL<6MZ>	8-94337-779-0	01	1	9404-9411		●
135	03.670 SENSOR; ENG SPD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94337-779-0	01	1	9412-		●
135	03.670 SENSOR; ENG SPD CATALYSIS CONTROL<6MZ>	8-94337-779-0	01	1	9412-		●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB)	8-97026-162-0	01	1	9210-9403		●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>	8-97026-162-0	01	1	9404-9411		●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97026-162-0	01	1	9412-		●

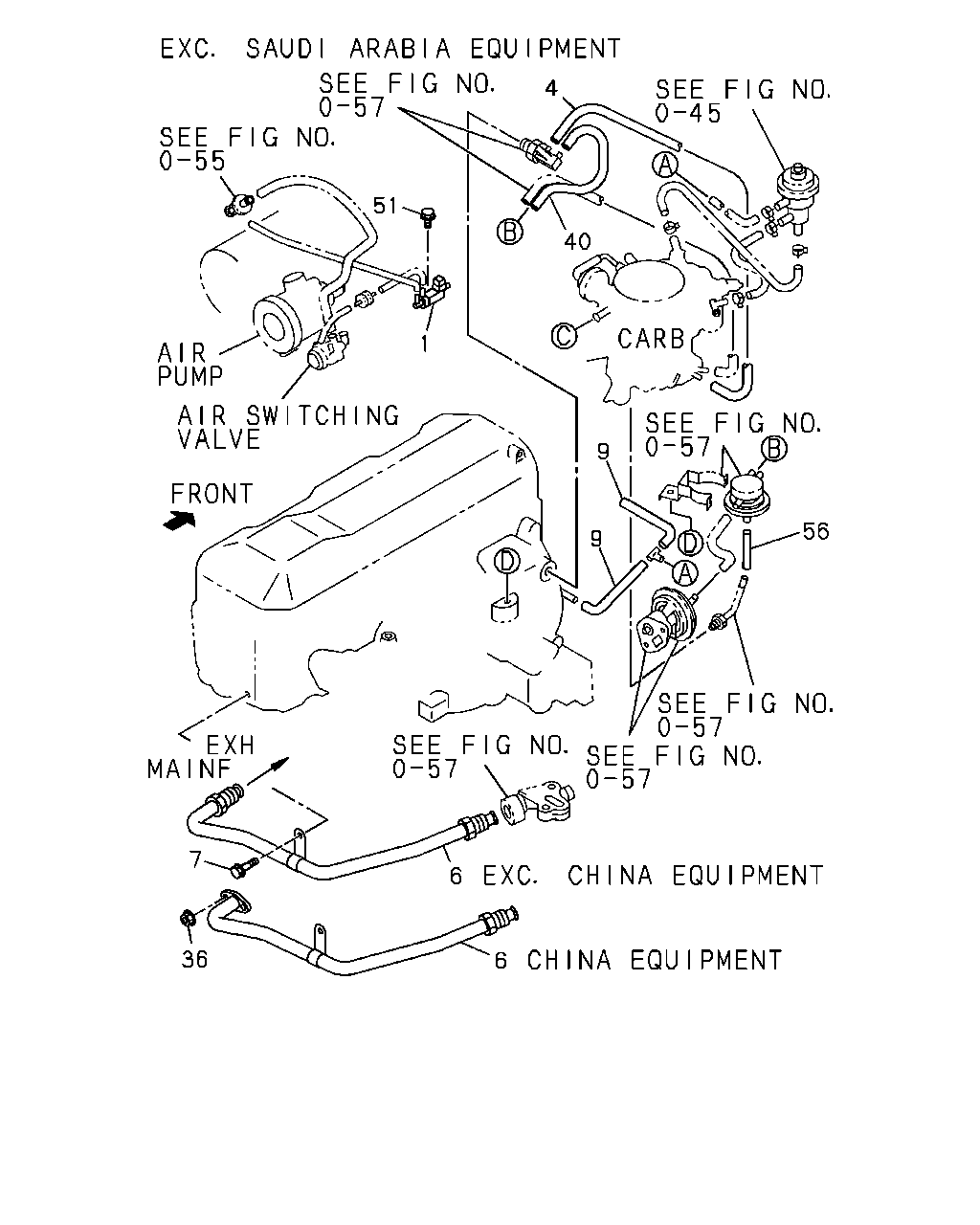

4 51 40 1 9 56 9 6 6 36 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; VAC SW,EGR CHILE EQUIPMENT(6KB)	8-94459-951-0	01	1	9210-9403		●
1	03.670 VALVE; VAC SW,EGR CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94459-951-0	01	1	9404-9411		●
1	03.670 VALVE; VAC SW,EGR CATALYSIS CONTROL<6MZ>	8-94459-951-0	01	1	9404-9411		●
1	03.670 VALVE; VAC SW,EGR CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94459-951-0	01	1	9412-		●
1	03.670 VALVE; VAC SW,EGR CATALYSIS CONTROL<6MZ>	8-94459-951-0	01	1	9412-		●
4	03.675 HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9210-9509	●	●
4	03.675 HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9510-	●	●
4	03.675 HOSE; CARB TO TVV CHILE EQUIPMENT(6KB) 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9210-9403		●
4	03.675 HOSE; CARB TO TVV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9404-9411		●
4	03.675 HOSE; CARB TO TVV COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9404-9411		●
4	03.675 HOSE; CARB TO TVV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9412-		●
4	03.675 HOSE; CARB TO TVV COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9412-		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2)	8-97072-381-0	01	1	9210-	●
6	03.675 PIPE; EGR CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9510-		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-94482-305-0	01	1	9210-9403		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94482-305-0	01	1	9404-9411		●
6	03.675 PIPE; EGR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-94482-305-0	01	1	9404-9411		●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94482-305-0	01	1	9412-		●
6	03.675 PIPE; EGR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-94482-305-0	01	1	9412-		●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9210-9403	●	●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9404-9411	●	●
7	03.670 BOLT; BRKT,EGR PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9404-9411		●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9412-9509	●	●
7	03.670 BOLT; BRKT,EGR PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9412-9509		●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9510-	●	●
7	03.670 BOLT; BRKT,EGR PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9510-		●
9	03.675 HOSE; RUBBER,MCV,VAC CHILE EQUIPMENT(6KB) 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9210-9403		●
9	03.675 HOSE; RUBBER,MCV,VAC CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9404-9411		●
9	03.675 HOSE; RUBBER,MCV,VAC COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9404-9411		●
9	03.675 HOSE; RUBBER,MCV,VAC CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9412-		●
9	03.675 HOSE; RUBBER,MCV,VAC COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9412-		●
9	03.675 HOSE; RUBBER,MCV,VAC SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9210-		●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-1	02	1	9404-		●
40	03.675 HOSE; TVV TO BPT CHILE EQUIPMENT(6KB) 08.962 L=100 SERVICED BY L=3000	0-04740-300-0	01	1	9210-9403		●
40	03.675 HOSE; TVV TO BPT CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=100 SERVICED BY L=3000	0-04740-300-0	01	1	9404-9411		●
40	03.675 HOSE; TVV TO BPT COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=100 SERVICED BY L=3000	0-04740-300-0	01	1	9404-9411		●
40	03.675 HOSE; TVV TO BPT CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=100 SERVICED BY L=3000	0-04740-300-0	01	1	9412-		●
40	03.675 HOSE; TVV TO BPT COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=100 SERVICED BY L=3000	0-04740-300-0	01	1	9412-		●
51	03.671 BOLT; VAC SW CHILE EQUIPMENT(6KB) 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9210-9403		●
51	03.671 BOLT; VAC SW CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9404-9409		●
51	03.671 BOLT; VAC SW CATALYSIS CONTROL<6MZ> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9404-9409		●
51	03.671 BOLT; VAC SW CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9410-9411		●
51	03.671 BOLT; VAC SW CATALYSIS CONTROL<6MZ> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9410-9411		●
51	03.671 BOLT; VAC SW CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9412-		●
51	03.671 BOLT; VAC SW CATALYSIS CONTROL<6MZ> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9412-		●
56	03.675 HOSE; BPT TO SIGNAL PIPE CHILE EQUIPMENT(6KB) 03.680 L=70	8-94155-948-0	01	1	9210-9403		●
56	03.675 HOSE; BPT TO SIGNAL PIPE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 L=70	8-94155-948-0	01	1	9404-9411		●
56	03.675 HOSE; BPT TO SIGNAL PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.680 L=70	8-94155-948-0	01	1	9404-9411		●
56	03.675 HOSE; BPT TO SIGNAL PIPE CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 L=70	8-94155-948-0	01	1	9412-		●
56	03.675 HOSE; BPT TO SIGNAL PIPE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.680 L=70	8-94155-948-0	01	1	9412-		●

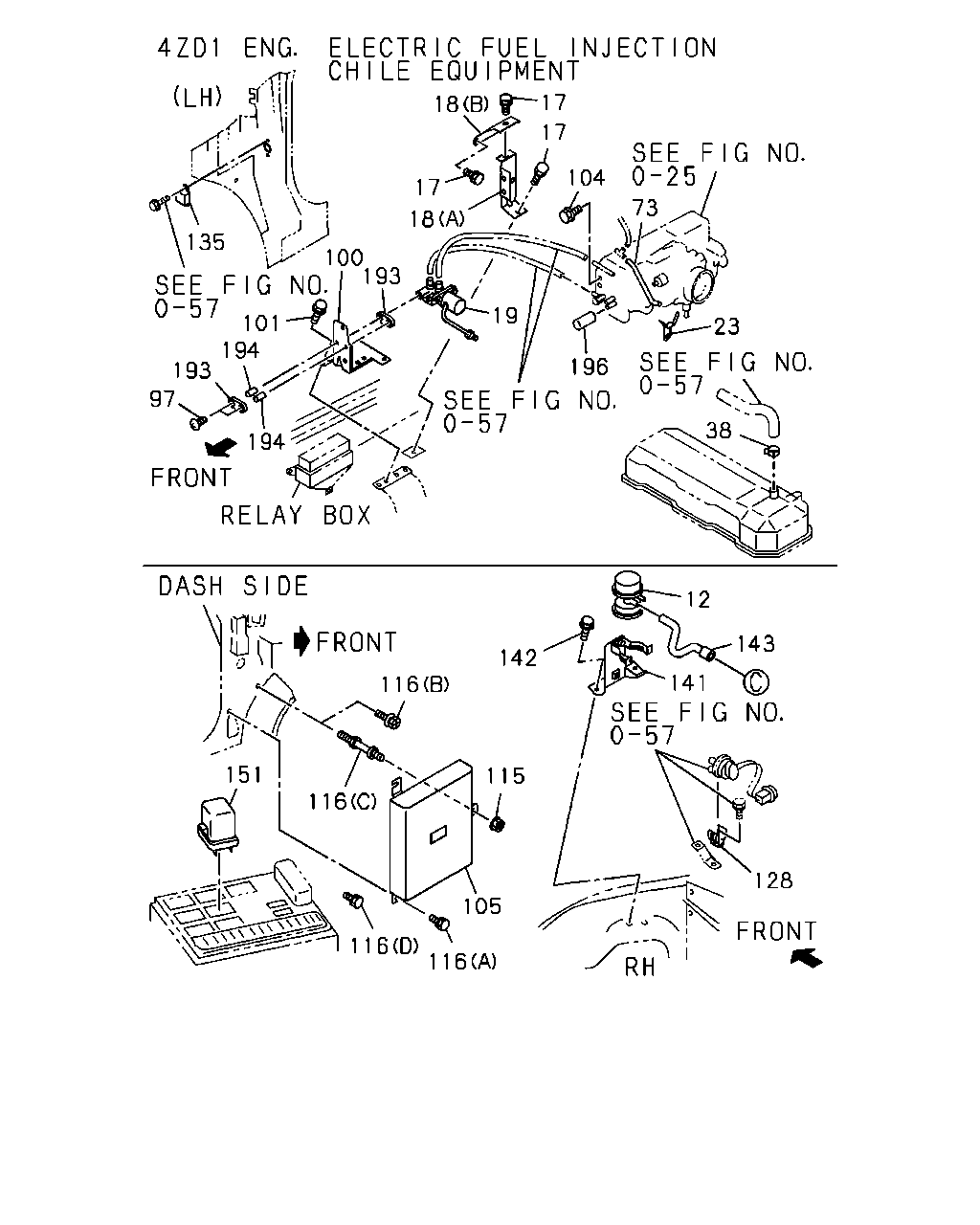

151 116 116 115 116 105 116 128 141 12 142 143 38 23 73 104 17 17 18 17 18 19 193 100 101 194 193 97 194 135 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.670 VALVE; MIXTURE CONT SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-94145-956-0	01	1	9210-9403		●
12	03.670 VALVE; MIXTURE CONT SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94145-956-0	01	1	9404-9411		●
12	03.670 VALVE; MIXTURE CONT CATALYSIS CONTROL<6MZ>	8-94145-956-0	01	1	9404-9411		●
12	03.670 VALVE; MIXTURE CONT SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94145-956-0	01	1	9412-9509		●
12	03.670 VALVE; MIXTURE CONT CATALYSIS CONTROL<6MZ>	8-94145-956-0	01	1	9412-9509		●
12	03.670 VALVE; MIXTURE CONT SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94145-956-0	01	1	9510-		●
12	03.670 VALVE; MIXTURE CONT CATALYSIS CONTROL<6MZ>	8-94145-956-0	01	1	9510-		●
17	03.671 BOLT; DROPPING RESISTOR CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 00.206 M6X14 W/LK WASHER	0-50040-614-0	04	1	9404-9509		●
17	03.671 BOLT; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 00.206 M6X14 W/LK WASHER	0-50040-614-0	04	1	9510-		●
18	03.671 BRACKET; DROPPING RESISTOR CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (A)	8-94475-021-2	01	1	9404-9509		●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> (A)	8-94475-021-2	01	1	9510-		●
18	03.671 BRACKET; DROPPING RESISTOR CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 02.510 (B)	8-94479-552-2	01	1	9404-9509		●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 02.510 (B)	8-94479-552-2	01	1	9510-		●
19	03.670 SOLENOID; FAST IDLE AIR CONDITIONER(C60) ELECTRIC FUEL INJECTION<6GG>	8-94146-909-2	01	1	9404-9509		●
19	03.670 SOLENOID; FAST IDLE ELECTRIC FUEL INJECTION<6GG>	8-94146-909-2	01	1	9510-		●
23	03.162 CLIP; RUBBER HOSE,THROTTLE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> ID=10.5	8-94471-080-0	01	1	9404-9509		●
23	03.162 CLIP; RUBBER HOSE,THROTTLE ELECTRIC FUEL INJECTION<6GG> ID=10.5	8-94471-080-0	01	1	9510-		●
38	03.417 CLIP; VAC HOSE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 06.672 ID=21	8-94242-034-0	01	1	9404-9509		●
38	03.417 CLIP; VAC HOSE ELECTRIC FUEL INJECTION<6GG> 06.672 ID=21	8-94242-034-0	01	1	9510-		●
73	03.417 HOSE; RUBBER,THROTTLE BODY TO CA CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000	0-04741-300-0	01	1	9404-9509		●
73	03.417 HOSE; RUBBER,THROTTLE BODY TO CA ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000	0-04741-300-0	01	1	9510-		●
97	03.680 SCREW; SOLENOID AIR CONDITIONER(C60) ELECTRIC FUEL INJECTION<6GG> 08.131 M6X25	1-09980-544-0	02	1	9404-9509		●
97	03.680 SCREW; SOLENOID ELECTRIC FUEL INJECTION<6GG> 08.131 M6X25	1-09980-544-0	02	1	9510-		●
100	03.675 BRACKET; VLV CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG>	8-97104-740-1	01	1	9404-9509		●
100	03.675 BRACKET; VLV ELECTRIC FUEL INJECTION<6GG>	8-97104-740-1	01	1	9510-		●
101	03.680 BOLT; VSV BRKT CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9404-9509		●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9510-		●
104	03.675 BOLT; CLIP,HOSE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9404-9509		●
104	03.675 BOLT; CLIP,HOSE ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9510-		●
105	03.415 CONTROLLER; MODULE,ENGINE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG>	8-97104-430-0	01	1	9404-9405		●
105	03.415 CONTROLLER; MODULE,ENGINE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG>	8-97115-699-0	01	1	9406-9509		●
105	03.415 CONTROLLER; MODULE,ENGINE ELECTRIC FUEL INJECTION<6GG>	8-97115-699-0	01	1	9510-9608		●
105	03.415 CONTROLLER; MODULE,ENGINE ELECTRIC FUEL INJECTION<6GG>	8-97137-582-0	01	1	9609-		●
115	03.415 NUT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 04.594 M6 FLANGE	0-91150-106-0	01	1	9404-9509		●
115	03.415 NUT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 04.594 M6 FLANGE	0-91150-106-0	01	1	9510-		●
116	03.415 BOLT; ENG CONT MODULE 03.342 (D) M6X16	8-97012-496-0	02	1	9210-9212	●	●	●	●	●	●
116	03.415 BOLT; ENG CONT MODULE 03.342 (D) M6X16	8-97012-496-0	02	1	9301-9403	●	●				●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (D) M6X16	8-97012-496-0	02	1	9404-	●	●				●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 03.342 (D) M6X16	8-97012-496-0	01	1	9404-		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (B) M6X15 L=53.6	8-97030-212-0	01	1	9404-9406		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (C) M6X15 L=47	8-97113-772-0	01	1	9407-9606		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9607-		●
116	03.415 BOLT; ENG CONT MODULE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9404-		●
128	03.672 BRACKET; VAC SW 03.671	8-94209-610-0	01	1	9210-	●					●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94337-634-1	01	1	9210-	●
135	03.670 SENSOR; ENG SPD	8-94337-634-1	01	1	9210-						●
135	03.670 SENSOR; ENG SPD SAUDI ARABIA EQUIPMENT(EU2)	8-94362-506-0	01	1	9210-	●	●
135	03.670 SENSOR; ENG SPD CHILE EQUIPMENT(6KB)	8-94337-779-0	01	1	9210-9403		●
135	03.670 SENSOR; ENG SPD CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94337-779-0	01	1	9404-9411		●
135	03.670 SENSOR; ENG SPD CATALYSIS CONTROL<6MZ>	8-94337-779-0	01	1	9404-9411		●
135	03.670 SENSOR; ENG SPD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94337-779-0	01	1	9412-		●
135	03.670 SENSOR; ENG SPD CATALYSIS CONTROL<6MZ>	8-94337-779-0	01	1	9412-		●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB)	8-97026-162-0	01	1	9210-9403		●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>	8-97026-162-0	01	1	9404-9411		●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97026-162-0	01	1	9412-		●
141	03.670 BRACKET; MCV CHILE EQUIPMENT(6KB)	8-94381-281-0	01	1	9210-9403		●
141	03.670 BRACKET; MCV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94381-281-0	01	1	9404-9411		●
141	03.670 BRACKET; MCV CATALYSIS CONTROL<6MZ>	8-94381-281-0	01	1	9404-9411		●
141	03.670 BRACKET; MCV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94381-281-0	01	1	9412-9503		●
141	03.670 BRACKET; MCV CATALYSIS CONTROL<6MZ>	8-94381-281-0	01	1	9412-9503		●
141	03.670 BRACKET; MCV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>, IGNTIMING ADVANCE FOR CHILE<7LF>	8-94381-281-0	01	1	9504-		●
141	03.670 BRACKET; MCV CATALYSIS CONTROL<6MZ> EXC. IGN TIMING ADVANCE FOR CHILE<7LF>	8-94381-281-0	01	1	9504-		●
141	03.670 BRACKET; MCV SAUDI ARABIA EQUIPMENT(EU2)	8-94318-451-3	01	1	9210-9503		●
141	03.670 BRACKET; MCV SAUDI ARABIA EQUIPMENT(EU2)	8-94318-451-3	01	1	9504-		●
141	03.670 BRACKET; MCV IGN TIMING ADVANCE FOR CHILE<7LF>	8-94318-451-3	01	1	9504-		●
142	03.417 BOLT; MCV BRKT SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9210-9403		●
142	03.417 BOLT; MCV BRKT SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9404-9411		●
142	03.417 BOLT; MCV BRKT CATALYSIS CONTROL<6MZ> 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9404-9411		●
142	03.417 BOLT; MCV BRKT SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9412-		●
142	03.417 BOLT; MCV BRKT CATALYSIS CONTROL<6MZ> 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9412-		●
143	03.675 HOSE; RUBBER,MCV SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 03.676	8-94337-137-0	01	1	9210-9403		●
143	03.675 HOSE; RUBBER,MCV SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.676	8-94337-137-0	01	1	9404-9411		●
143	03.675 HOSE; RUBBER,MCV CATALYSIS CONTROL<6MZ> 03.676	8-94337-137-0	01	1	9404-9411		●
143	03.675 HOSE; RUBBER,MCV SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.676	8-94337-137-0	01	1	9412-		●
143	03.675 HOSE; RUBBER,MCV CATALYSIS CONTROL<6MZ> 03.676	8-94337-137-0	01	1	9412-		●
151	03.670 RELAY; NEUTRAL,EMISSION CONT 03.910 12V 20A	8-94218-497-0	01	1	9210-		●
193	03.675 RUBBER; DISTANCE AIR CONDITIONER(C60) ELECTRIC FUEL INJECTION<6GG>	8-97101-444-0	02	1	9404-9509		●
193	03.675 RUBBER; DISTANCE ELECTRIC FUEL INJECTION<6GG>	8-97101-444-0	02	1	9510-		●
194	03.680 COLLAR AIR CONDITIONER(C60) ELECTRIC FUEL INJECTION<6GG>	8-94338-875-0	02	1	9404-9509		●
194	03.680 COLLAR ELECTRIC FUEL INJECTION<6GG>	8-94338-875-0	02	1	9510-		●
196	03.417 CAP; RUBBER CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4	8-94217-809-0	01	1	9407-9509		●
196	03.417 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4	8-94217-809-0	01	1	9510-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
