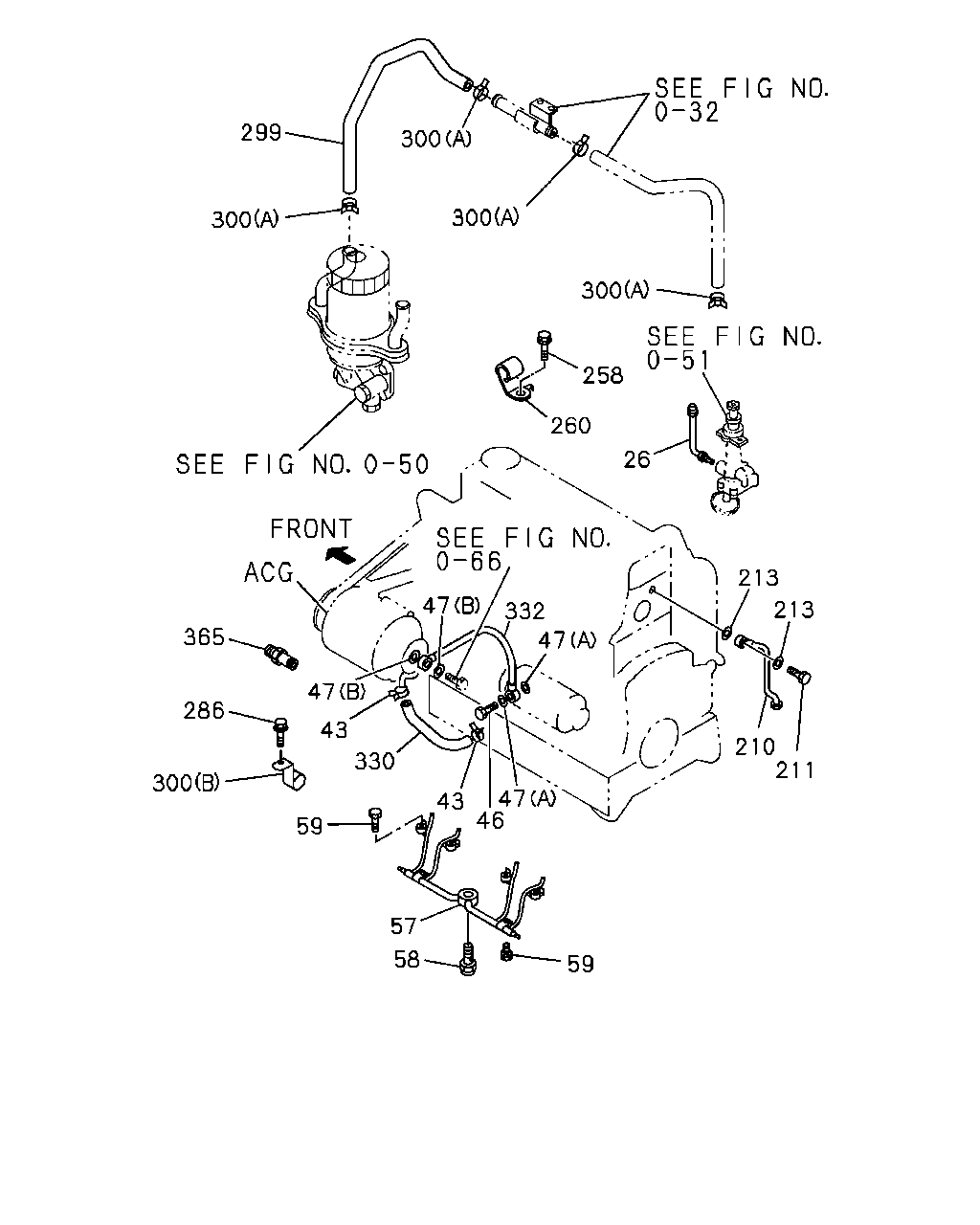

0-52 — OIL AND VACUUM PIPING; ENGINE (#48006) — 124 parça

8 9 7 9 9 11 10 9 47 47 332 44 51 46 47 47 58 29 57 29 26 28 331 331 330 310 310 288 311 288 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	01.656 PIPE; OIL PASSAGE,FRT	8-94475-324-2	01	1	9210-	●
8	01.656 PIPE; OIL PASSAGE,CTR	8-94475-325-2	01	1	9210-	●
9	01.656 BOLT; OIL PASSAGE M6X14	8-94479-695-1	02	1	9210-	●
9	01.656 BOLT; OIL PASSAGE M8X12 FLANGE	8-94479-696-1	02	1	9210-	●
10	01.656 PLUG; OIL PASSAGE PIPE	8-94474-942-0	01	1	9210-	●
11	01.657 GASKET; PLUG,OIL PIPE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9210-	●
26	01.519 PIPE; OIL,PUMP TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94454-852-0	01	1	9210-9308		●
26	01.519 PIPE; OIL,PUMP TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94471-600-0	01	1	9210-9308		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-1	01	1	9210-9308			●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9309-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9210-9308			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9309-			●	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9210-9308			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9309-			●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9210-9509			●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9510-			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9308			●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9309-			●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9210-9308		●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9309-9404			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9405-9509			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9510-			●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (A) ID=8.2 OD=17	9-09572-008-0	02	1	9210-9308		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=19	9-09572-010-0	02	1	9210-9308		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=19	9-09572-010-0	02	1	9309-9311			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9312-9509			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9510-			●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A)	9-09571-408-0	02	1	9210-9308			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A)	9-09571-408-0	02	1	9309-			●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9210-9308			●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9309-			●	●
57	01.519 PIPE; OIL,OIL JET	5-13311-189-2	01	1	9210-9308		●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-0	01	1	9210-			●
57	01.519 PIPE; OIL,OIL JET TURBOCHARGER(K51)	8-94469-709-1	01	1	9510-				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	5-13160-006-2	01	1	9210-9308		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-94177-189-2	01	1	9210-9308			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-94177-189-3	01	1	9309-9603			●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9604-			●	●
288	01.540 CLIP; HOSE,OIL COOLER 08.846	5-83574-006-0	02	1	9210-9404			●
288	01.540 CLIP; HOSE,OIL COOLER 08.846	5-83574-006-0	01	1	9405-9604			●
288	01.540 CLIP; HOSE,OIL COOLER 08.846	5-83574-006-0	01	1	9605-			●
288	01.540 CLIP; HOSE,OIL COOLER M/T MSG 5 SPEED(M75) 08.846	5-83574-006-0	01	1	9605-				●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=21.7	8-94413-822-0	08	1	9210-9406			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9407-9604			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9605-			●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT<R5B> 01.166 ID=20.8	8-94125-862-0	08	1	9605-				●
310	01.540 CLIP; WATER HOSE FIX 08.846 ID=22	8-94382-401-0	02	1	9510-				●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER(K51) 01.166 ID=20.8	8-94125-862-0	10	1	9510-				●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-9308			●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9309-			●	●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	5-11369-087-0	01	1	9210-9308		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9210-9509			●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9510-			●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 01.540	5-09707-025-3	02	1	9210-9402			●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-9509			●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9510-			●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP 01.540	8-94135-853-1	01	1	9210-9308		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94468-522-1	01	1	9210-9509			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94468-522-1	01	1	9510-			●	●

299 300 300 300 300 258 260 26 213 213 211 210 59 58 57 59 43 46 47 330 43 47 300 286 365 47 332 47

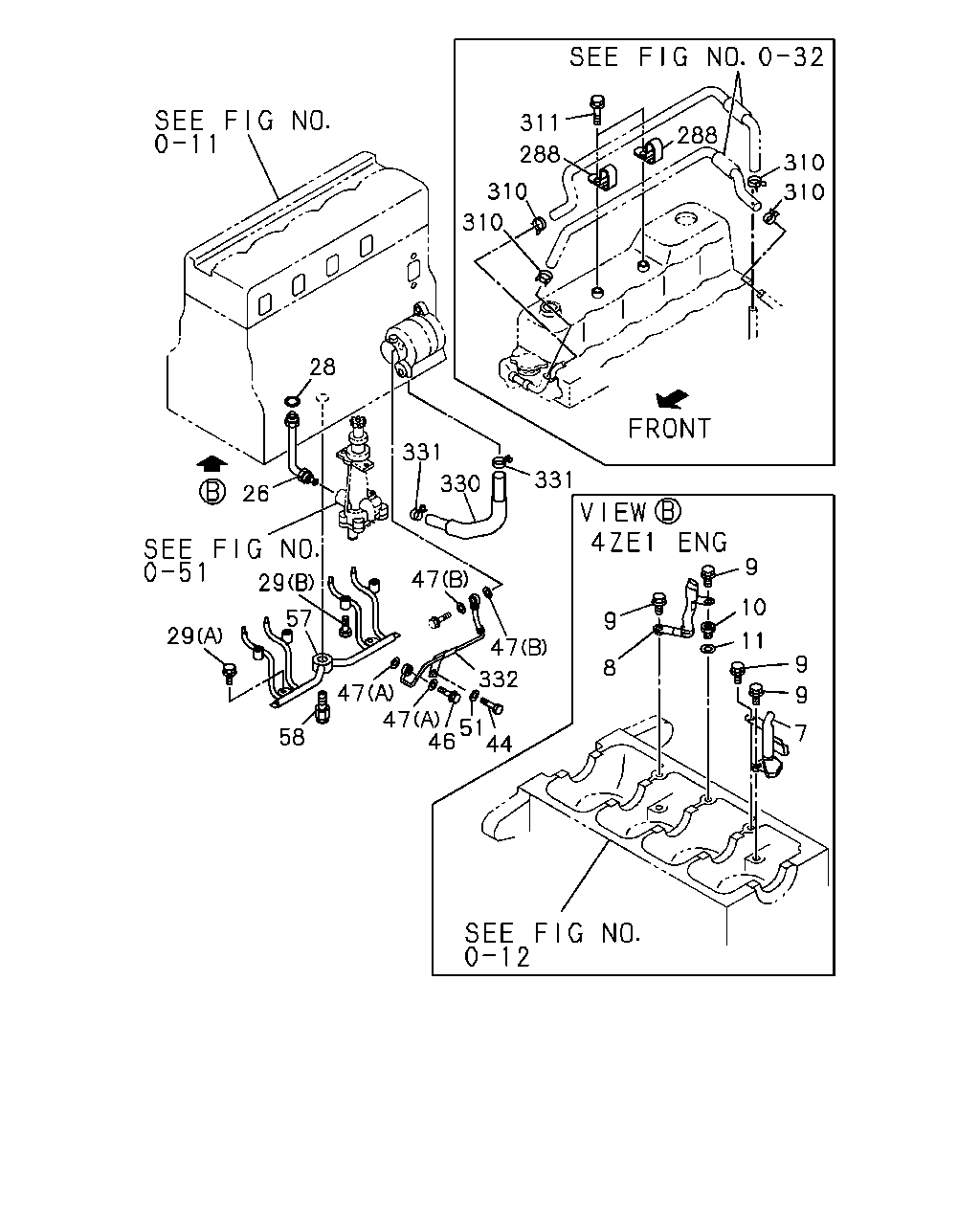

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
26	01.519 PIPE; OIL,PUMP TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94454-852-0	01	1	9210-9308	●
26	01.519 PIPE; OIL,PUMP TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94471-600-0	01	1	9210-9308	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-1	01	1	9210-9308		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9309-		●	●
43	01.540 CLIP; RUB HOSE	5-09707-025-3	02	1	9210-9308	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9210-9308	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X24	5-09675-024-0	01	1	9309-9404		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9405-9509		●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9510-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (A) ID=8.2 OD=17	9-09572-008-0	02	1	9210-9308	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=19	9-09572-010-0	02	1	9210-9308	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=19	9-09572-010-0	02	1	9309-9311		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9312-9509		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9510-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A)	9-09571-408-0	02	1	9210-9308		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A)	9-09571-408-0	02	1	9309-		●	●
57	01.519 PIPE; OIL,OIL JET	5-13311-189-2	01	1	9210-9308	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-0	01	1	9210-		●
57	01.519 PIPE; OIL,OIL JET TURBOCHARGER(K51)	8-94469-709-1	01	1	9510-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	5-13160-006-2	01	1	9210-9308	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-94177-189-2	01	1	9210-9308		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-94177-189-3	01	1	9309-9603		●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9604-		●	●
59	01.531 BOLT; OIL JET 00.206 M8X12 W/LK WASHER	0-50040-812-0	02	1	9210-9308	●
59	01.531 BOLT; OIL JET 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9210-9308	●
210	01.519 PIPE; OIL,C/BL TO HD,ROCKER OIL 01.531	5-13311-176-0	01	1	9210-9308	●
211	01.531 BOLT; JOINT,FEED PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	01	1	9210-9308	●
213	01.531 GASKET; ROCKER OIL FEED PIPE 03.162 ID=8.2 OD=13.2	1-09630-082-0	02	1	9210-9308	●
258	03.358 BOLT; OIL PIPE CLIP,TC OIL DRAIN 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 04.642 M10X16	0-20801-016-0	01	1	9210-9308	●
260	01.531 CLIP; HOSE,TURBOCHARGER RETURN 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94473-561-1	01	1	9210-9308	●
286	01.540 BOLT; BRKT,OIL COOLER 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9210-9308	●
299	01.540 HOSE; OIL COOLER TO WATER PIPE	8-94456-532-0	01	1	9210-9308	●
300	01.540 CLIP; HOSE,OIL COOLER (B)	5-09700-290-0	01	1	9210-9308	●
300	01.540 CLIP; HOSE,OIL COOLER 01.150 (A)	8-94413-822-0	04	1	9210-9308	●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	5-11369-087-0	01	1	9210-9308	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9210-9509		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9510-		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP 01.540	8-94135-853-1	01	1	9210-9308	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94468-522-1	01	1	9210-9509		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94468-522-1	01	1	9510-		●	●
365	01.540 JOINT; OIL COOLER	9-09903-497-1	01	1	9210-9308	●

310 310 308 310 310 309 296 310 309 310 150 149 79 147 3 3 248 40 147 147 2 63 40

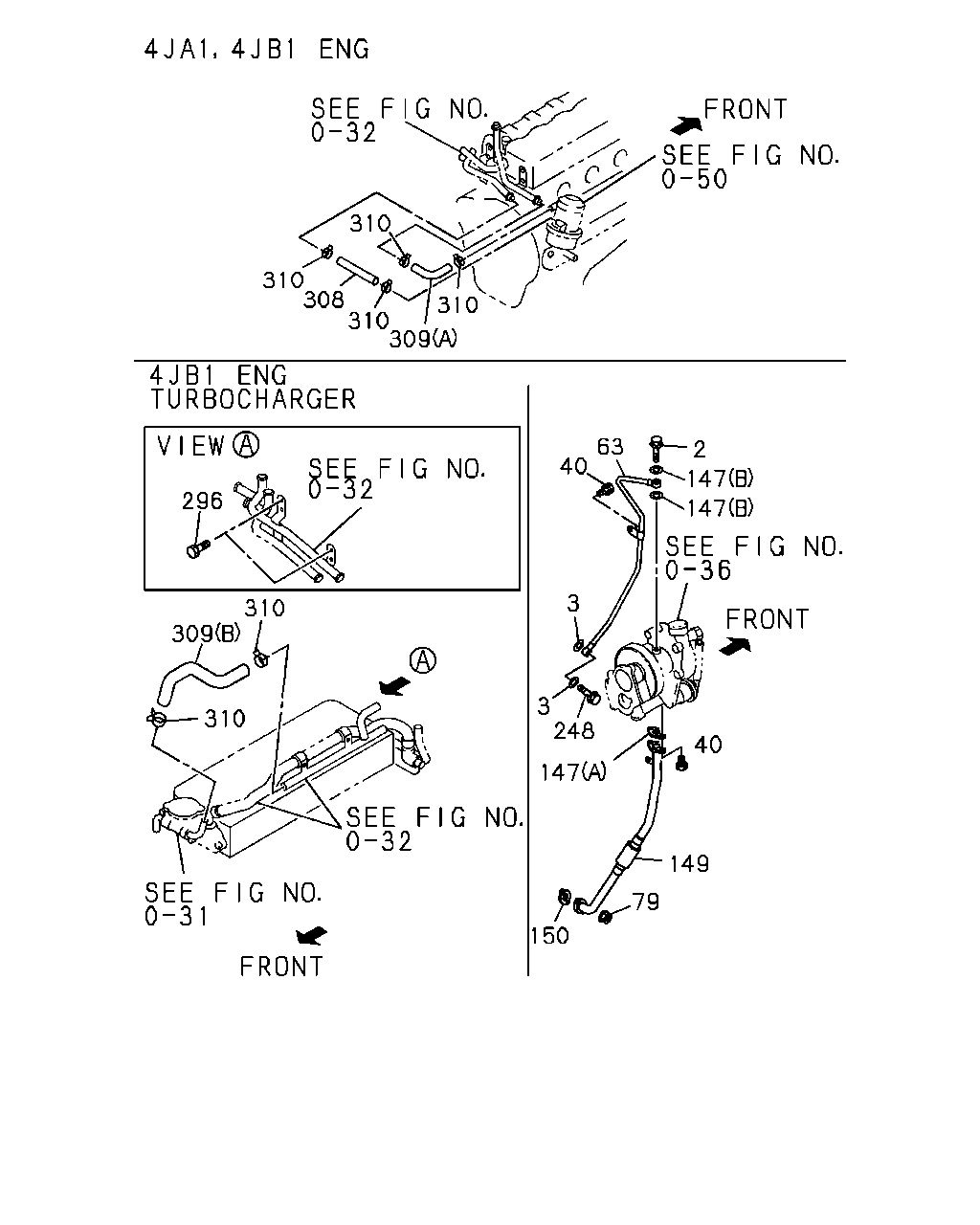

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER(K51) M10X27 FLANGE	8-94443-535-0	01	1	9510-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9510-		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER(K51) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9510-		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER(K51) 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9510-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97086-341-0	01	1	9510-		●
79	01.531 NUT; OIL DRAIN PIPE TURBOCHARGER(K51) 00.854 M8 FLANGE	5-09440-005-0	02	1	9510-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=14	8-97041-638-0	01	1	9510-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9510-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER(K51)	8-97086-340-1	01	1	9510-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51)	8-97045-326-0	01	1	9510-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER(K51) M14X25	8-94315-336-1	01	1	9510-		●
296	01.540 BOLT; RETURN PIPE TURBOCHARGER(K51) 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9510-		●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9210-9408	●
308	01.540 HOSE; OIL COOLER FEED L=220	8-97119-575-0	01	1	9409-9509	●
308	01.540 HOSE; OIL COOLER FEED L=220	8-97119-575-0	01	1	9510-	●	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9210-9509	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9510-	●	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER(K51) (B)	8-94453-532-1	01	1	9510-		●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=21.7	8-94413-822-0	08	1	9210-9406	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9407-9604	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9605-	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT<R5B> 01.166 ID=20.8	8-94125-862-0	08	1	9605-		●
310	01.540 CLIP; WATER HOSE FIX 08.846 ID=22	8-94382-401-0	02	1	9510-		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER(K51) 01.166 ID=20.8	8-94125-862-0	10	1	9510-		●
