0-51 — OIL PUMP AND OIL STRAINER (#48005) — 83 parça

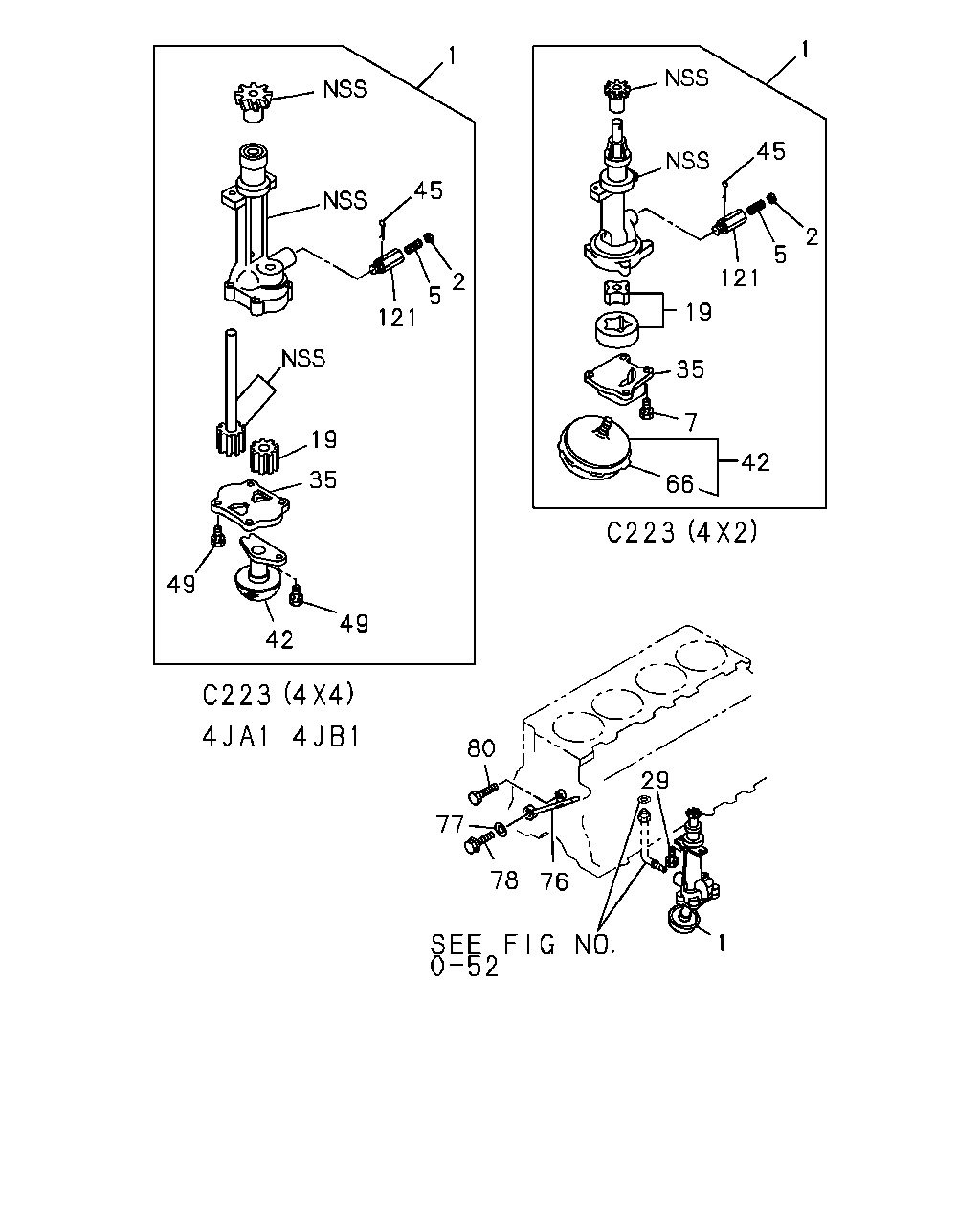

1 45 2 5 121 19 35 49 49 42 80 77 78 76 1 29 66 42 7 35 19 121 5 2 45 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.652 PUMP ASM; OIL	8-94427-303-1	01	1	9210-	●	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9210-			●
1	01.652 PUMP ASM; OIL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-97033-179-1	01	1	9210-9308				●
1	01.652 PUMP ASM; OIL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-97033-176-3	01	1	9210-9308				●
1	01.652 PUMP ASM; OIL	8-97069-738-1	01	1	9210-9509					●
1	01.652 PUMP ASM; OIL	8-97069-738-2	01	1	9510-					●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9210-9308				●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9309-9509					●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9510-					●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9210-9308				●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9309-9509					●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9510-					●	●
7	01.657 BOLT; COVER,OIL PUMP 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M8X50	5-09030-031-0	01	1	9210-9308				●
7	01.657 BOLT; COVER,OIL PUMP 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 04.686 M8X25 W/LK WASHER	9-01900-825-0	03	1	9210-9308				●
19	01.639 GEAR SET; OIL PUMP	8-94239-710-0	01	1	9210-	●	●
19	01.639 GEAR SET; OIL PUMP	8-94225-801-0	01	1	9210-			●
19	01.639 GEAR SET; OIL PUMP 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94452-552-0	01	1	9210-9308				●
19	01.639 GEAR SET; OIL PUMP 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94311-974-0	01	1	9210-9308				●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9210-9509					●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9510-					●	●
29	01.652 BOLT; OIL PUMP 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9210-9308				●
29	01.652 BOLT; OIL PUMP 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9210-9308				●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9210-9308					●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9309-					●	●
35	01.657 COVER; OIL PUMP 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	5-13113-002-0	01	1	9210-9308				●
35	01.657 COVER; OIL PUMP 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	5-13113-022-1	01	1	9210-9308				●
35	01.657 COVER; OIL PUMP	8-97036-830-0	01	1	9210-9509					●
35	01.657 COVER; OIL PUMP	8-97036-830-0	01	1	9510-					●	●
42	01.656 STRAINER; OIL,OIL PUMP 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	5-13140-001-0	01	1	9210-9308				●
42	01.656 STRAINER; OIL,OIL PUMP 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94402-194-0	01	1	9210-9308				●
42	01.656 STRAINER; OIL,OIL PUMP 01.657	8-97036-837-0	01	1	9210-9509					●
42	01.656 STRAINER; OIL,OIL PUMP 01.657	8-97036-837-0	01	1	9510-					●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9210-9509				●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9510-					●	●
49	01.531 BOLT; STRAINER,OIL PUMP 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 06.655 M8X25 FLANGE	0-28010-825-0	02	1	9210-9308				●
49	01.531 BOLT; STRAINER,OIL PUMP 06.655 M8X25 FLANGE	0-28010-825-0	02	1	9210-9308					●
49	01.531 BOLT; STRAINER,OIL PUMP 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 04.642 M8X35 FLANGE	0-28010-835-0	02	1	9210-9308				●
49	01.531 BOLT; STRAINER,OIL PUMP 04.642 M8X35 FLANGE	0-28010-835-0	02	1	9210-9308					●
49	01.531 BOLT; STRAINER,OIL PUMP M8X25 FLANGE	0-28080-825-0	02	1	9309-9509					●
49	01.531 BOLT; STRAINER,OIL PUMP M8X25 FLANGE	0-28080-825-0	02	1	9510-					●	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9309-9509					●
49	01.531 BOLT; STRAINER,OIL PUMP 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9510-					●	●
66	01.656 GAUZE; OIL STRAINER 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	9-13143-010-0	01	1	9210-9308				●
76	01.519 PIPE ASM; OIL	8-94139-747-1	01	1	9210-9504					●
76	01.519 PIPE ASM; OIL	8-94453-548-1	01	1	9505-9509					●
76	01.519 PIPE ASM; OIL	8-94453-548-1	01	1	9510-9605					●	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	9606-					●	●
77	01.531 GASKET; JOINT BOLT 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9210-9504					●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X25	8-94146-582-0	01	1	9210-9504					●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9505-9509					●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9510-					●	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-9509					●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9510-					●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9210-9308				●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9309-9509					●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9510-					●	●

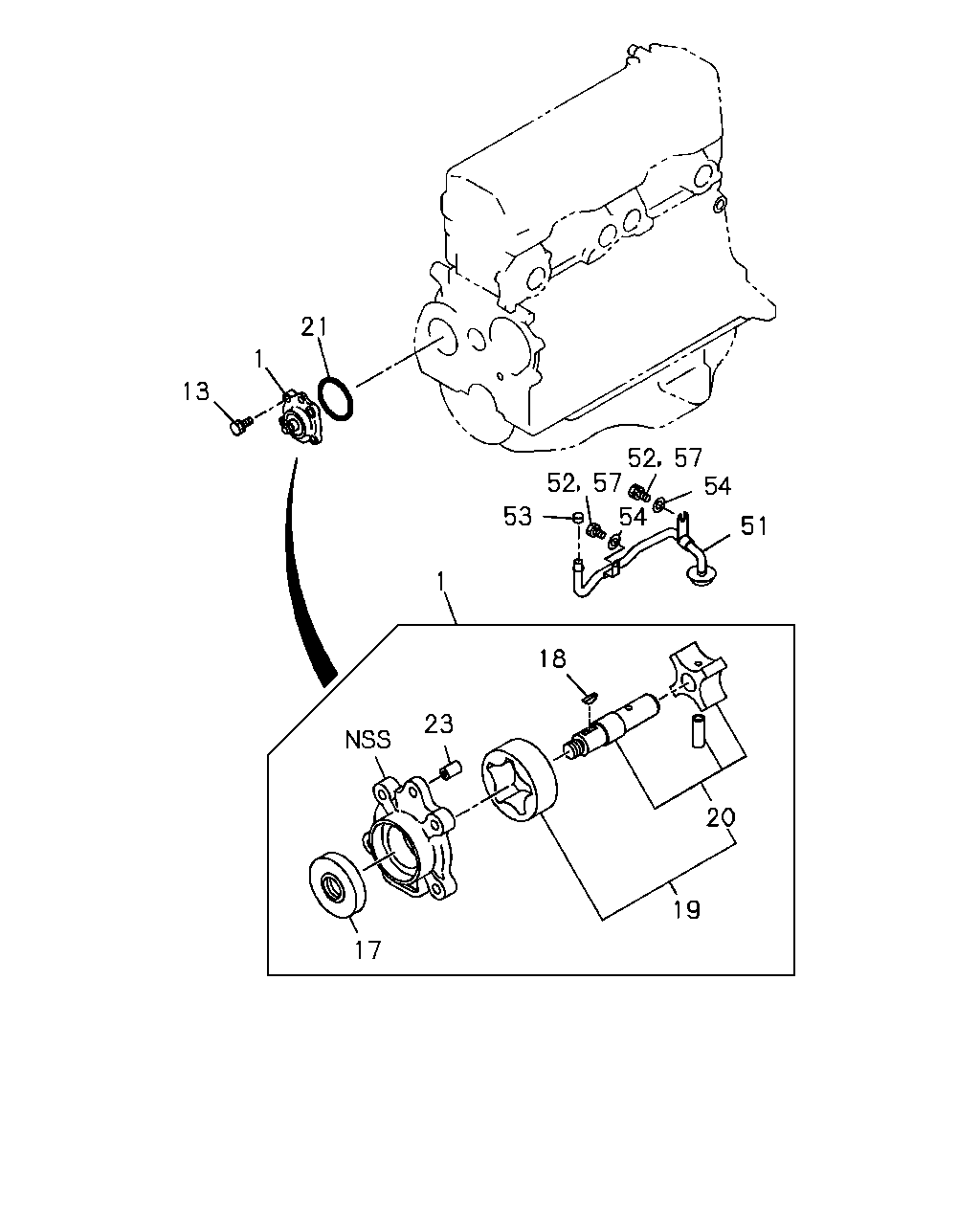

13 1 21 1 53 52 57 52 57 51 54 54 18 23 20 19 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.652 PUMP ASM; OIL	8-94427-303-1	01	1	9210-	●	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9210-			●
1	01.652 PUMP ASM; OIL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-97033-179-1	01	1	9210-9308				●
1	01.652 PUMP ASM; OIL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-97033-176-3	01	1	9210-9308				●
1	01.652 PUMP ASM; OIL	8-97069-738-1	01	1	9210-9509					●
1	01.652 PUMP ASM; OIL	8-97069-738-2	01	1	9510-					●	●
13	01.652 BOLT; OIL PUMP TO C/BL M8X22 HEX-HOLE-HEAD	8-94225-552-0	04	1	9210-	●	●	●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-516-0	01	1	9210-	●	●	●
18	01.639 KEY; OIL PUMP 08.960	9-08055-313-0	01	1	9210-	●	●	●
19	01.639 GEAR SET; OIL PUMP	8-94239-710-0	01	1	9210-	●	●
19	01.639 GEAR SET; OIL PUMP	8-94225-801-0	01	1	9210-			●
19	01.639 GEAR SET; OIL PUMP 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94452-552-0	01	1	9210-9308				●
19	01.639 GEAR SET; OIL PUMP 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94311-974-0	01	1	9210-9308				●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9210-9509					●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9510-					●	●
20	01.639 GEAR; DRIVE,OIL PUMP	8-94232-290-1	01	1	9210-	●	●
20	01.639 GEAR; DRIVE,OIL PUMP	8-94310-892-0	01	1	9210-			●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-94363-446-0	01	1	9210-	●	●	●
23	01.652 PIN; BODY,OIL PUMP 01.639	8-94227-142-0	02	1	9210-	●	●	●
51	01.519 STRAINER & PIPE ASM; OIL	8-94163-641-1	01	1	9210-	●
51	01.519 STRAINER & PIPE ASM; OIL 4X2(TFB***)	8-94163-641-1	01	1	9210-		●
51	01.519 STRAINER & PIPE ASM; OIL 4X4(TFS***)	8-94136-786-2	01	1	9210-		●
51	01.519 STRAINER & PIPE ASM; OIL	8-94174-225-4	01	1	9210-			●
52	01.656 BOLT; OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-	●	●
53	01.657 HOSE; RUBBER,OIL PIPE ID=16.9 OD=23.5 L=9	8-94200-789-1	01	1	9210-	●	●	●
54	01.656 WASHER; PL,OIL PIPE 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9210-	●	●	●
57	01.531 BOLT; OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-			●
