0-50 — OIL COOLER AND OIL FILTER (#48004) — 131 parça

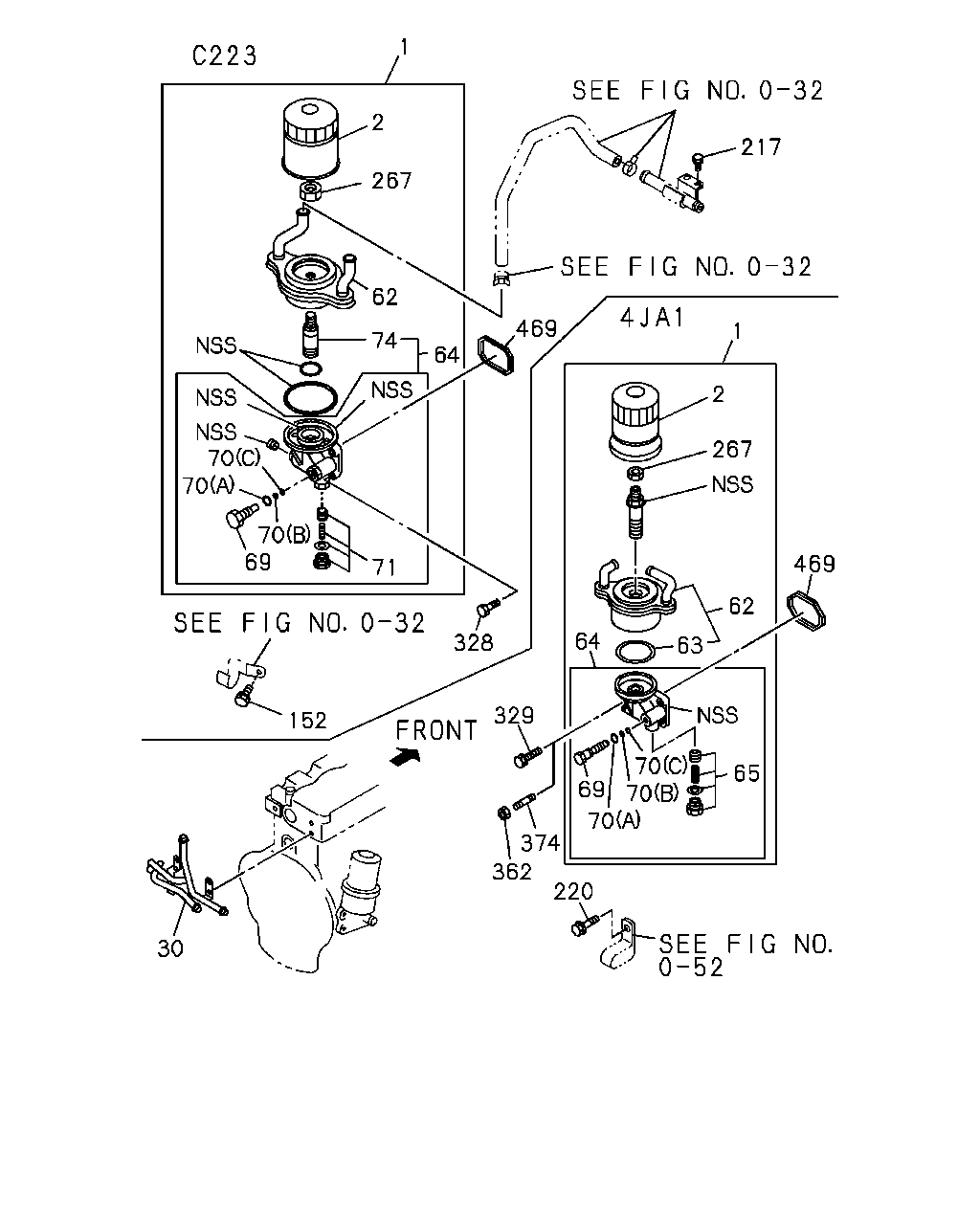

1 2 267 62 74 64 469 217 1 2 267 469 62 63 64 328 71 70 69 70 70 152 30 329 362 220 374 70 69 70 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.540 FILTER & COOLER ASM; OIL	8-94454-858-2	01	1	9210-9308	●
1	01.540 FILTER & COOLER ASM; OIL	8-94442-156-2	01	1	9210-9506		●
1	01.540 FILTER & COOLER ASM; OIL	8-97117-255-1	01	1	9507-		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER(K51)	8-94328-099-1	01	1	9510-			●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER(K51)	8-97160-376-1	01	1	9510-			●
2	01.836 ELEMENT; OIL FILTER	8-94430-411-2	01	1	9210-9304				●	●	●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9305-				●	●	●
2	01.836 ELEMENT; OIL FILTER	8-94325-769-0	01	1	9210-9308	●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-0	01	1	9210-9509		●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-1	01	1	9510-		●	●
30	01.540 PIPE ASM; OIL COOLER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94475-204-1	01	1	9210-		●
62	01.540 COOLER ASM; OIL	8-94325-768-0	01	1	9210-9308	●
62	01.540 COOLER ASM; OIL	8-94311-222-0	01	1	9210-9506		●
62	01.540 COOLER ASM; OIL	8-97117-254-0	01	1	9507-9509		●
62	01.540 COOLER ASM; OIL	8-97117-254-1	01	1	9510-		●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER(K51)	8-97117-254-1	01	1	9510-			●
62	01.540 COOLER ASM; OIL TURBOCHARGER(K51)	8-94360-428-0	01	1	9510-			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9507-9509		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9510-		●
63	01.550 GASKET; COOLER TO BRKT EXC. TURBOCHARGER(K51)	8-94383-720-0	01	1	9510-			●
63	01.550 GASKET; COOLER TO BRKT TURBOCHARGER(K51) 01.540	8-97126-492-0	01	1	9510-			●
64	01.540 BODY; OIL FILTER & OIL COOLER 01.837	8-94334-903-1	01	1	9210-9308	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-94332-294-1	01	1	9210-9506		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97135-351-0	01	1	9507-		●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER(K51)	8-97081-759-0	01	1	9510-			●
64	01.540 BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER(K51)	8-97161-052-1	01	1	9510-			●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9210-9509		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9510-		●
65	01.540 VALVE; OIL COOLER TURBOCHARGER(K51)	8-94450-772-0	01	1	9510-			●
65	01.540 VALVE; OIL COOLER EXC. TURBOCHARGER(K51) 01.837	8-94167-882-0	01	1	9510-			●
69	01.837 PLUG; BODY,OIL FILTER	8-94167-883-0	01	1	9210-9308	●	●
69	01.837 PLUG; BODY,OIL FILTER	8-94167-883-0	01	1	9309-9509		●
69	01.837 PLUG; BODY,OIL FILTER	8-94167-883-0	01	1	9510-		●	●
70	01.844 GASKET; PLUG,OIL FILTER (A) ID=13.6	8-94167-884-0	01	1	9210-9308	●	●
70	01.844 GASKET; PLUG,OIL FILTER (A) ID=13.6	8-94167-884-0	01	1	9309-9509		●
70	01.844 GASKET; PLUG,OIL FILTER (A) ID=13.6	8-94167-884-0	01	1	9510-		●	●
70	01.844 GASKET; PLUG,OIL FILTER (B) ID=8.8	8-94167-885-0	01	1	9210-9308	●	●
70	01.844 GASKET; PLUG,OIL FILTER (B) ID=8.8	8-94167-885-0	01	1	9309-9509		●
70	01.844 GASKET; PLUG,OIL FILTER (B) ID=8.8	8-94167-885-0	01	1	9510-		●	●
70	01.844 GASKET; PLUG,OIL FILTER (C) ID=6.8	8-94167-886-0	01	1	9210-9308	●	●
70	01.844 GASKET; PLUG,OIL FILTER (C) ID=6.8	8-94167-886-0	01	1	9309-9509		●
70	01.844 GASKET; PLUG,OIL FILTER (C) ID=6.8	8-94167-886-0	01	1	9510-		●	●
71	01.540 VALVE ASM; RELIEF,OIL FILTER	8-94450-772-0	01	1	9210-9308	●
74	01.540 PIPE ASM; CENTER	8-94334-904-0	01	1	9210-9308	●
152	01.540 BOLT; CLIP,OIL COOLER HOSE 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9210-9308	●
217	01.540 BOLT; CONNECTOR 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9210-9308	●
220	01.540 BOLT; CLIP,OIL COOLER PIPE 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9210-9404		●
220	01.540 BOLT; CLIP,OIL COOLER PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9405-9406		●
267	01.840 NUT; OIL COOLER	8-94343-216-0	01	1	9210-	●	●
328	01.840 BOLT; OIL FILTER 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER 01.540 M8X28	0-50040-828-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER M8X70 W/LK WASHER	0-50040-870-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9210-9308	●
329	01.840 BOLT; OIL FILTER 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9210-9509		●
329	01.840 BOLT; OIL FILTER 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9510-		●	●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9509		●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	9510-		●	●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	9407-9509		●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	9510-		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94425-298-0	01	1	9210-9307	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844	8-97065-983-0	01	1	9308-9509		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844	8-97065-983-0	01	1	9510-		●	●

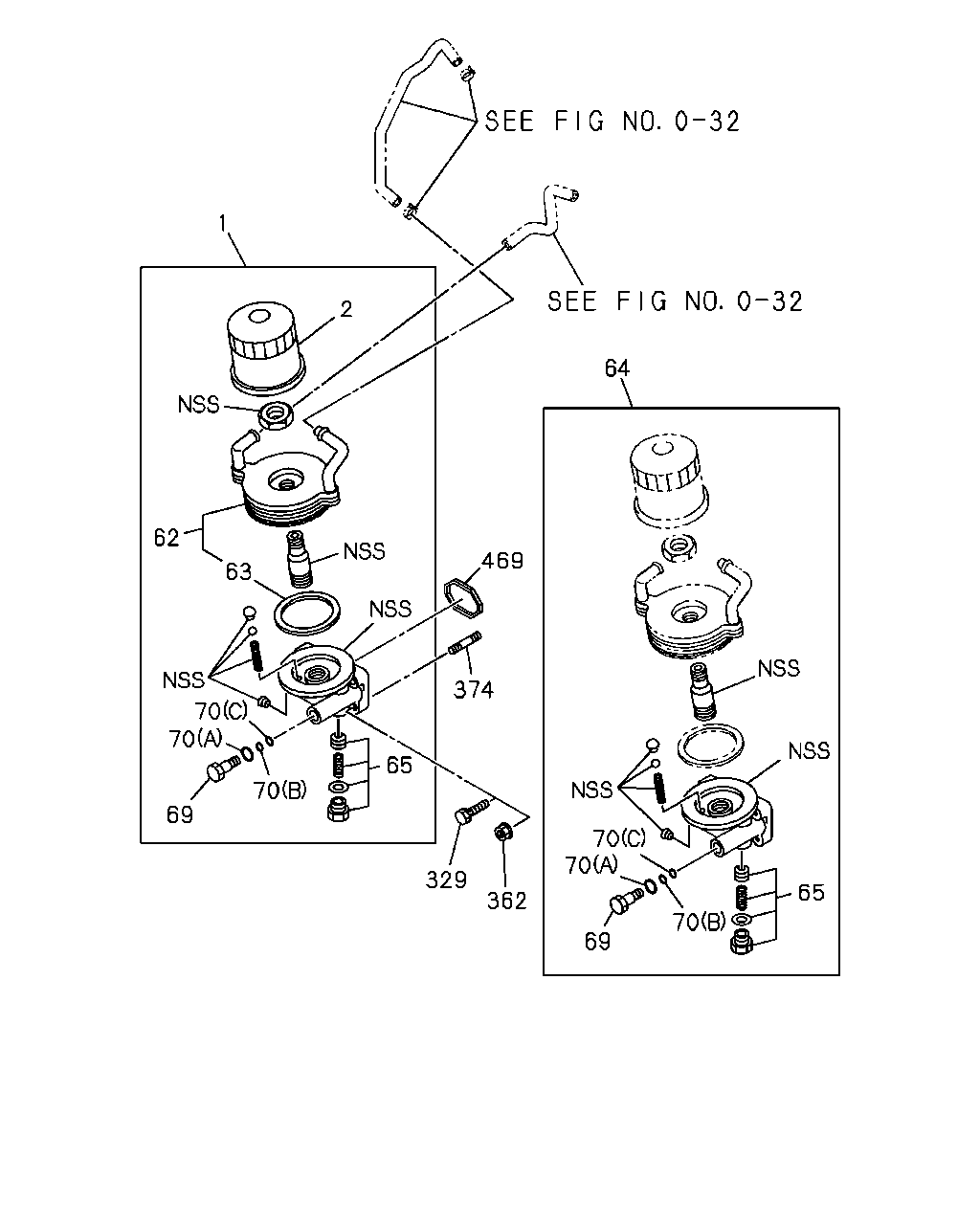

1 2 62 63 70 70 69 65 70 374 469 64 70 70 69 65 70 362 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.540 FILTER & COOLER ASM; OIL	8-94454-858-2	01	1	9210-9308	●
1	01.540 FILTER & COOLER ASM; OIL	8-94442-156-2	01	1	9210-9506		●
1	01.540 FILTER & COOLER ASM; OIL	8-97117-255-1	01	1	9507-		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER(K51)	8-94328-099-1	01	1	9510-			●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER(K51)	8-97160-376-1	01	1	9510-			●
2	01.836 ELEMENT; OIL FILTER	8-94430-411-2	01	1	9210-9304				●	●	●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9305-				●	●	●
2	01.836 ELEMENT; OIL FILTER	8-94325-769-0	01	1	9210-9308	●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-0	01	1	9210-9509		●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-1	01	1	9510-		●	●
62	01.540 COOLER ASM; OIL	8-94325-768-0	01	1	9210-9308	●
62	01.540 COOLER ASM; OIL	8-94311-222-0	01	1	9210-9506		●
62	01.540 COOLER ASM; OIL	8-97117-254-0	01	1	9507-9509		●
62	01.540 COOLER ASM; OIL	8-97117-254-1	01	1	9510-		●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER(K51)	8-97117-254-1	01	1	9510-			●
62	01.540 COOLER ASM; OIL TURBOCHARGER(K51)	8-94360-428-0	01	1	9510-			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9507-9509		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9510-		●
63	01.550 GASKET; COOLER TO BRKT EXC. TURBOCHARGER(K51)	8-94383-720-0	01	1	9510-			●
63	01.550 GASKET; COOLER TO BRKT TURBOCHARGER(K51) 01.540	8-97126-492-0	01	1	9510-			●
64	01.540 BODY; OIL FILTER & OIL COOLER 01.837	8-94334-903-1	01	1	9210-9308	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-94332-294-1	01	1	9210-9506		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97135-351-0	01	1	9507-		●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER(K51)	8-97081-759-0	01	1	9510-			●
64	01.540 BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER(K51)	8-97161-052-1	01	1	9510-			●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9210-9509		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9510-		●
65	01.540 VALVE; OIL COOLER TURBOCHARGER(K51)	8-94450-772-0	01	1	9510-			●
65	01.540 VALVE; OIL COOLER EXC. TURBOCHARGER(K51) 01.837	8-94167-882-0	01	1	9510-			●
69	01.837 PLUG; BODY,OIL FILTER	8-94167-883-0	01	1	9210-9308	●	●
69	01.837 PLUG; BODY,OIL FILTER	8-94167-883-0	01	1	9309-9509		●
69	01.837 PLUG; BODY,OIL FILTER	8-94167-883-0	01	1	9510-		●	●
70	01.844 GASKET; PLUG,OIL FILTER (A) ID=13.6	8-94167-884-0	01	1	9210-9308	●	●
70	01.844 GASKET; PLUG,OIL FILTER (A) ID=13.6	8-94167-884-0	01	1	9309-9509		●
70	01.844 GASKET; PLUG,OIL FILTER (A) ID=13.6	8-94167-884-0	01	1	9510-		●	●
70	01.844 GASKET; PLUG,OIL FILTER (B) ID=8.8	8-94167-885-0	01	1	9210-9308	●	●
70	01.844 GASKET; PLUG,OIL FILTER (B) ID=8.8	8-94167-885-0	01	1	9309-9509		●
70	01.844 GASKET; PLUG,OIL FILTER (B) ID=8.8	8-94167-885-0	01	1	9510-		●	●
70	01.844 GASKET; PLUG,OIL FILTER (C) ID=6.8	8-94167-886-0	01	1	9210-9308	●	●
70	01.844 GASKET; PLUG,OIL FILTER (C) ID=6.8	8-94167-886-0	01	1	9309-9509		●
70	01.844 GASKET; PLUG,OIL FILTER (C) ID=6.8	8-94167-886-0	01	1	9510-		●	●
329	01.840 BOLT; OIL FILTER 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9210-9509		●
329	01.840 BOLT; OIL FILTER 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9510-		●	●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9509		●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	9510-		●	●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	9407-9509		●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	9510-		●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94425-298-0	01	1	9210-9307	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844	8-97065-983-0	01	1	9308-9509		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844	8-97065-983-0	01	1	9510-		●	●

328 328 328 328 2 272 352 306 285 434 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.836 ELEMENT; OIL FILTER	8-94430-411-2	01	1	9210-9304				●	●	●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9305-				●	●	●
2	01.836 ELEMENT; OIL FILTER	8-94325-769-0	01	1	9210-9308	●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-0	01	1	9210-9509		●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-1	01	1	9510-		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-199-0	01	1	9210-				●	●	●
285	01.837 SPRING; OIL FILTER	8-94114-512-0	01	1	9210-				●	●	●
306	01.837 VALVE; OIL FILTER	8-94235-567-1	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER 01.540 M8X28	0-50040-828-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER M8X70 W/LK WASHER	0-50040-870-0	01	1	9210-				●	●	●
328	01.840 BOLT; OIL FILTER 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9210-9308	●
351	01.837 PLUG; OIL FILTER	8-94244-655-0	01	1	9210-				●	●	●
352	01.840 ADAPTER; OIL FILTER	8-94476-127-0	01	1	9210-				●		●
352	01.840 ADAPTER; OIL FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94476-127-0	01	1	9210-					●
352	01.840 ADAPTER; OIL FILTER SAUDI ARABIA EQUIPMENT(EU2)	8-97021-073-0	01	1	9210-					●
434	01.844 GASKET; PLUG,OIL FILTER 01.837	8-94244-656-0	01	1	9210-				●	●	●
