◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-45 - EVAPORATOR SYSTEM; ENGINE ▶
0-45 — EVAPORATOR SYSTEM; ENGINE (#48003) — 71 parça
çizim 20046
91 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 03.163 HOSE; RUBBER,SEDIMENTER TO FUEL 8-94328-915-0 01 1 9210-9308 ●
24 03.163 HOSE; RUBBER,SEDIMENTER TO FUEL 8-94327-065-0 01 1 9210-9509 ●
24 03.163 HOSE; RUBBER,SEDIMENTER TO FUEL 8-94327-065-0 01 1 9510- ● ●
91 03.162 CLIP; HOSE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.430 		1-09709-122-0 01 1 9210-9308 ●

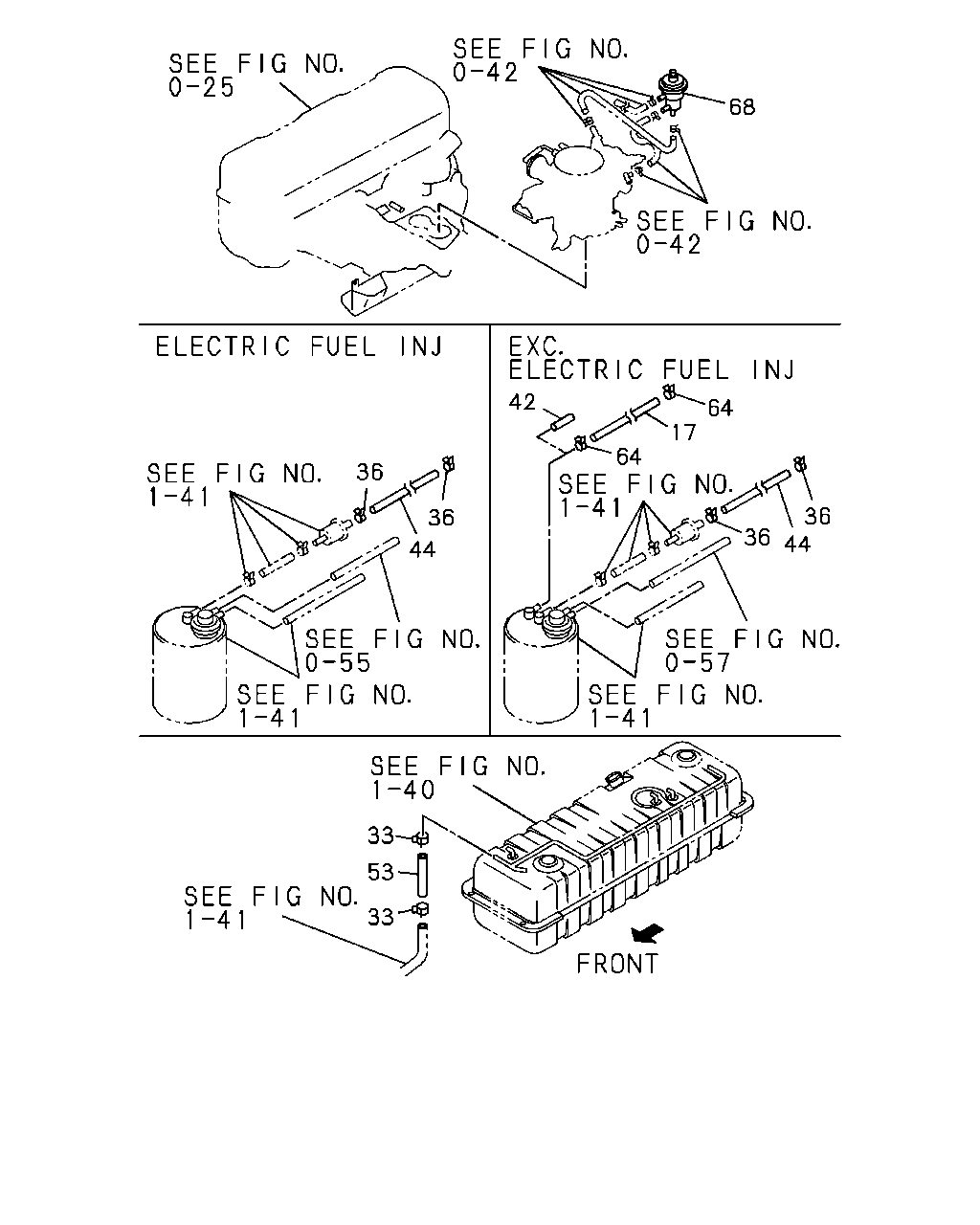

çizim 68516
68 64 42 17 64 36 36 44 36 44 36 33 53 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
17 03.163 HOSE; EVAP
CHILE EQUIPMENT(6KB) 08.962 L=290 SERVICED BY L=3000 		0-04790-300-0 01 1 9210-9403 ●
17 03.163 HOSE; EVAP
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=290 SERVICED BY L=3000 		0-04790-300-0 01 1 9404-9411 ●
17 03.163 HOSE; EVAP
CATALYSIS CONTROL<6MZ> 08.962 L=290 SERVICED BY L=3000 		0-04790-300-0 01 1 9404-9411 ●
17 03.163 HOSE; EVAP
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=290 SERVICED BY L=3000 		0-04790-300-0 01 1 9412- ●
17 03.163 HOSE; EVAP
CATALYSIS CONTROL<6MZ> 08.962 L=290 SERVICED BY L=3000 		0-04790-300-0 01 1 9412- ●
17 03.163 HOSE; EVAP
COLOMBIA EQUIPMENT(X74) 		8-97093-941-0 01 1 9309-9403 ●
17 03.163 HOSE; EVAP
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97093-941-0 01 1 9404-9603 ●
17 03.163 HOSE; EVAP
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 		8-97093-941-0 01 1 9604- ●
33 03.162 CLIP; EVAP HOSE
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 03.163 ID=11 		8-94238-570-0 02 1 9210-9308 ● ● ●
33 03.162 CLIP; EVAP HOSE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.163 ID=11 		8-94238-570-0 02 1 9309-9411 ● ● ●
33 03.162 CLIP; EVAP HOSE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11 		8-94238-570-0 02 1 9412-9604 ● ● ●
33 03.162 CLIP; EVAP HOSE
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11 		8-94238-570-0 02 1 9605- ● ● ●
36 03.162 CLIP; HOSE,CANISTER
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 03.163 ID=11 		8-94238-570-0 02 1 9210-9308 ● ● ●
36 03.162 CLIP; HOSE,CANISTER
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.163 ID=11 		8-94238-570-0 02 1 9309-9411 ● ● ●
36 03.162 CLIP; HOSE,CANISTER
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11 		8-94238-570-0 02 1 9412-9604 ● ● ●
36 03.162 CLIP; HOSE,CANISTER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11 		8-94238-570-0 02 1 9605- ● ● ●
42 03.130 CAP; CANISTER
SAUDI ARABIA EQUIPMENT(EU2) ID=9.0 		8-94207-303-0 01 1 9210-9509 ● ●
42 03.130 CAP; CANISTER
SAUDI ARABIA EQUIPMENT(EU2) ID=9.0 		8-94207-303-0 01 1 9604- ● ●
44 03.163 HOSE; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) L=240 		8-97087-679-0 01 1 9210-9308 ● ● ●
44 03.163 HOSE; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) L=240 		8-97087-679-0 01 1 9309-9411 ● ● ●
44 03.163 HOSE; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=240 		8-97087-679-0 01 1 9412-9604 ● ● ●
44 03.163 HOSE; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) L=240 		8-97087-679-0 01 1 9605- ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 CREW CAB(TFB*W*) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 CREW CAB(TFB*W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9511 ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9511 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 CREW CAB(TFB*W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9512-9604 ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9512-9604 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 CREW CAB(TFB*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9605- ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000 		0-04750-300-0 01 1 9605- ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SHORT(TFB**C) SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SHORT(TFS**C) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SHORT(TFB**C) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9411 ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SHORT(TFS**C) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9411 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SHORT(TFB**C) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9412-9501 ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
SHORT(TF***C) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9412-9501 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SHORT(TFB**C) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9502-9604 ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SHORT(TFS**C) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9502-9604 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SHORT(TFB**C) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9605- ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SHORT(TFS**C) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9605- ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9210-9308 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SPACE CAB(TFB*C*) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9406 ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SINGLE CAB LONG(TFB0SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9406 ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9309-9406 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SINGLE CAB LONG(TFB0SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9407-9411 ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SPACE CAB(TFB*C*) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9407-9411 ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SPACE CAB(TFB6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9407-9411 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SPACE CAB(TFS*C*) SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9407-9411 ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SPACE CAB(TFB*C*) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9412- ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X2 SINGLE CAB LONG(TFB0SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9412- ● ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SPACE CAB(TFS*C*) SAUDI ARABIA EQUIPMENT(EU2) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9412- ● ●
53 03.145 HOSE; EVAP,FUEL TANK TO JOINT
4X4 SINGLE CAB LONG(TFS*SF) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9412- ● ●
64 03.120 CLIP; EVAP HOSE
CHILE EQUIPMENT(6KB) 01.166 ID=14 		8-94238-572-0 02 1 9210-9403 ●
64 03.120 CLIP; EVAP HOSE
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9404-9411 ●
64 03.120 CLIP; EVAP HOSE
CATALYSIS CONTROL<6MZ> 01.166 ID=14 		8-94238-572-0 02 1 9404-9411 ●
64 03.120 CLIP; EVAP HOSE
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9412- ●
64 03.120 CLIP; EVAP HOSE
CATALYSIS CONTROL<6MZ> 01.166 ID=14 		8-94238-572-0 02 1 9412- ●
64 03.120 CLIP; EVAP HOSE
COLOMBIA EQUIPMENT(X74) 01.166 ID=14 		8-94238-572-0 01 1 9309-9403 ●
64 03.120 CLIP; EVAP HOSE
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 01.166 ID=14 		8-94238-572-0 01 1 9404-9603 ●
64 03.120 CLIP; EVAP HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 01.166 ID=14 		8-94238-572-0 01 1 9604- ●
64 03.120 CLIP; EVAP HOSE
COLOMBIA EQUIPMENT(X74) 03.162 ID=13.2 & 7.5 		8-94315-426-0 01 1 9309-9403 ●
64 03.120 CLIP; EVAP HOSE
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 03.162 ID=13.2 & 7.5 		8-94315-426-0 01 1 9404-9603 ●
64 03.120 CLIP; EVAP HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 03.162 ID=13.2 & 7.5 		8-94315-426-0 01 1 9604- ●
68 03.130 VALVE; VENTILATION
CHILE EQUIPMENT(6KB) 01.750 		8-94227-889-0 01 1 9210-9308 ●
68 03.130 VALVE; VENTILATION
COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 01.750 		8-94227-889-0 01 1 9309-9309 ●
68 03.130 VALVE; VENTILATION
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.750 		8-94227-889-0 01 1 9310- ●
