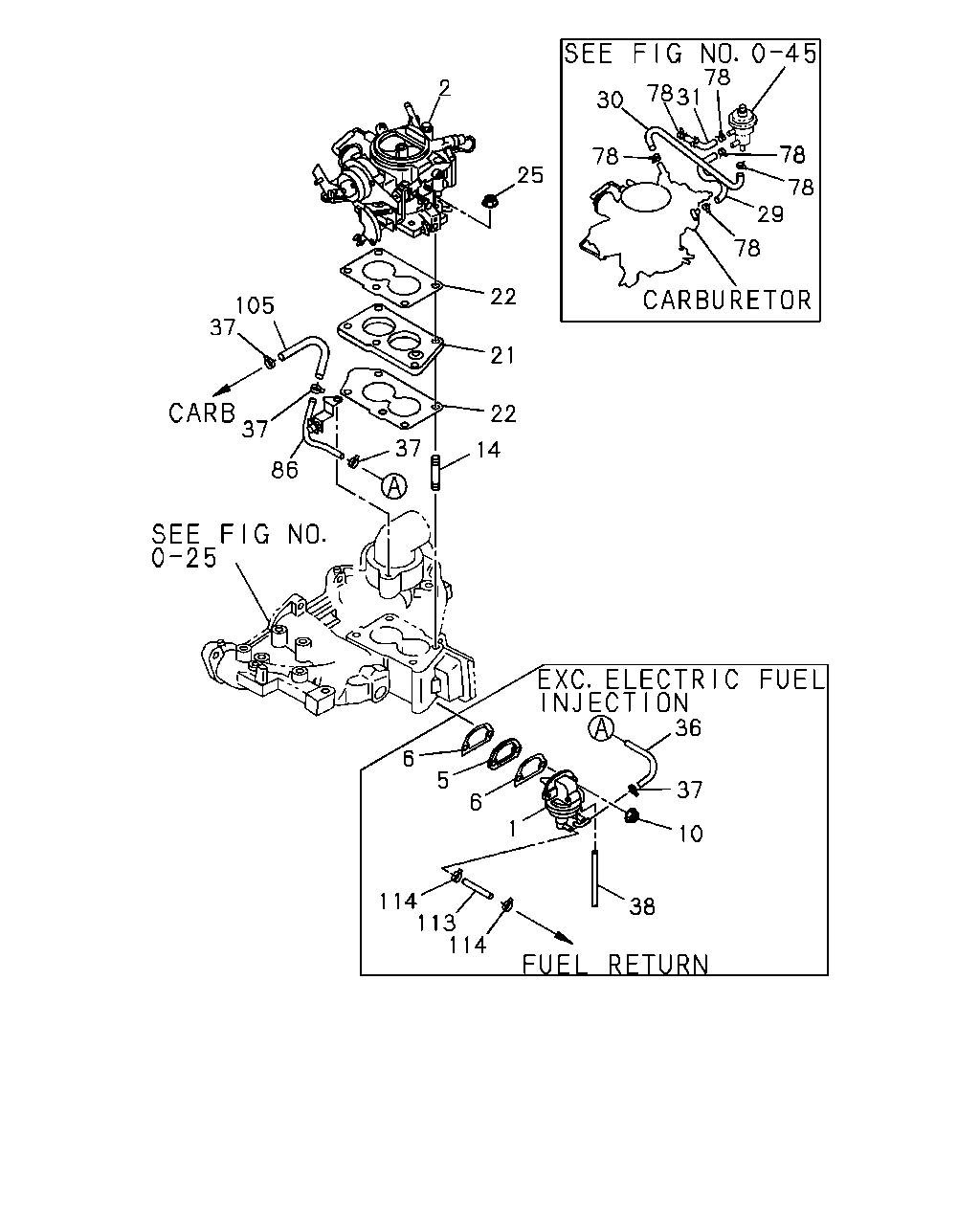

0-42 — FUEL PUMP AND PIPE (#48002) — 89 parça

70 16 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
16	03.162 WASHER; PL,FUEL HOSE CLIP 16.125 ID=5.3 OD=12	9-09160-605-0	01	1	9210-9308	●
70	03.162 CLIP; HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) ID=6.8X2	8-94126-636-0	02	1	9210-9308	●
111	03.162 CLIP; FUEL PIPE 03.302 ID=11 L=16	9-09525-022-0	01	1	9210-9308	●

2 25 22 21 22 14 37 105 37 37 86 78 30 78 31 78 78 78 29 78 36 37 10 38 1 6 5 6 114 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
1	03.900 PUMP ASM; FUEL	8-94438-533-0	01	1	9210-9403	●	●	●
1	03.900 PUMP ASM; FUEL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94438-533-0	01	1	9404-	●	●	●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2)	8-94337-630-2	01	1	9210-	●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94337-628-1	01	1	9210-9410	●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94337-628-2	01	1	9410-	●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. CHILE EQUIPMENT(6KB)	8-94455-754-2	01	1	9210-9403		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94455-754-2	01	1	9404-9411		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-94455-754-2	01	1	9404-9411		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94455-754-2	01	1	9412-		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-94455-754-2	01	1	9412-		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. COLOMBIA EQUIPMENT(X74)	8-97093-875-0	01	1	9309-9403		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ>	8-97093-875-0	01	1	9404-9603		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ>	8-97093-875-1	01	1	9604-		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2)	8-94453-918-1	01	1	9210-9509		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94453-918-2	01	1	9510-		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB)	8-97026-358-0	01	1	9210-9308		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97026-358-0	01	1	9309-9309		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD)	8-97026-358-2	01	1	9310-		●
2	03.725 CARBURETOR ASM SEE FIG-NO 0-70 FOR COMPONENT.	8-97069-282-1	01	1	9210-			●
5	03.901 INSULATOR; HEAT,FUEL PUMP 03.843	8-94146-258-0	01	1	9210-9403	●	●	●
5	03.901 INSULATOR; HEAT,FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG> 03.843	8-94146-258-0	01	1	9404-	●	●	●
6	03.904 GASKET; FUEL PUMP	8-94324-196-0	02	1	9210-9403	●	●	●
6	03.904 GASKET; FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG>	8-94324-196-0	02	1	9404-	●	●	●
10	03.901 NUT; FUEL PUMP 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-9403	●	●	●
10	03.901 NUT; FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG> 00.854 M8 FLANGE	5-09440-005-0	02	1	9404-	●	●	●
14	03.278 STUD; CARB TO INL MANIF 03.726 M8X21 L=52	8-94150-232-0	04	1	9210-	●	●
14	03.278 STUD; CARB TO INL MANIF 03.275 M8X27 L=39	8-94202-304-0	04	1	9210-			●
21	03.602 INSULATOR; HEAT EXC. CHILE EQUIPMENT(6KB) 03.726	8-94156-661-1	01	1	9210-9411	●	●
21	03.602 INSULATOR; HEAT EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.726	8-94156-661-1	01	1	9412-	●	●
22	03.726 GASKET; HEAT INSULATION EXC. CHILE EQUIPMENT(6KB)	8-94150-145-0	02	1	9210-9411	●	●
22	03.726 GASKET; HEAT INSULATION EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94150-145-0	02	1	9412-	●	●
25	03.275 NUT; CARB TO INL MANIF 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9210-9403	●	●	●
25	03.275 NUT; CARB TO INL MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9404-	●	●	●
29	03.163 HOSE; RUBBER,CARBURETOR TO VLV CHILE EQUIPMENT(6KB) 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9403		●
29	03.163 HOSE; RUBBER,CARBURETOR TO VLV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9404-9411		●
29	03.163 HOSE; RUBBER,CARBURETOR TO VLV COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9404-9411		●
29	03.163 HOSE; RUBBER,CARBURETOR TO VLV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9412-		●
29	03.163 HOSE; RUBBER,CARBURETOR TO VLV COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9412-		●
30	03.163 HOSE; RUBBER,VLV TO CARBURETOR CHILE EQUIPMENT(6KB) 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9403		●
30	03.163 HOSE; RUBBER,VLV TO CARBURETOR CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9404-9411		●
30	03.163 HOSE; RUBBER,VLV TO CARBURETOR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9404-9411		●
30	03.163 HOSE; RUBBER,VLV TO CARBURETOR CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9412-		●
30	03.163 HOSE; RUBBER,VLV TO CARBURETOR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9412-		●
31	03.163 HOSE; RUBBER,VLV TO 3 WAY CHILE EQUIPMENT(6KB) 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9210-9403		●
31	03.163 HOSE; RUBBER,VLV TO 3 WAY CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9404-9411		●
31	03.163 HOSE; RUBBER,VLV TO 3 WAY COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9404-9411		●
31	03.163 HOSE; RUBBER,VLV TO 3 WAY CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9412-		●
31	03.163 HOSE; RUBBER,VLV TO 3 WAY COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9412-		●
36	03.163 HOSE; FUEL PUMP TO CARB 08.962 L=110 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307	●	●	●
36	03.163 HOSE; FUEL PUMP TO CARB 08.962 L=110 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9403	●	●	●
36	03.163 HOSE; FUEL PUMP TO CARB EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=110 SERVICED BY L=3000	0-01258-300-0	01	1	9404-	●	●	●
37	03.162 CLIP; FUEL HOSE 01.166 ID=14	8-94238-572-0	02	1	9210-9403	●	●	●
37	03.162 CLIP; FUEL HOSE EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14	8-94238-572-0	02	1	9404-	●	●	●
38	03.163 HOSE; RUBBER,FUEL DRAIN,FUEL PUM 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9403	●	●	●
38	03.163 HOSE; RUBBER,FUEL DRAIN,FUEL PUM EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9404-	●	●	●
78	03.675 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB) 03.163 ID=11	8-94238-570-0	04	1	9210-9308		●
78	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) 03.163 ID=11	8-94238-570-0	02	1	9309-9309		●
78	03.675 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB) 03.163 ID=11	8-94238-570-0	04	1	9309-9403		●
78	03.675 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.163 ID=11	8-94238-570-0	04	1	9404-9411		●
78	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.163 ID=11	8-94238-570-0	04	1	9404-9411		●
78	03.675 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.163 ID=11	8-94238-570-0	04	1	9412-		●
78	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.163 ID=11	8-94238-570-0	04	1	9412-		●
78	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) 03.163 ID=11	8-94238-570-0	02	1	9309-9403		●
78	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 03.163 ID=11	8-94238-570-0	02	1	9404-9603		●
78	03.675 CLIP; RUBBER HOSE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 03.163 ID=11	8-94238-570-0	02	1	9604-		●
78	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) 01.219 ID=12	8-94238-610-0	02	1	9309-9403		●
78	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 01.219 ID=12	8-94238-610-0	02	1	9404-9603		●
78	03.675 CLIP; RUBBER HOSE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 01.219 ID=12	8-94238-610-0	02	1	9604-		●
86	03.163 PIPE; FUEL,PUMP TO CARBURETOR	8-94328-844-0	01	1	9210-9403	●	●	●
86	03.163 PIPE; FUEL,PUMP TO CARBURETOR EXC. ELECTRIC FUEL INJECTION<6GG>	8-94328-844-0	01	1	9404-	●	●	●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 08.962 L=220 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307	●	●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> 08.962 L=220 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9411	●	●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-01258-300-0	01	1	9412-	●	●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR CHILE EQUIPMENT(6KB) L=160	8-94362-089-0	01	1	9210-9403		●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR L=160	8-94362-089-0	01	1	9210-9403			●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> L=160	8-94362-089-0	01	1	9404-9411		●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> L=160	8-94362-089-0	01	1	9404-9411		●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR L=160	8-94362-089-0	01	1	9404-9411			●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> L=160	8-94362-089-0	01	1	9412-		●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> L=160	8-94362-089-0	01	1	9412-		●
105	03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR L=160	8-94362-089-0	01	1	9412-			●
113	03.163 HOSE; FUEL,FUEL PUMP TO DAMPER 08.962 L=60 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307	●	●	●
113	03.163 HOSE; FUEL,FUEL PUMP TO DAMPER 08.962 L=60 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9403	●	●	●
113	03.163 HOSE; FUEL,FUEL PUMP TO DAMPER EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=60 SERVICED BY L=3000	0-01258-300-0	01	1	9404-	●	●	●
114	01.166 CLIP; FUEL HOSE,DAMPER ID=14	8-94238-572-0	04	1	9210-9403	●	●	●
114	01.166 CLIP; FUEL HOSE,DAMPER EXC. ELECTRIC FUEL INJECTION<6GG> ID=14	8-94238-572-0	04	1	9404-	●	●	●
