1 |

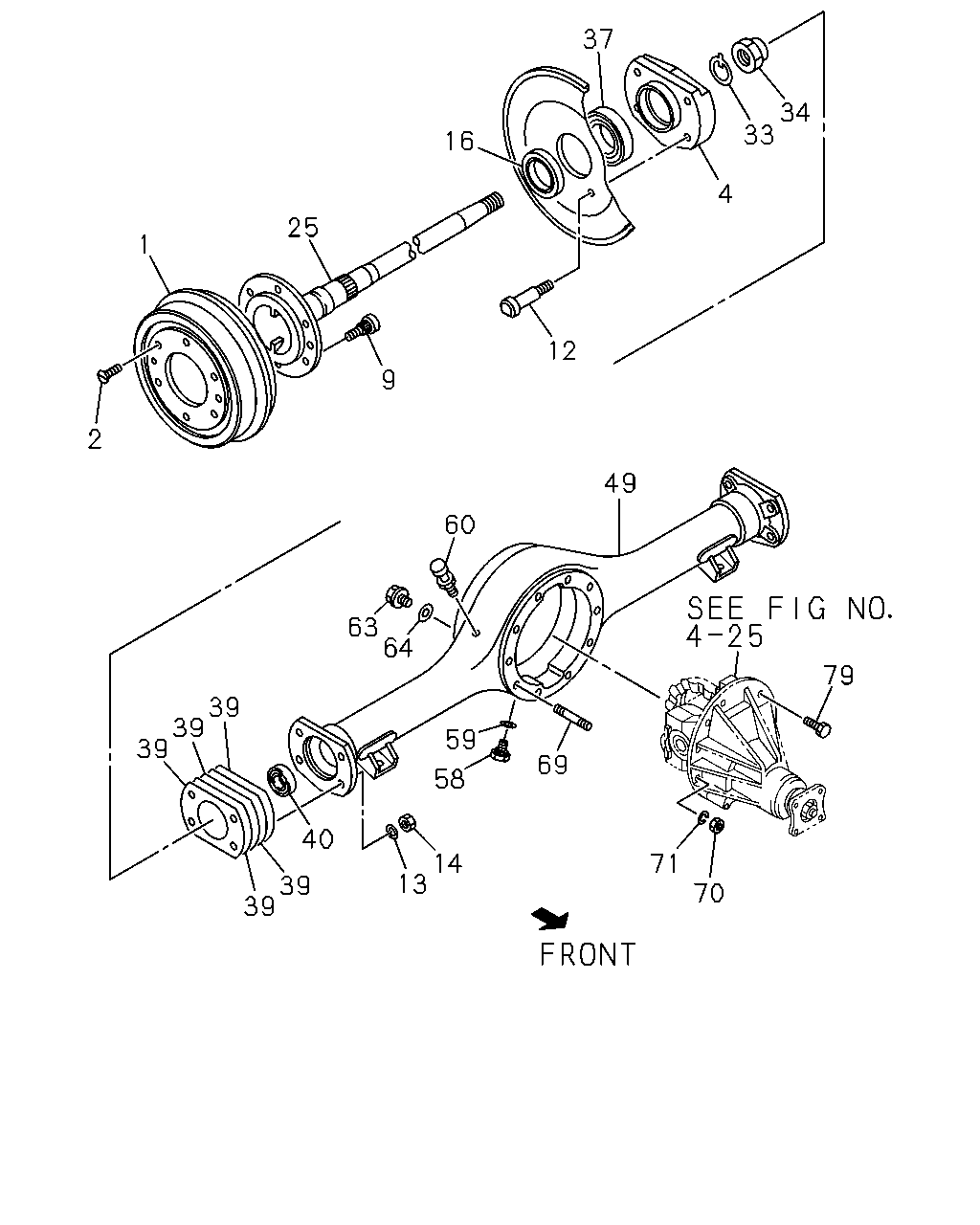

05.809 DRUM; BRK,RR
|
8-94226-829-1 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)
|
8-94226-829-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97113-020-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
6VD1 ENG(RLV)
|
8-97113-020-0 |
02 |
1 |
9712- |
|
|
|
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1
ENG(RLF),4ZE1 ENG(RLJ)
|
8-97113-020-0 |
02 |
1 |
9712- |
|
|
|
|
● |
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97113-020-0 |
02 |
1 |
9712- |
|
|
|
|
|
|
|
● |
| |
2 |
05.812 BOLT; BRK DRUM
M6X16 CK-HEAD
|
9-03090-616-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
|
8-94469-695-1 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
|
8-94469-695-1 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
|
8-94469-695-1 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
|
8-94469-695-1 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94469-695-1 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94469-695-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
|
8-94469-695-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-94469-695-1 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
|
8-94469-695-1 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
|
8-94223-079-3 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
REAR AXLE W/LSPV<7KA>
|
8-94223-079-3 |
02 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
|
8-94223-079-3 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
|
8-94223-079-3 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
|
9-42331-601-2 |
12 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
M12X83
|
8-94471-384-2 |
04 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M12X83
|
8-94471-384-2 |
04 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
M12X83
|
8-94471-384-2 |
04 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
M12X83
|
8-94471-384-2 |
04 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M12X83
|
8-94471-384-2 |
04 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M12X83
|
8-94471-384-2 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M12X83
|
8-94471-384-2 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
M12X83
|
8-94471-384-2 |
04 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
M12X83
|
8-94471-384-2 |
04 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
M12X83
|
8-94471-385-2 |
04 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M12X83
|
8-94471-385-2 |
04 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
M12X83
|
8-94471-385-2 |
04 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
M12X83
|
8-94471-385-2 |
04 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M12X83
|
8-94471-385-2 |
04 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M12X83
|
8-94471-385-2 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M12X83
|
8-94471-385-2 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
M12X83
|
8-94471-385-2 |
04 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
M12X83
|
8-94471-385-2 |
04 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
M12X72
|
8-94477-674-1 |
04 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
REAR AXLE W/LSPV<7KA>
M12X72
|
8-94477-674-1 |
04 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
M12X72
|
8-94477-674-1 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
M12X72
|
8-94477-674-1 |
04 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
M12X69 REAMER
|
9-42119-603-2 |
04 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
REAR AXLE W/LSPV<7KA>
M12X69 REAMER
|
9-42119-603-2 |
04 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
M12X69 REAMER
|
9-42119-603-2 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
M12X69 REAMER
|
9-42119-603-2 |
04 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
13 |
05.816 WASHER; LK,BRG HOLDER TO CASE
04.634
ID=12.2
|
9-09150-512-0 |
08 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12
|
8-97138-934-0 |
08 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
ID=47 OD=70
|
8-94318-909-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE W/LSPV<7KA>
ID=47 OD=70
|
8-94318-909-0 |
02 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
ID=47 OD=70
|
8-94318-909-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
ID=47 OD=70
|
8-94318-909-0 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
|
8-94469-694-3 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. COLOMBIA EQUIPMENT(X74),M/T
LOW GEARED(6WF)
|
8-94469-694-3 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
|
8-94178-143-3 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE W/LSPV<7KA>
|
8-94178-143-3 |
02 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
|
8-94178-143-3 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
|
8-94178-143-3 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94319-326-3 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
|
8-94319-326-3 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94319-326-3 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-94319-326-3 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
EXC. M/T LOW GEARED(6WF)
|
8-94319-326-3 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
|
8-97086-472-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
|
8-97086-472-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
33 |
05.422 WASHER; AXLE SHAFT
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
|
8-97086-472-0 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
|
8-97086-472-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97086-472-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97086-472-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
|
8-97086-472-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-97086-472-0 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
|
8-97086-472-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
|
8-97086-473-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
REAR AXLE W/LSPV<7KA>
|
8-97086-473-0 |
02 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
|
8-97086-473-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
05.422 WASHER; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
|
8-97086-473-0 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
M45
|
8-94178-278-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M45
|
8-94178-278-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
M45
|
8-94178-278-0 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
M45
|
8-94178-278-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M45
|
8-94178-278-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M45
|
8-94178-278-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M45
|
8-94178-278-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
M45
|
8-94178-278-0 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
M45
|
8-94178-278-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
05.830
|
8-94177-815-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
REAR AXLE W/LSPV<7KA>
05.830
|
8-94177-815-0 |
02 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
05.830
|
8-94177-815-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
05.830
|
8-94177-815-0 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
NSK
|
9-00093-627-2 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE W/LSPV<7KA>
NSK
|
9-00093-627-2 |
02 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
NSK
|
9-00093-627-2 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
NSK
|
9-00093-627-2 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
39 |
05.816 SHIM; BRG HOLDER
T=1.000
|
8-94469-775-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.500
|
8-94469-776-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.130
|
8-94469-777-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.076
|
8-94469-778-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.050
|
8-94469-779-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZD1 ENG(LW3)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
|
8-94318-910-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
REAR AXLE W/LSPV<7KA>
|
8-94318-910-0 |
02 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>
|
8-94318-910-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
|
8-94318-910-0 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. M/T LOW GEARED(6WF)
|
8-94326-048-5 |
01 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
EXC. COLOMBIA EQUIPMENT(X74),M/T
LOW GEARED(6WF)
|
8-94326-048-6 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
M/T LOW GEARED(6WF),REAR AXLE
W/LSPV<7KA>
|
8-94434-912-6 |
01 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. REAR SPRING HEAVY DUTY(G50),
COLOMBIA EQUIPMENT(X74),M/T LOW GEARE
D(6WF),REAR AXLE W/LSPV<7KA>,
ARGENTINA EQUIPMENT(7SZ)
|
8-94434-912-7 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF)
ARGENTINA EQUIPMENT(7SZ)
|
8-94337-224-4 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JB1 ENG(RLF)
ARGENTINA EQUIPMENT(7SZ)
|
8-94337-224-4 |
01 |
1 |
9712- |
|
|
|
|
● |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
|
8-94319-325-5 |
01 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
EXC. REAR SPRING HEAVY DUTY(G50)
|
8-94319-325-5 |
01 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
EXC. REAR SPRING HEAVY DUTY(G50)
|
8-94319-325-5 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
EXC. REAR SPRING HEAVY DUTY(G50),
ARGENTINA EQUIPMENT(7SZ)
|
8-94319-325-5 |
01 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
EXC. REAR SPRING HEAVY DUTY(G50)
|
8-94319-325-5 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
6VD1 ENG(RLV)
|
8-94319-325-5 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M/T LOW GEARED(6WF)
|
8-97040-116-2 |
01 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
REAR SPRING HEAVY DUTY(G50)
|
8-97040-116-2 |
01 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR SPRING HEAVY DUTY(G50)
M/T LOW GEARED(6WF)
|
8-97040-116-2 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
REAR SPRING HEAVY DUTY(G50)
|
8-97040-116-2 |
01 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4ZD1 ENG(LW3)
REAR SPRING HEAVY DUTY(G50)
COLOMBIA EQUIPMENT(X74)
EXC. M/T LOW GEARED(6WF)
|
8-97040-116-2 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
REAR AXLE W/LSPV<7KA>
|
8-94434-913-7 |
01 |
1 |
9611- |
|
|
● |
● |
|
|
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. M/T LOW GEARED(6WF)
M8X25 L=36
|
5-09300-037-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. COLOMBIA EQUIPMENT(X74),M/T
LOW GEARED(6WF)
M8X25 L=36
|
5-09300-037-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
EXC. M/T LOW GEARED(6WF)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. M/T LOW GEARED(6WF)
M8
|
5-09400-020-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. COLOMBIA EQUIPMENT(X74),M/T
LOW GEARED(6WF)
M8
|
5-09400-020-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
00.002
M10
|
9-09110-510-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
00.002
M10
|
9-09110-510-0 |
02 |
1 |
9611-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
00.002
M10
|
9-09110-510-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
00.002
M10
|
9-09110-510-0 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
EXC. M/T LOW GEARED(6WF)
00.002
M10
|
9-09110-510-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. M/T LOW GEARED(6WF)
04.046
ID=8.2
|
9-09150-808-0 |
02 |
1 |
9611-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. COLOMBIA EQUIPMENT(X74),M/T
LOW GEARED(6WF)
04.046
ID=8.2
|
9-09150-808-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
00.002
ID=10.2
|
9-09150-610-0 |
10 |
1 |
9611-9612 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
00.002
ID=10.2
|
9-09150-610-0 |
10 |
1 |
9611-9612 |
● |
|
● |
● |
● |
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
9701-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
9701-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
EXC. M/T LOW GEARED(6WF)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
EXC. REAR AXLE LOW GEARED(6ST)
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
04 |
1 |
9611- |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
EXC. REAR AXLE LOW GEARED(6ST)
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
EXC. REAR AXLE LOW GEARED(6ST)
06.156
M8X90 W/LK WASHER
|
8-97093-666-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3)
EXC. M/T LOW GEARED(6WF)
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
REAR AXLE LOW GEARED(6ST)
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
REAR AXLE W/LSPV<7KA>
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. M/T LOW GEARED(6WF)
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3)
EXC. COLOMBIA EQUIPMENT(X74),M/T
LOW GEARED(6WF)
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
REAR AXLE LOW GEARED(6ST)
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9712- |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
REAR AXLE W/LSPV<7KA>
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
06.156
M8X25 W/LK WASHER
|
8-97093-664-0 |
05 |
1 |
9712- |
|
|
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3)
EXC. M/T LOW GEARED(6WF)
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
REAR AXLE LOW GEARED(6ST)
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9611-9711 |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
REAR AXLE W/LSPV<7KA>
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9611-9711 |
|
|
● |
● |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1
ENG(RLE)
EXC. M/T LOW GEARED(6WF)
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9611-9711 |
|
|
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3)
EXC. COLOMBIA EQUIPMENT(X74),M/T
LOW GEARED(6WF)
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
REAR AXLE LOW GEARED(6ST)
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9712- |
● |
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
REAR AXLE W/LSPV<7KA>
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9712- |
|
|
● |
● |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
06.156
M8X30 W/LK WASHER
|
8-97093-665-0 |
03 |
1 |
9712- |
|
|
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M10X90
|
9-01061-090-0 |
01 |
1 |
9611-9612 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
M10X90
|
9-01061-090-0 |
01 |
1 |
9611-9612 |
● |
|
● |
● |
● |
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M10X90
|
0-50061-090-0 |
01 |
1 |
9701-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
M10X90
|
0-50061-090-0 |
01 |
1 |
9701-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M10X90
|
0-50061-090-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
M10X90
|
0-50061-090-0 |
01 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
EXC. M/T LOW GEARED(6WF)
M10X90
|
0-50061-090-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
09.008
M10X32
|
9-02061-032-0 |
07 |
1 |
9611-9612 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
09.008
M10X32
|
9-02061-032-0 |
07 |
1 |
9611-9612 |
● |
|
● |
● |
● |
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M10X30
|
0-50061-030-0 |
07 |
1 |
9701-9711 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ)
M10X30
|
0-50061-030-0 |
07 |
1 |
9701-9711 |
● |
|
● |
● |
● |
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M10X30
|
0-50061-030-0 |
07 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
M10X30
|
0-50061-030-0 |
07 |
1 |
9712- |
● |
|
● |
● |
● |
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
4ZD1 ENG(LW3)
COLOMBIA EQUIPMENT(X74)
EXC. M/T LOW GEARED(6WF)
M10X30
|
0-50061-030-0 |
07 |
1 |
9712- |
|
● |
● |
● |
|
|
|
|
