1-55A — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#4800) — 175 parça

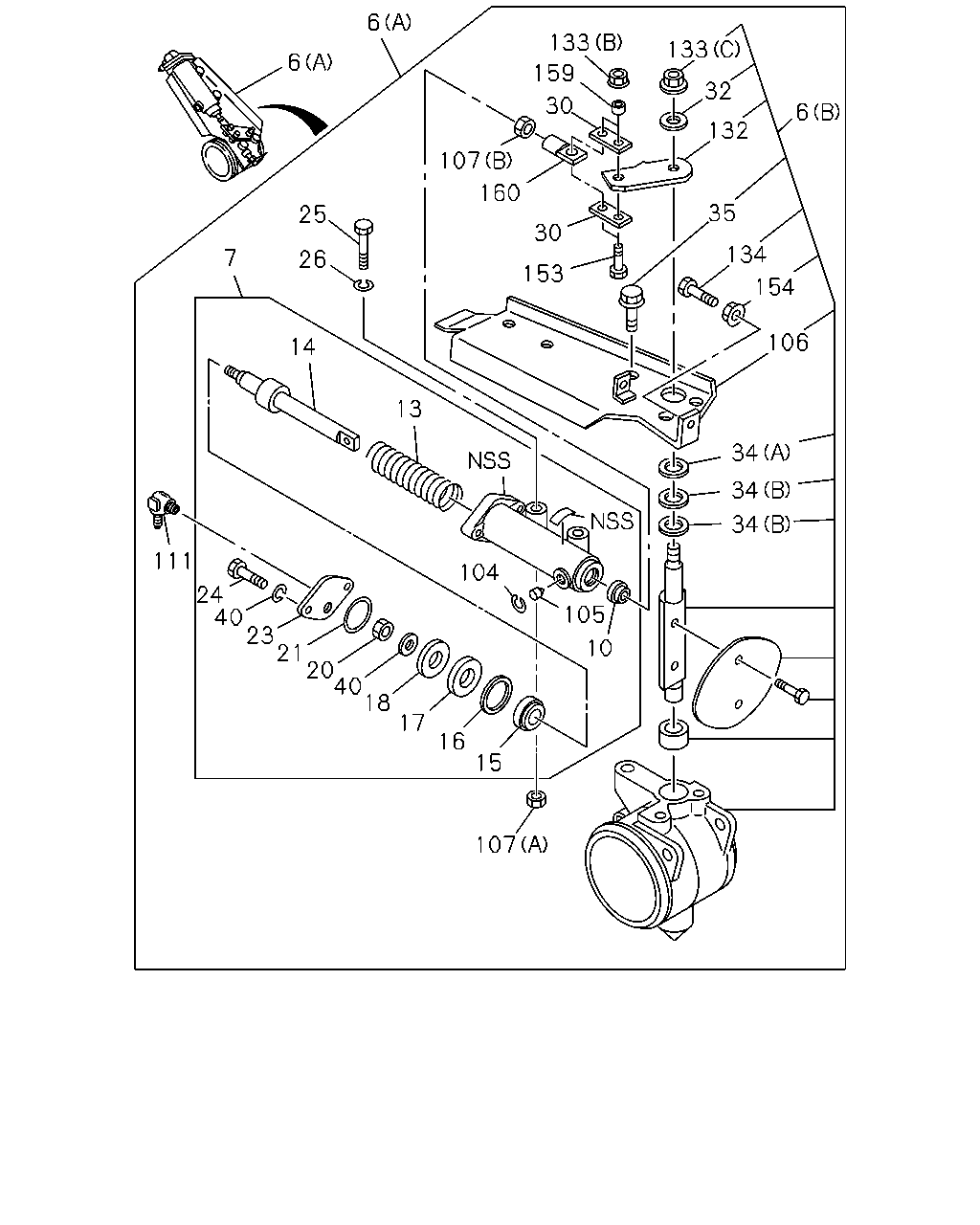

çizim 8198
6 133 133 6 159 32 30 6 132 107 160 35 25 30 134 7 26 153 154 106 14 13 34 34 34 111 104 24 40 23 21 20 40 18 105 10 17 16 15 107
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 VALVE; EXH BRAKE
(A) 		1-14144-603-0 01 1 9601-9610 ●
6 VALVE; EXH BRAKE
(B) 		1-14144-612-0 01 1 9601-9610 ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9611-9704 ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9705-9904 ● ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9905- ● ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-1 01 1 9611-9704 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-2 01 1 9705-9904 ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 9905- ● ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-631-0 01 1 9611-9704 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-150-0 01 1 9611-9704 ●
7 CYLINDER ASM; CONT 1-22190-592-0 01 1 9601-9610 ●
7 CYLINDER ASM; CONT 1-22190-592-0 01 1 9611-9904 ● ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 9905- ● ● ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 9601-9610 ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 9611-9904 ● ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 9905- ● ● ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9601-9610 ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9611-9904 ● ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9905- ● ● ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 9601-9610 ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 9611-9904 ● ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 9905- ● ● ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 9601-9610 ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 9611-9904 ● ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 9905- ● ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9601-9610 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9611-9904 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9905- ● ● ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 9601-9610 ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 9611-9904 ● ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 9905- ● ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9601-9610 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9611-9904 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9905- ● ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9601-9610 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9611-9904 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9905- ● ● ●
21 GASKET; COVER 9-88510-372-0 01 1 9601-9610 ●
21 GASKET; COVER 9-88510-372-0 01 1 9611-9904 ● ●
21 GASKET; COVER 9-88510-372-0 01 1 9905- ● ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9601-9610 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9611-9904 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9905- ● ● ●
24 BOLT; COVER
M8X20 		9-01000-820-0 02 1 9601-9610 ●
24 BOLT; COVER 1-22199-155-0 02 1 9611-9904 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9905- ● ● ●
25 BOLT; CONT CYL
M10X60 		9-01056-060-0 02 1 9601-9610 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9611-9704 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9705-9904 ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9905- ● ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 9611-9704 ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9601-9603 ●
30 ROD; LINK,CONT CYL 1-22199-124-0 02 1 9601-9610 ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 9611-9704 ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 9705-9904 ● ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 9905- ● ● ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 9611-9704 ●
32 WASHER; LK
ID=10.5 OD=26 		9-09164-710-0 01 1 9601-9610 ●
32 WASHER; LK
ID=10.5 OD=26 		9-09164-710-0 01 1 9611-9904 ● ●
32 WASHER; LK
ID=10.5 OD=26 		9-09164-710-0 01 1 9905- ● ● ●
34 RING; SEAL
(A) ID=21 		1-22189-158-0 01 1 9601-9610 ●
34 RING; SEAL
(B) ID=18.8 		1-22189-159-0 02 1 9601-9610 ●
34 RING; SEAL
(A) ID=21 		1-22189-158-0 01 1 9611-9904 ● ●
34 RING; SEAL
(A) ID=21 		1-22189-158-0 01 1 9905- ● ● ●
34 RING; SEAL
(B) ID=18.8 		1-22189-159-0 02 1 9611-9904 ● ●
34 RING; SEAL
(B) ID=18.8 		1-22189-159-0 02 1 9905- ● ● ●
35 BOLT; PLATE FIX
M10X20 		0-28021-020-0 03 1 9601-9610 ●
35 BOLT; PLATE FIX
M10X20 		0-28021-020-0 03 1 9611-9904 ● ●
35 BOLT; PLATE FIX
M10X20 		0-28021-020-0 03 1 9905- ● ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 03 1 9601-9610 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9611-9904 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9905- ● ● ●
104 RING; RET 9-88510-331-0 01 1 9601-9610 ●
104 RING; RET 9-88510-331-0 01 1 9611-9904 ● ●
104 RING; RET 9-88510-331-0 01 1 9905- ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9601-9610 ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9611-9904 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9905- ● ● ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 9601-9610 ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 9611-9904 ● ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 9905- ● ● ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 9601-9610 ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 9601-9610 ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 9611-9704 ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 9705-9904 ● ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 9905- ● ● ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 9611-9904 ● ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 9905- ● ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 9611-9704 ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9601-9610 ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9611-9904 ● ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9905- ● ● ●
132 LEVER; BRK VLV 1-22196-332-0 01 1 9601-9610 ●
132 LEVER; BRK VLV 1-22196-346-0 01 1 9611-9904 ● ●
132 LEVER; BRK VLV 1-22196-346-0 01 1 9905- ● ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 9601-9610 ●
133 NUT; LK
(C) M10 FLANGE 		0-91150-110-0 01 1 9601-9610 ●
133 NUT; LK
(A) M12 		1-09400-010-0 03 1 9601-9605 ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 9611-9904 ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
133 NUT; LK
(C) M10 FLANGE 		0-91150-110-0 01 1 9611-9904 ● ●
133 NUT; LK
(C) M10 FLANGE 		0-91150-110-0 01 1 9905- ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9601-9610 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9611-9904 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9905- ● ● ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9601-9704 ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9705-9904 ● ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9905- ● ● ●
153 BOLT; CLEVIS,CONT CYL
M8X25 FLANGE 		0-28080-825-0 02 1 9611-9704 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9601-9610 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9611-9904 ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 9601-9610 ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 9611-9904 ● ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 9905- ● ● ●
160 JOINT; CONT CYL 1-22199-150-0 01 1 9601-9610 ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 9611-9904 ● ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 9905- ● ● ●

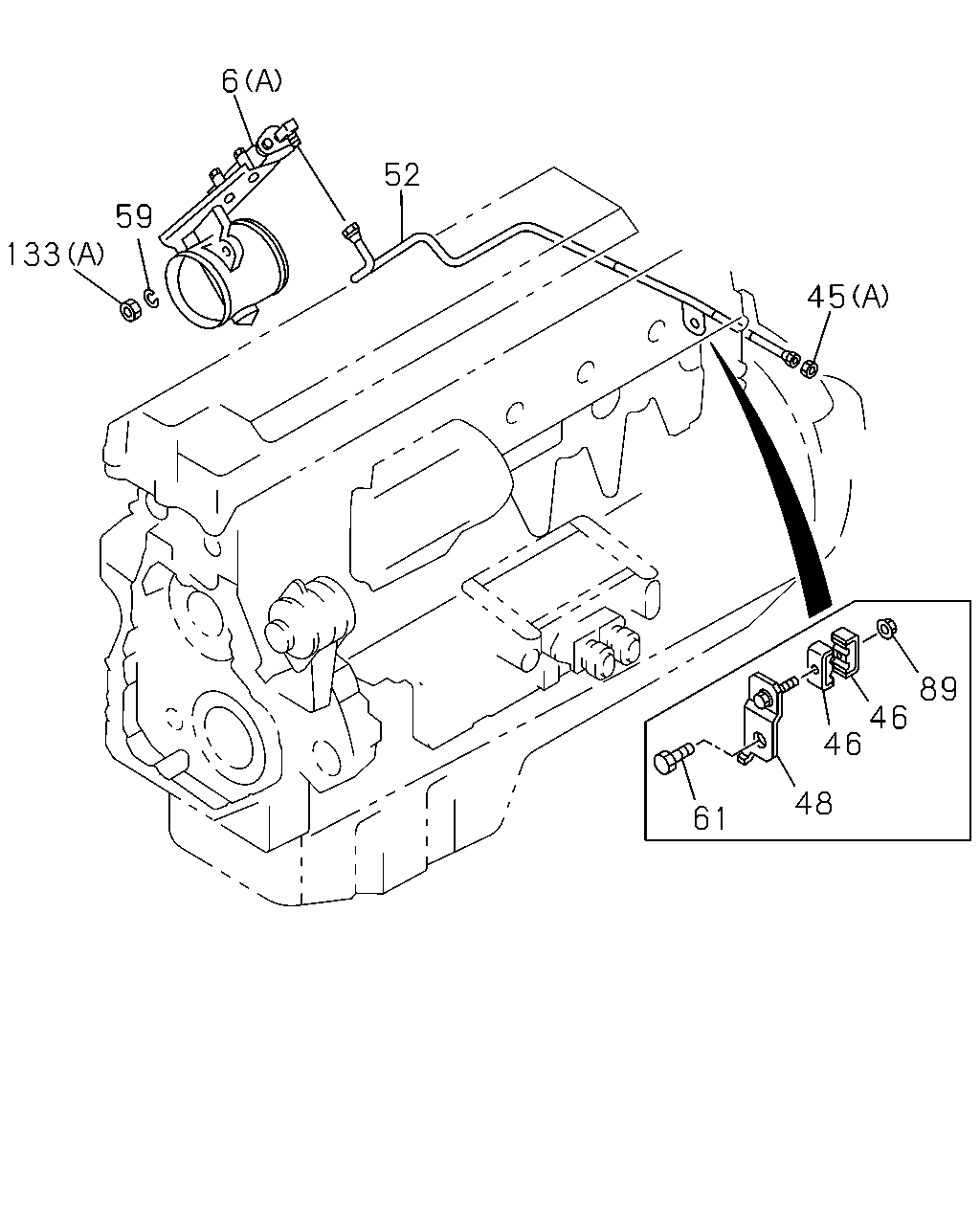

çizim 8756
6 52 59 133 45 89 46 46 48 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 VALVE; EXH BRAKE
(A) 		1-14144-603-0 01 1 9601-9610 ●
6 VALVE; EXH BRAKE
(B) 		1-14144-612-0 01 1 9601-9610 ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9611-9704 ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9705-9904 ● ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9905- ● ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-1 01 1 9611-9704 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-2 01 1 9705-9904 ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 9905- ● ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-631-0 01 1 9611-9704 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-150-0 01 1 9611-9704 ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9601-9610 ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9611-9904 ● ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9601-9610 ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9905- ● ● ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9611-9904 ● ●
46 CLIP; AIR PIPE 1-09701-132-0 02 1 9601-9610 ●
46 CLIP; AIR PIPE 1-09701-132-0 02 1 9611-9904 ● ●
46 CLIP; AIR PIPE 1-09701-132-1 02 1 9905- ● ● ●
48 BRACKET; AIR PIPE 1-47477-407-0 01 1 9601-9610 ●
48 BRACKET; AIR PIPE 1-47477-407-0 01 1 9611-9904 ● ●
48 BRACKET; AIR PIPE 1-47477-407-0 01 1 9905- ● ● ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-904-0 01 1 9601-9610 ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-904-0 01 1 9611-9904 ● ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-904-0 01 1 9905- ● ● ●
59 WASHER; LK
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9601-9605 ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28181-420-0 01 1 9601-9606 ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 9607-9610 ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 9611-9904 ● ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 9905- ● ● ●
89 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9601-9610 ●
89 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9611-9904 ● ●
89 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9905- ● ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 9601-9610 ●
133 NUT; LK
(C) M10 FLANGE 		0-91150-110-0 01 1 9601-9610 ●
133 NUT; LK
(A) M12 		1-09400-010-0 03 1 9601-9605 ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 9611-9904 ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
133 NUT; LK
(C) M10 FLANGE 		0-91150-110-0 01 1 9611-9904 ● ●
133 NUT; LK
(C) M10 FLANGE 		0-91150-110-0 01 1 9905- ● ● ●
çizim 41093
45 44 42 76
BalonParca AdiParca NoAdetTipApplied Date A B C D
42 HOSE; FLEX,EXH BRK
(A) L=260 		0-07120-260-0 01 1 9601-9610 ●
42 HOSE; FLEX,EXH BRK
(A) L=260 		1-09363-609-0 01 1 9611-9904 ● ●
42 HOSE; FLEX,EXH BRK
(A) L=320 		1-09363-656-0 01 1 9905- ● ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9601-9610 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9905- ● ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9611-9904 ● ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9601-9610 ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9611-9904 ● ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9601-9610 ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9905- ● ● ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9611-9904 ● ●
76 PIPE ASM; AIR UNION TO UNION 1-49114-669-0 01 1 9601-9602 ●
76 PIPE ASM; AIR UNION TO UNION
L=436 		1-49117-294-0 01 1 9603-9610 ●
76 PIPE ASM; AIR UNION TO UNION
L=436 SERVICED BY L=460 		1-47428-806-0 01 1 9611-9904 ● ●
76 PIPE ASM; AIR UNION TO UNION
L=436 		1-49117-294-0 01 1 9905-9908 ● ● ●
76 PIPE ASM; AIR UNION TO UNION 1-49122-244-0 01 1 9909- ● ● ●
